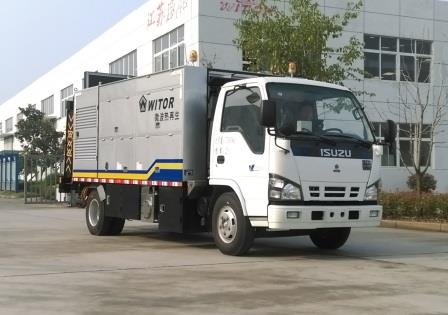

11000L Isuzu bitumen road Maintenance Truck
Chassis |
ISUZU NKR NQP |
Dimension (mm) |
6980x2120x3090 (L*W*H) |
Voltage/power of generator set |
220V/380V, power 30Kw, fuel efficiency 258.4g/Kw.h |
Heating drum |
500Kg/drum, output 4 t/h, rotating speed 12-15rpm |
Heating mode |
RIELLO diesel burner, fuel consumption: 4.5~10kg/h |
Bucket capacity (Kg) |
250kg (based on the density 1.8t/m3) |
Hopper measurement |
S weighing sensor, measuring range 500Kg, total error ±0.03%R.O |
Loading time |
15S, heating 5min, mixing 2min |
Asphalt tank capacity (L) |
1000L, heating duration 1-2h, heating temperature 150°C controllable |
Heating mode of asphalt tank |
Conduction oil heating with diesel burner, fuel consumption 4.5~10kg/h |
Heating rate/heat insulation effect: 15°C/h, temp. drop ≤ 3°C/hour |
|
Asphalt measurement |
Weighing hopper capacity 25Kg, sensor range 100Kg, total error ±0.03%R.O |
Conduction oil capacity |
296L |
Emulsified asphalt capacity |
960L |
Powder measurement |
Hopper capacity 35Kg, sensor range 100Kg, total error ±0.03%R.O |
Cyclone & wet dust collector |
1100-1558m3/h Dust collection capacity: 1,100-1,558m3/h |
Mixing temperature (°C) |
100-160°C |
Mixing method |
Forced mixing with double horizontal axis at the power 11Kw |
Unit oil consumption (Kg/t mixture) |
3.5~6.5 |
Working process |
Preheating heating drum – feeding – drying – mixing – discharge |
Electrical control |
Auto heating under constant temperature, LED digital temperature display, microcomputer central control and manual control, fault diagnosis |
