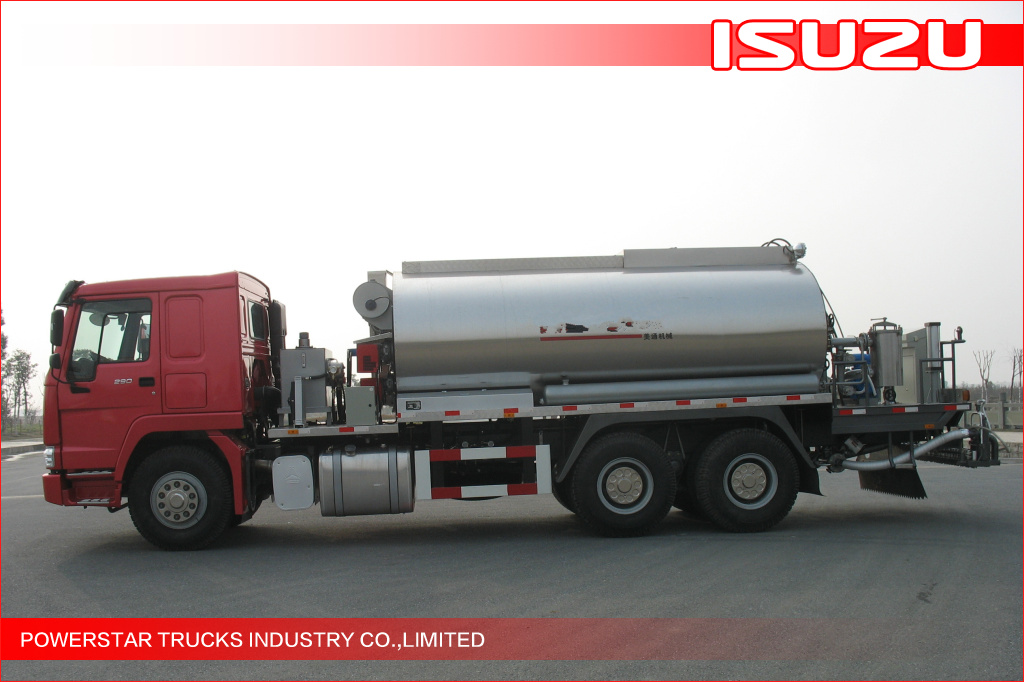

12000L 6x4 ISUZU asphalt distributor truck bitumen distribution truck

12000L 6x4 ISUZU asphalt distributor truck bitumen distribution truck for sale

12000L 6x4 ISUZU asphalt distributor truck bitumen distribution truck

ISUZU automatic asphalt distributor ISUZU 8 ton Asphalt Distributor Truck for sales,2015 New ISUZU official 8 ton Automatic Asphalt Distributor Truck for sale,2015 New 8 tons automatic Hot Asphalt Distributor Truck,New automatic Asphalt Distributor with truck for sales,ISUZU Road machinery Intelligent Hot Asphalt Distributor Truck

Asphalt machinery/automatic asphalt distributor/bitumen sprayer/asphalt spray truck,6x4 8000L Liquid Asphalt Distributor

  • Order(MOQ):

    1

12000L 6x4 ISUZU asphalt distributor truck bitumen distribution truck

 12000L 6x4 ISUZU asphalt distributor truck bitumen distribution trucks

Description:

ISUZU automatic asphalt distributor is typical kind of road construction machinery. We also provide automatic asphalt distributors and rubber asphalt distributors as well as common distributors.

The asphalt distributor can transport asphalt or spray asphalt binder on the ground. It is extensively used in the construction of highways, urban roads, airports, and ports. It can be applied to seal coat, prime coat, waterproof layer, bonding layer of different grades of highway pavement, as well as transport liquid asphalt or other heavy oil.



Application
Isuzu Automatic asphalt distributor is a kind of road machinery. It is applicable for layer-penetration oil, waterproof layer and bond coat at the bottom layer of high-level asphalt road.



Key Features:

  The intelligent nozzle has strong atomization capability so that the asphalt could be evenly sprayed and the pavement could withstand more pressure and water penetration.

  PLC regulating spray volume automatically

  Imported heat-resistance seal elements

  Burner hood of optimization design preventing damages by asphalt eruption through manhole

  High-viscosity asphalt pump

  Warning signs and lighting installation for working at night

  Capacity can be customized 4000L, 6000L, 8000L, 10000L, 15000L and so on



Main specifications:

Model

PT5250GLQ

Driving Type

6x4    (Left hand drive)

Wheelbase

4350+1300 mm

Engine

206 kw (280hp)

Tyre

11.00-20

Outline Dimension of Complete Vehicle (L/W/H mm)

10500×2496×3350

Tank Capacity (m3/density)

12000L~15000L

Seating Capacity (including the driver)

3

Top Speed (km/h)

90

Complete Vehicle Weight (kg)

25000

Rated Load (kg)

12000

Working Speed (km/h)

1.2~6.5

Asphalt Pump Discharge (L/r)

0.86

Max. Spray Width (m)

6

Asphalt Spray Volume (L/m2)

0.3~3.0

Drive System

Driven by hydraulic system

Max. Pressure of hydraulic system (MPa)

15

Asphalt Heat Preservation Way

Heat is preserved by the heat transfer oil system.

Cleaning Way

Cleaning through using the high pressure air and diesel.
