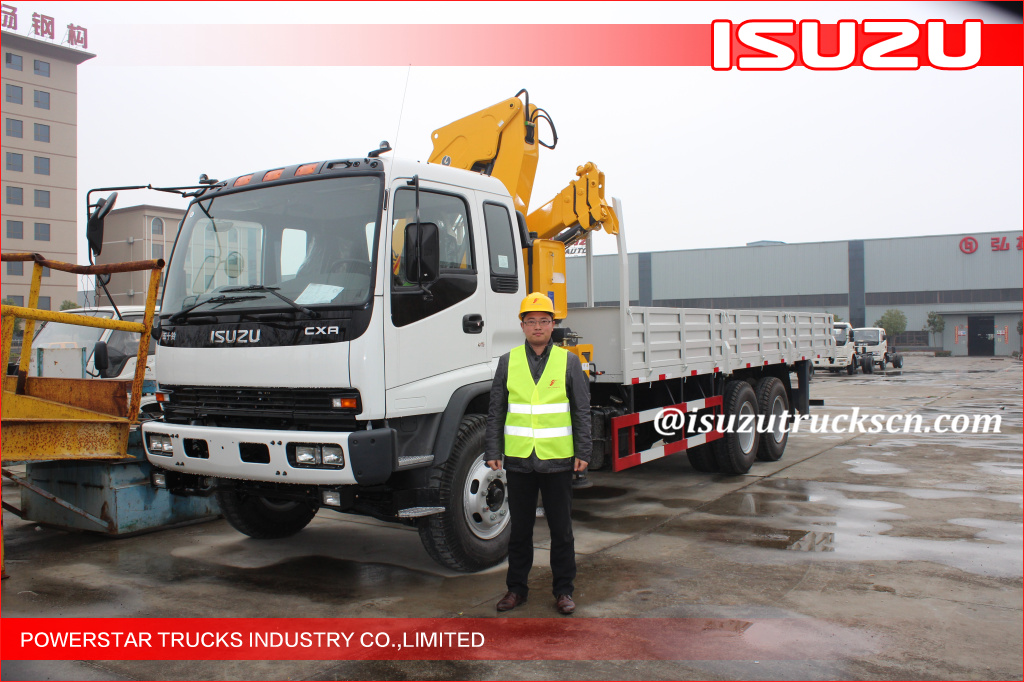

16TONS ISUZU 10WHEELS Folding boom truck crane

Isuzu truck mounted cranes SQ16ZK4Q for sale

Details

16TONS ISUZU 10WHEELS Folding boom truck crane

16TONS ISUZU 10WHEELS Folding boom truck crane



Durable Hydraulic Knuckle Boom Truck Mounted Crane, 16 Ton Truck Loader Crane



  1. Name: Folding boom crane, Folding boom truck crane, Knuckled boom crane, Knuckle boom truck mounted crane
  2. Max Lifting Capacity: 16 ton
  3. Max Lifting Moment: 40 t.m
  4. Max Oil Flow of Hydraulic System: 63 L/min
  5. Max. Lifting height:16meters
  6. Brand: XCMG
  7. Crane Weight: 5000 kg
  8. Oil Tank Capacity: 250 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.


Knuckle boom crane SQ16ZK4Q is lifting capacity is 16tons, moment is 40T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.





Specifications:



Model

SQ16ZK4Q

Unit

Max Lifting Moment

40

t.m

Max Lifting Capacity

16000

kg

Recommend Power Needed At Recommend Oil Flow

37

kw

Max Oil Flow of Hydraulic System

63

L/min

Rated Pressure Of Hydraulic System

31.5

MPa

Oil Tank Capacity

250

L

Rotation Angle

(360°) All Rotation

Crane Weight

4780

kg

Installation Space

1500

mm

Choice of Chassis

ISUZU



SQ16ZK4Q Lifting capability diagram

Working radius(m)

2.5

4.098

5.898

7.748

9.618

11.518

Lifting capacity(kg)

16000

9600

6600

4850

3500

2600



Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
