2.1tons Weight Isuzu Transportation Boom Truck Mounted Crane

8m/ 1 Ton knuckle boom truck mounted crane/with CE/ISO9001/ made in china/truck crane /boom

Details

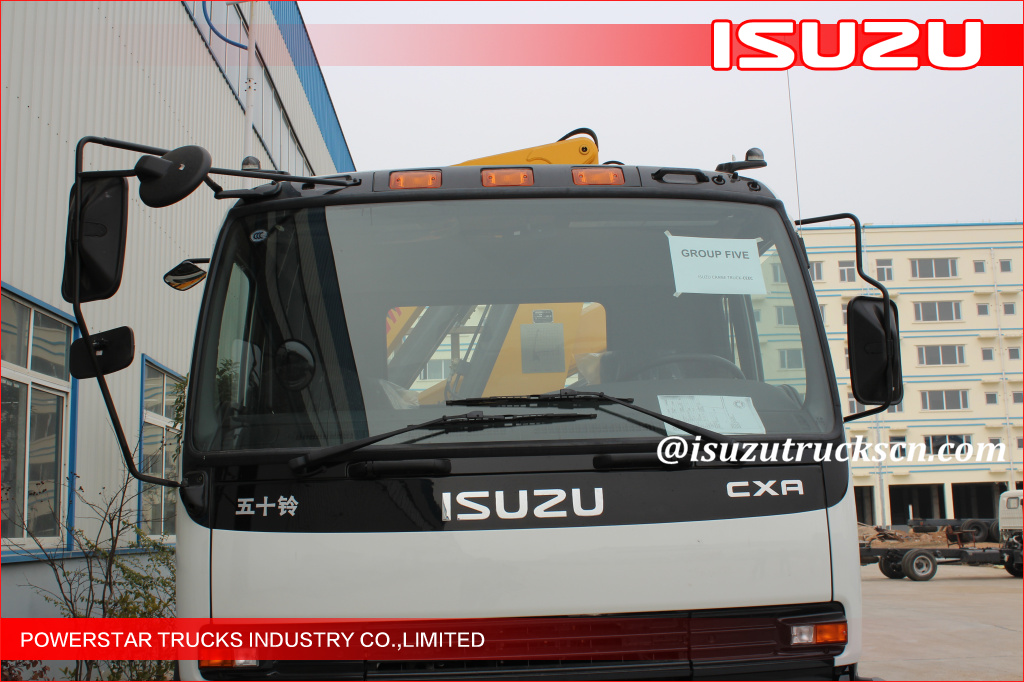

2.1tons Weight Isuzu Transportation Boom Truck Mounted Crane

2.1tons Weight Isuzu Transportation Boom Truck Mounted Crane



Crane 2.1ton Weight IsuzuTransportation Boom Truck Mounted Crane



  1. Name: Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
  2. Max Lifting Capacity: 2.1 ton
  3. Max Lifting Moment: 4.2 T.M
  4. Max Oil Flow of Hydraulic System: 20 L/min
  5. Max.Lifting height:10meters
  6. Brand: XCMG
  7. Crane Weight: 950 kg
  8. Oil Tank Capacity: 25 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.


Telescopic boom crane SQ2SK2Q is lifting capacity is 2.1tons, moment is 4.2T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.





Specifications:



Model

SQ2SK2Q

Unit

Max Lifting Capacity

2100

kg

Max Lifting Moment

4.2

T.M

Recommend Power

9

kw

Max Oil Flow of Hydraulic System

20

L/min

Max Pressure of Hydraulic System

16

MPa

Oil Tank Capacity

25

L

Rotation Angle

All Rotation

Crane Weight

950

kg

Installation Space

850

mm

Choice of Chassis

UD, ISUZU, HINO





SQ2SK1Q Lifting capability diagram



Working radius (m)

2.10

2.50

3.00

Lifting capacity (kg)

2100

1600

1000



Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
