22-26m Egypt 6*4 Isuzu Truck High altitude Operation Vehicle

heavy construction machiney ISUZU lifting equipment 22m aerial working platform service truck for sale

Details

22m Egypt Isuzu Truck High altitude Operation Vehicle



 22-26m Egypt 6*4 Isuzu Truck High altitude Operation Vehicle

22-26m 6*4 Isuzu Truck High altitude Operation Vehicle

Isuzu Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.



Key Features:

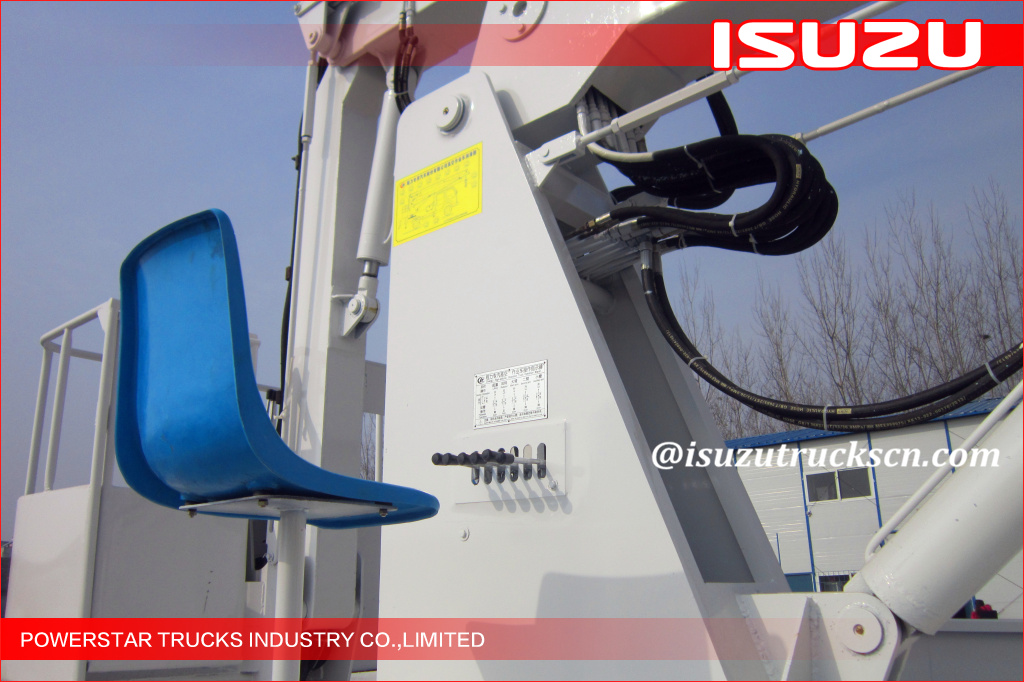

  Can be operated at both turret and platform

  Step less speed regulation

  Imported key components, higher reliability, excellent property and long life-span.

  Larger span of trigger, higher stability

  Urgent power for emergency

  Operation height :  12M, 14M, 16M, 18M, 20M, 22M



Main specifications:

Model

PT5250JGK

Driving Type

6x4    (Left hand drive)

Wheelbase

4350+1300mm

Engine

205 kw (280hp)

Structure type

Three-section articulated boom

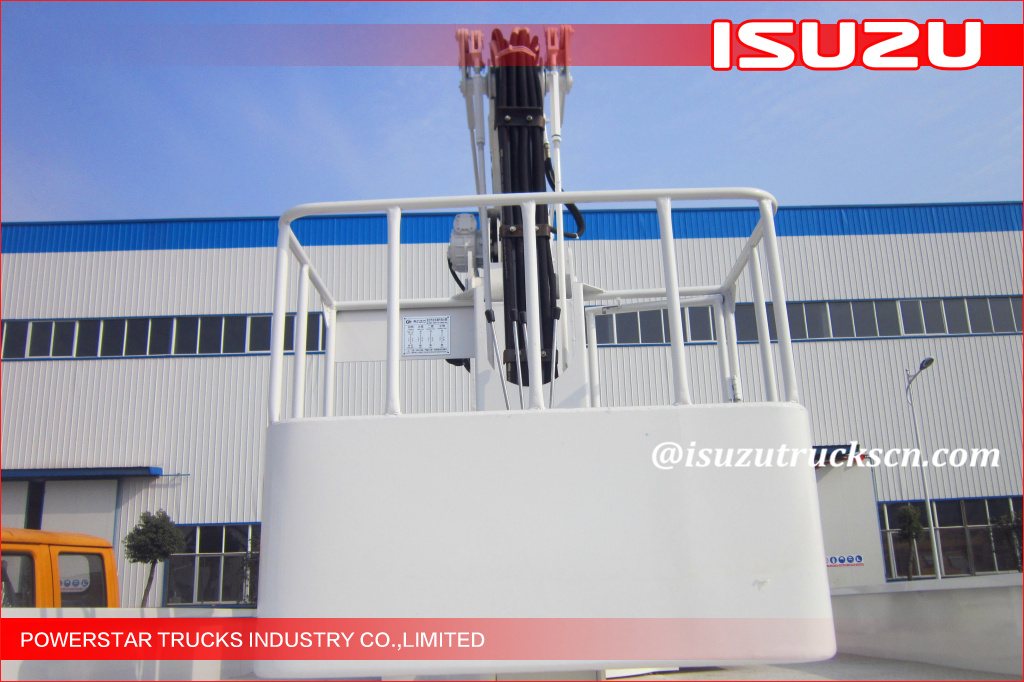

Working Platform

Internal size

1100×600×1100 mm

Rated loading

200kg  (or 2 persons)

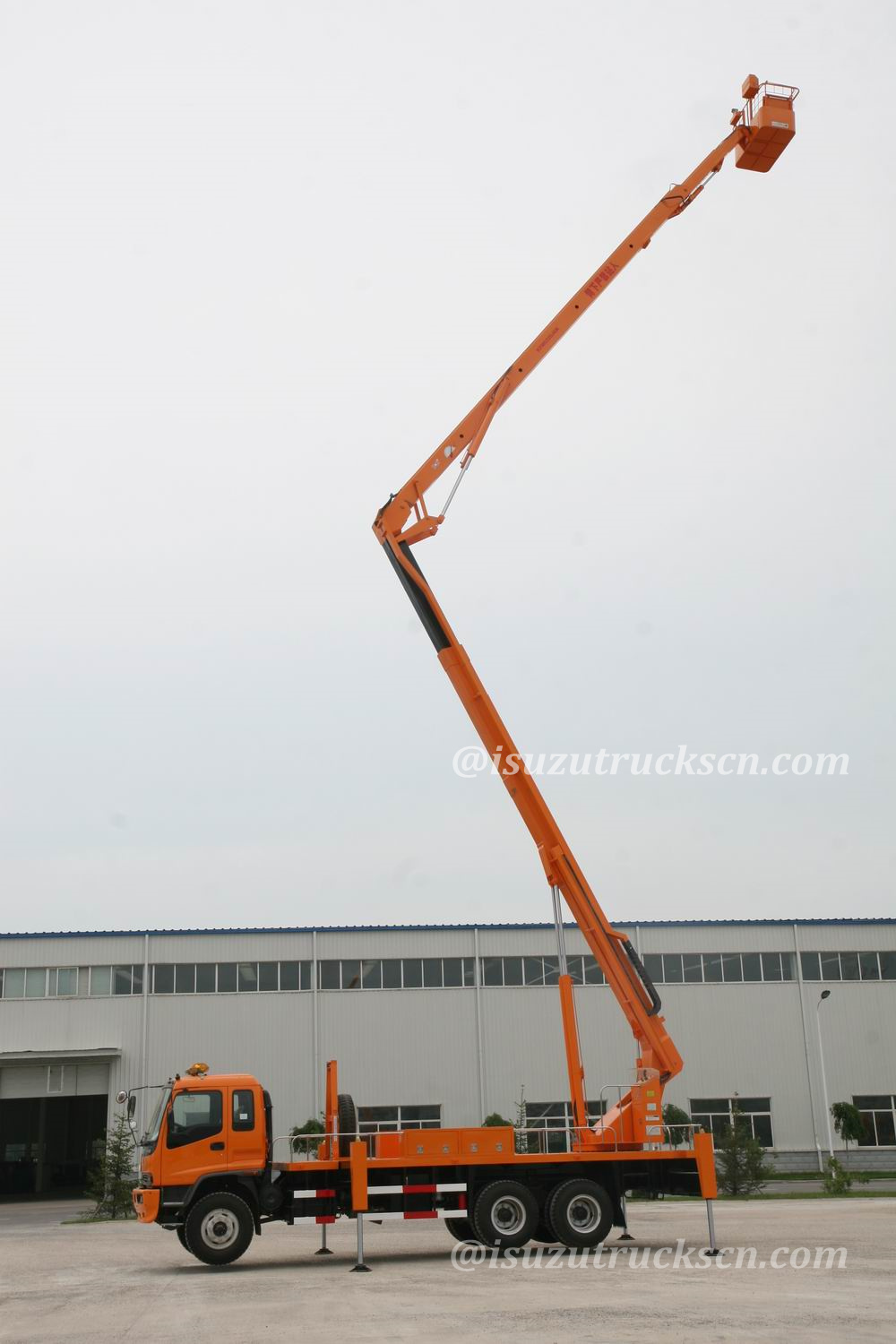

Max. Working height

22 M

Max. Height from ground

12300 mm

Max. Working radius

7700 mm

Working radius when doing the highest height

2950 mm

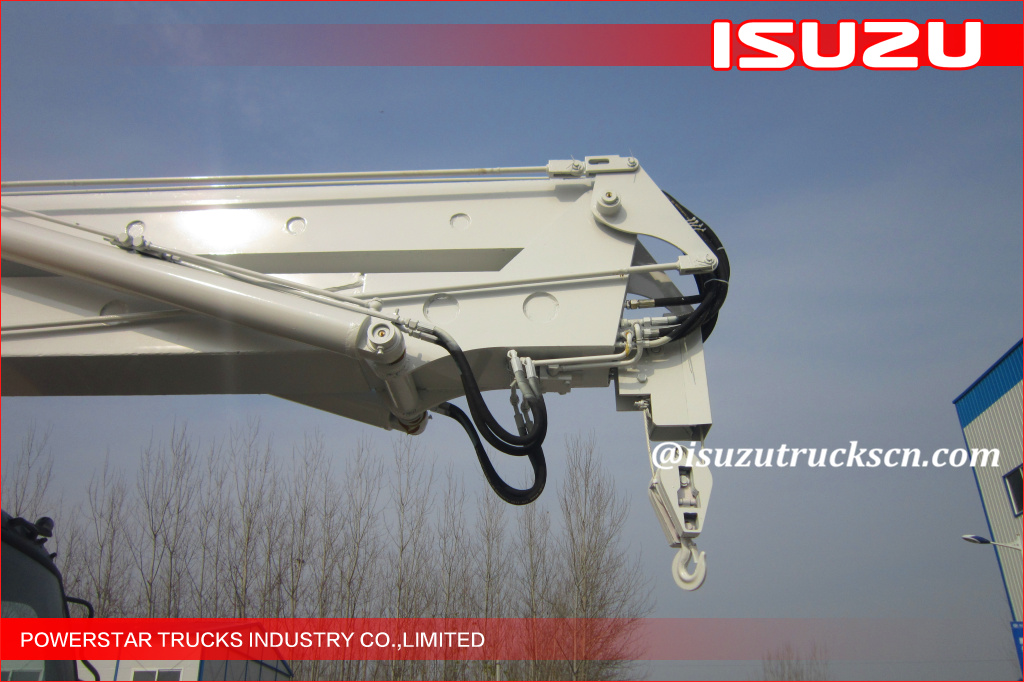

Working Boom

Max. Raising angle of lower boom

70 º

Max. Raising angle of upper boom

70 º

Max. Raising angle of jib

90 º

Boom rack ration angle

360 º

Outrigger

Vertical span

3200 mm

Horizontal span

3600 mm

Traveling of vertical outrigger

450 mm

Adjustment

Single adjustable

Color

Yellow   (Any color & logos up to wish)

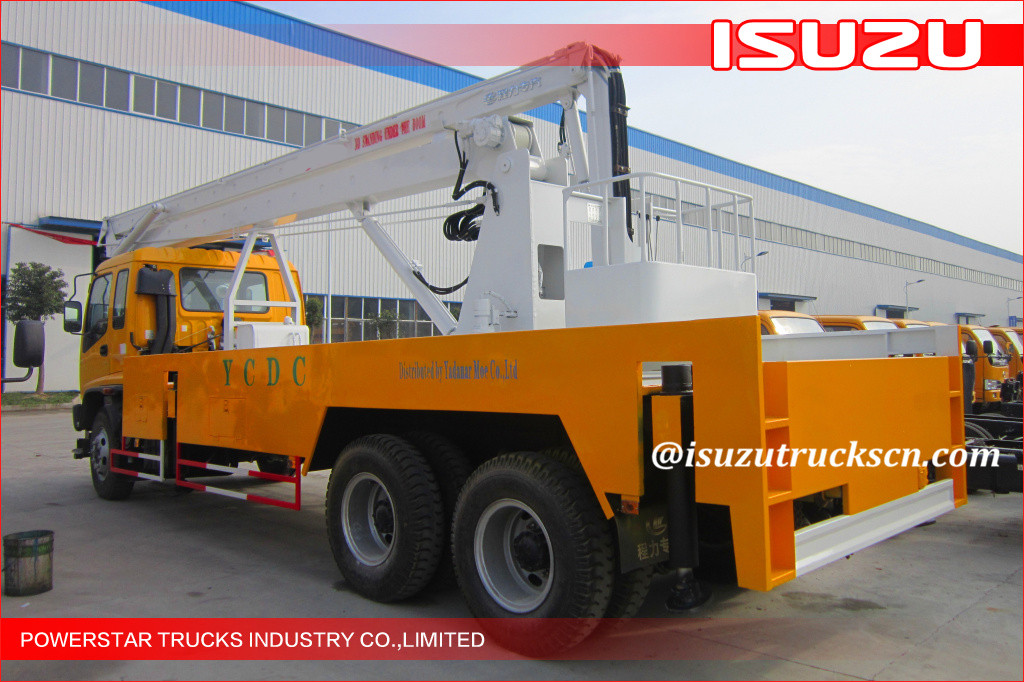

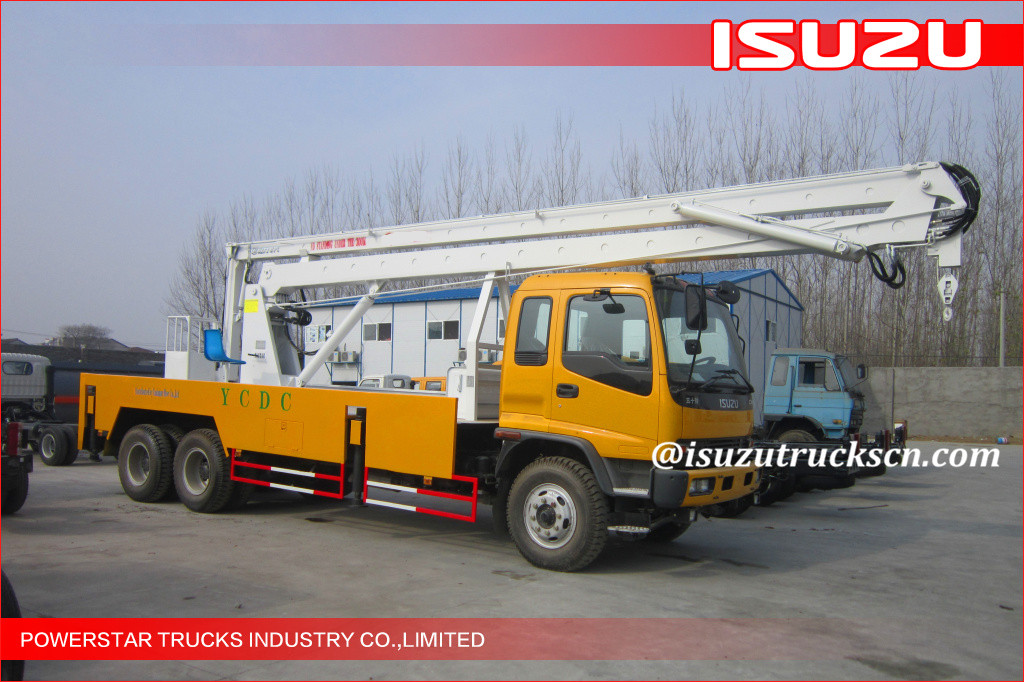

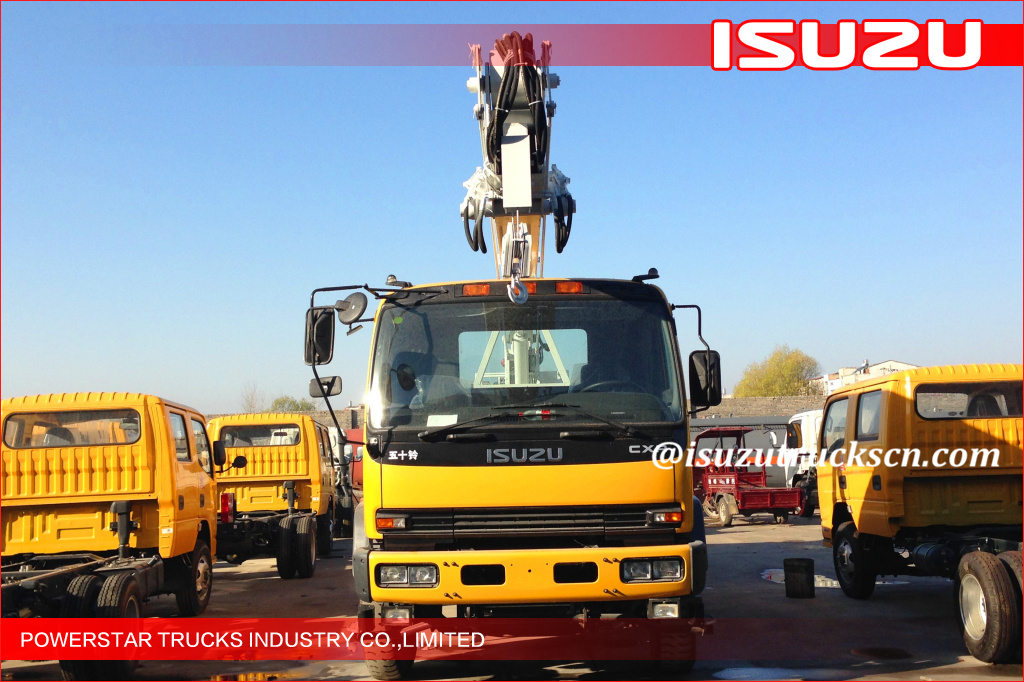

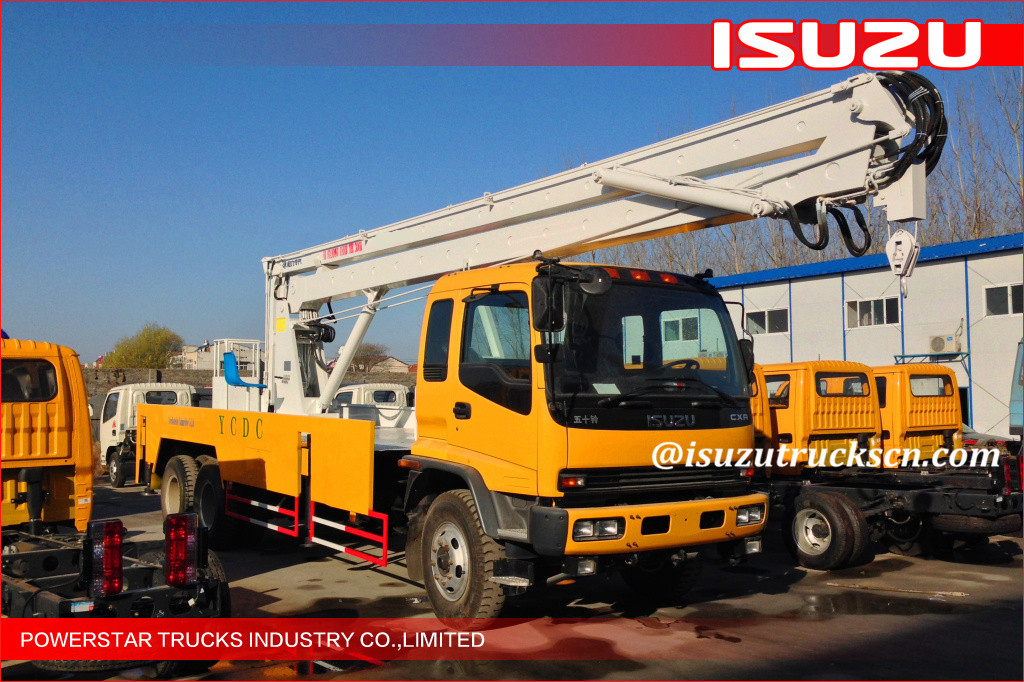

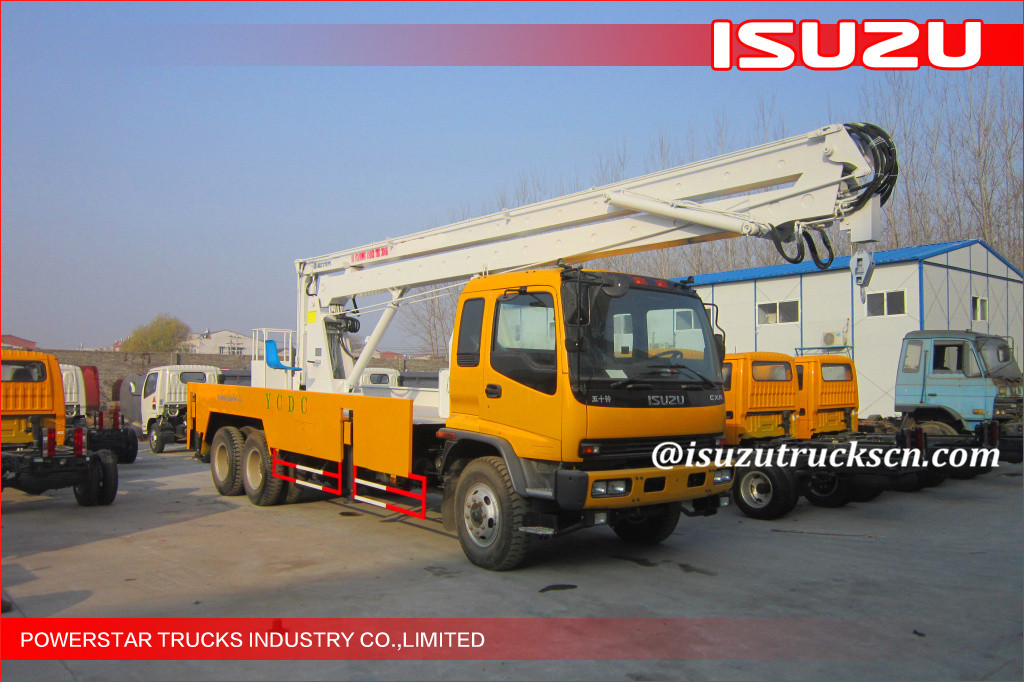

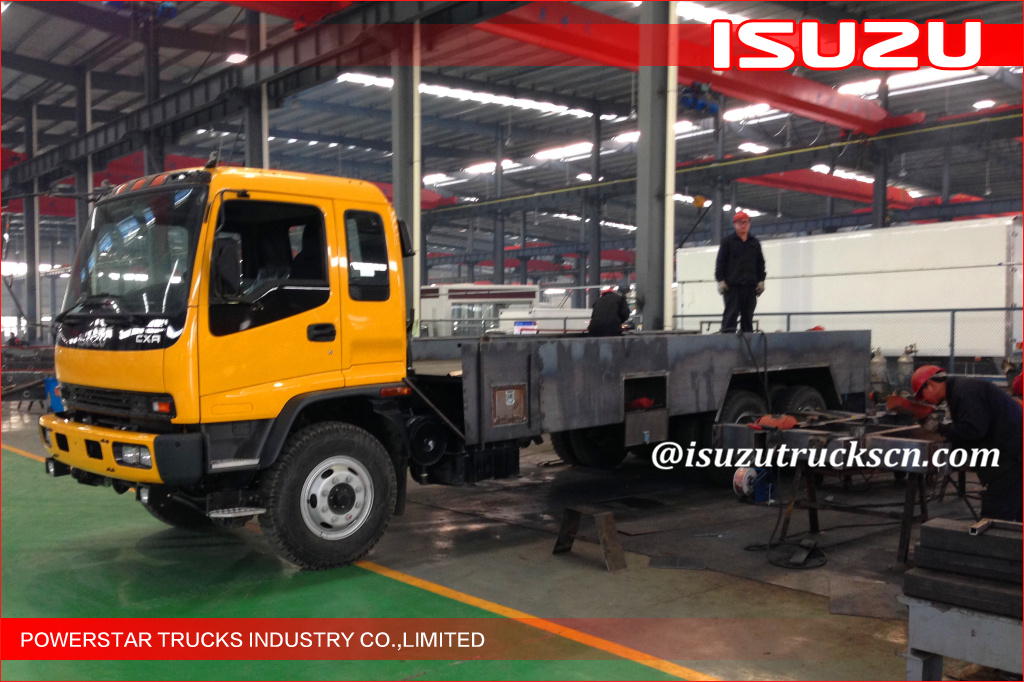

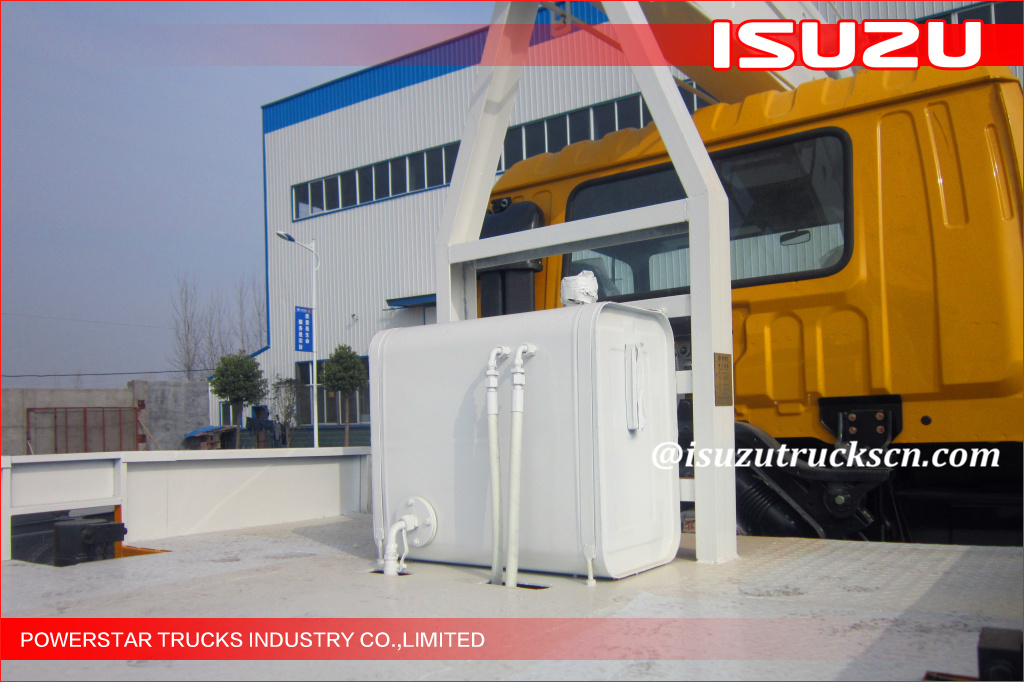

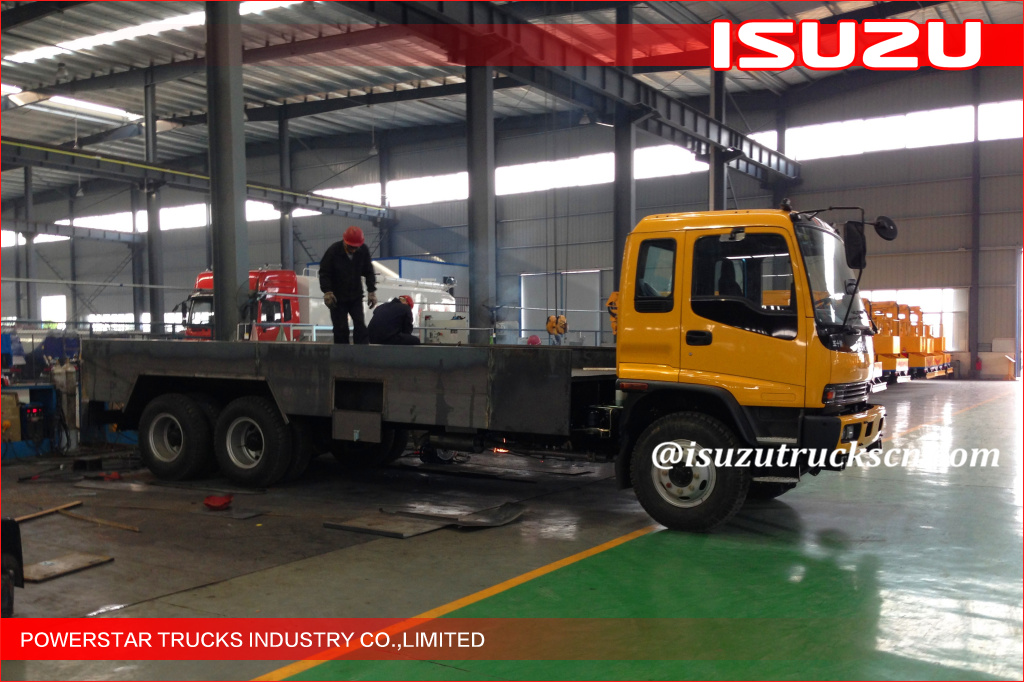

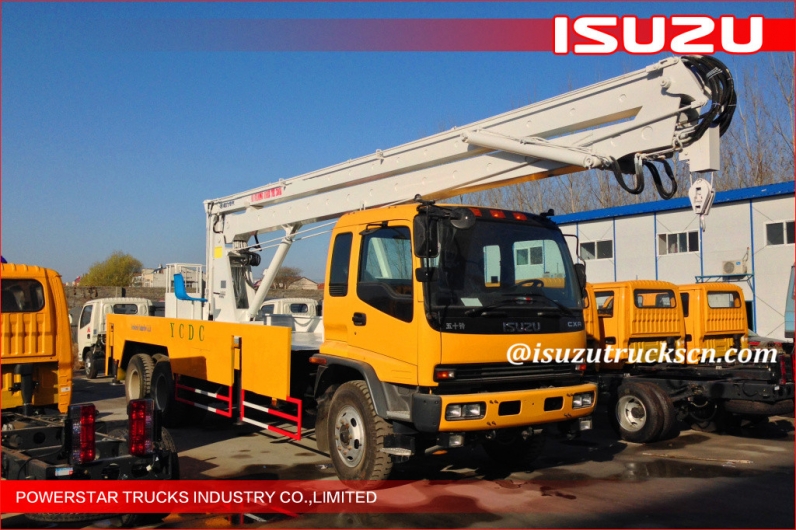

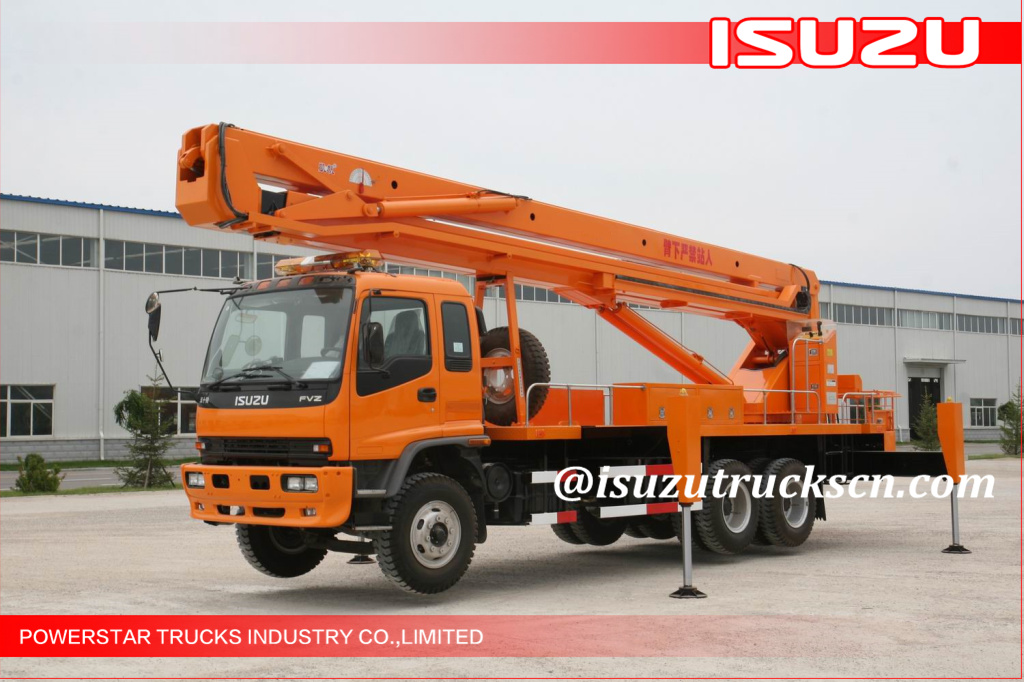

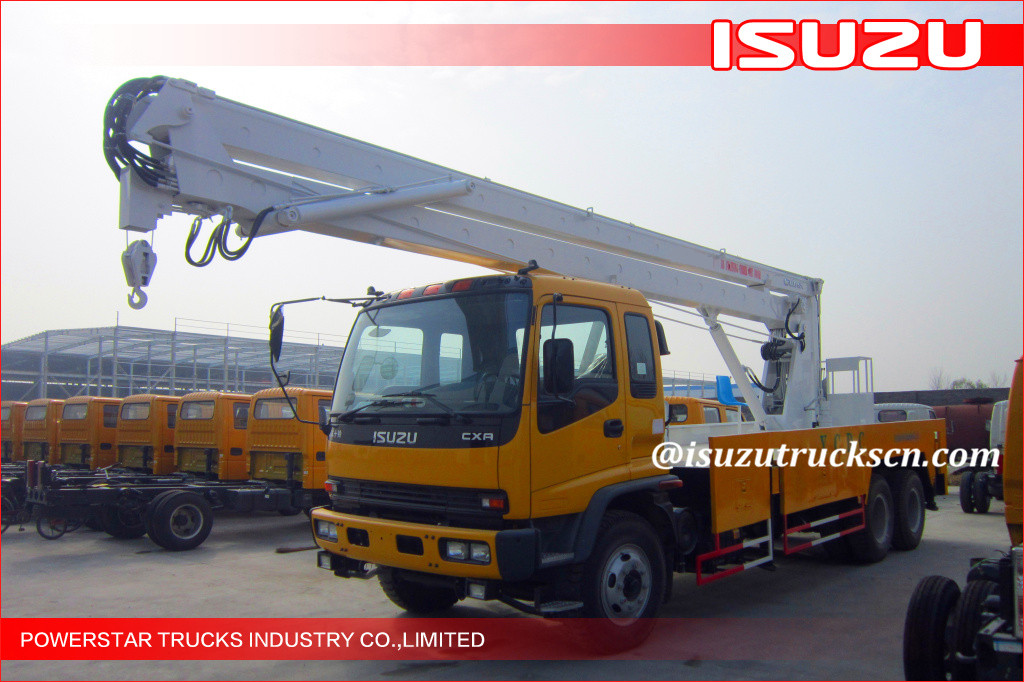

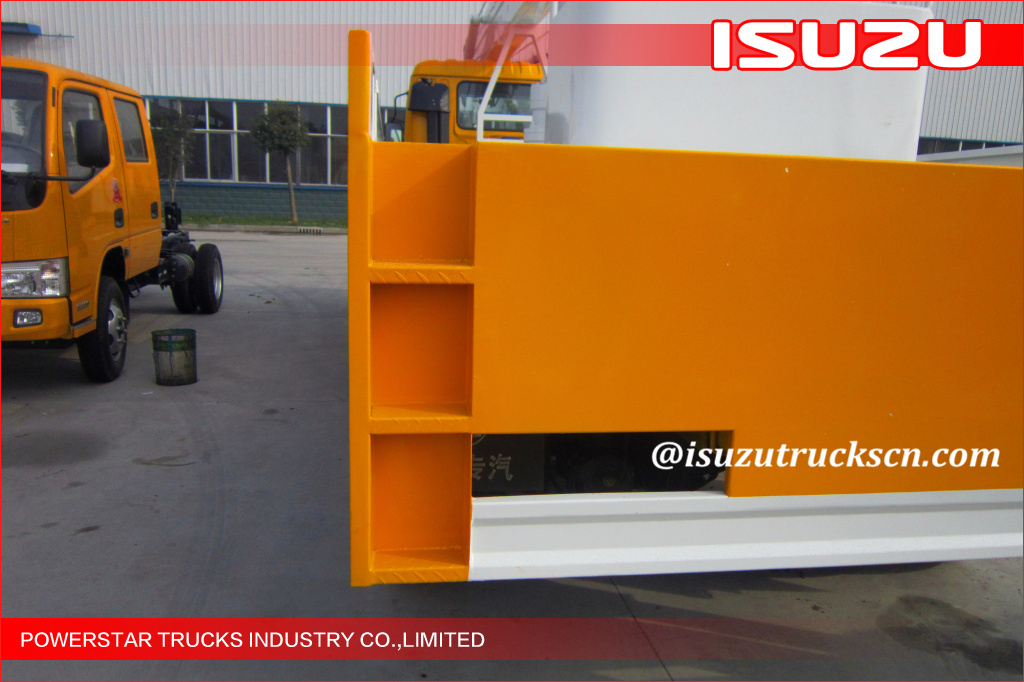

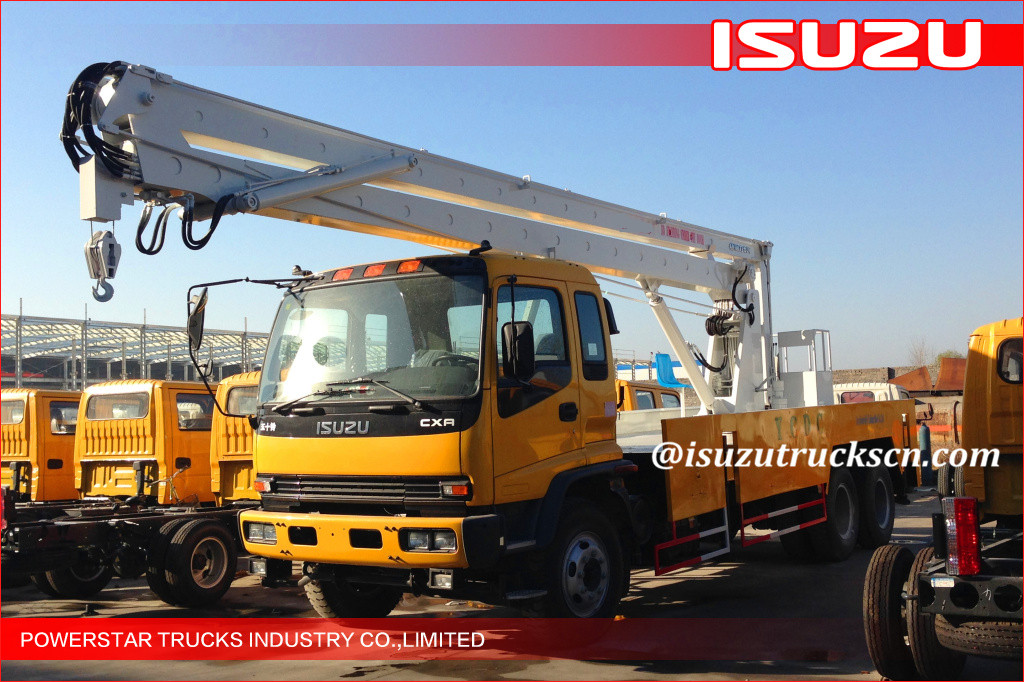

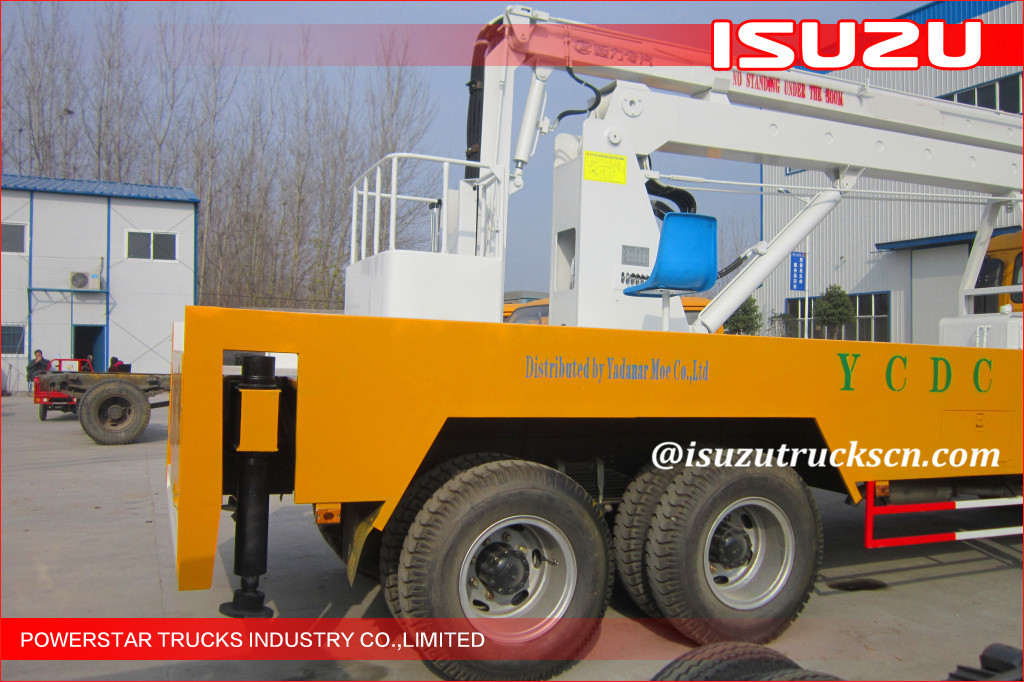

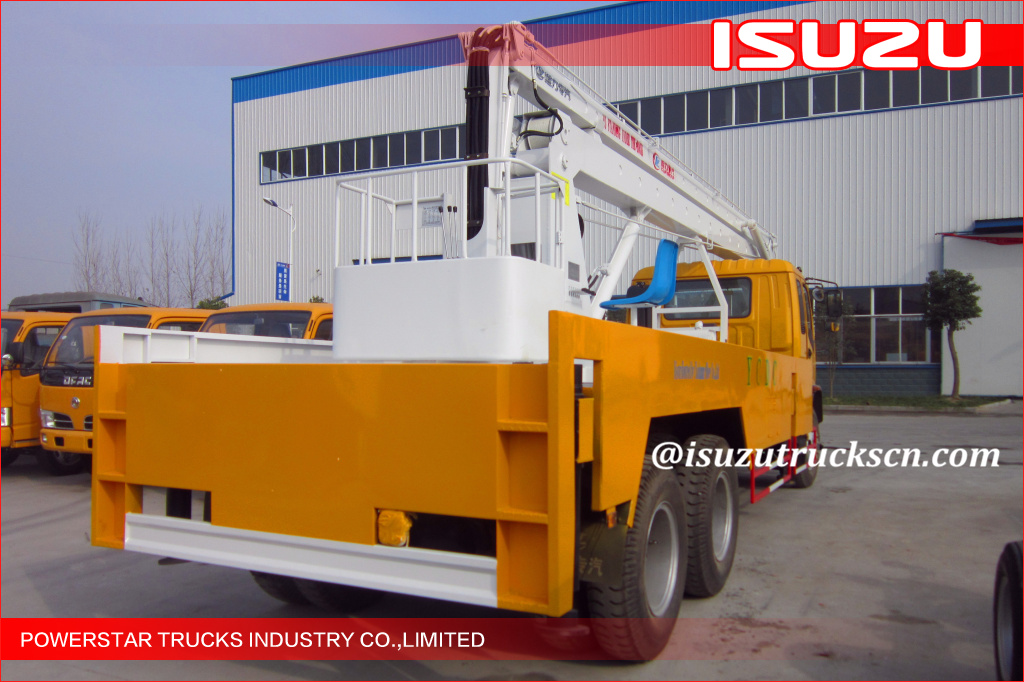

 Recently Built Aerial Working Platform Truck:

22-26m 6*4 Isuzu Truck High altitude Operation Vehicle

22-26m 6*4 Isuzu Truck High altitude Operation Vehicle


22-26m 6*4 Isuzu Truck High altitude Operation Vehicle


22-26m 6*4 Isuzu Truck High altitude Operation Vehicle


22-26m 6*4 Isuzu Truck High altitude Operation Vehicle


22-26m 6*4 Isuzu Truck High altitude Operation Vehicle


22-26m 6*4 Isuzu Truck High altitude Operation Vehicle


22-26m 6*4 Isuzu Truck High altitude Operation Vehicle
