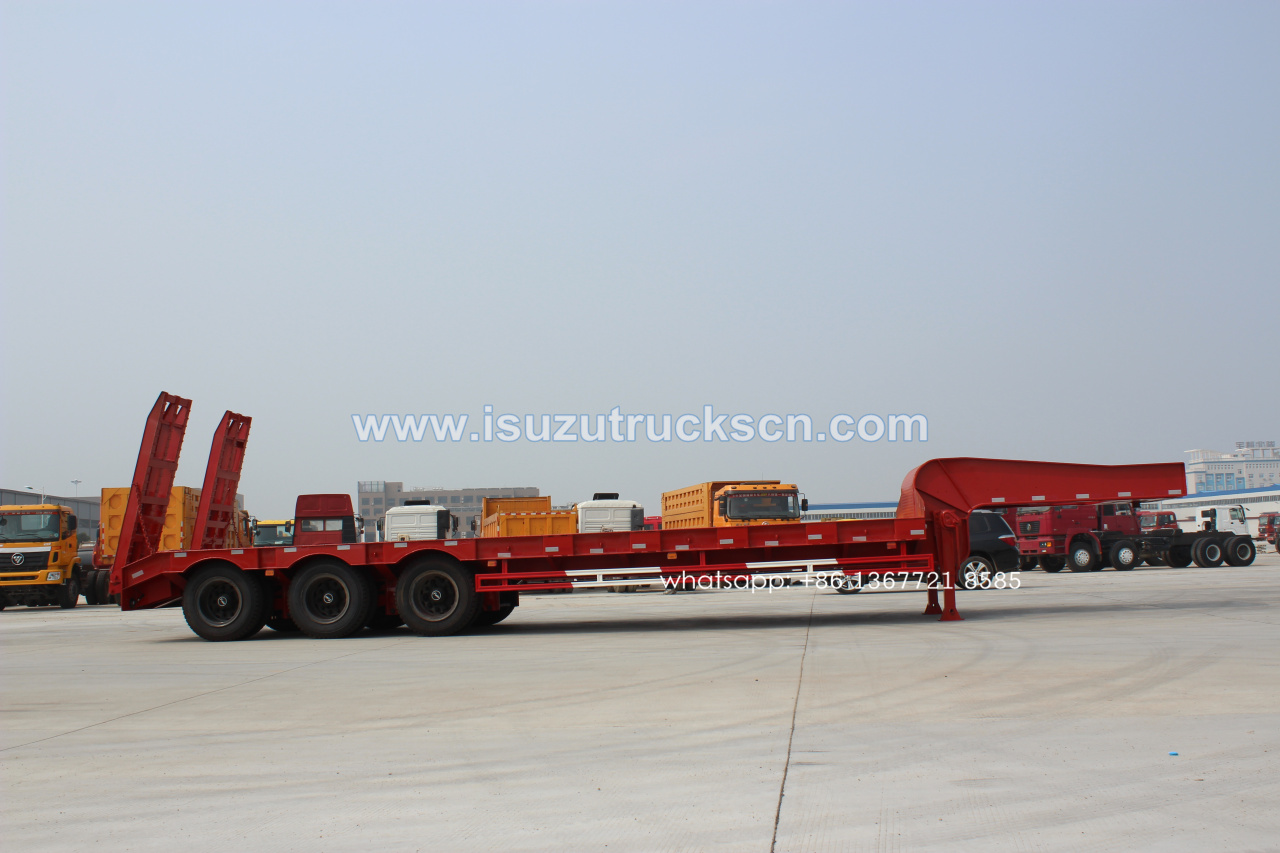

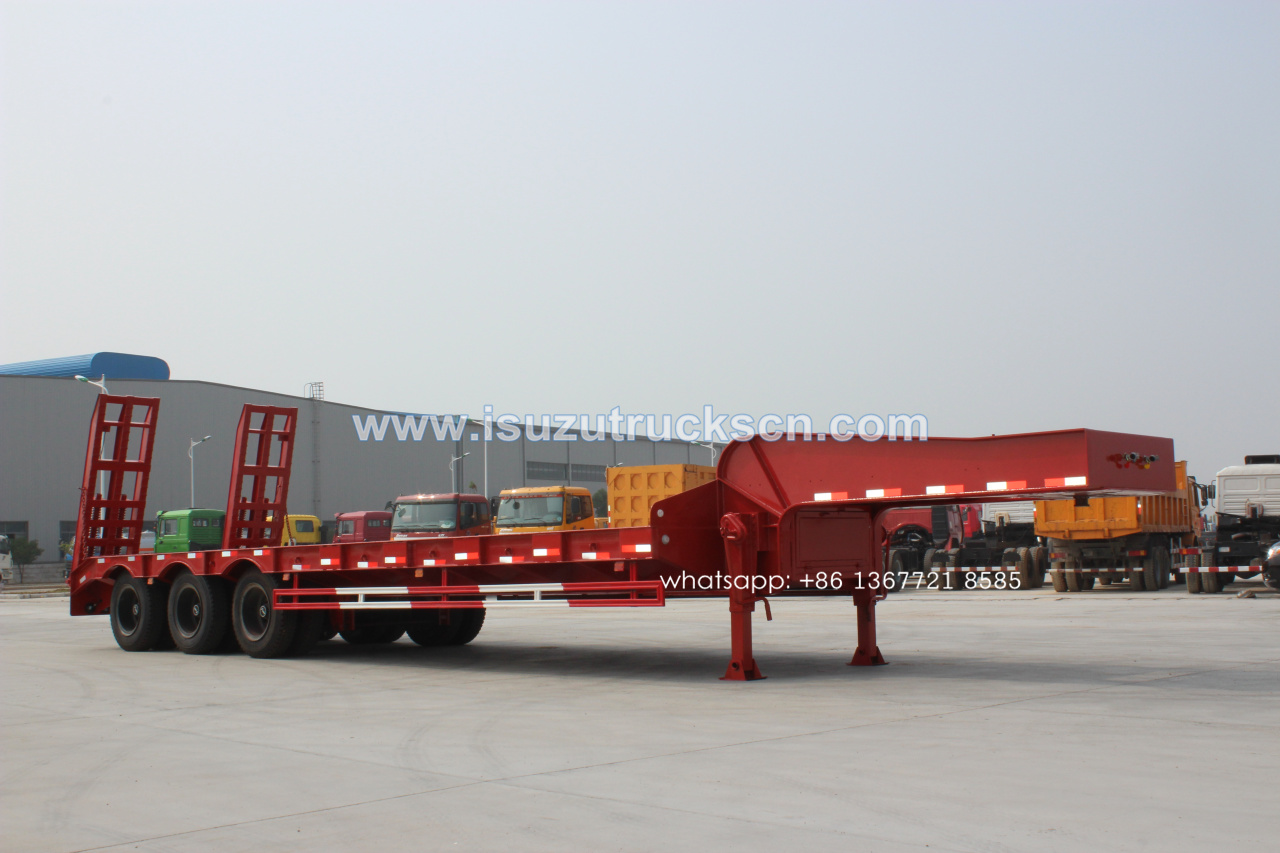

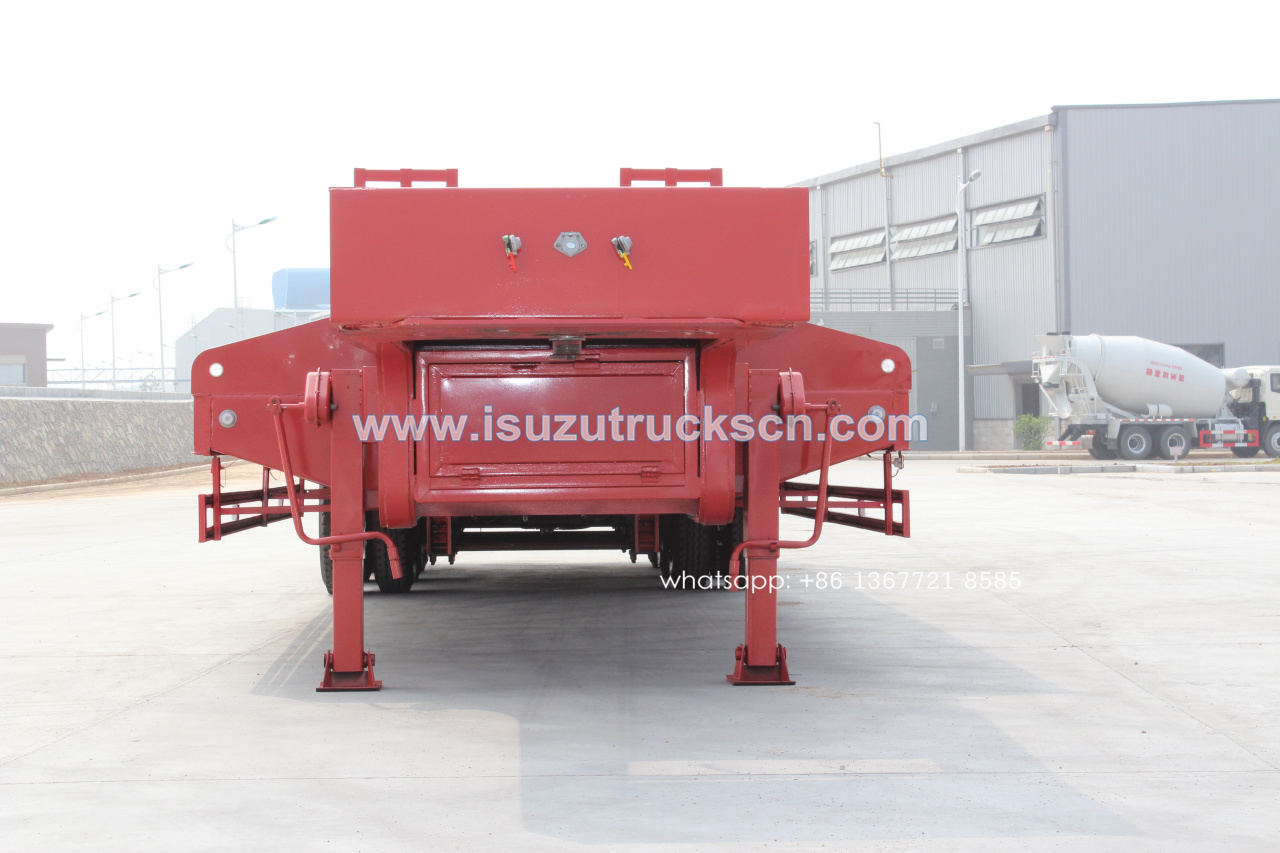

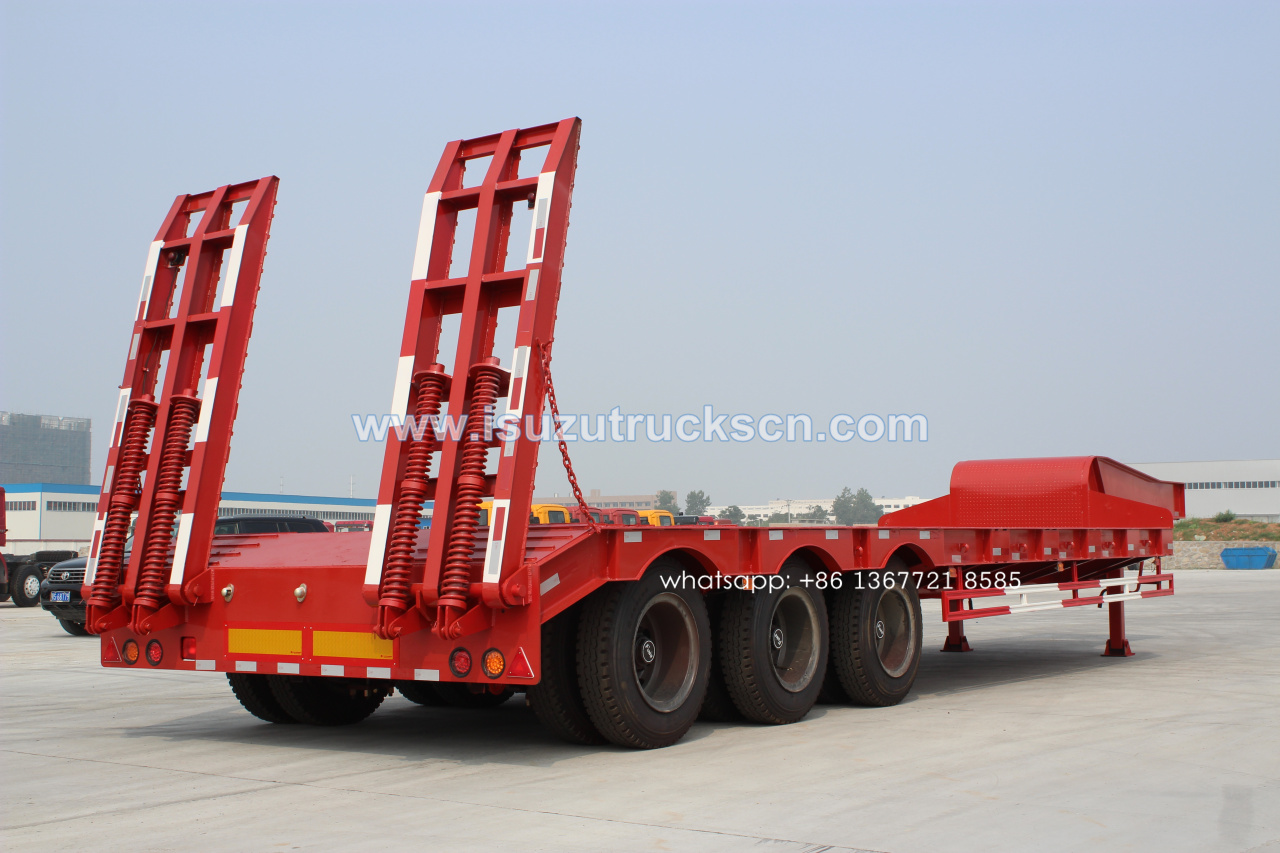

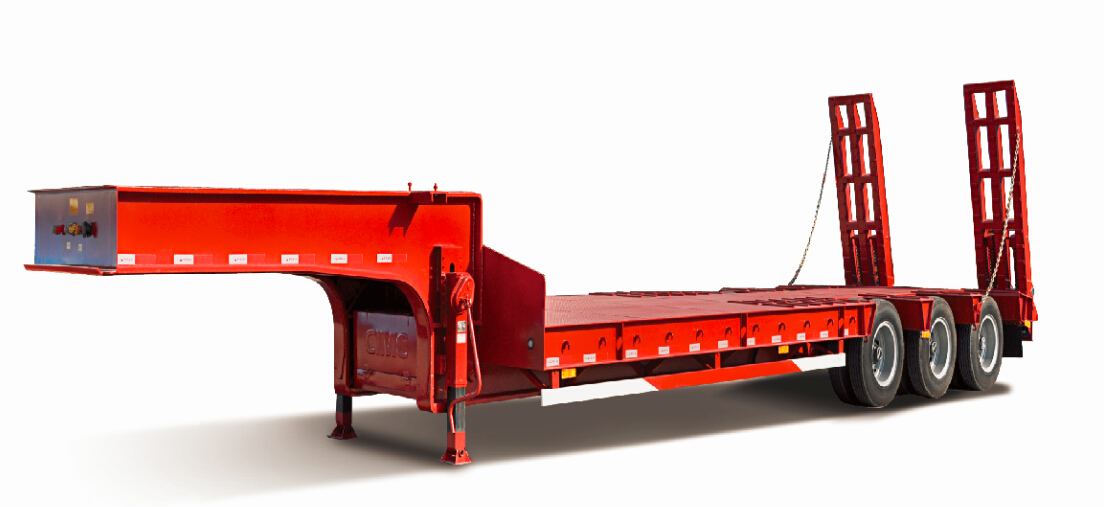

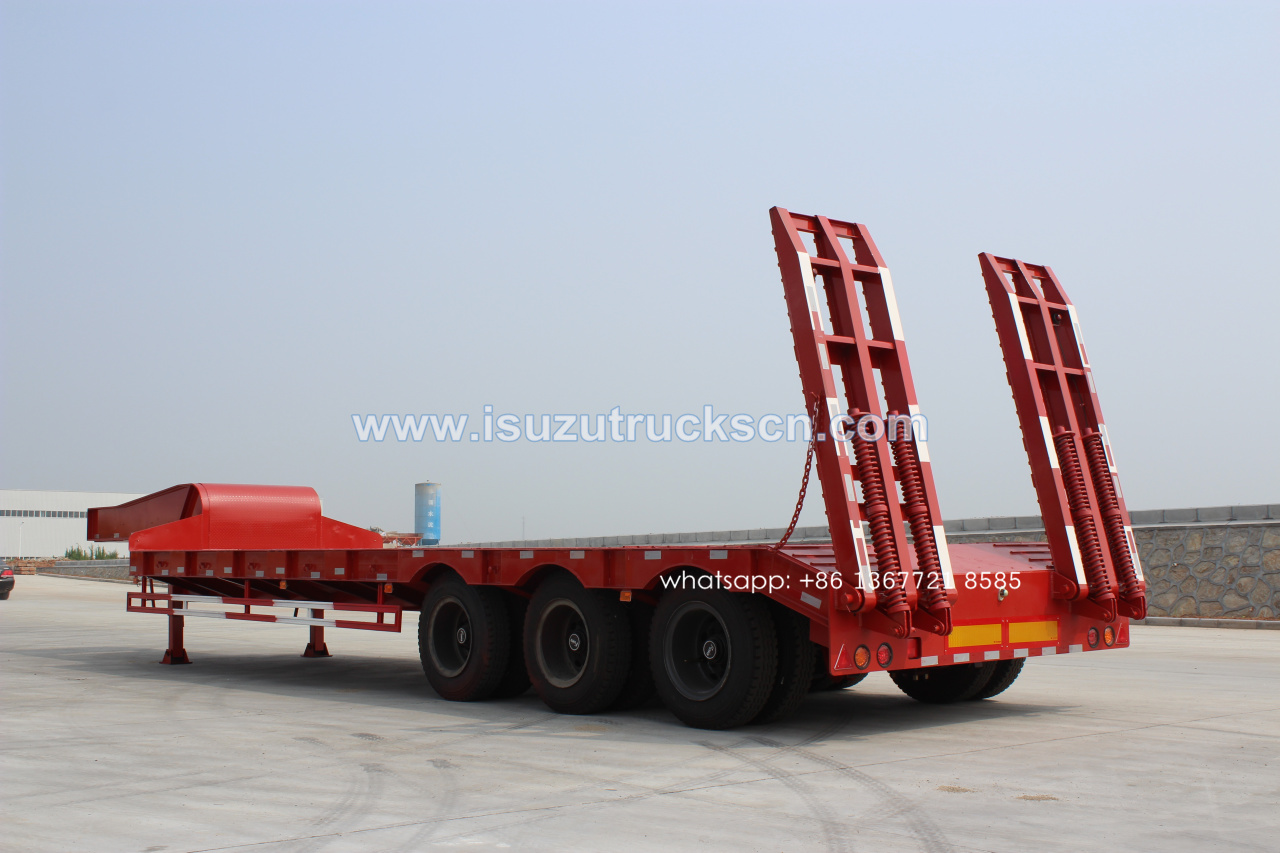

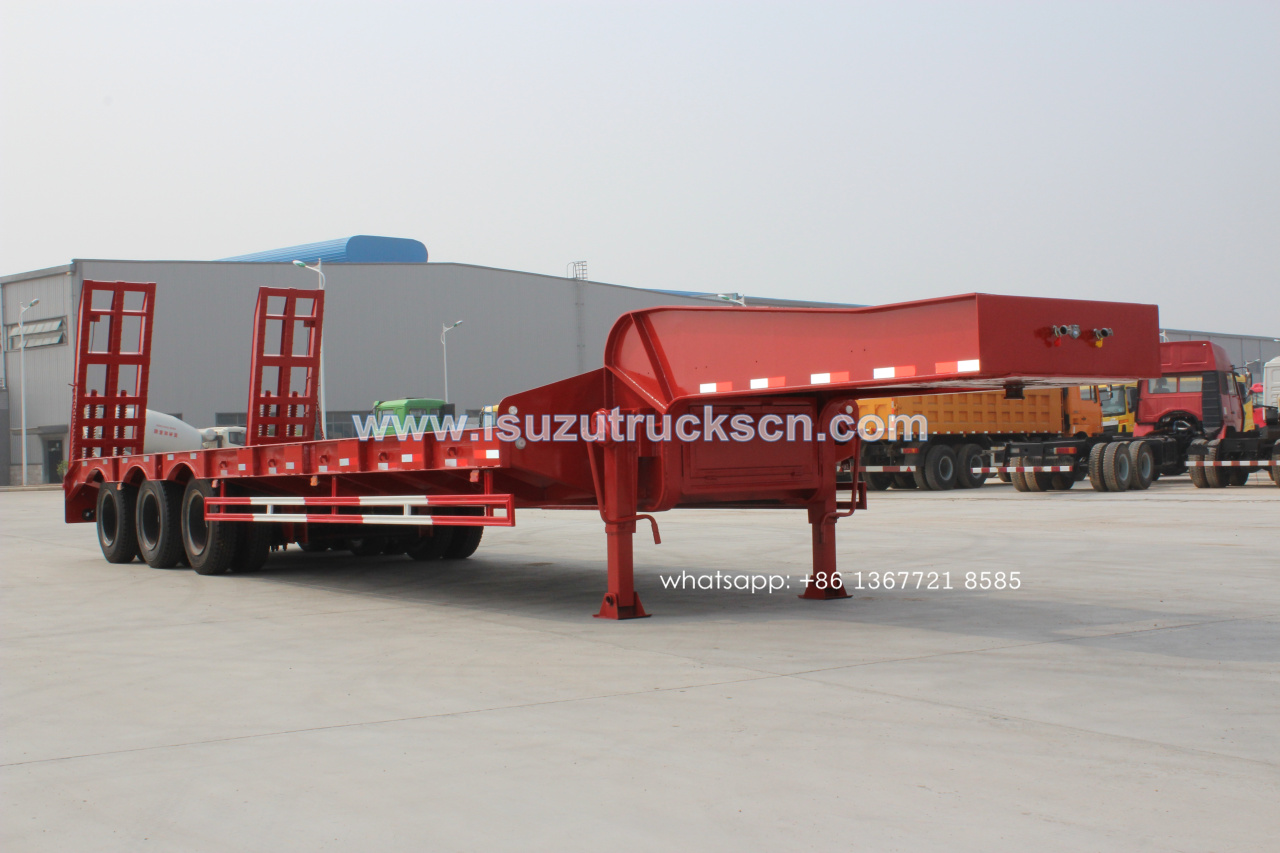

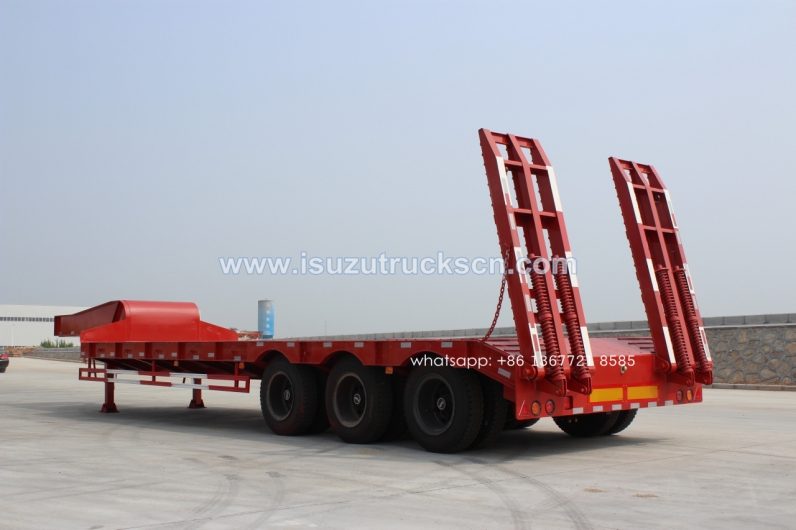

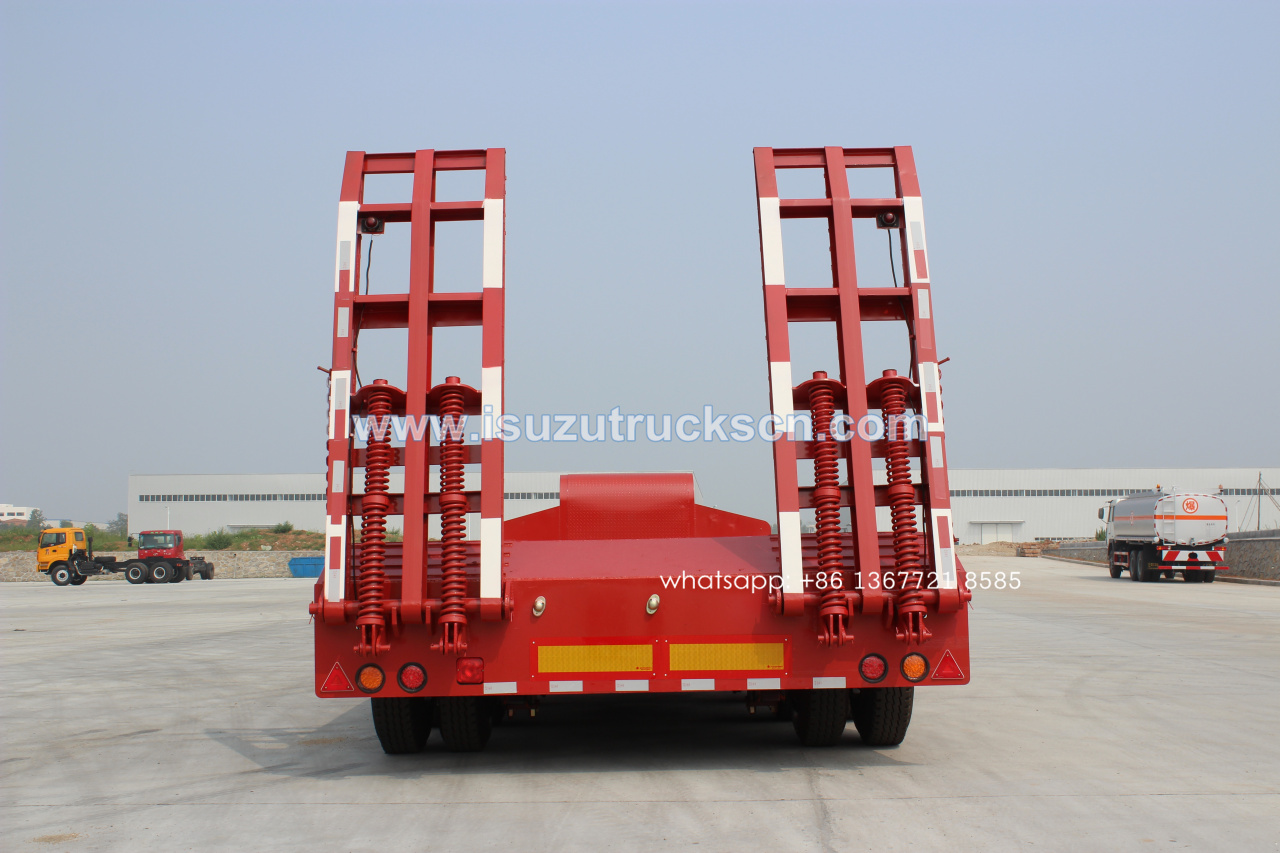

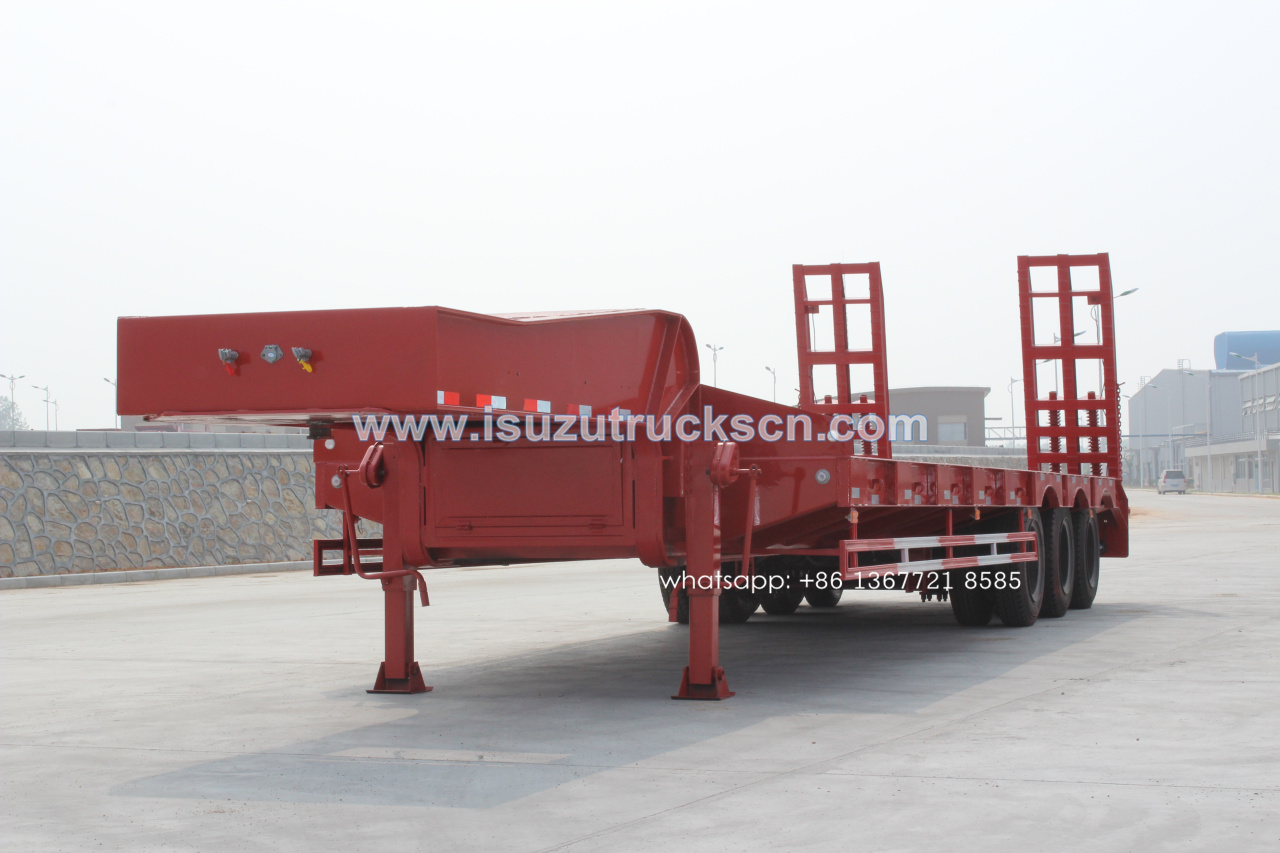

1Powerstar lowbed semi trailer used to transport rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc
DIMENSIONS | ||
Tare Weight | 8500kg | |
Payload | 40000kg | |
Total Weight | 48500kg | |
Overall Length | 12000mm | |
Overall Width | 3000mm | |
Overall Height | 3100mm | |
Wheel Track | 2160mm | |
Wheel base | 7400mm+1300mm+1300mm | |
SPECIFICATION | ||
Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by automatic Submerged-Arc processes 500mm Height “I” beam, Top Flange 14mm,width 140mm; Middle Flange 8mm ; Bottom Flange 20mm,width 140mm |
|
Floor | Steel Sheet 3mm thickness | |
Axle | 3Units of FUWA13Ton axle | |
Suspension | A couple of FUWA style mechanical 3-axle suspension | |
Leaf Spring | 6 sets of reliable local brand, 9Pcs leaf spring,16x90mm | |
King Pin | One unit of 3.5`` standard bolted-in kingpin | |
Landing Gear | JOST-D200 Two-speed, manually operating, heavy duty landing leg | |
Wheel Rim | 13 units of 8.25-22.5 rim | |
Tyre | 13 units of 11R22.5 tubeless tyre | |
Twist Lock | 8sets, front rear 4 sets stable, middle 4 sets moveable up & down, of ISO twist lock | |
Spare Wheel Carrier | One set of spare wheel carrier including a riser. | |
Pneumatic Braking System | Two units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; four units of T30 brake chamber two units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector. | |
Electrical System | One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; tail lamp with turn signal, brake light & reflector ,side lamp etc. One set of DAFA (brand ) 6-core standard Cable. |
|
Painting | Sand blasting processing clean rust 1 coat of anticorrosive primer 2 coats of finish urethane paint Color as customer choice |
|
Accessory | One tooling box with whole set of standard trailer tool | |
For the specification above , we reserve the right to make any changes without notice
