3200 kg Isuzu Durable Knuckle Boom Truck Mounted Crane

Manufacturer Price 4T 5T 6T 8T 10T 12T 16T Used Truck Crane with High Configuration

Details

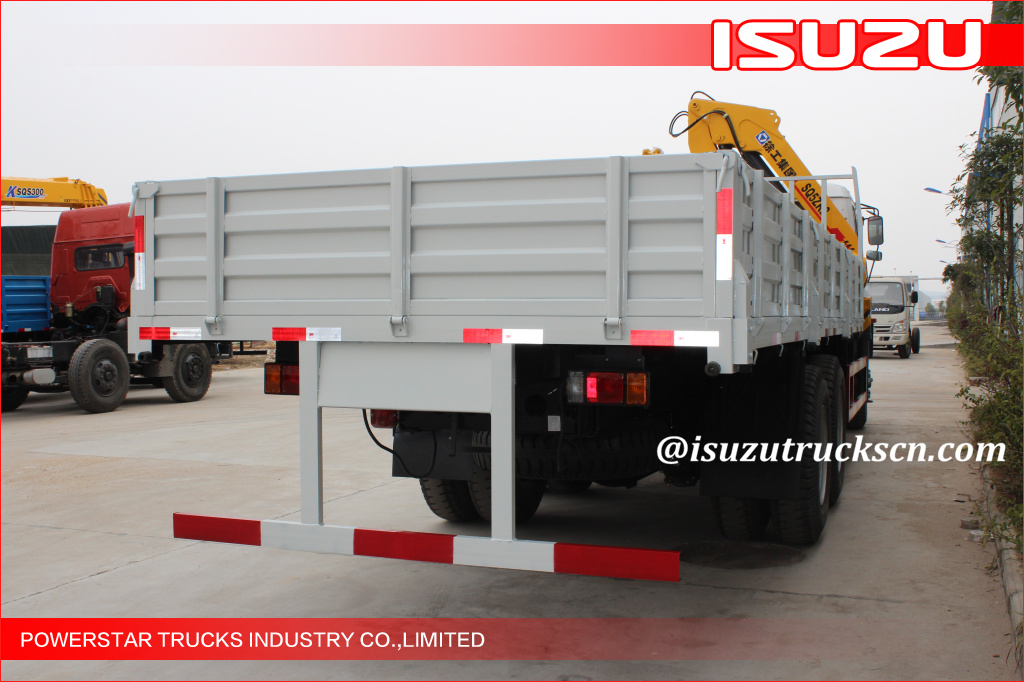

3200 kg Isuzu Durable Knuckle Boom Truck Mounted Crane

3200 kg Isuzu Durable Knuckle Boom Truck Mounted Crane



Durable Knuckle Boom Truck Mounted Crane, Wire Rope Raise And Down 3200 kg



  1. Name: Knuckle boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
  2. Max Lifting Capacity: 3200 kg
  3. Max Lifting Moment: 6.72 t.m
  4. Max Oil Flow of Hydraulic System: 25 L/min
  5. Max. Lifting height: 10.5meters
  6. Brand: XCMG
  7. Crane Weight: 1200 kg
  8. Oil Tank Capacity:60 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.



Knuckle boom crane SQ3.2ZK2 is used for lifting capacity is 3.2tons, lifting moment is 6.72T.M.





Applications:



Truck mounted crane can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

It can be configured to do just about any job imaginable, from delivering products to cleaning up debris after the job is done.



Specifications:



Model

SQ3.2ZK2

Unit

Max Lifting Moment

6.72

t.m

Max Lifting Capacity

3200

kg

Recommend Power Needed At Recommend Oil Flow

14

kw

Max Oil Flow of Hydraulic System

25

L/min

Rated Pressure Of Hydraulic System

22

MPa

Oil Tank Capacity

60

L

Rotation Angle

370

º

Crane Weight

1200

kg

Installation Space

850

mm

Choice of Chassis

ISUZU



SQ3.2ZK2 Lifting capability diagram

Working radius (m)

2.1

4.15

5.8

7.3

Lifting capacity (kg)

3200

1300

950

650




 Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
