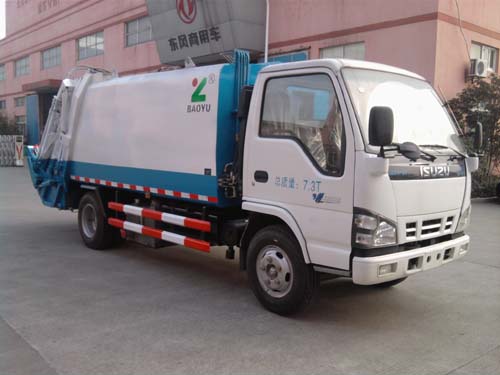

3ton 5ton Isuzu Compressed waste Garbage Compactor Truck For Sale
Order(MOQ):
13ton 5ton Isuzu Compressed waste Garbage Compactor Truck For Sale
Japanese Isuzu rubbish compression truck
l The whole truck adopts the isuzu chassis equipped with the isuzu 4KH1 engine, which makes it elegant in shape, safe and reliable in performance and comfortable to drive.
l The overall circular-arc outline of the truck hopper is eye-pleasing and elegant.
l The truck is well-known for its bidirectional compression mode, big compression proportion and large loading capacity.
l Equipped with both remote-control and manual control systems, the truck is easy to drive, which guarantees and greatly improves safety at work.
l The chemically and antiseptically treated steel plates together with the high-strength welding technology ensure a long service life.
l The well-designed hydraulic system adopts whole sets of imported hydraulic parts, which ensures quick response, short work cycle, high work efficiency, easy operation and reliable performance.
l The filling device has combined the functions of a skip bucket and a sealing device, which ensures easy operation and better appearance.
main technical parameter
|
Name of Parameters |
unit |
PT5120ZYS(5ton) |
Main technical parameter of the chassis |
Model of Chassis |
/ |
NKR77 |
Model of Engine |
/ |
4KH 1 |
|
Rating power |
Kw |
88 |
|
Wheel base |
mm |
3360 |
|
Min. turning radius |
m |
14 |
|
Max. truck speed |
Km/h |
90 |
|
Departure angle |
° |
≥14 |
|
Oil consumption |
L/100Km |
≤19 |
|
Parameters of the complete truck |
Complete truck(L×W×H) |
mm |
7400×2485×2900 |
Truck bucket dischargeable volume |
M3 |
10.5 |
|
Volume of Jam Device |
M3 |
1.5 |
|
Max. total weight(Kg) |
|
12950 |
|
Volume of sewage tank |
L |
402+52 |
|
Discharge time(s) |
|
‹38 |
|
Filling-mouth size |
mm |
1830×1000 |
|
Filling-mouth height |
mm |
900 |
|
Hydraulic pressure system |
System pressure |
Mpa |
16 |
Filling device one -time working cycle time |
s |
‹24 |
|
One-time discharge time |
s |
‹35 |
