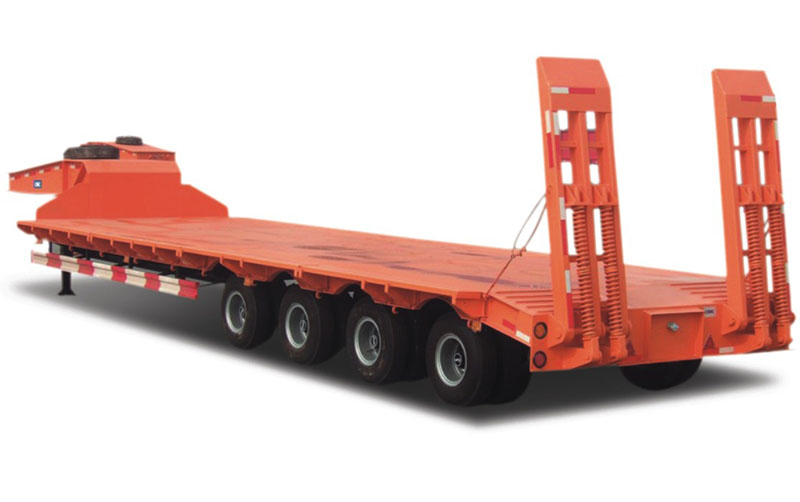

4 Axles Heavy Lowbed trailer

China manufacturer muti axle hydraulic gooseneck detachable lowbed/lowboy semi truck trailer for sale

Details



Technical parameters



Model number SCD9400TDP
Total size 13,000x3,000x1,650 mm
Working size 9,000x3,000x1,300 mm
Loading weight 80,000 kg
Departure angle 16
Axle brand 16 ton FUWA Brand axle
Axle number 4
Wheelbase 8,580+1,310+1,310 mm
Suspension system mechanical suspension
Steel spring 10/10/10/10 leaf spring suspension
Main beam

Beam height 500 mm

Upper plate  18 mm

Down plate  20 mm

middle plate  12 mm

Platform plate 5 mm diamond plate
Tire type and quantity Radial tire 11.00R20 x 16 units
Ladder with ladder
Tration pin 2" or 3.5"
Landing gear Standard 28T
Brake system Dual line braking system
Brake air chamber Six big dual chamber
Spare wheel bracket 2 pieces
Painting One coat anti-rust prime, two coats final paint
Light Tail lamp with turn singal, brake light& reflector, side lamp, etc
