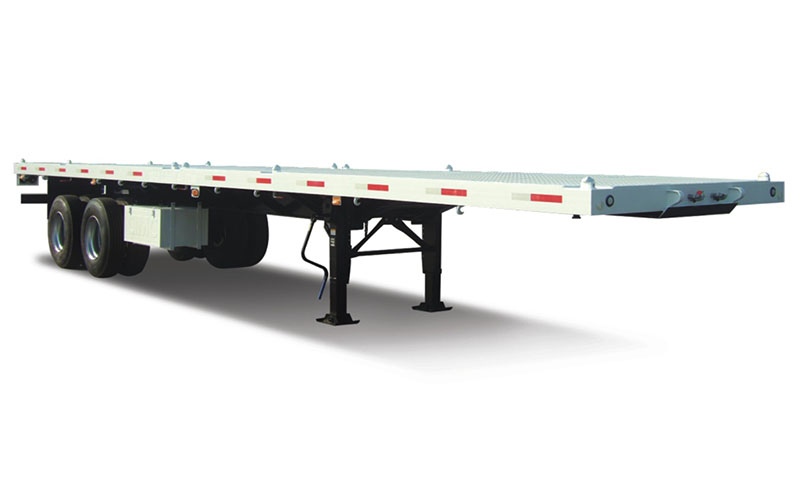

40 FT 2 axles Flatbed Semi-trailer

Customized 20-53FT Trailer Towing Equipment Container Trailer

40 FT 2 axles Flatbed Semi-trailer

Customized 20-53FT Trailer Towing Equipment Container Trailer,Truck Trailer Use And Semi-Trailer Type Flatbed 3 Axle 40FT ,3 axle flatbed type low loader trailers with 1070mm height work bed
  • Order(MOQ):

    1

 40 Foot Bogie Flatbed Semi-trailer

DIMENSIONS
Tare  Weight 7700kg
Payload 40000kg
Total  Weight 47700kg
Overall  Length 12620mm
Overall  Width 2480mm
Overall  Height 1530mm
Wheel Track 1850mm
Wheelbase 8025mm+1550mm
STANDARD  SPECIFICATION
Main  Frame Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
500mmHeight I beam, Top Flange 14mm,width 140mm; Middle Flange 6mm ; Bottom Flange 16mm,width 140mm
Floor Steel Sheet 3mm thickness
Axle 2 units of FUWA (brand) 13T axle
Suspension A couple of Two-axle mechancial suspension.
Leaf Spring Four sets of reliable local brand, 8-piece leaf spring,16x90mm
King Pin One unit of 2`` SAE bolted-in kingpin.
Landing Gear JOST-C200,Two-speed , manual operating, heavy duty landing gear
Wheel Rim 9 units of 8.25-22.5 rim.
Tyre 9 units of 11R22.5 tubeless tyre.
Twist Lock Twelve nos. of ISO twist lock for 2x20ft;1x40ft container, all the locks can be laid down.
Spare Wheel Carrier One set of spare wheel carrier including a riser.
Pneumatic Braking System One units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; one units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector.
Electrical  System One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; Tail lamp with turn signal, brake light & reflector , Side lamp etc.
One set of  6-core standard Cable.
Painting Sand blasting processing clean rust
1 coat of anticorrosive primer
2 coats of finish urethane paint
Color as customer choice
Accessory One tooling box with a set of standard trailer tool
