4000L ELF Fire tender

Details

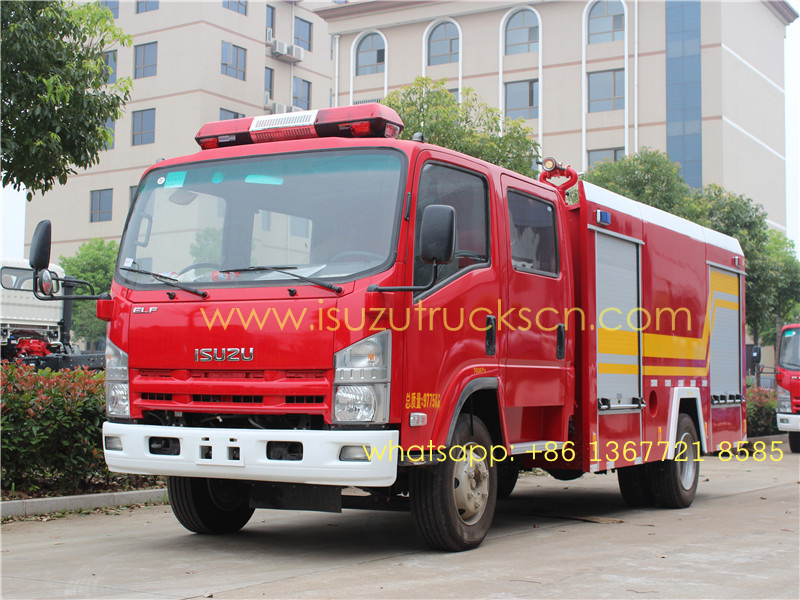

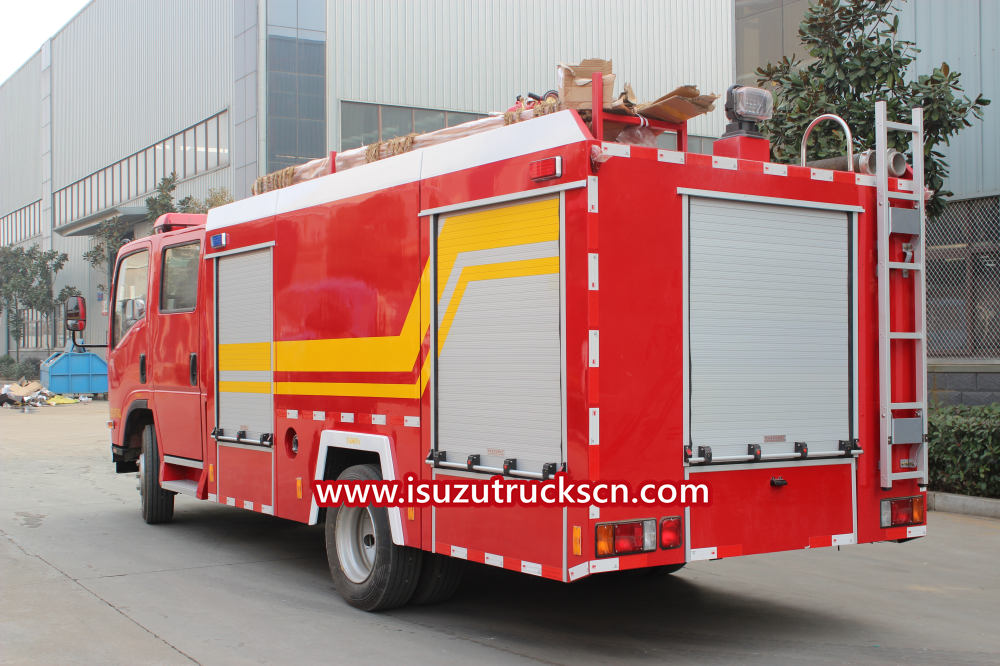

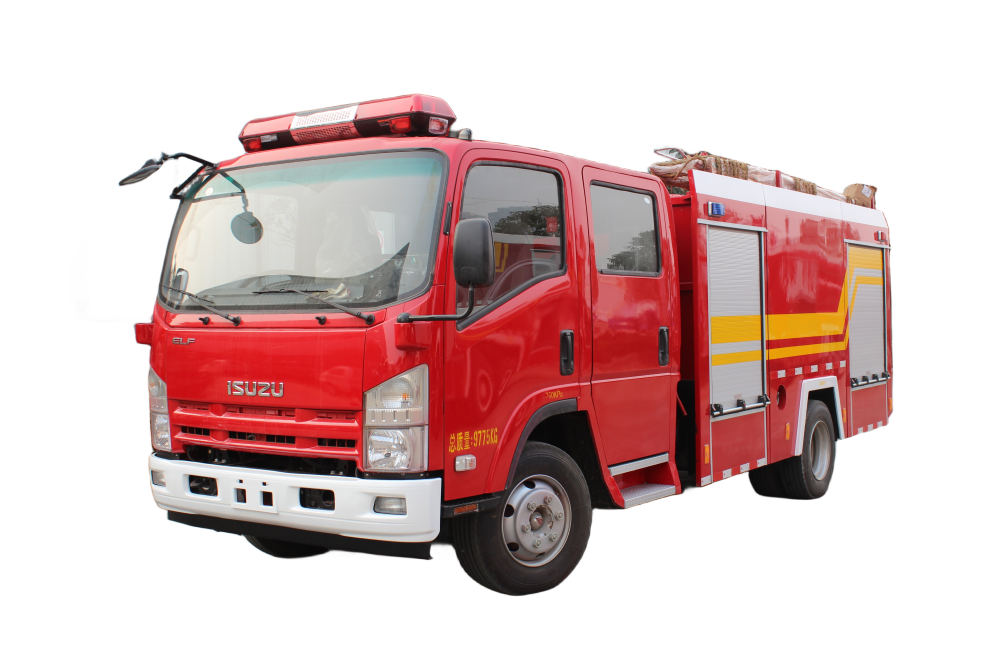

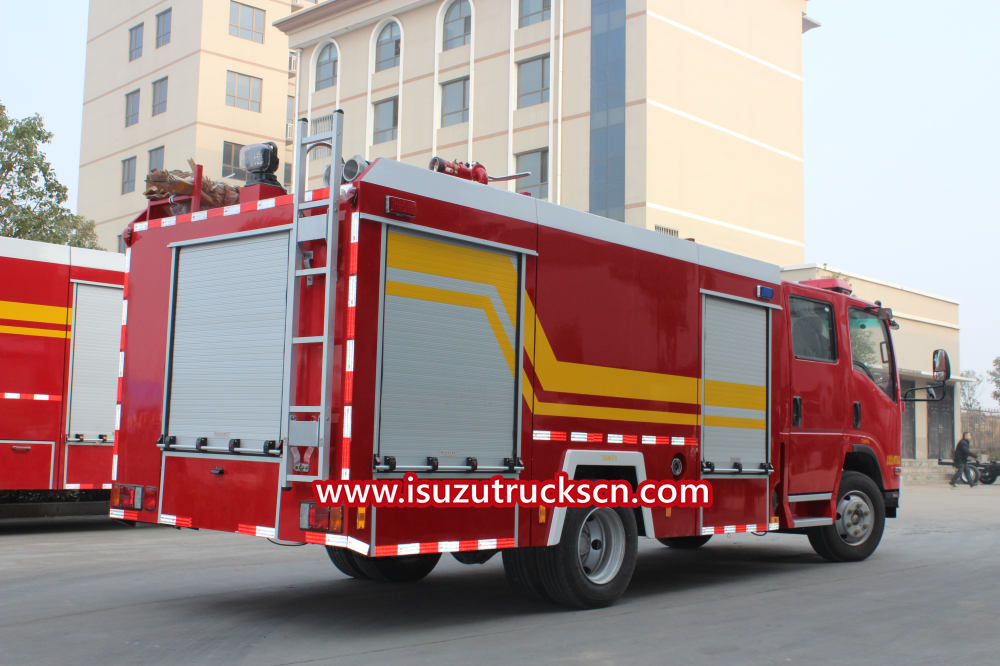

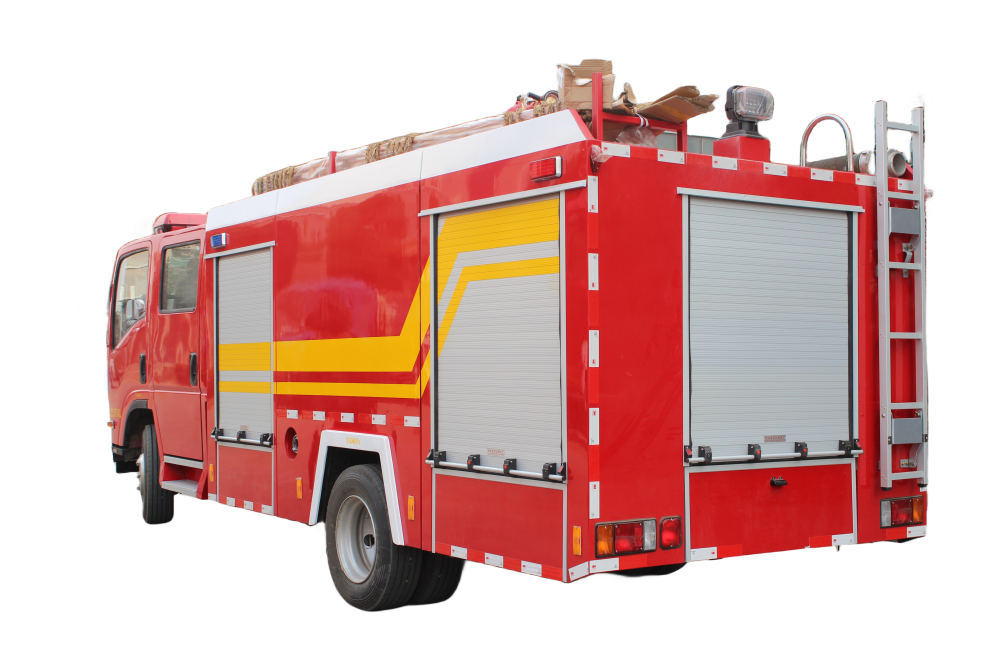

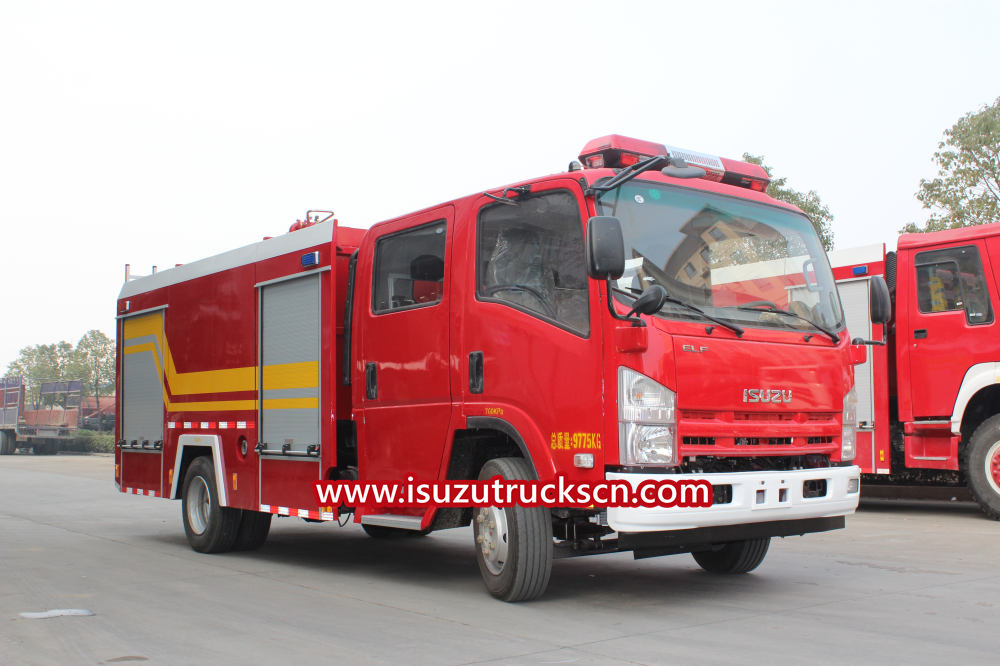

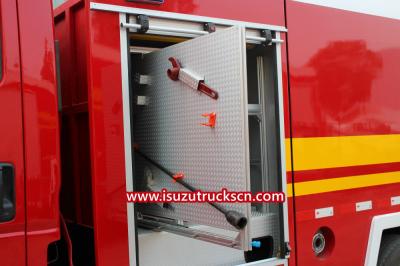

4000L ELF Fire tender

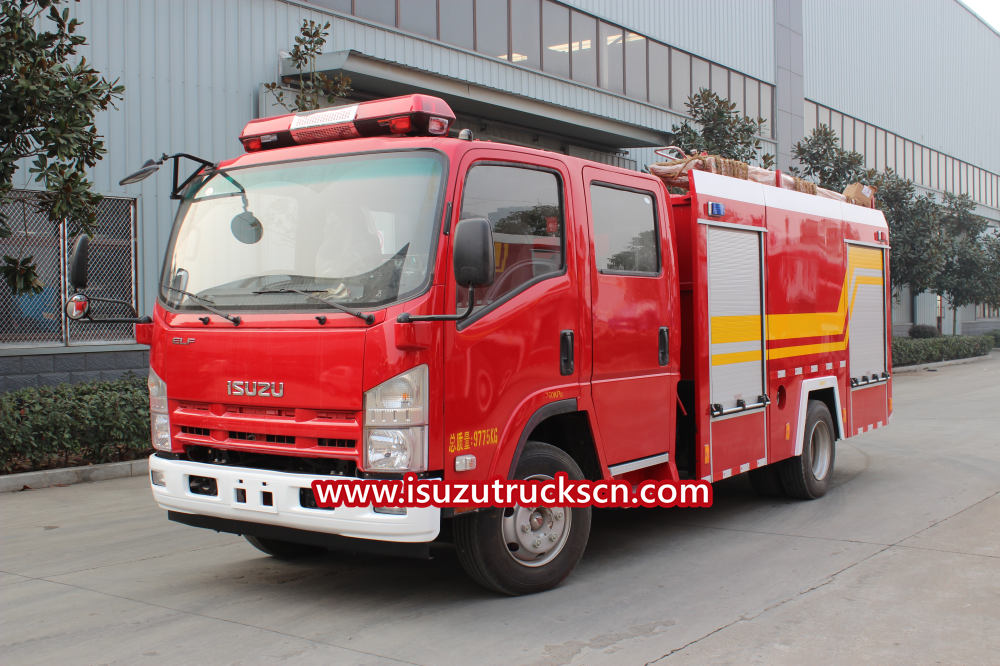

 NPR ELF Water Fire truck for Togo

Feature:

  • Special for Urban public fire brigade
  • Mines, ports, docks, forest and other departments
  • Airport, station or Crowded areas
  • More than 22 kind of fire-fighting equipment with fire truck



Main specifications:

Chassis

ELF Middle-duty chassis for Fire-fighting application

Model

PT5100GXF

Driving Type

4x2    (Left hand drive)

Wheelbase

3815 mm

Overall Dimension

6730×1980×2785 mm

Tank capacity

4000L water

Fire Pump

Rated low pressure:1.0MPa, Flow rate:30L/S. Rear-mountedWater delivery time:≤35s

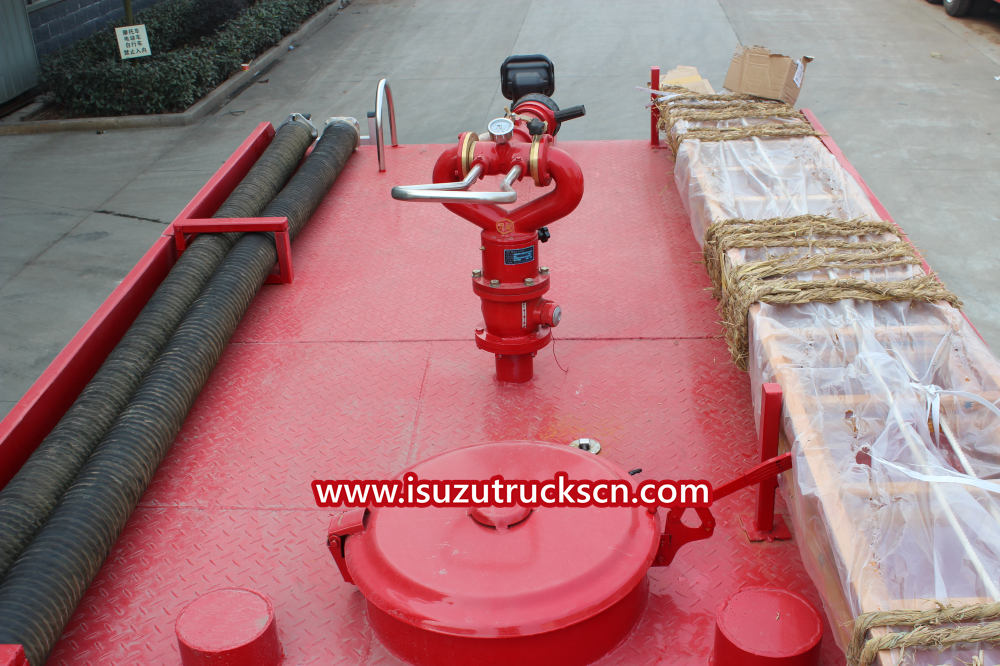

Fire Monitor

Rated pressure1.0MPa,Rated Flow rate:20L/s, Throw range50m, Rotation angle360°,

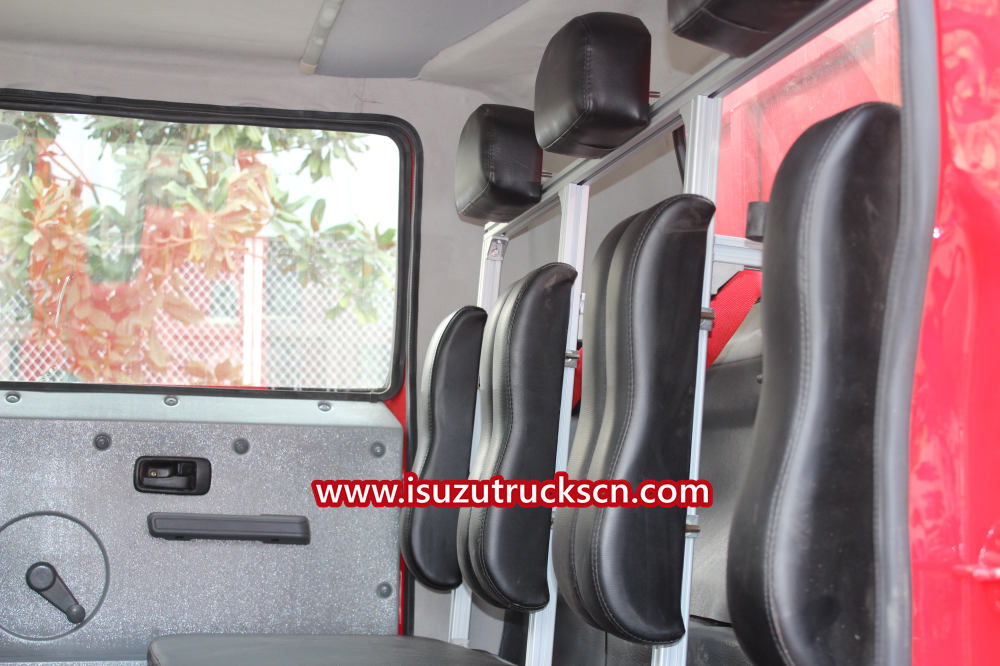

Cab

Double cab with Four doors, 5 seats with safe belts.

Engine

Model:

4HK1-TCG40

Type:

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power:

139 KW (190HP)

Gearbox

MLD 6-shift, mechanical type, 6 forward and 1 reverse with

Tire

8.25-16

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h

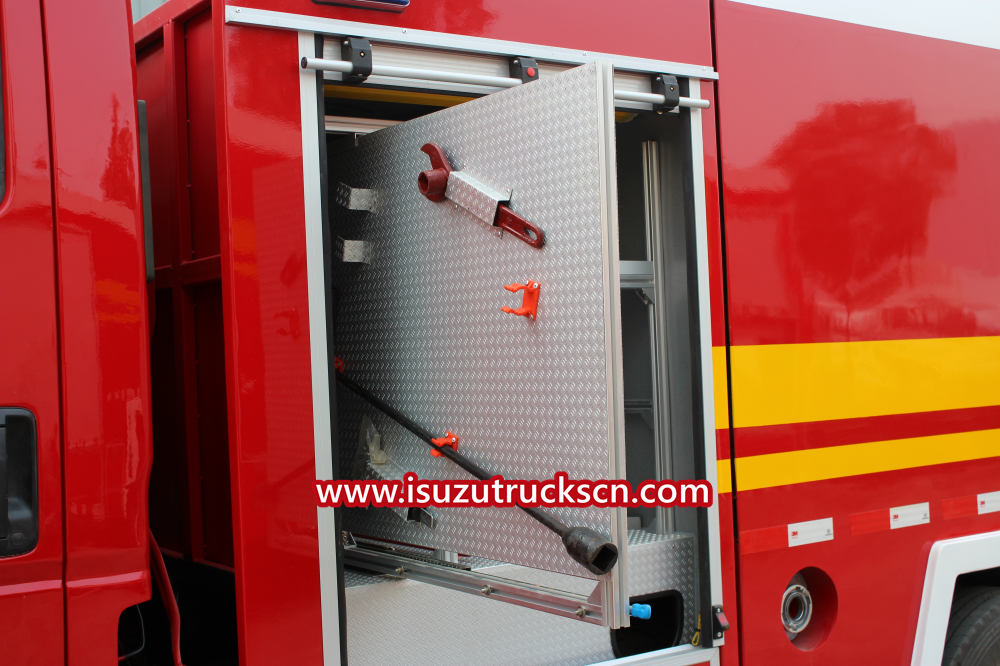

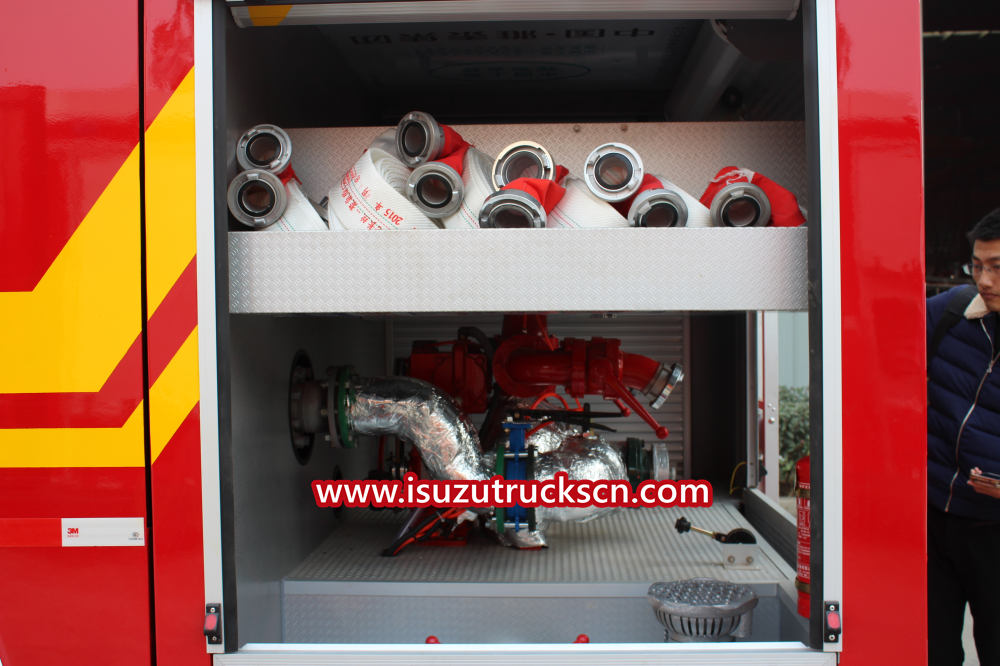

Accessories List:

(With below equipment, you can put into fire-fighting immediately)

Isuzu Fire-Fighting trucks equipments accessories

4x2 6000L Water Foam Japanese Isuzu FVR Fire fighting Vehicle for sale

 Isuzu fire fighting platform truck/water rescue equipment

Recently Customer Build Examples:

(9) Tank capacity: 4,000L water



NPR ELF Water Fire truck for Togo


NPR ELF Water Fire truck for Togo


NPR ELF Water Fire truck for Togo


NPR ELF Water Fire truck for Togo

NPR ELF Water Fire truck for Togo


NPR ELF Water Fire truck for Togo


NPR ELF Water Fire truck for Togo


NPR ELF Water Fire truck for Togo


NPR ELF Water Fire truck for Togo

NPR ELF Water Fire truck for Togo


NPR ELF Water Fire truck for Togo

NPR ELF Water Fire truck for Togo
