Product Detail

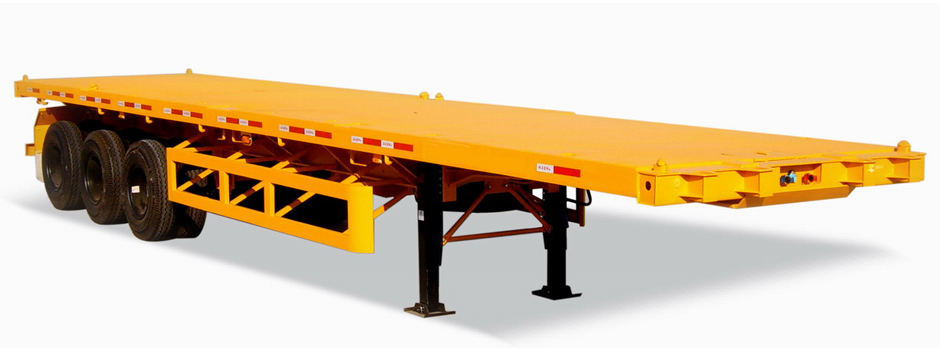

40FT 3-axle Flatbed Container Semi Trailer

Semi-Trailer Type 3 Axle 40ft Flatbed Semi Trailer

Details

40Feet  3Axles  Flatbed Container Semi-Trailer

DIMENSIONS
Tare  Weight 7400kg
Payload 40000kg
Total  Weight 47400kg
Overall  Length 12400mm
Overall  Width 2480mm
Overall  Height 1480mm

Wheel Track  1840mm
Wheel base 7380mm+1310mm+1310mm
SPECIFICATION
Main  Frame Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by automatic Submerged-Arc processes
500mm Height “I” beam, Top Flange 14mm,width 140mm; Middle Flange 6mm ; Bottom Flange 16mm,width 140mm
Floor Steel Sheet 3mm thickness
Axle 3Units of FUWA13Ton axle
Suspension A couple of FUWA style mechanical 3-axle suspension
Leaf Spring 6 sets of reliable local brand, 7Pcs leaf spring,16x90mm
King Pin One unit of 2`` standard bolted-in kingpin
Landing Gear JOST-C200 Two-speed, manually operating, heavy duty landing leg
Wheel Rim 13 units of  8.25-22.5 rim
Tyre 13 units of  11R22.5 tubeless tyre
Twist Lock 8sets, front rear 4 sets stable, middle 4 sets moveable up & down, of ISO twist lock
Spare Wheel Carrier One set of spare wheel carrier including a riser.
Pneumatic Braking System Two units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; four units of T30 brake chamber two units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector.
Electrical  System One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; tail lamp with turn signal, brake light & reflector ,side lamp etc.
One set of  DAFA (brand ) 6-core standard Cable.
Painting Sand blasting processing clean rust
1 coat of anticorrosive primer
2 coats of finish urethane paint
Color as customer choice
Accessory One tooling box with whole set of standard trailer tool


For the specification above , we reserve the right to make any changes without notice.
