5,000L NPR Refueling truck Fuel Tank

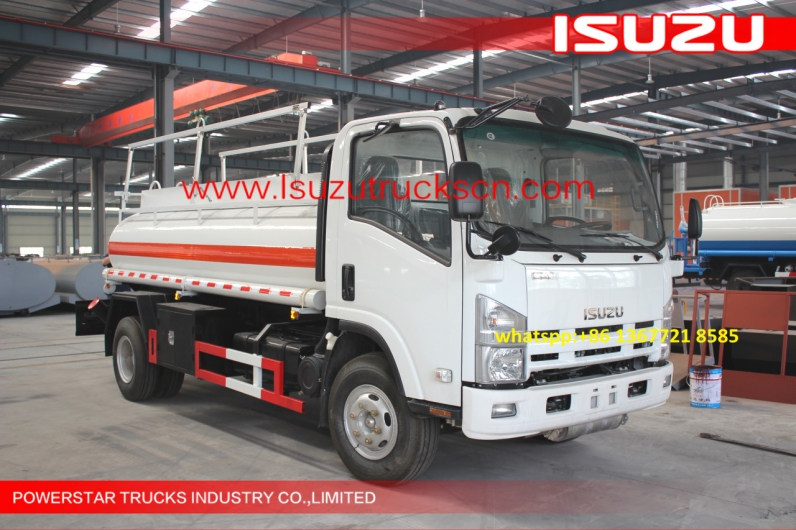

ISUZU 5 Cubic fuel transfer tanks truck

Details

5,000L NPR Refueling truck Fuel Tank

5,000L NPR Refueling truck Fuel Tank

 Description:

Philippines Refueling truck Isuzu (also called Fuel bowser, oil tank truck, Mobile fuel trucks, oil tanker truck, Fuel bowser tanker, Fuel transport tank vehicle,Fuel oil tank truck, Petrol tank truck, gasoline tank trucks, Tank truck for oil) is used to transport oil, diesel, gasoline, kerosene, etc.


Our range of refueling tank truck is designed for the transport and storage of gasoline, light diesel oil, kerosene and other fuels which boast no corrosive action on the tank body, oil pump and oiling machine, etc. It has found a wide range of applications. For instance, it can be used for refueling of itself and other vehicles as well, and it can serve as a pump to transfer fuels to other containers. Hence, our refueling tank truck is commonly seen in filling stations and transport companies.

The refueling tank truck manufactured by PowerStar Trucks is designed based on latest technologies and production techniques, and it comes with rational structure, reliable performance, esthetical appearance and simple operation, etc.





Areas of Application and Use:

  Gasoline transport and delivery

  Diesel transport and delivery

  Kerosene transport and delivery

  Other liquid fuel material

  Mobile refueling vehicle of Filling stations



Details of ISUZU Fuel Tank Truck:

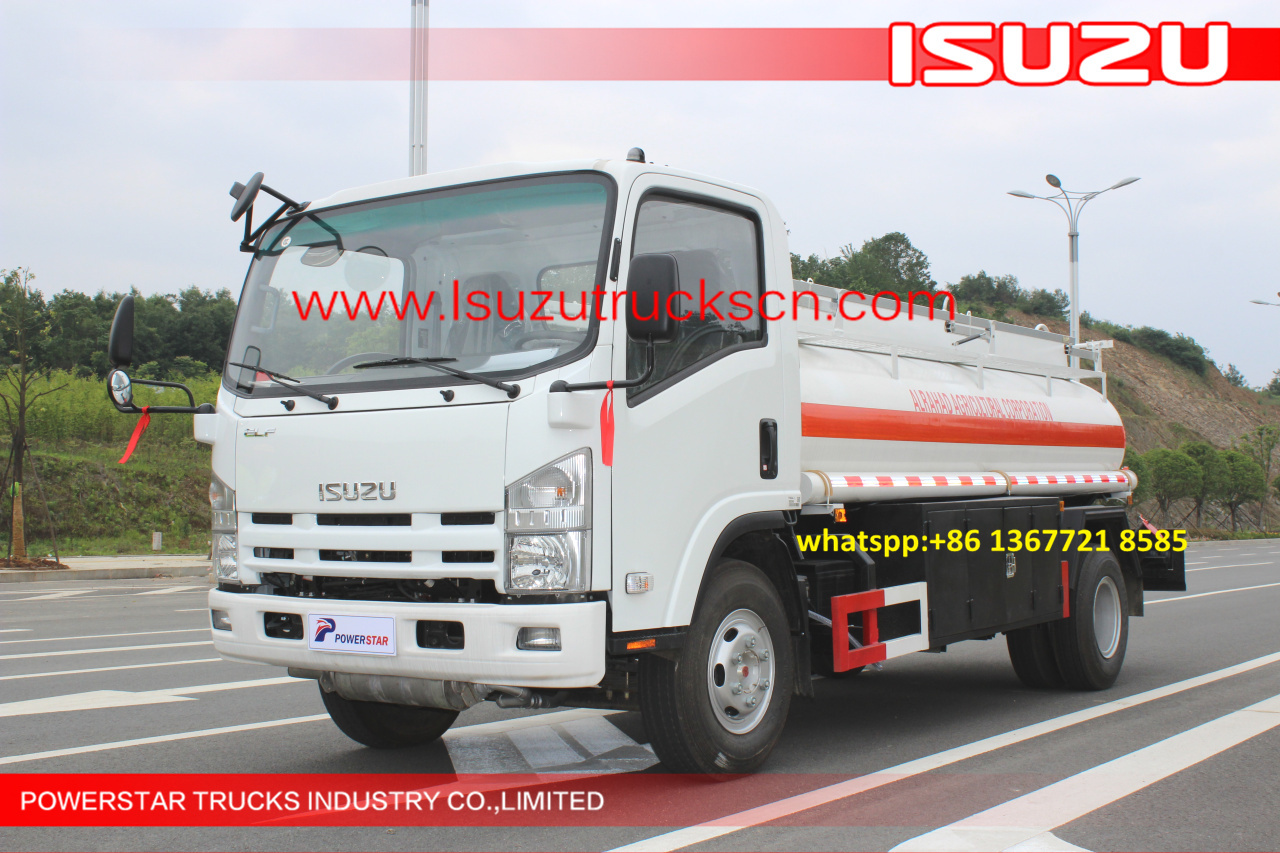

 Isuzu 5000L NPR ELF diesel gaoline refuel tank truck oil tank truck  Isuzu 5000L NPR ELF diesel gaoline refuel tank truck oil tank truck

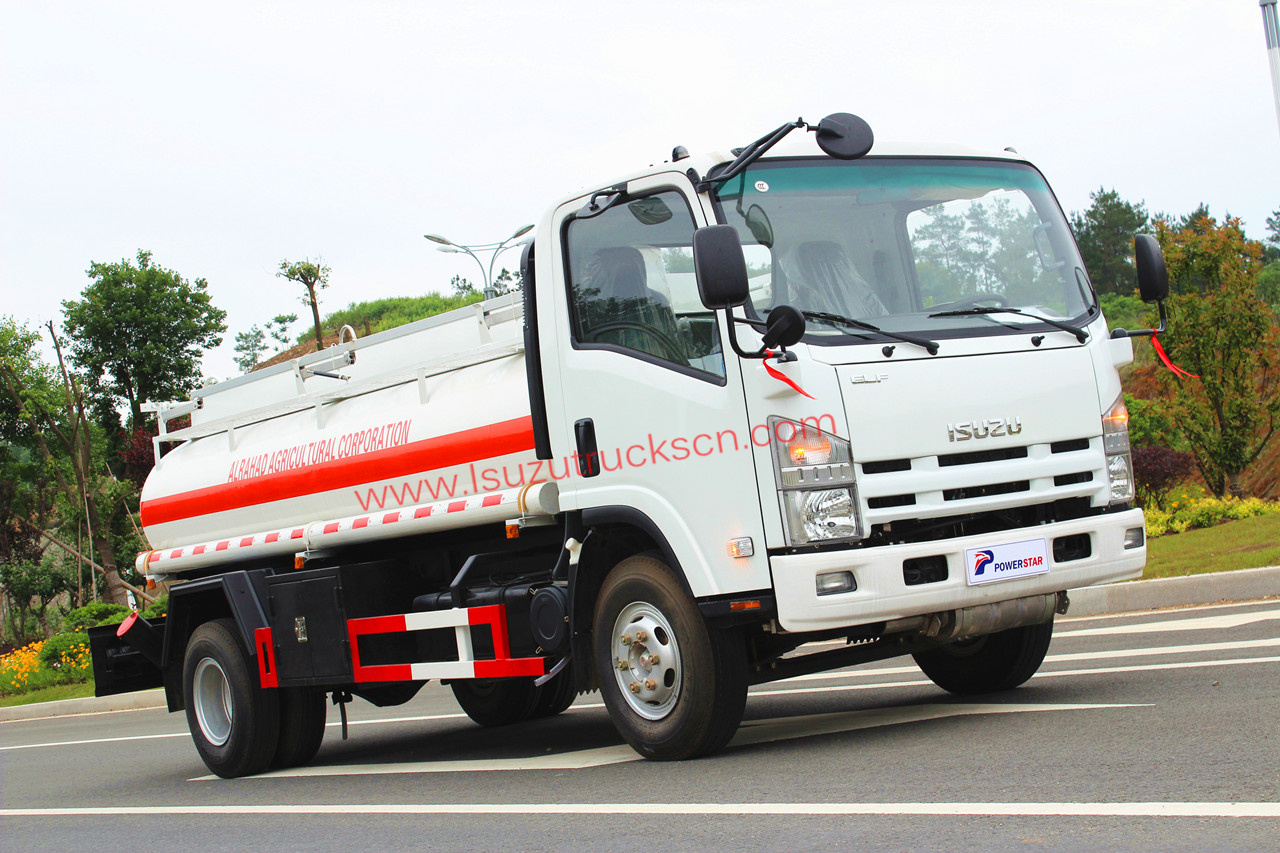

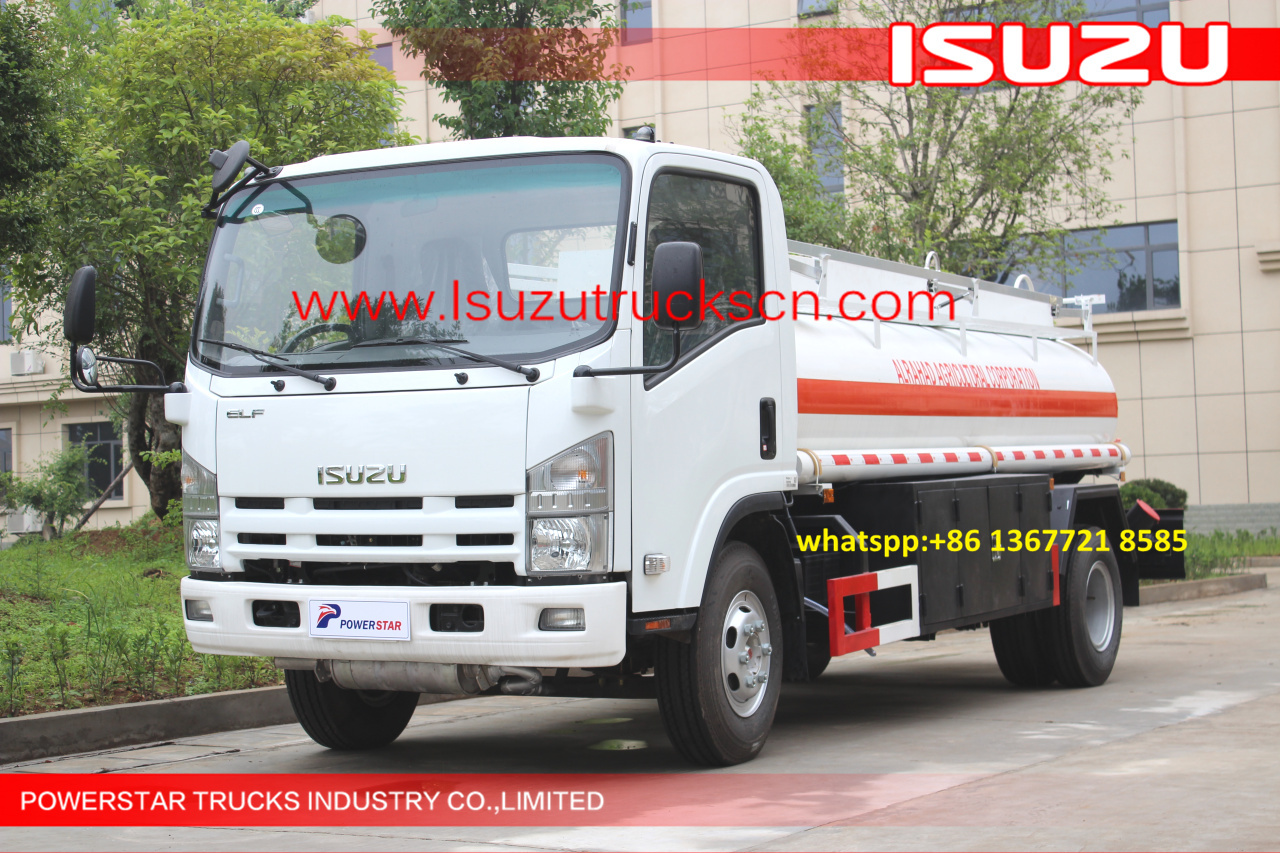

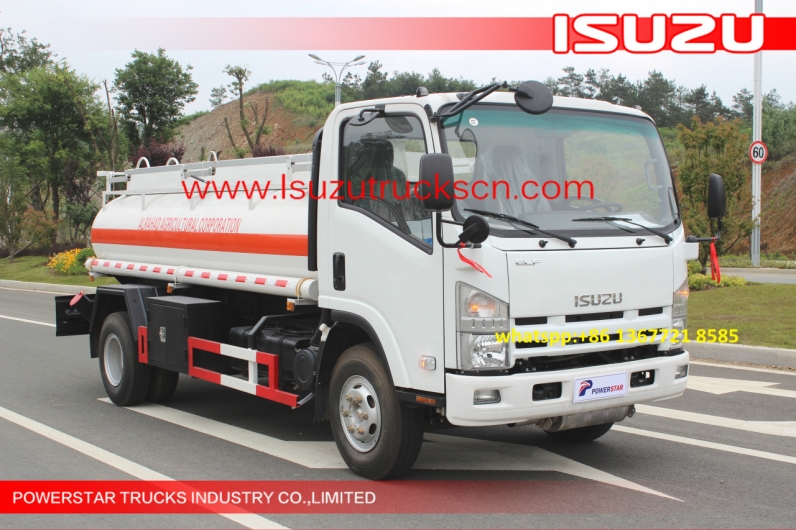

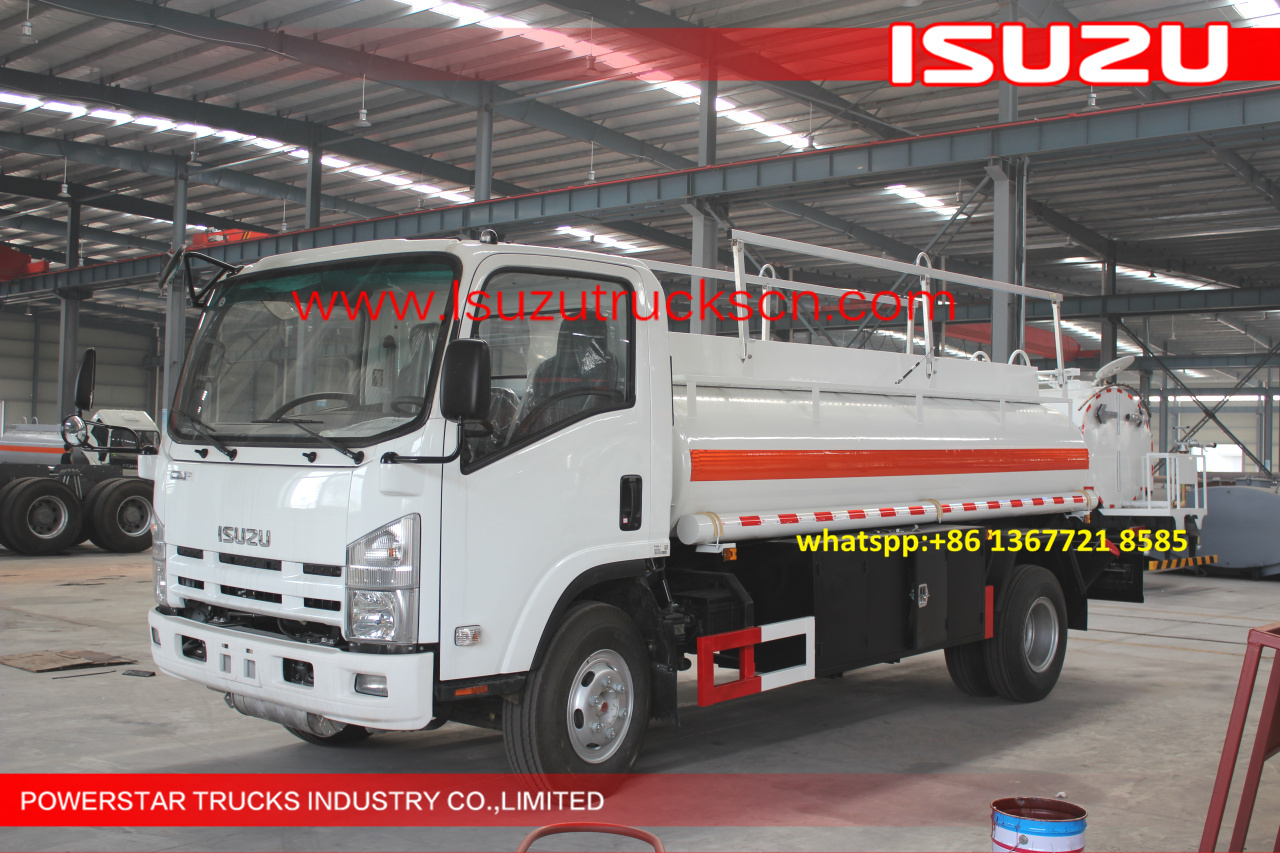

 Front left view      Front right view
 Isuzu 5000L NPR ELF diesel gaoline refuel tank truck oil tank truck  Isuzu 5000L NPR ELF diesel gaoline refuel tank truck oil tank truck

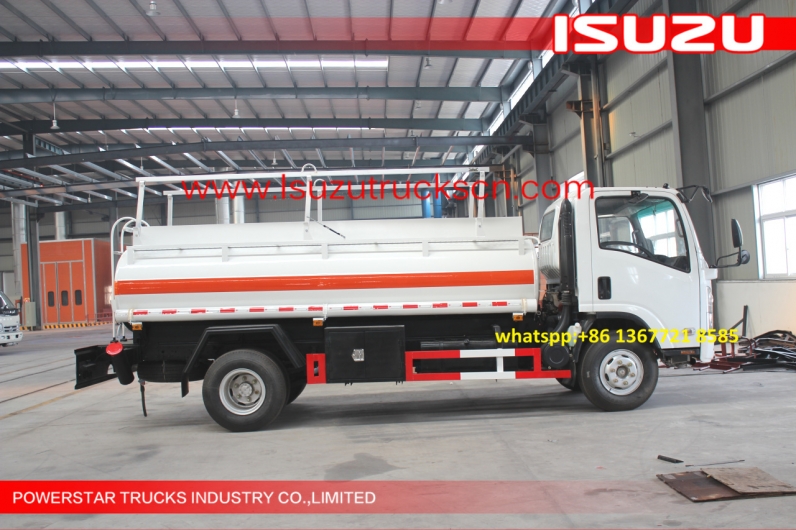

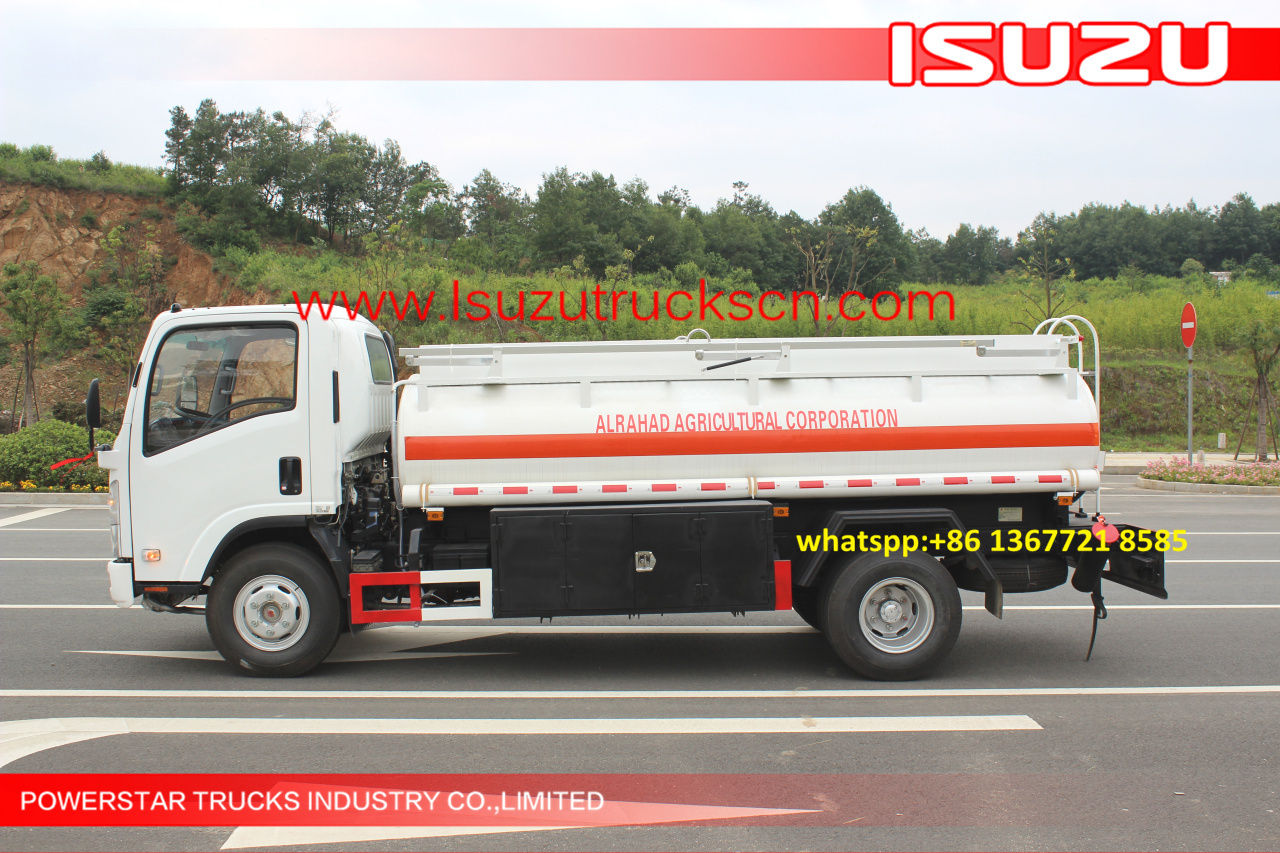

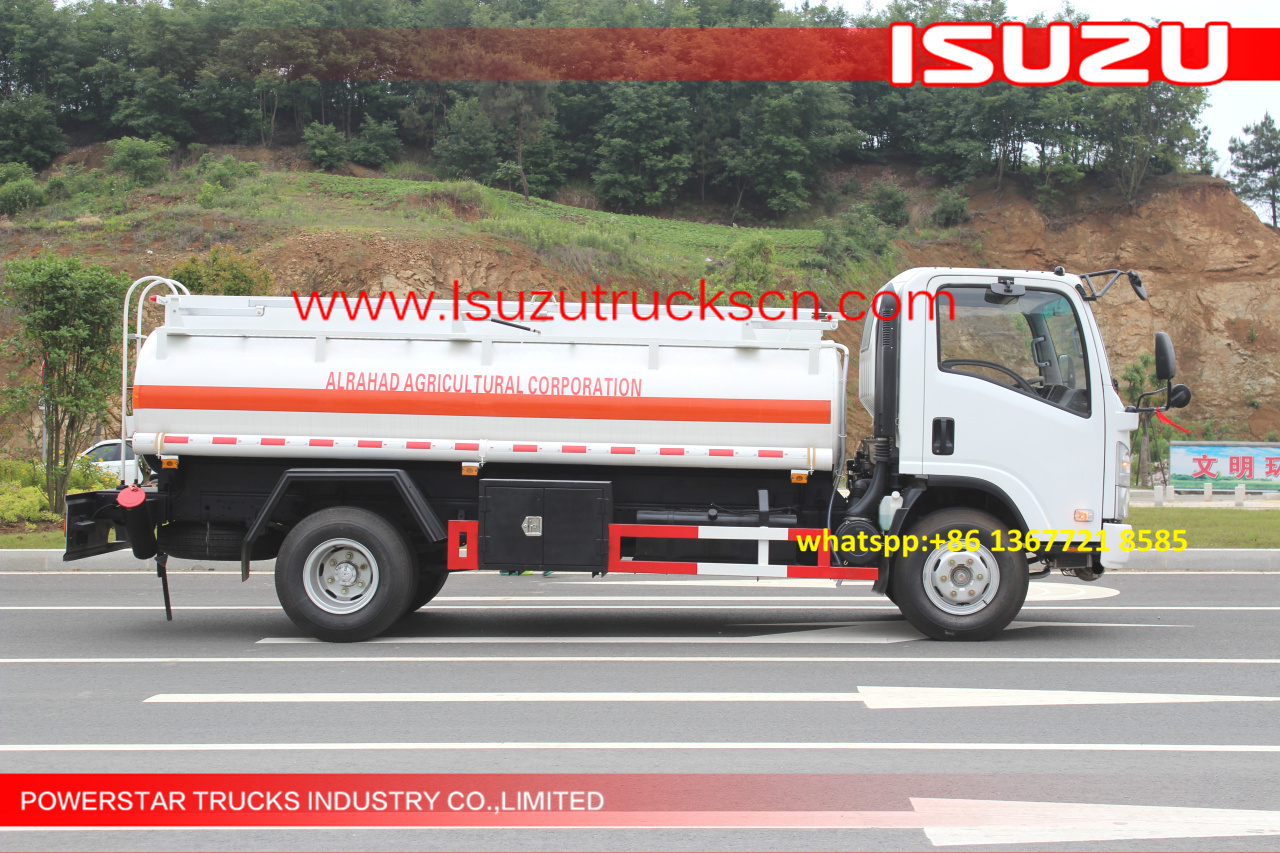

 Left side view      Right side view
 Isuzu 5000L NPR ELF diesel gaoline refuel tank truck oil tank truck for dubai Africa  Isuzu 5000L NPR ELF diesel gaoline refuel tank truck oil tank truck for dubai Africa

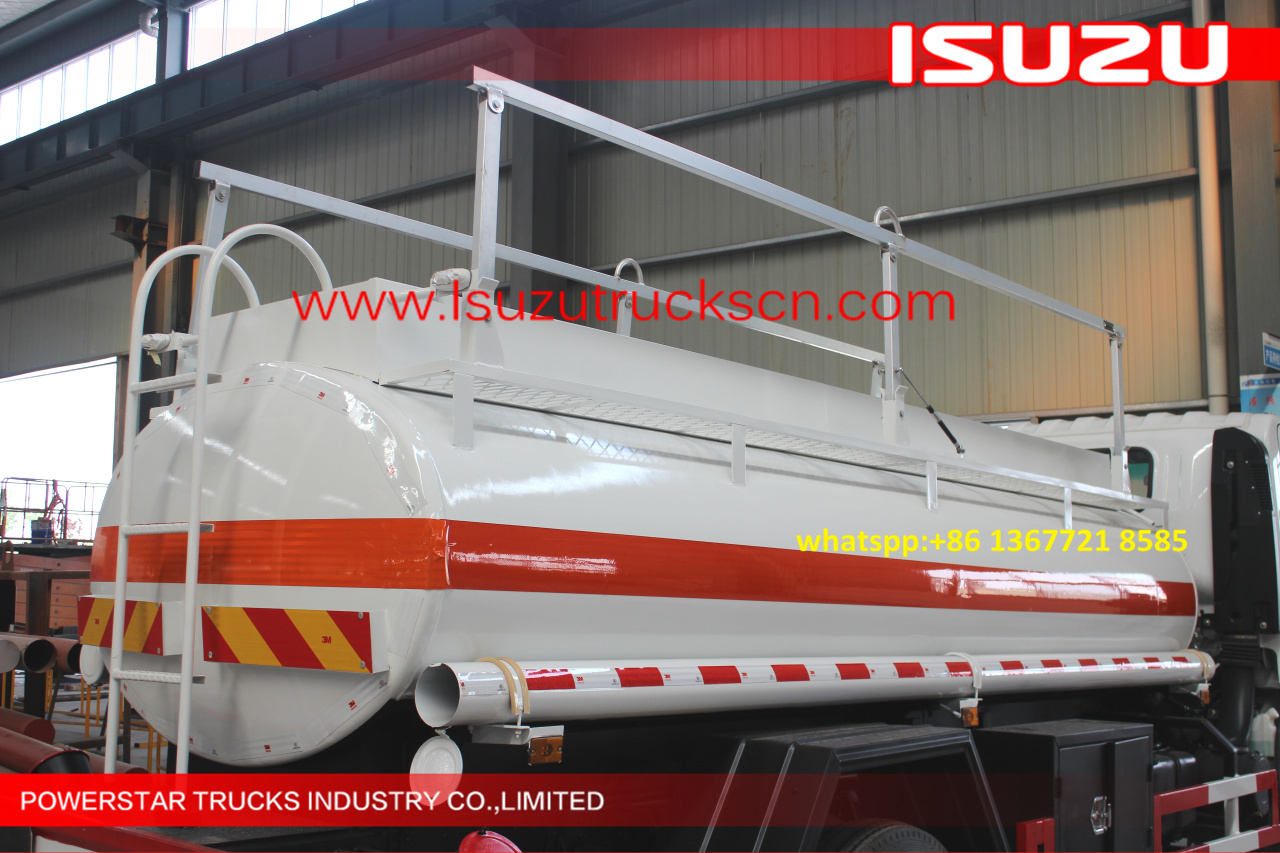

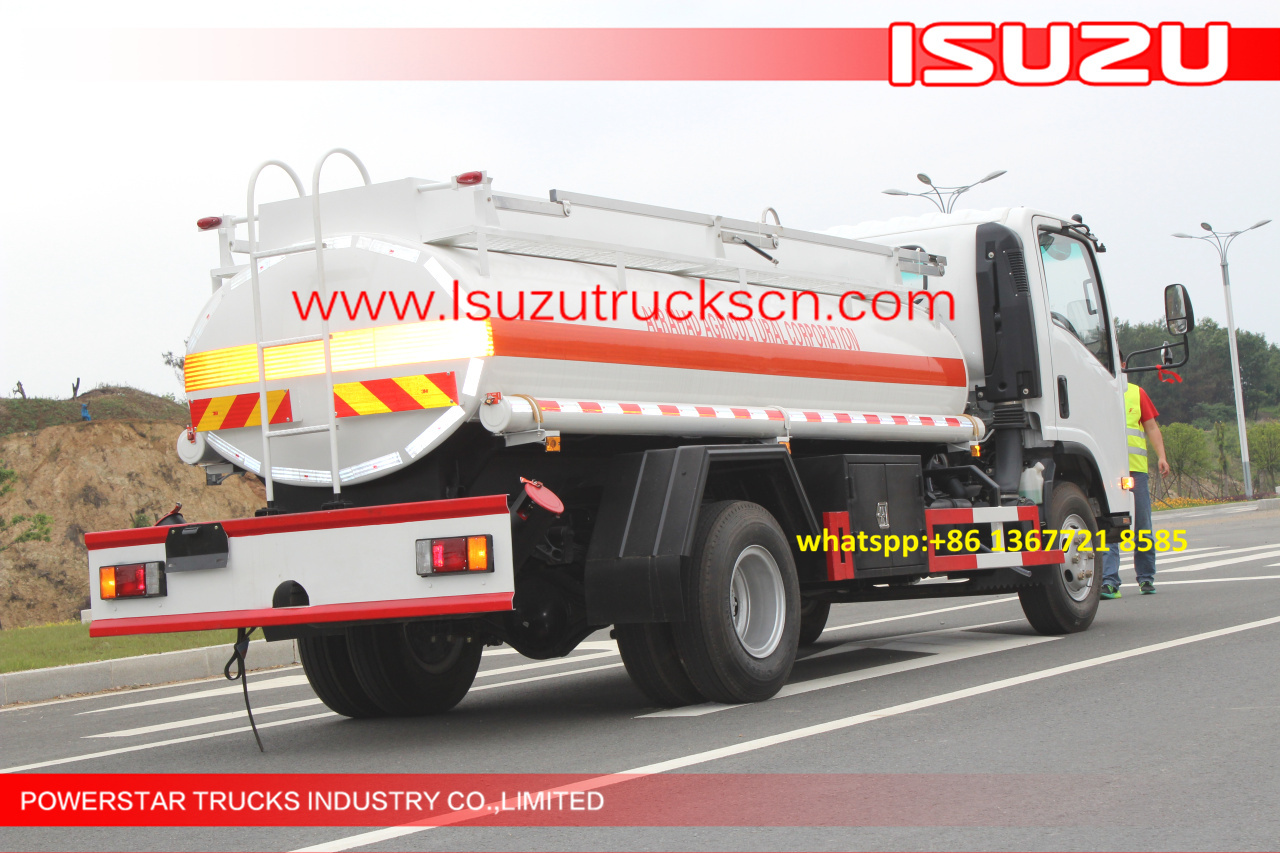

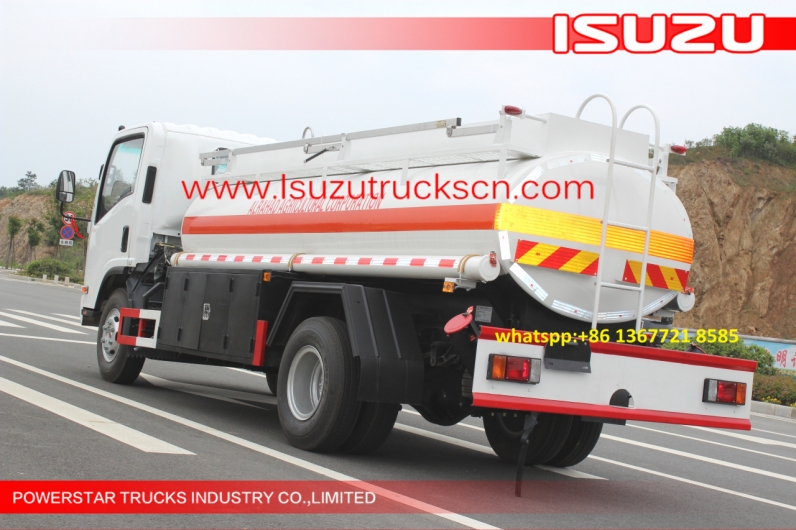

 Rear left view  Rear right view
 Isuzu 5000L NPR ELF diesel gaoline refuel tank truck oil tank truck for dubai Africa  Isuzu 5000L NPR ELF diesel gaoline refuel tank truck oil tank truck for dubai Africa

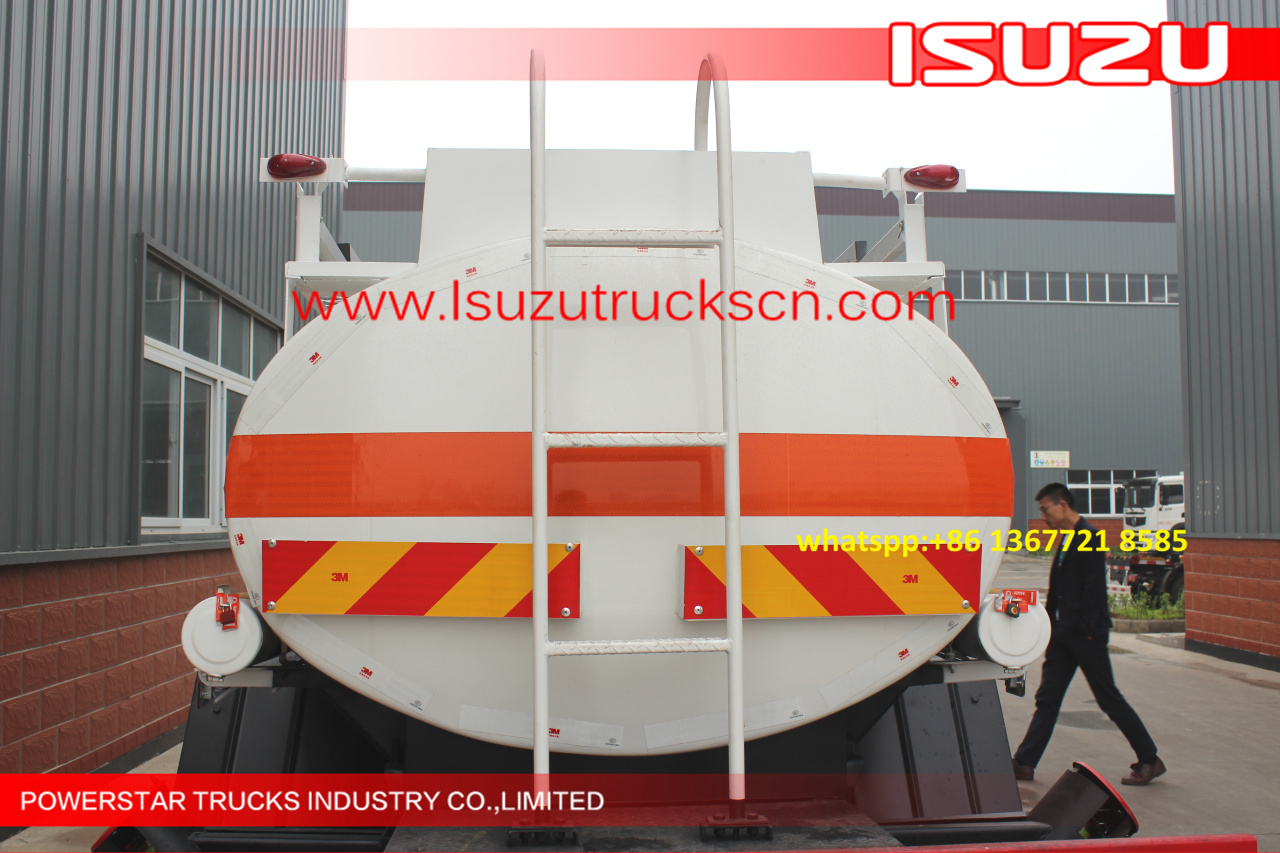

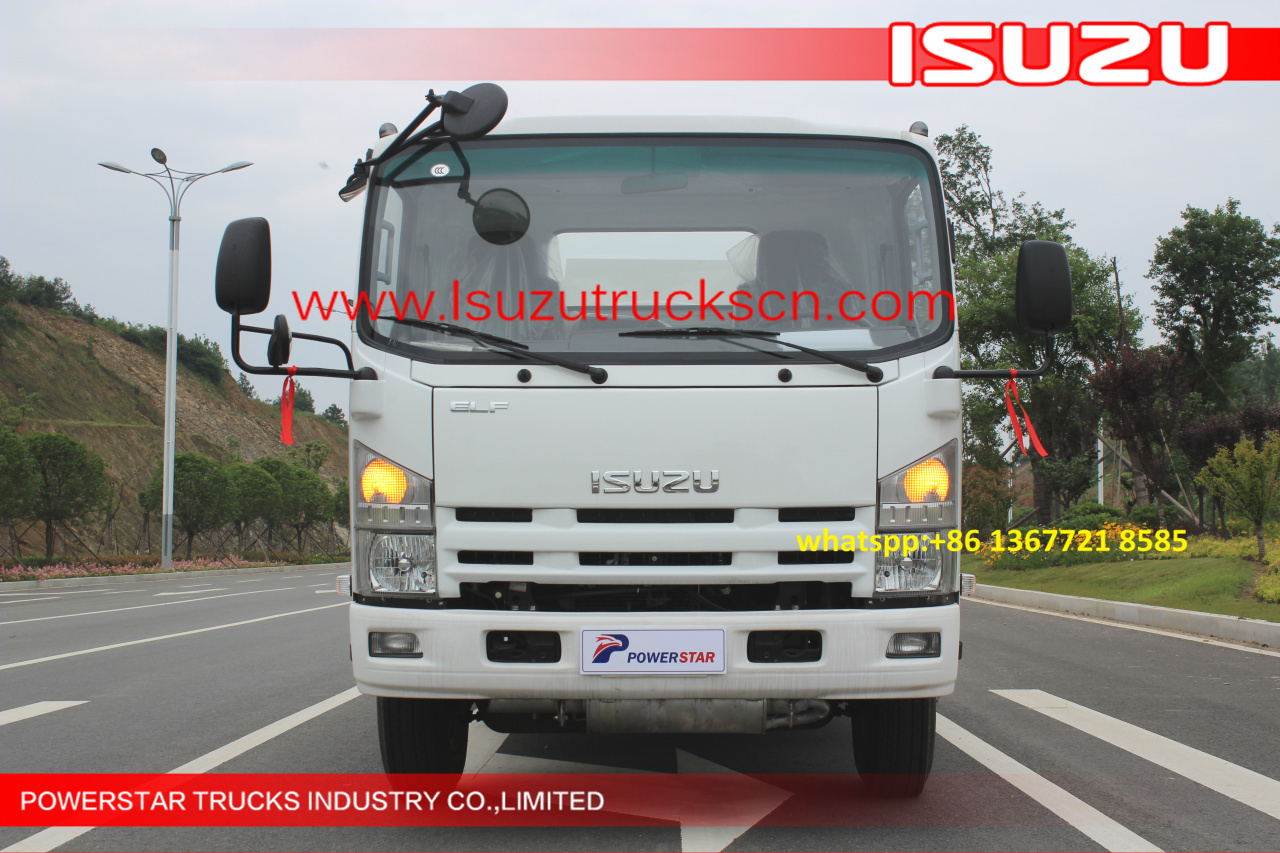

 Front view      Rear view


Main specifications:

Model

PT5100GJY

Driving Type

4x2    (Left hand drive)

Wheelbase

4175 mm

Engine

139 kw (190hp)

Tyre

8.25-20

Tank

Material:

Carbon steel(Q345)

Shell Body

5 mm nominal thickness

Head

6 mm nominal thickness

Baffles

3mm nominal thick, wave shape, four pieces with Ø 500mm service port

Tank shape

Ellipse

Capacity

Full capacity 7000L

Compartment

No

Shell Finish

Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.

Testing Pressure

36kPa, Water pressure test

Tank Fittings

Top inlet port

2pieces

Manhole Cover

Aluminum alloy, 20” self-latching manhole cover, with air-van.

Outlet port:

One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector.

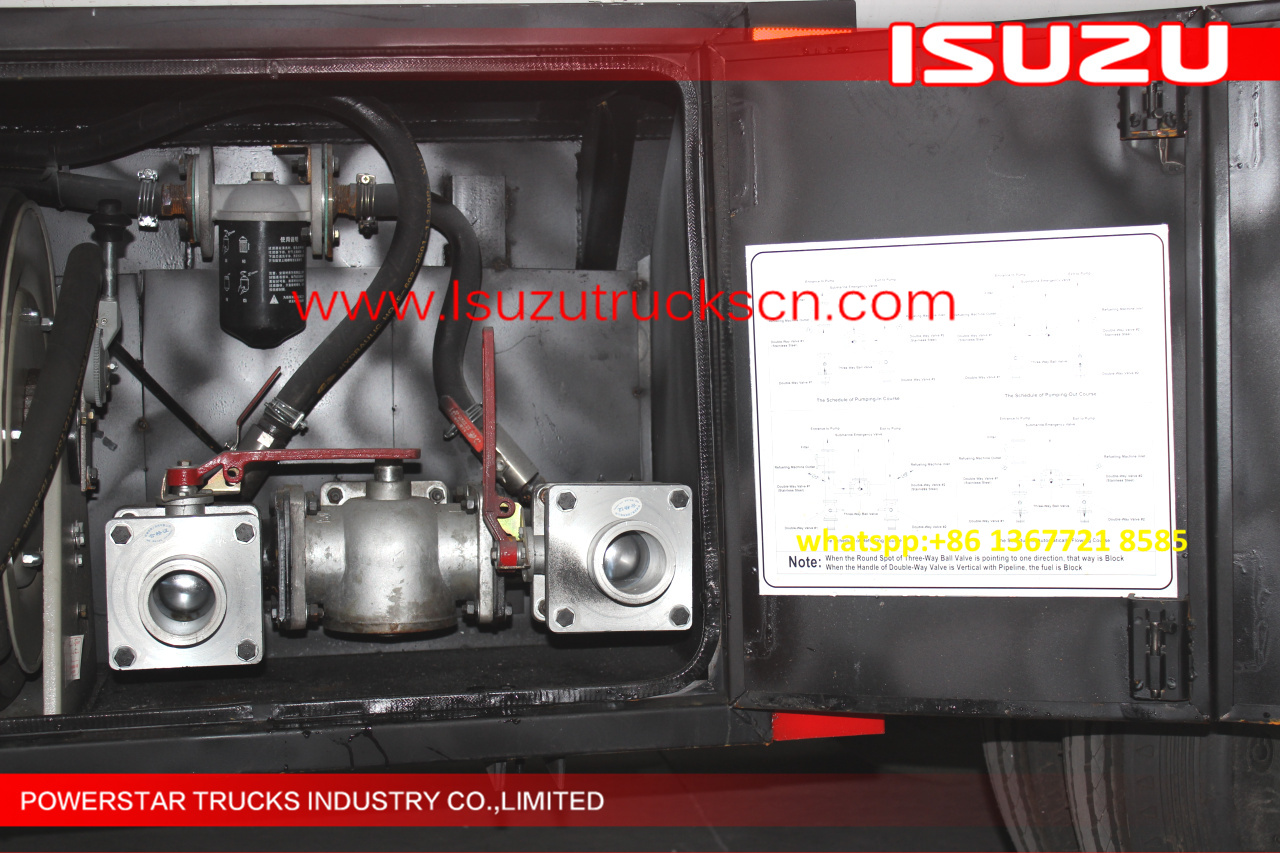

Pipe box:

It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m)

Anti –Static System:

Static electricity plate , copper plate and earth cable reel

Tank Accessories

Ladder:

Stainless Steel ladder fixed at rear of tank

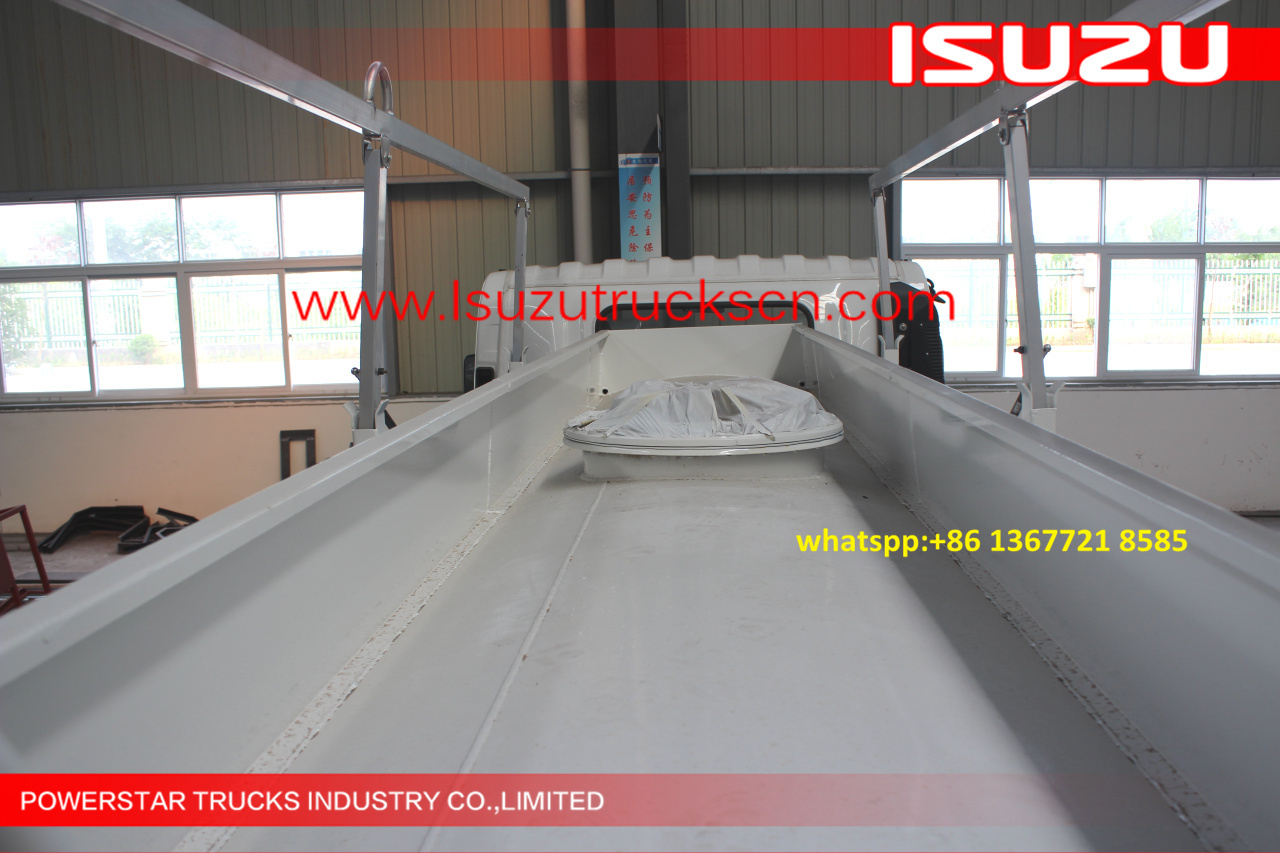

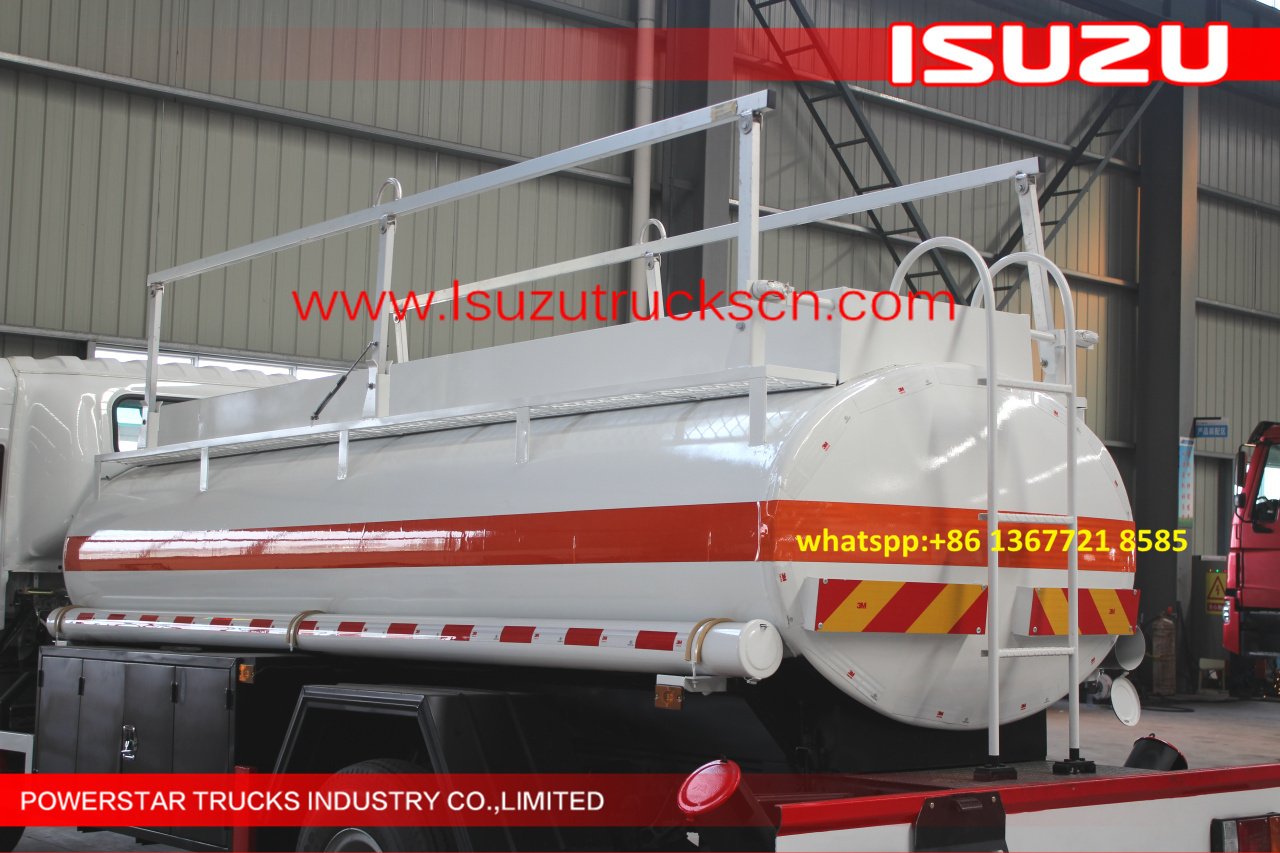

Walkway Platform:

It fixed on the top of tank with anti – skid surface treatment.

Handrail:

No

Fire Extinguisher Housing:

2 units, suitable for 4 kg’s fire extinguisher

Pump Device

Yes

Flow meter

Yes

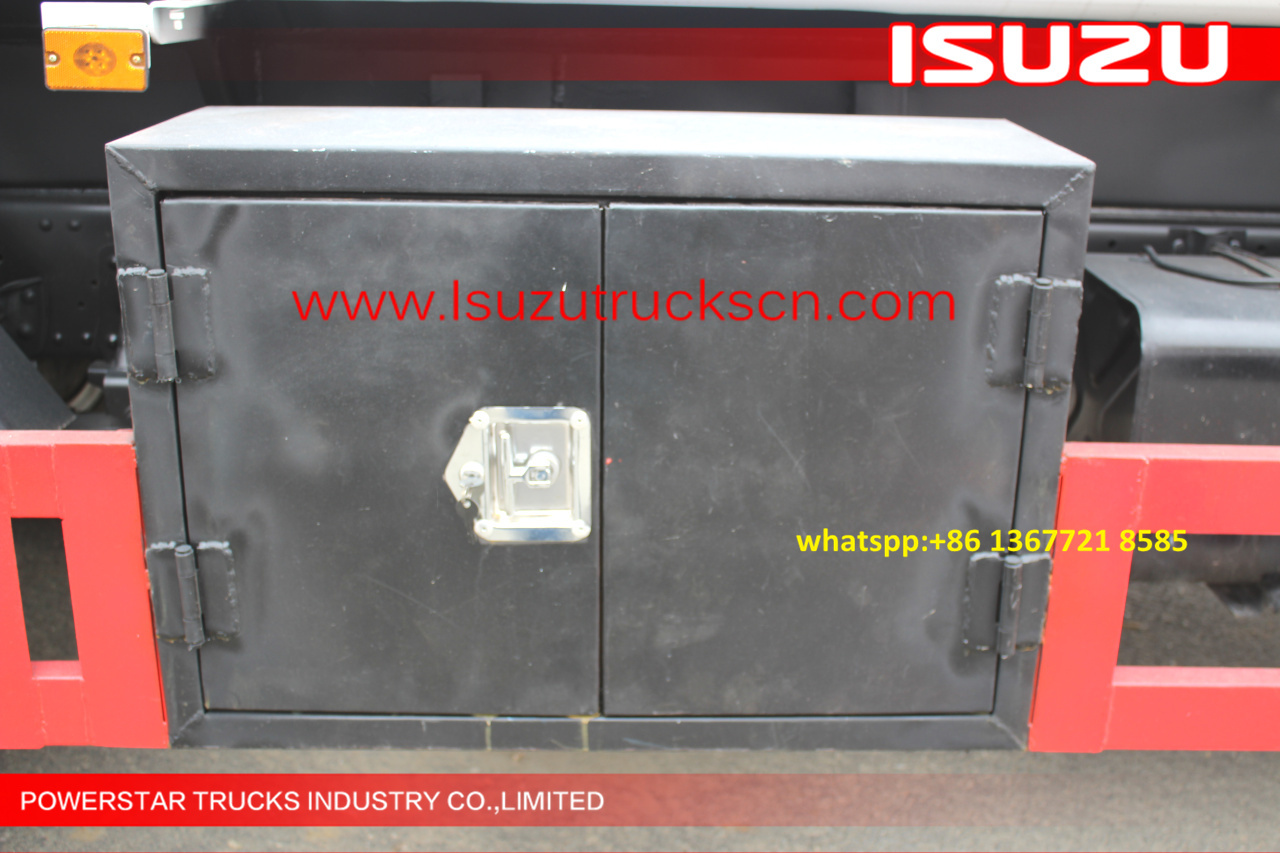

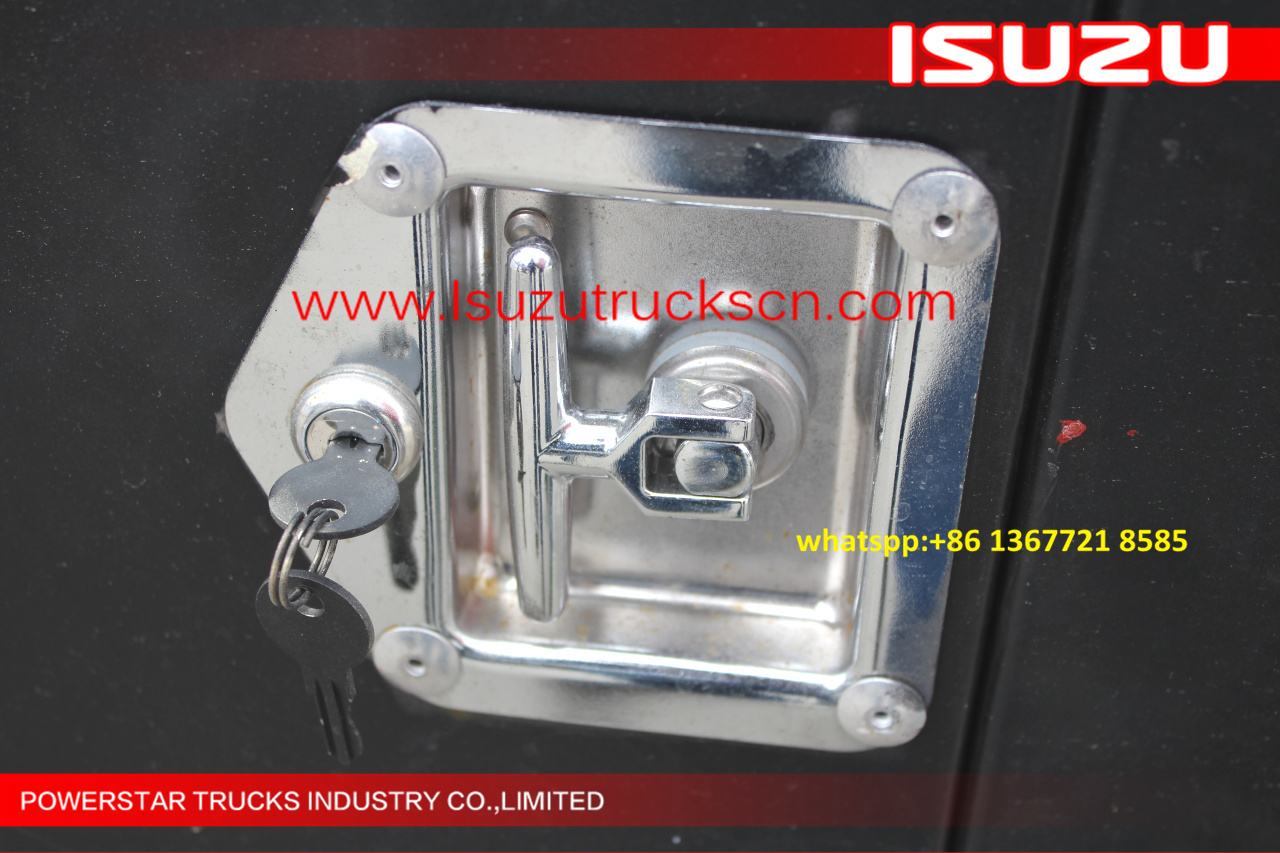

Tool box

Small box

Color

As option



HOT sale Isuzu Trucks

 Isuzu Fuel Tank Truck Excellent Quality for Africa Market  8000L ISUZU NPR refueling tanker trucks  Isuzu ELF water fire fighting trucks Isuzu ELF water fire fighting trucks
 Isuzu foam fire vehicle for export  Japan Isuzu water foam fire fighting tender fire engine  Philippines custom made 5tons street cleaning sweeper truck Isuzu  Japan high performance Isuzu sweeping vehicle
 5tons city used garbage compactor truck Isuzu trucks  Japan quality Isuzu rubbish compactor trucks  Customized 5tons Isuzu trucks mounted crane for sale  Africa ghana order Isuzu heavy duty truck with crane
 Japan 16Meters Isuzu Aerial plaftform trucks  Isuzu Water Jetting high pressure truck for sale  Isuzu 3tons flatbed tow wrecker trucks  Customized fuel oil tanker semi trailer made in china

Optional Equipment of ISUZU Fuel Tanker Truck


 5 cubic meter Fuel tank truck Isuzu    5 cubic meter Fuel tank truck Isuzu    5 cubic meter Fuel tank truck Isuzu   5 cubic meter Fuel tank truck Isuzu

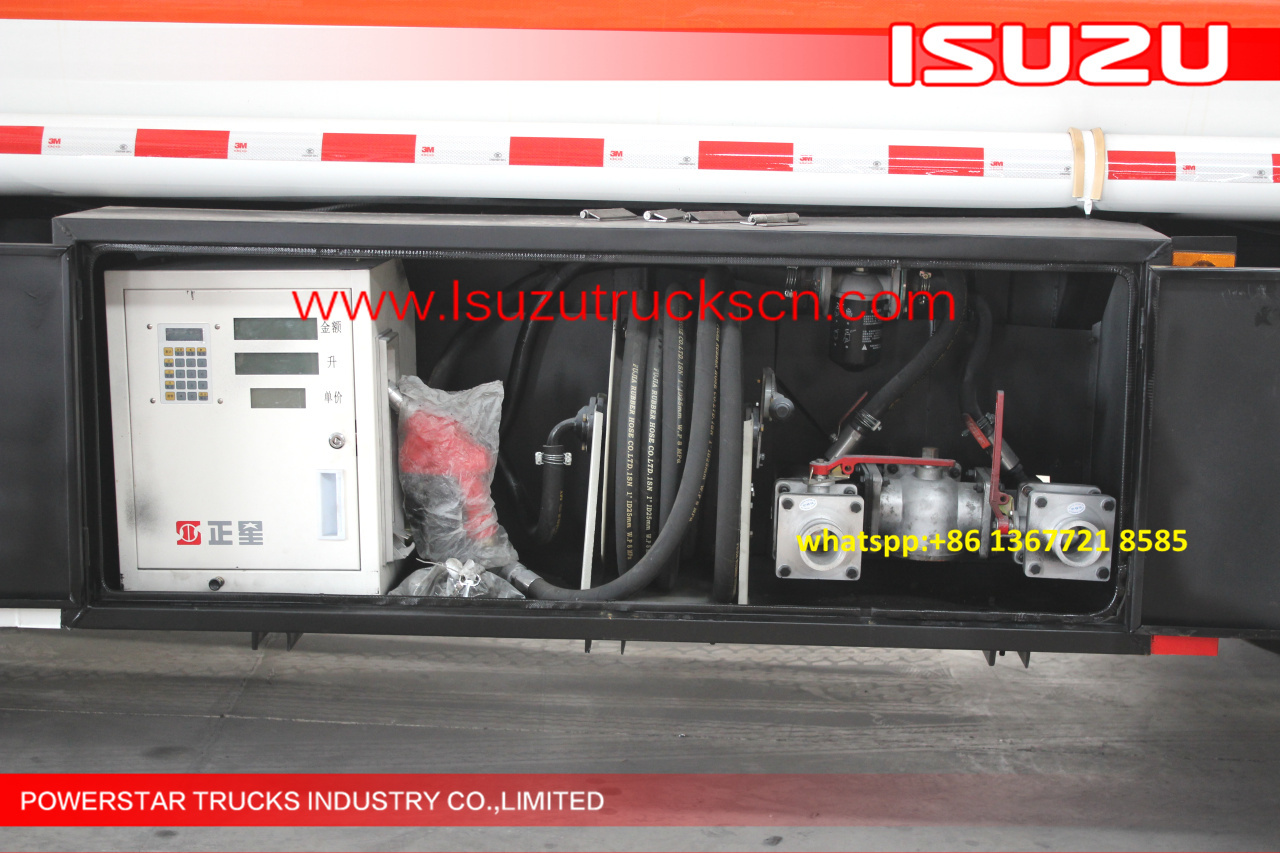

 Computer Fuel Dispenser    API Adaptor Valve    Bottom Valve    Manhole Cover
 ISUZU FUEL TANK TRUCKS ELF    ISUZU FUEL TANK TRUCKS ELF    FUEL TANK TRUCK ISUZU    ISUZU FUEL TANK TRUCKS ELF

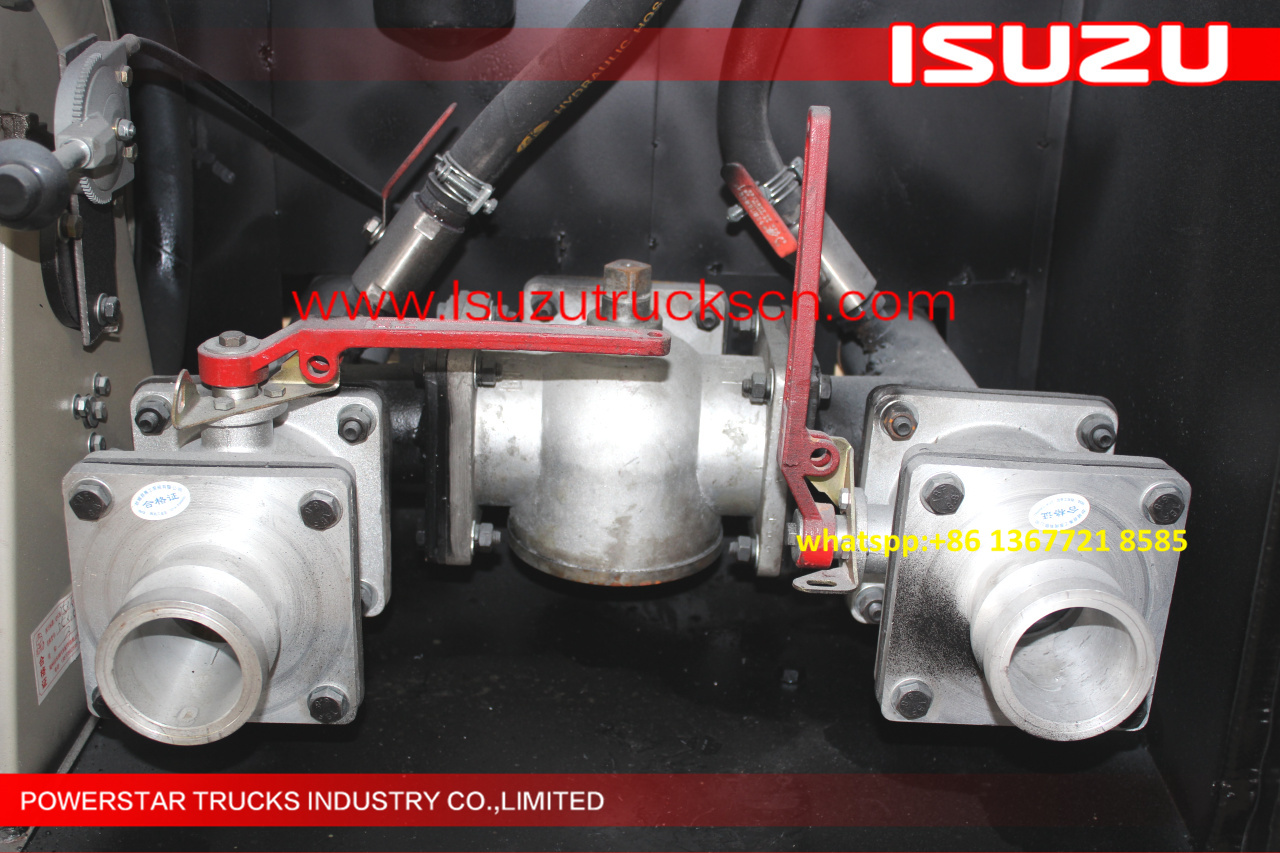

 Ball Valve    Three Ways Set Ball Valve    Level Gauge    Oil and Gas Recovery Valve
