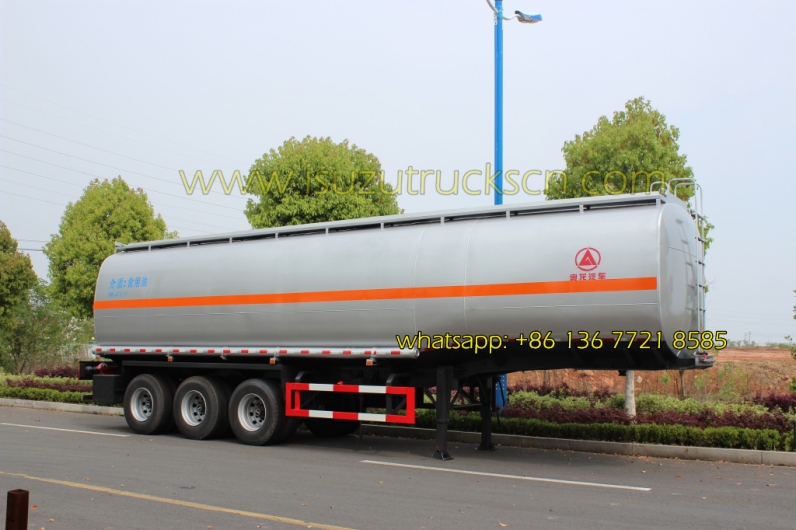

ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer
ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer

50,000L Oil tanker Transport trailer

ISUZU tractor trailer Tri-axle 50000 liters oil tank fuel tanker semi trailer,transporting highly flameable liquids petrol, crude oil, fuel tank trailer
  • Order(MOQ):

    1

 50,000 Litre Fuel Tank Trailer

50,000L Oil tanker Transport trailer


PT9402GYY fuel tanker semi trailer manufactured from carbon steel Q235, is available with standard tank volume of 40m3 and wheelbase of 5800mm+1310mm+1310mm. Stainless steel or aluminum alloy semi trailers can be made for your choice as well. The liquid tanker semi trailer applies 3 FUWA13T axles, JOST90mm or 50mm towing pin. As required, we can mount bottom valve, bottom loading system, or other additional configurations to the fuel tanker semi trailer. Applicable chemical liquids include oil products, ethyl alcohol, and so on.

50,000L Oil tanker Transport trailer

Overall Dimension

Total length (mm)

12900

Mass Parameters

Max. total mass (Kg)

39970



Total width (mm)

2490



Total width (mm)

3800

Rated load mass (Kg)

28000



Wheelbase (mm)

7200+1310+1310


Kerb mass (Kg)

11970


Tread (mm)

1830



Ground clearance of towing pin bottom plate (mm)

1250



Through-put Capacity

Front turning radius (mm)

1550

Rear overhang (mm)

1830



Radius clearance (mm)

2350

Departure angle (º)

17



Min. turning diameter (m)

24

Min. ground clearance (mm)

360



Main Configuration

Item

Standard configuration

Optional configuration

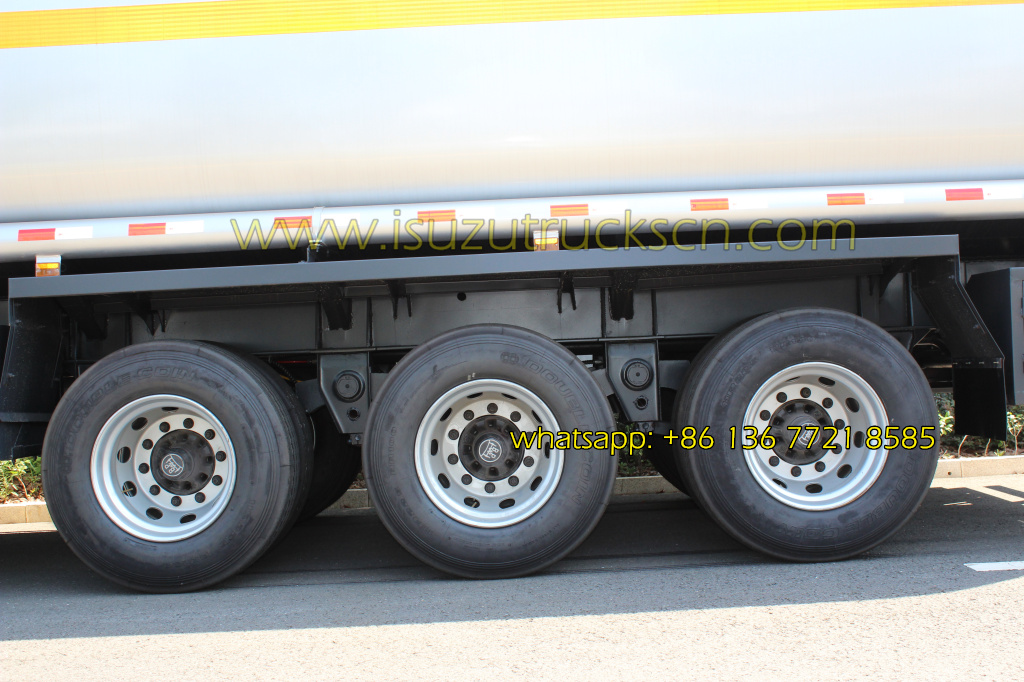

Axle

FUWA 13T, 3sets

FUWA 16T



Towing pin

JOST 90

50



Support leg

FUWA linkage leg

JOST



Suspension

Baohua brand Triple suspension




Leaf spring

8pcs




Rim

Rishang wheel: 22.5 ×9.00

Zhengxing(Fujian) brand Wheel rim



Tyre

Double Coin 12R22.5 vacuum tyre, 12+1 sets

11.00R20



Braking system

Dual circuit air brake;
Service brake, parking brake, emergency brake (air break braking)




Electric system

24V, minus earth(connect with tractor)




ABS

Homemade 4S/2M

Xi'an Zhengchang,Hande



Fire extinguisher

2 sets




Special Configuration

Item

Standard configuration

Optional configuration



Volume (m3)

50




Size (mm)

12650×2496×1920(L×W×H)




Tank materials

Carbon steel Q235

Stainless steel 304



Discharge valve

Aluminum alloy DN80

Stainless steel, DN80, DN100



Bottom valve

None

Optional



Cover

Amount: 2pcs; Materials: carbon steel; Diameter: φ500

Stainless steel, aluminum alloy



Discharge hose

Amount: 2 sets; Length: 4m; The hose diameter is same as that of ball valve.

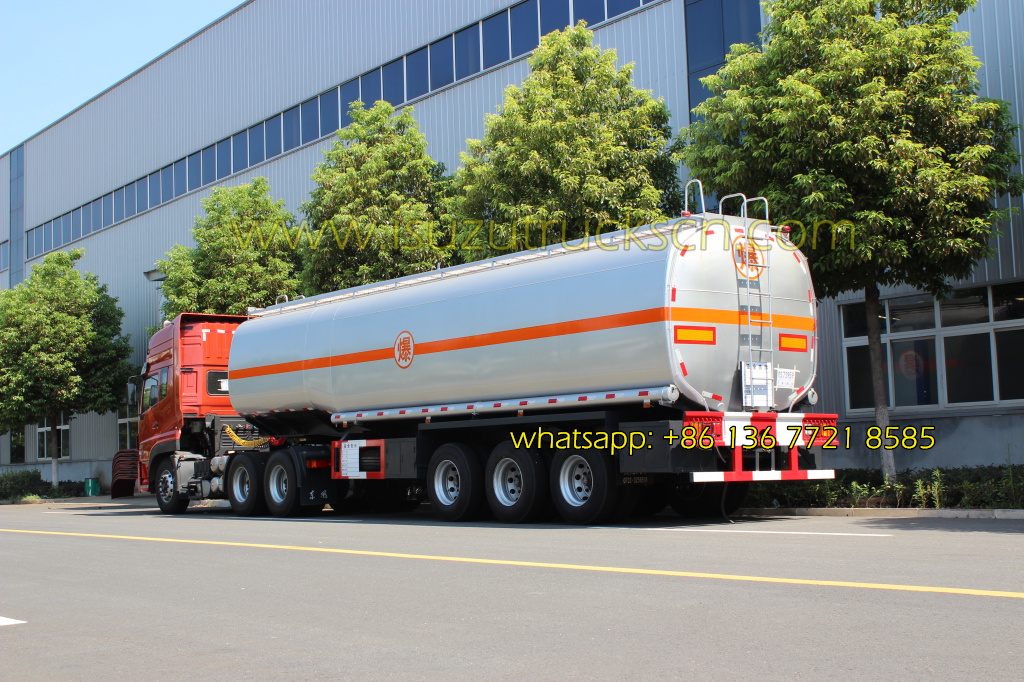

50,000L Oil tanker Transport trailer

50,000L Oil tanker Transport trailer

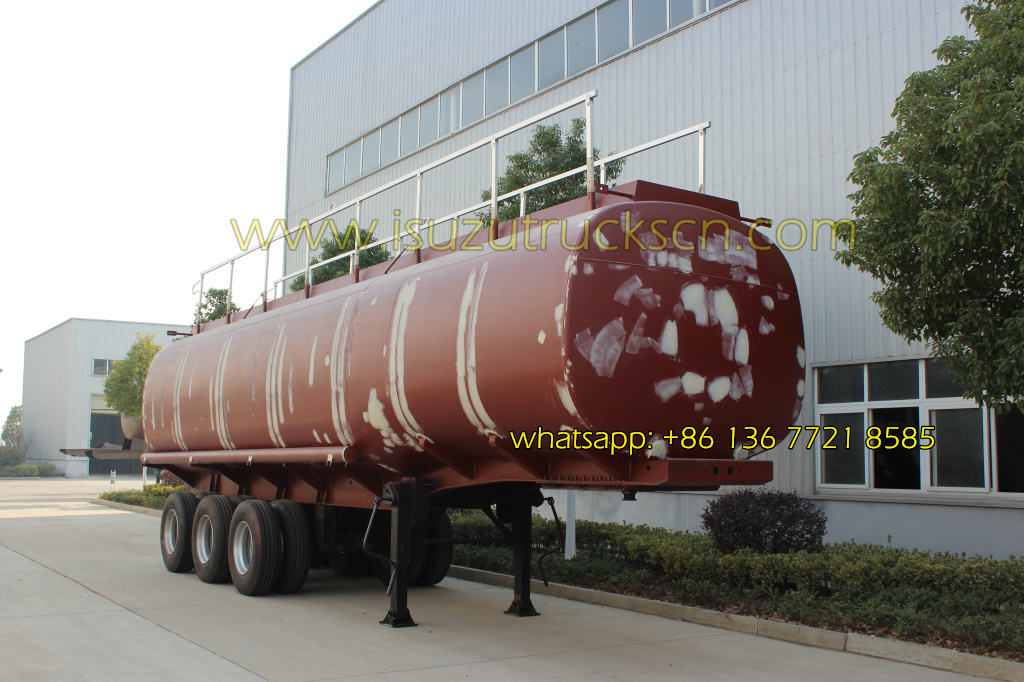

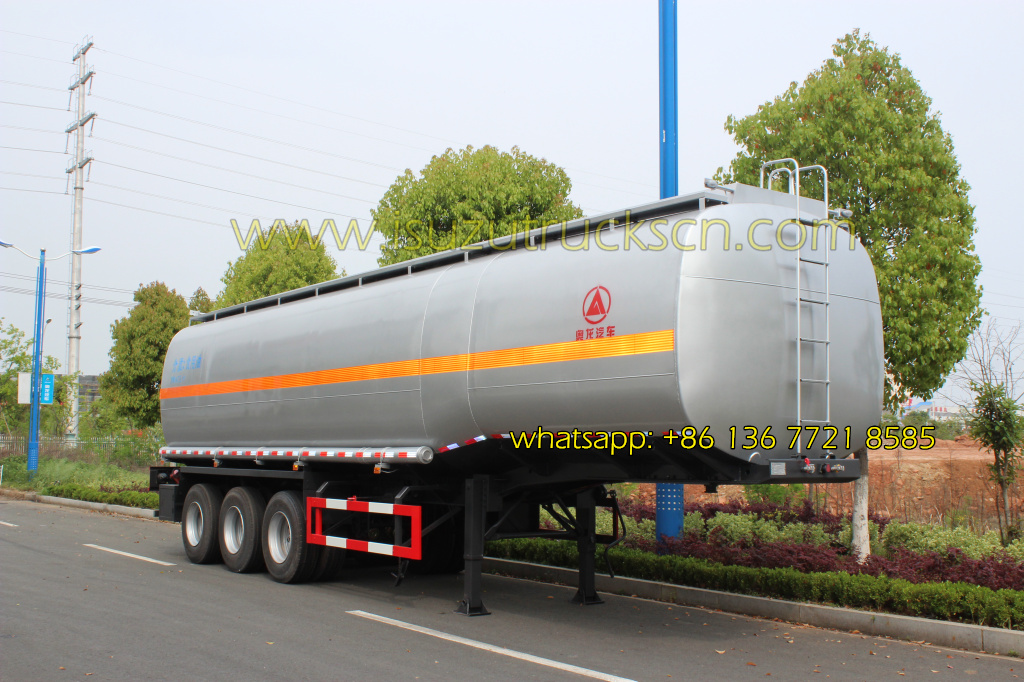

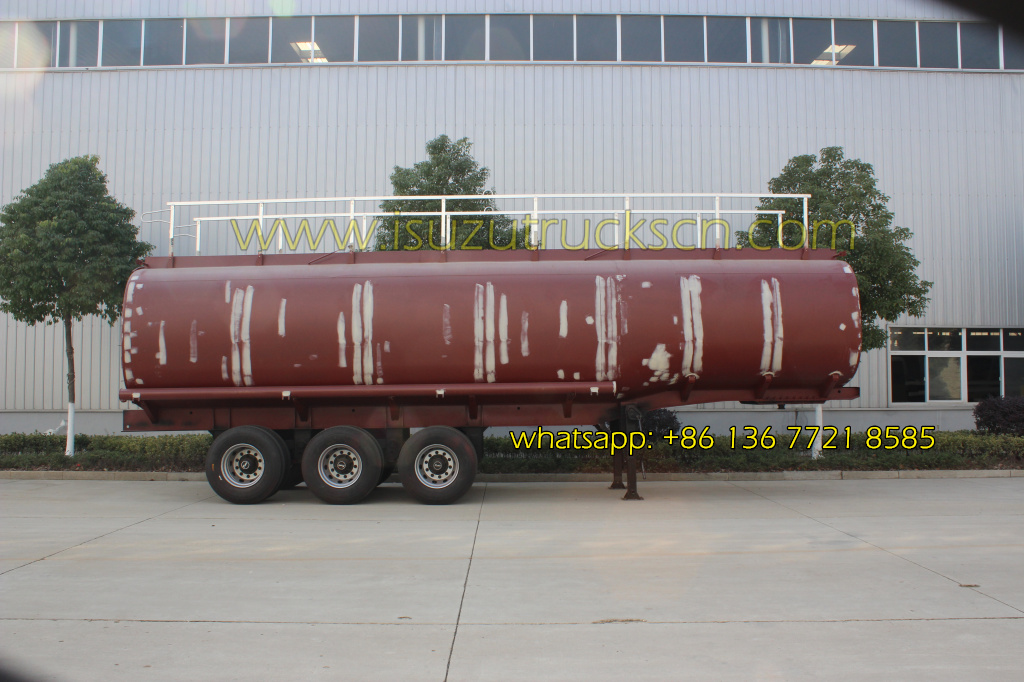

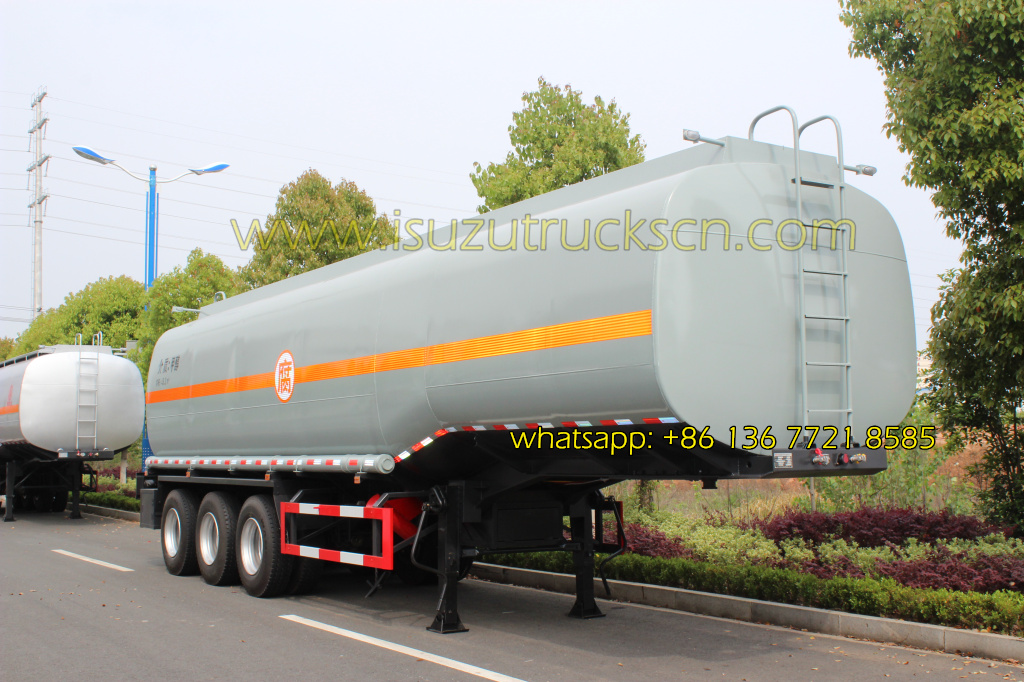

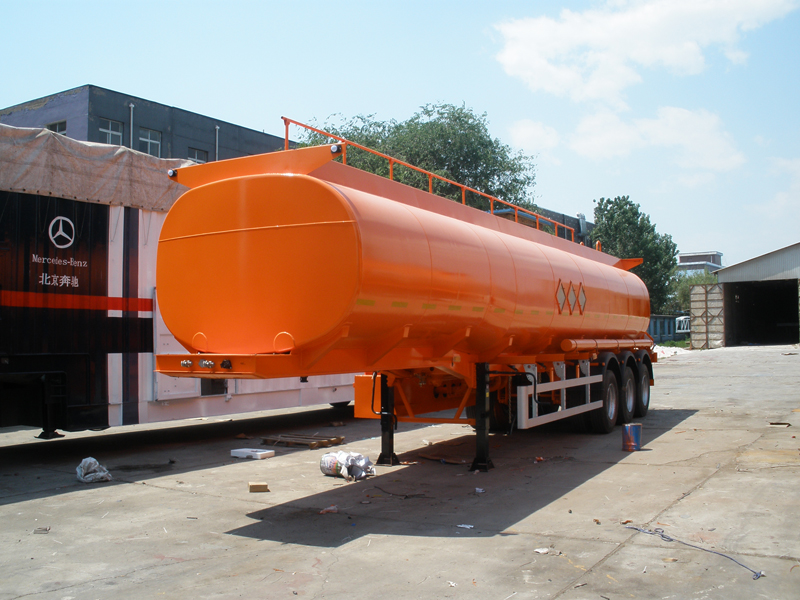

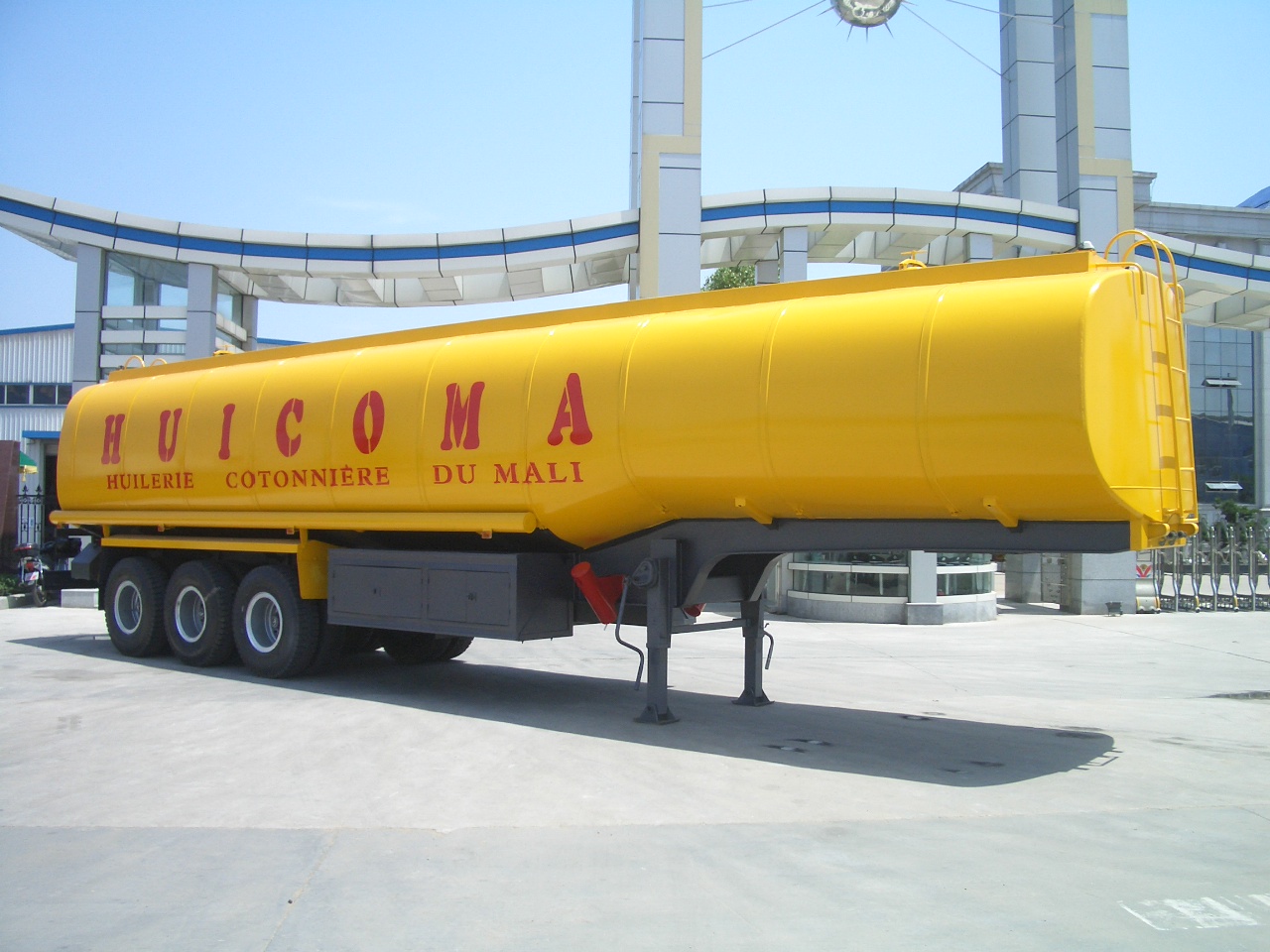

 More customer build example:

 More customer build example:

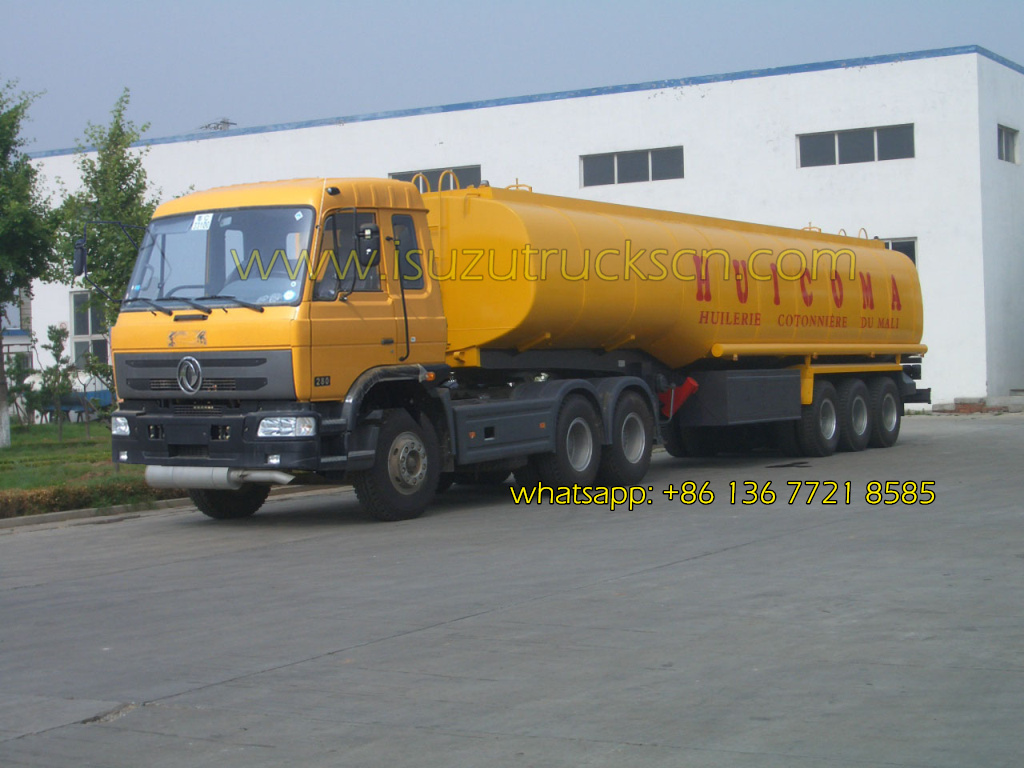

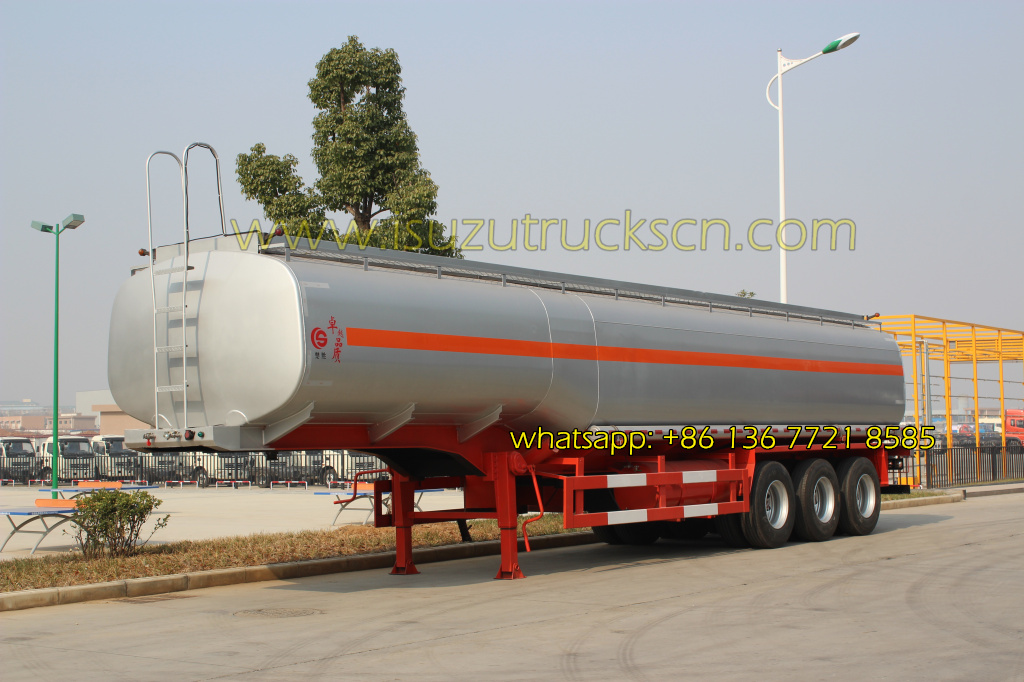

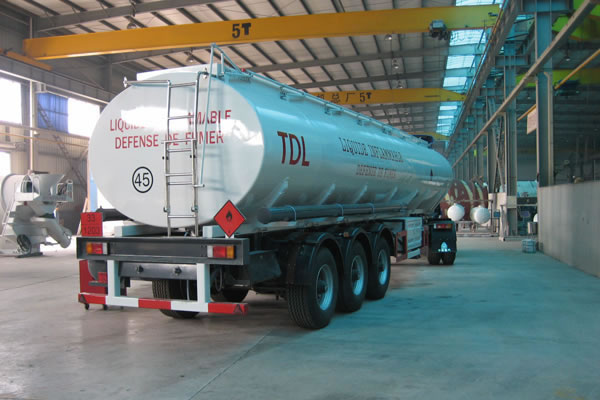

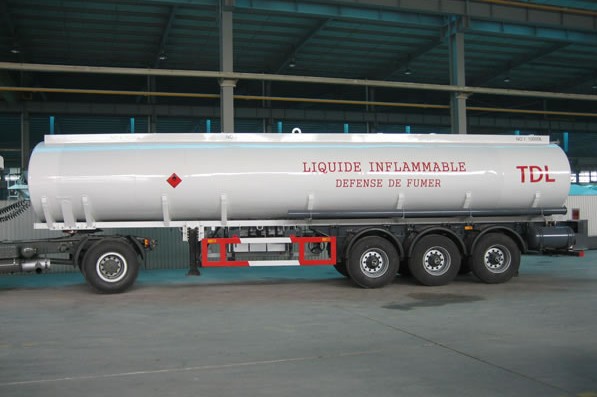

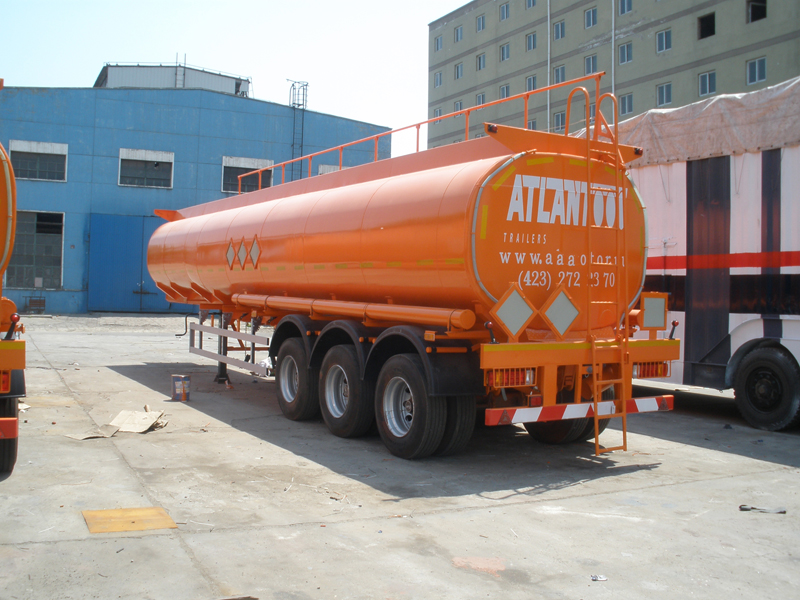

 More customer build 50CBM FUEL TANKER TRAILER example:

More customer build 50CBM FUEL TANKER TRAILER example:

More customer build 50CBM FUEL TANKER TRAILER example:
