5000L Libya Isuzu NKR55 600P Fuel Oil Tanker trucks

4000L (1,056 US Gallon) 4x2 ISUZU chassis (115HP) Mobile Refueling truck for Light Gasoline/Diesel Delivery

Details

Isuzu Fuel Tank Truck Excellent Quality for Africa Market

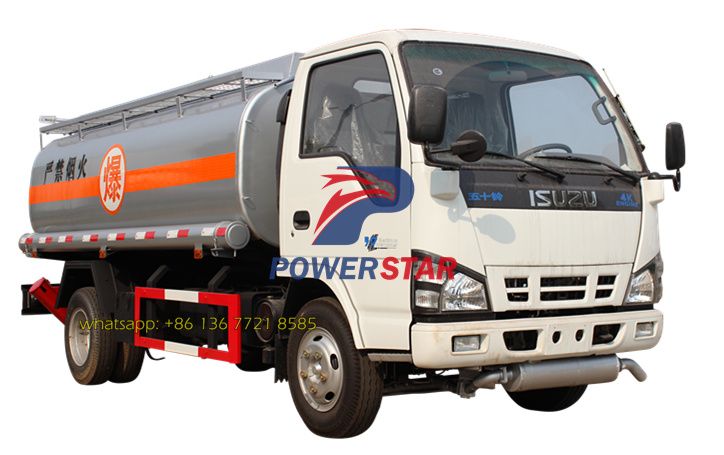

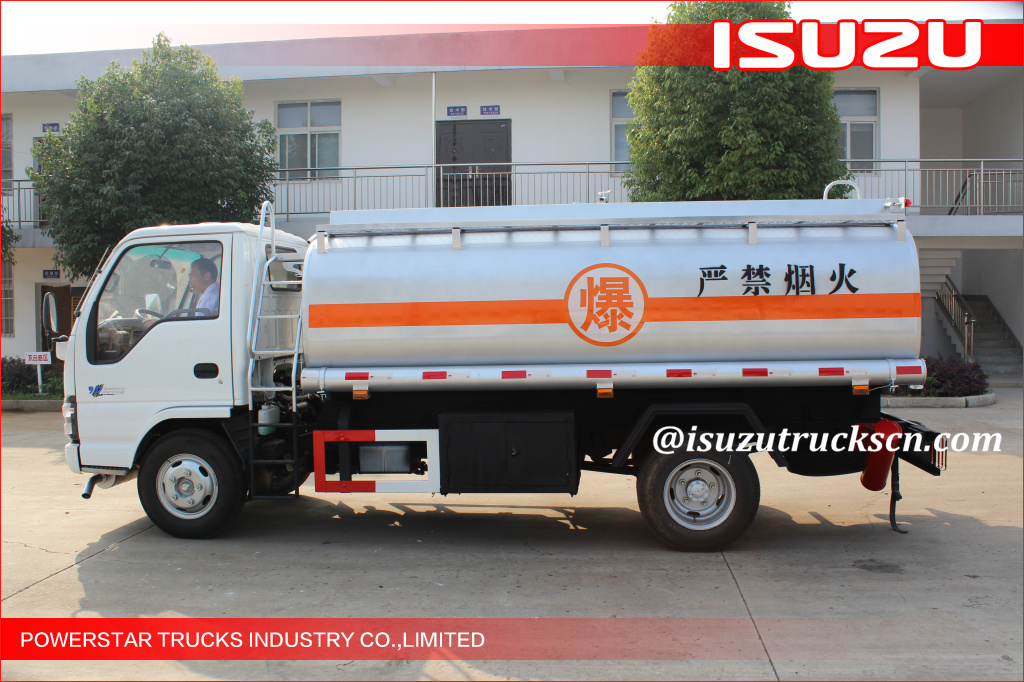

 5000L Libya Isuzu NKR55 600P Fuel Oil Tanker trucks

Basic Description

Africa ISUZU Fule Tank Vehicle Truck also called as Diesel fuel tank truck, Fuel bowser, Oil tank vehicle, Fuel dispenser tank truck, Aluminium alloy fuel tankers, Gasoline tank truck Isuzu,Fuel storage tank truck, Isuzu Fuel transport Van, 6000L ISUZU oil dispenser Tank truck or Fuel Tank truck ISUZU exported to UAE for Fuel transport.


This high quality ISUZU oil tank truck is a type of special engineering machinery. It is usually used for transporting a lot of oil and chemical liquid in petrochemical sector, such as gasoline, diesel, crude oil, lubricating oil, coal tar oil and industrial chemicals.


Key Features

   ISUZU NKR Chassis, Durable & Performance.

   Tanker between 3,000 Liters and 25,000 Liters

   Tank material can be Carbon steel, Aluminum ally or Stainless steel

   Fuel Dispenser, Flow meter, Level gauage can be optional

   POWERSTAR 20 years’ experience on Fuel/oil tank truck exporting.

Technical drawings:

5 cubic meter Fuel tank truck Isuzu



4000L Isuzu Fiscal Refuel Tank Truck for Gasoline/Light Diesel Delivery

Huge experience on tank design and manufacturing

4000L Isuzu Fiscal Refuel Tank Truck for Gasoline/Light Diesel Delivery

Quickly delivery the truck, and ship to worldwide with safety

4000L Isuzu Fiscal Refuel Tank Truck for Gasoline/Light Diesel Delivery

Easy use and long service life

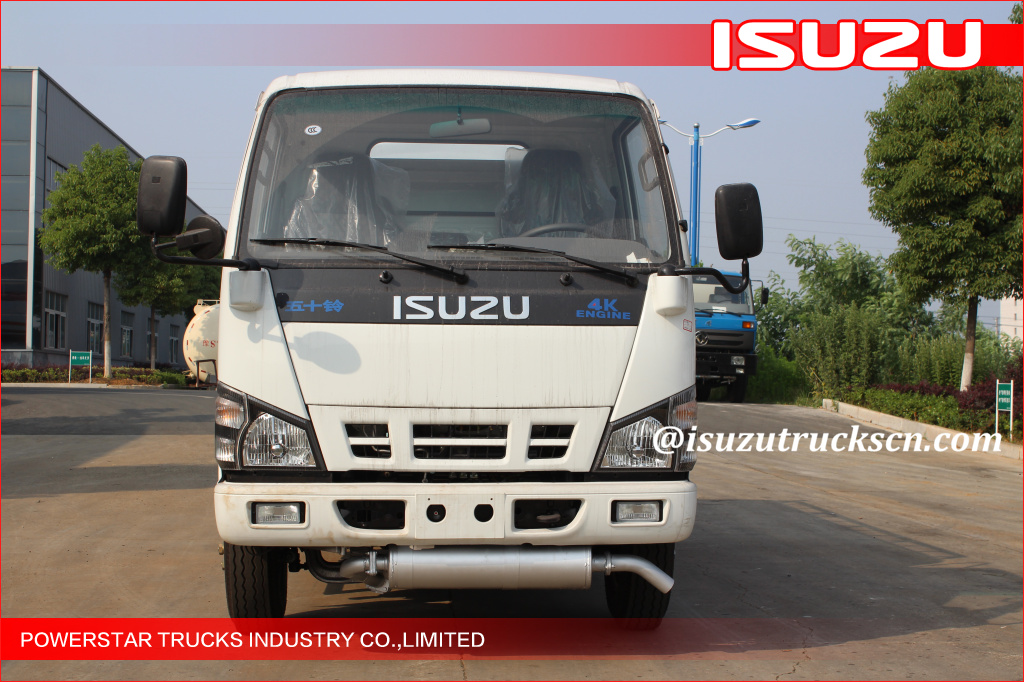

Cab of Isuzu Fuel Tank

Custom Made Isuzu NKR 4cbm Oil Fuel Tank Truck for Philippines    Custom Made Isuzu NKR 4cbm Oil Fuel Tank Truck for Philippines    Custom Made Isuzu NKR 4cbm Oil Fuel Tank Truck for Philippines

Custom Made Isuzu NKR 4cbm Oil Fuel Tank Truck for Philippines    Custom Made Isuzu NKR 4cbm Oil Fuel Tank Truck for Philippines    Custom Made Isuzu NKR 4cbm Oil Fuel Tank Truck for Philippines

Main specifications

Model

PT5070GJY

Driving Type

4x2    (Left hand drive)

Wheelbase

3360 mm

Engine

88 kw (120hp)

Tyre

7.00-16

Tank

Material:

Carbon steel(Q345)

Shell Body

5 mm nominal thickness

Head

6 mm nominal thickness

Baffles

3mm nominal thick, wave shape, four pieces with Ø 500mm service port

Tank shape

Ellipse

Capacity

Full capacity 5000L

Compartment

No

Shell Finish

Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.

Testing Pressure

36kPa, Water pressure test

Tank Fittings

Top inlet port

2pieces

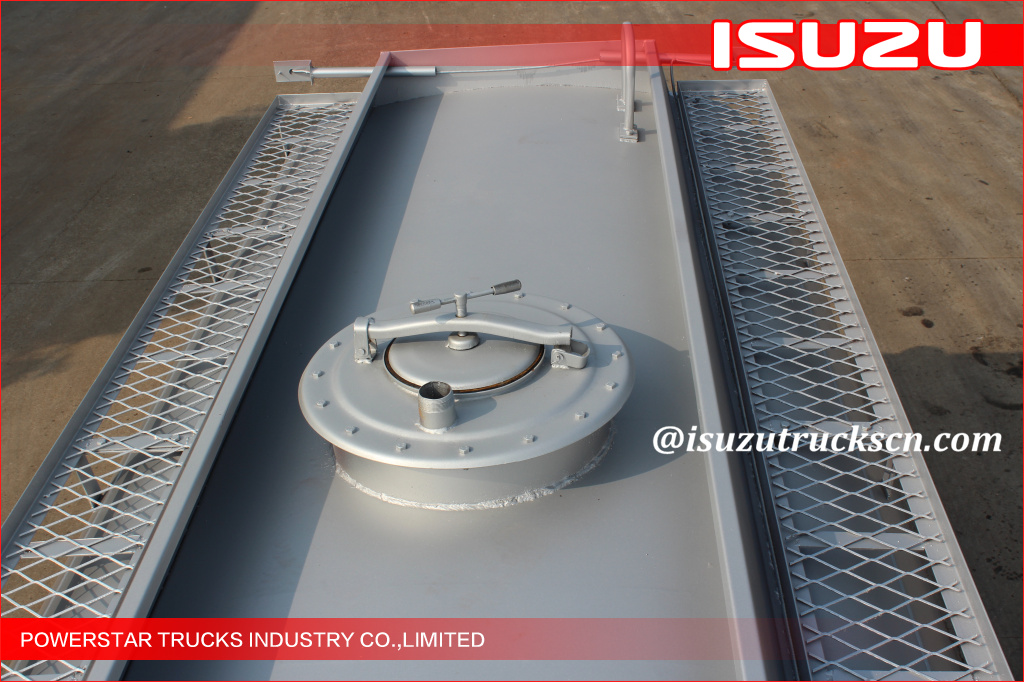

Manhole Cover

Aluminum alloy, 20” self-latching manhole cover, with air-van.

Outlet port:

One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector.

Pipe box:

It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m)

Anti –Static System:

Static electricity plate , copper plate and earth cable reel

Tank Accessories

Ladder:

Stainless Steel ladder fixed at rear of tank

Walkway Platform:

It fixed on the top of tank with anti – skid surface treatment.

Handrail:

No

Fire Extinguisher Housing:

2 units, suitable for 4 kg’s fire extinguisher

Pump Device

Yes

Flow meter

Yes

Tool box

Small box

Color

As option



Optional Equipment of ISUZU Fuel Tanker Truck


 5 cubic meter Fuel tank truck Isuzu    5 cubic meter Fuel tank truck Isuzu    5 cubic meter Fuel tank truck Isuzu   5 cubic meter Fuel tank truck Isuzu

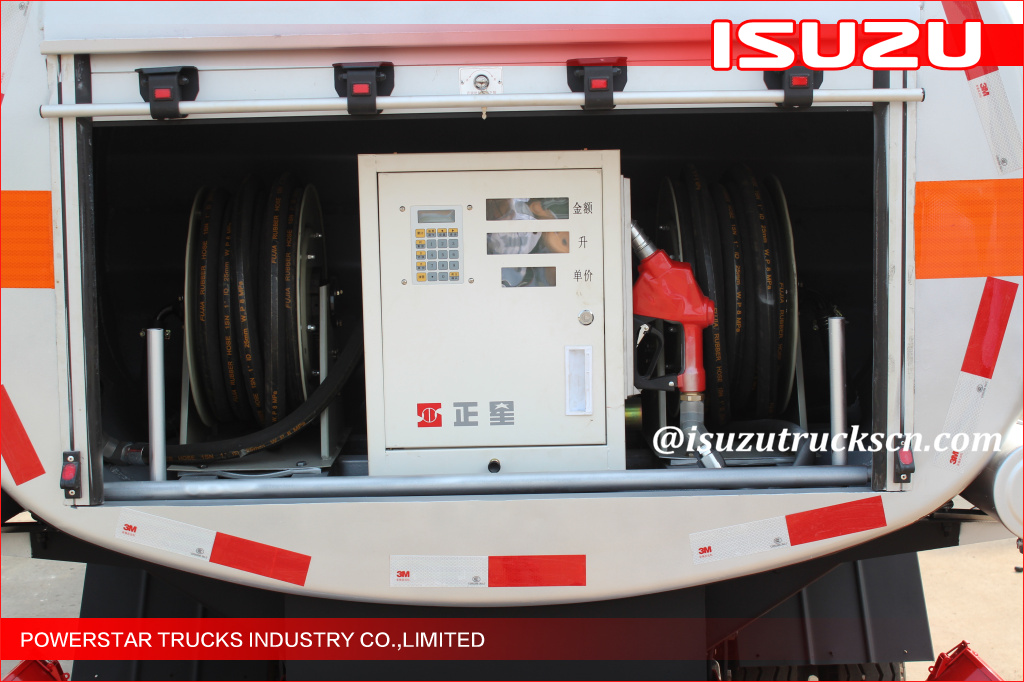

 Computer Fuel Dispenser    API Adaptor Valve    Bottom Valve    Manhole Cover
 ISUZU FUEL TANK TRUCKS ELF    ISUZU FUEL TANK TRUCKS ELF    FUEL TANK TRUCK ISUZU    ISUZU FUEL TANK TRUCKS ELF
 Ball Valve    Three Ways Set Ball Valve    Level Gauge    Oil and Gas Recovery Valve

Recently Built Fuel Tank Trucks:

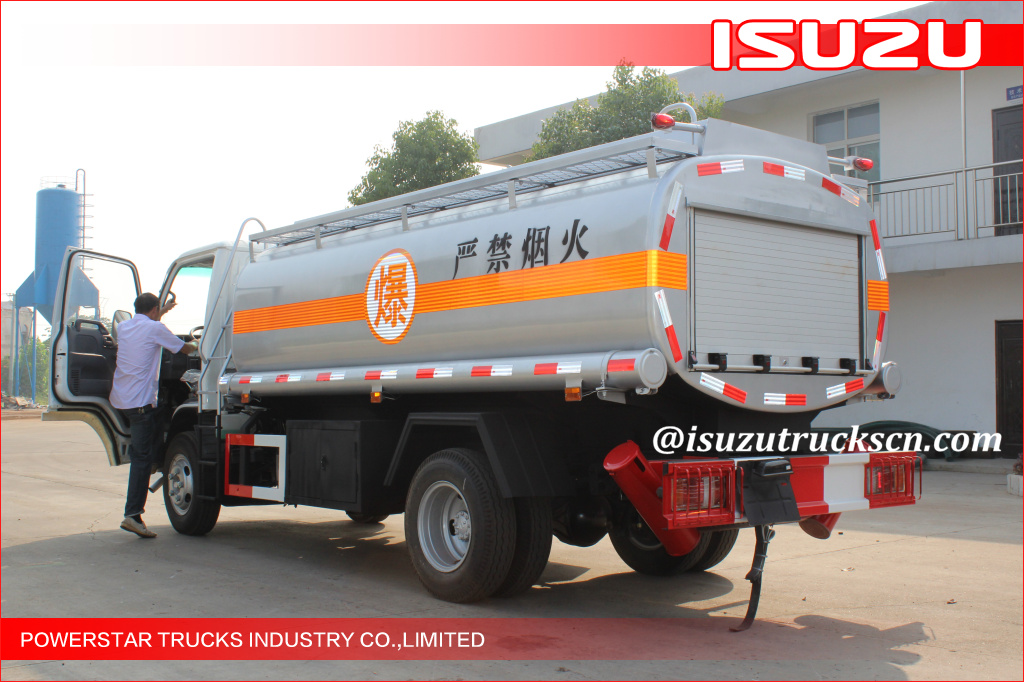

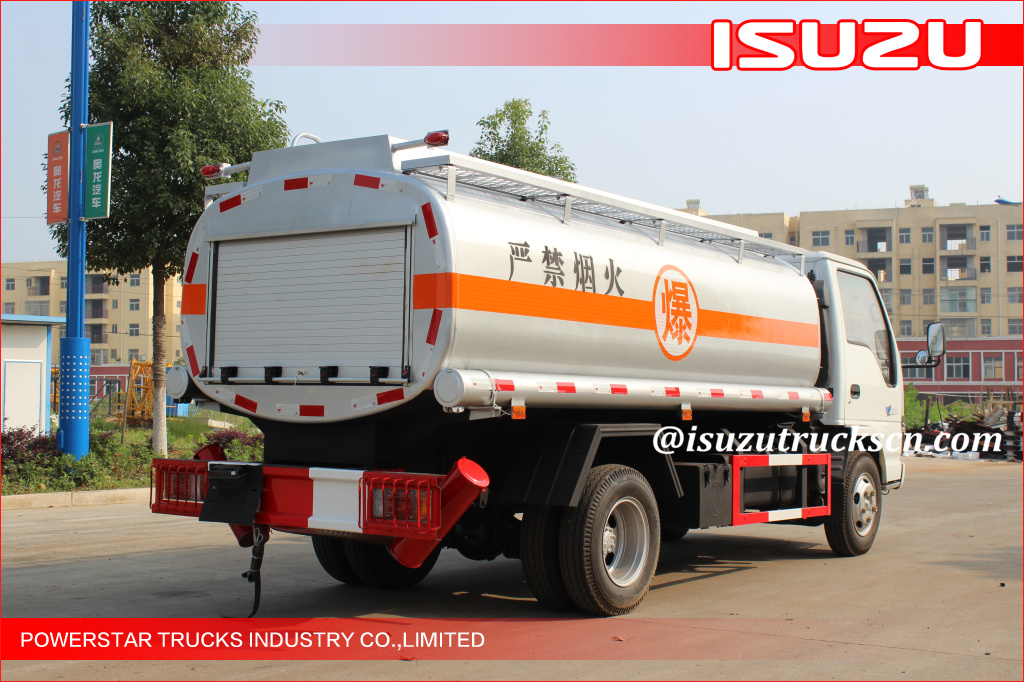

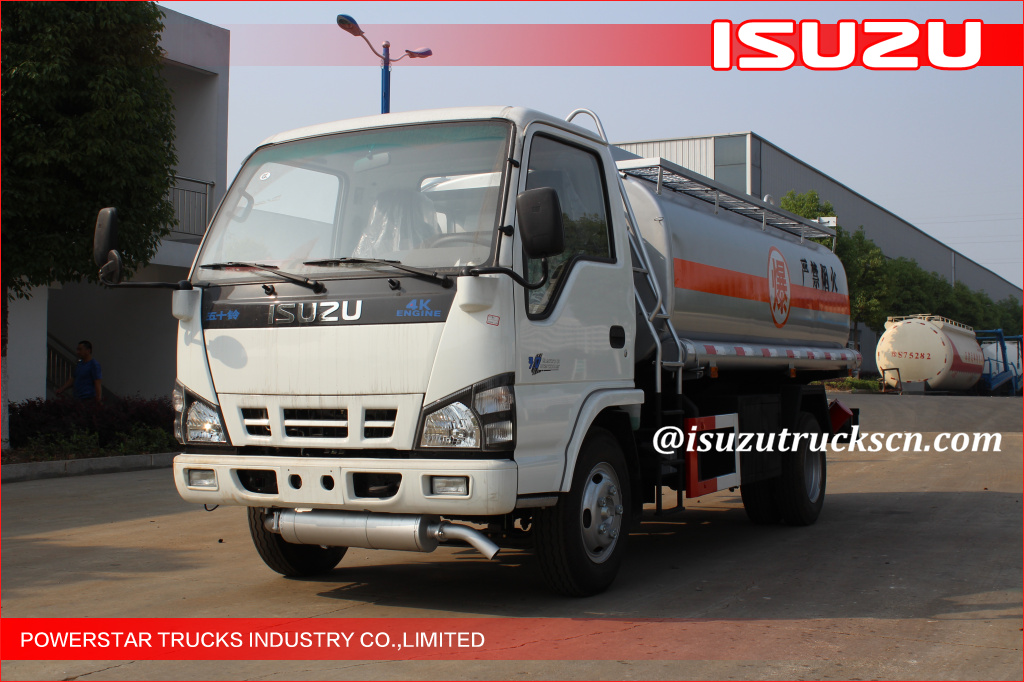

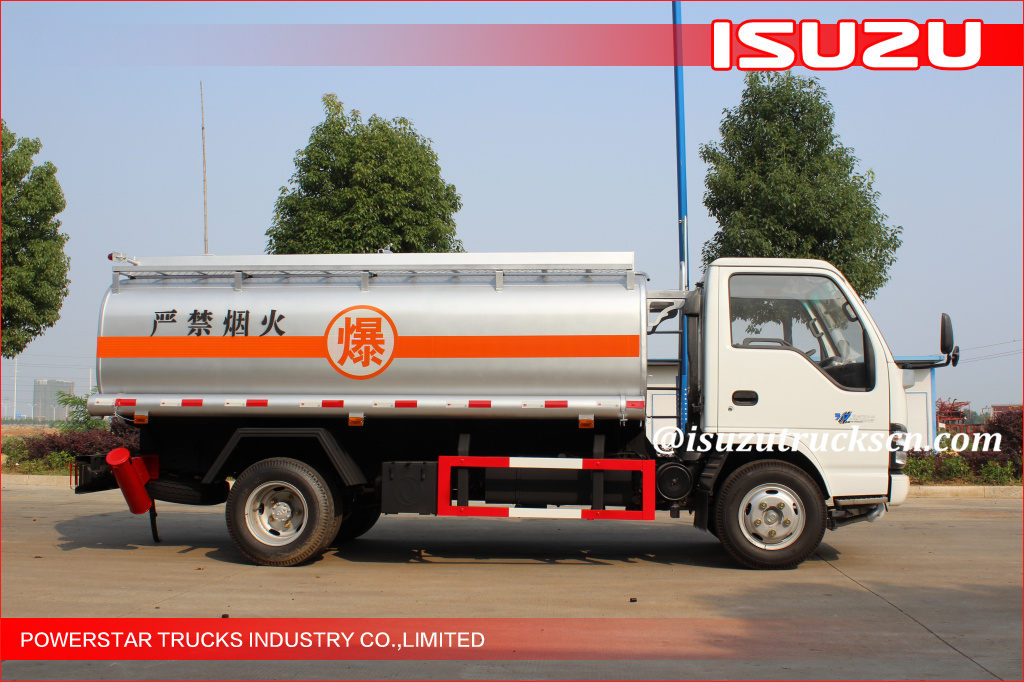

5000L Isuzu NKR55 600P Fuel Oil Tanker trucks diesel tank truck


5000L Isuzu NKR55 600P Fuel Oil Tanker trucks diesel tank truck


5000L Isuzu NKR55 600P Fuel Oil Tanker trucks diesel tank truck


5000L Isuzu NKR55 600P Fuel Oil Tanker trucks diesel tank truck


5000L Isuzu NKR55 600P Fuel Oil Tanker trucks diesel tank truck


5000L Isuzu NKR55 600P Fuel Oil Tanker trucks diesel tank truck



2.2 Tank Body

The tank body is elliptic cylindrical, round or trapezoidal cylindrical, etc., made of high quality steel plate,

The entire tank can be single-chamber or multi-compartment division, There are steel division plates with through holes welded in the tank to strengthen the anti-wave and relieve oil shocks. To prevent corrosion, the outer tank painted rust and decorative paint.



Tank image and main parts

the detailed pics of fuel truck tanker

 20000L Custom Aluminum Alloy Fuel Oil Tank Truck Isuzu
