5cbm/m3 Isuzu Garbage Truck / Hook-Lift Truck / Waste Container Vehicle

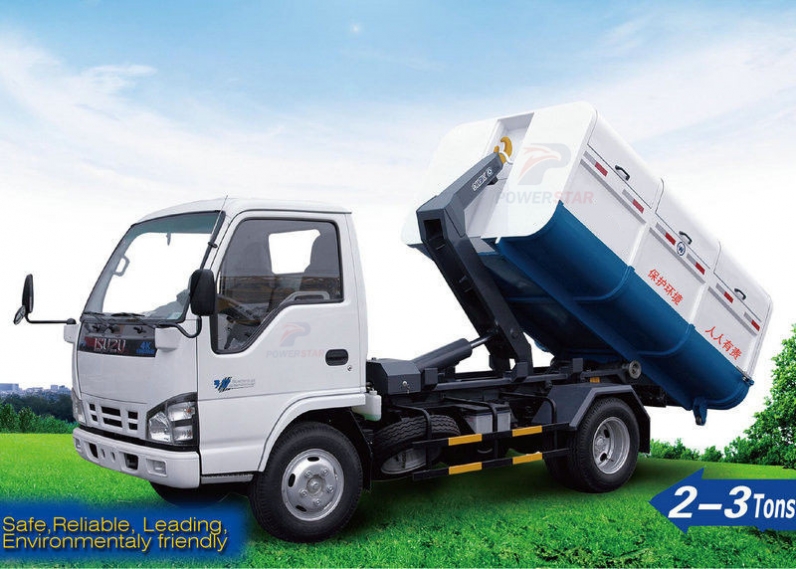

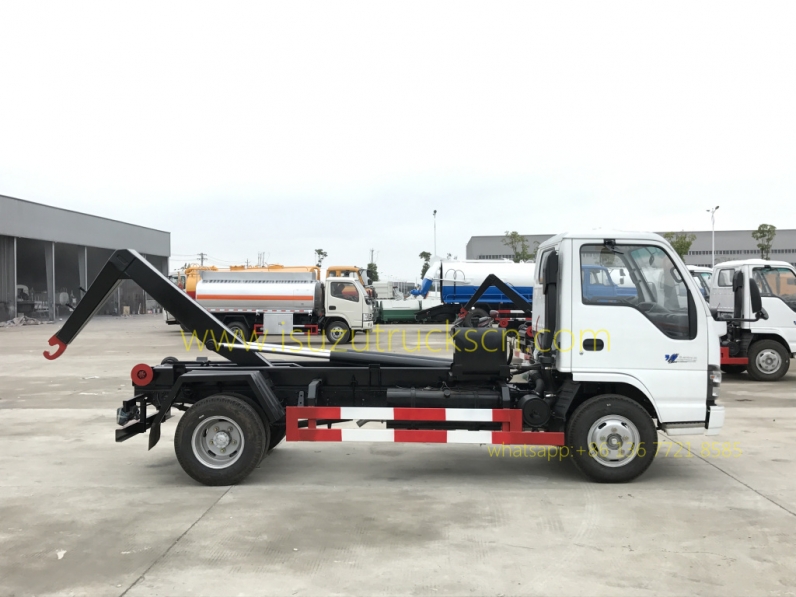

japanese 3cbm Isuzu Garbage Truck / Hook-Lift Truck / Garbage Vehicle 3cbm

Details

 Isuzu Garbage Truck / Hook-Lift Truck / Waste Container Vehicle


5cbm/m3 Isuzu Garbage Truck / Hook-Lift Truck / Waste Container Vehicle

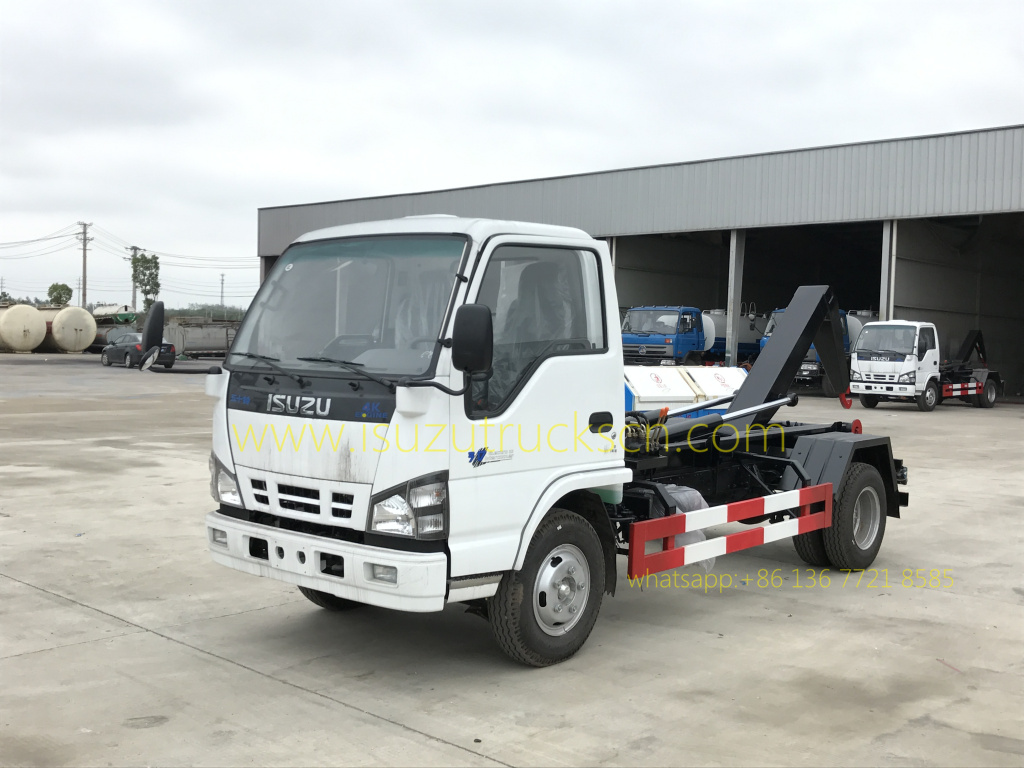

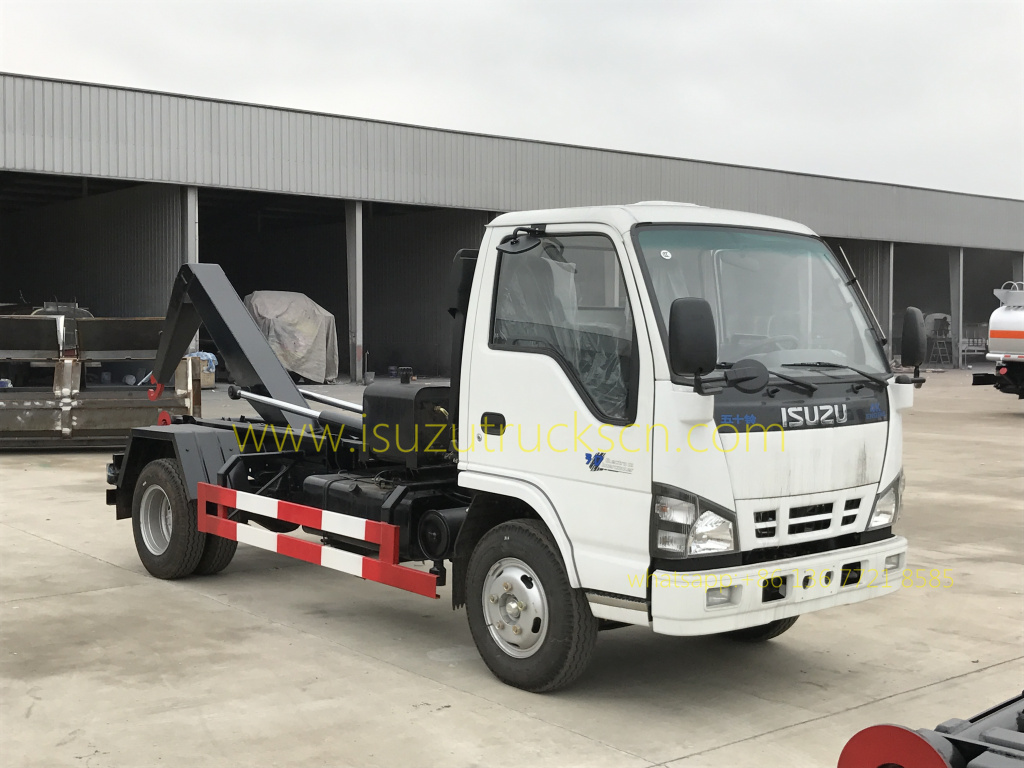

 hydraulic lifter truck Isuzu hook lift garbage truck small roll off garbage truck   hydraulic lifter truck Isuzu hook lift garbage truck small roll off garbage truck

hydraulic lifter truck Isuzu hook lift garbage truck small roll off garbage truck     hydraulic lifter truck Isuzu hook lift garbage truck small roll off garbage truck



Function:

Hook Lift garbage truck (also called as Hook lift container garbage truck, roll off garbage truck, Hydraulic lifter garbage truck, roll on roll off garbage truck, hook lifter truck, hook loader container truck)  is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrical and mineral enterprises and military units.


Features:

---- ISUZU chassis, perfect performance.
---- Advanced technical, high quality material, steady performance and simple opertion
---- Rational design of hook boom and locking structure make the action of hook lift much more reliable

---- Hydraulic system adopt famous brand all over the world.

---- Safety devices: Loading balance valve, double hydraulic lock valve and so on.

---- Massive, durable, perfect performance


According to the existing situation of garbage collection method, to reduce the labor strength of sanitation workers and improve the collection efficiency, we have developed varieties of terminal garbage collecting vehicles which are working flexibly, simply and fast. With leak-proof container, it is a ideal tool for the municipal environmental sanitation. And it's widely use in all kinds of waste source places such as enterprises, institutions, parks, scenic area, colleges, communities and etc.

Technical characteristics:
1. Flexible: Just 4m in length makes this vehicle has good work flexibility and high transportation efficiency;
2. Friendly Environmental Applicability: Special full sealing design to avoid sewage leakage pollution during transportation;
3. Alternative Model: The detachable type or dump type, to meet the different demands;
4. Reliability: Main electric and liquid components are famous brand products, such as YUKEN, Schneider and so on to ensure high reliability;
5. Removable Controller: Mobile control box with action warning function makes the controlling of the vehicle convenient, flexible and safety;
6. Tipple Power Optional: The power can use gasoline, diesel or electric, it is suitable for good performance;
7. Long Service Life: All structural parts are treated with shot-blasting, rust removing, painting with marine-use high anticorrosive heavy protection paint, with international brands as Nobel or COSCO. The whole container has good performance for anti-corrosibility and long service life.

How to works:

8Tons NPR ELF ISUZU Hook lift garbage truck

Technical Parameters:

Item

Parameter

Product model

PT5070ZXX

Chassis model

NKR

Emission standard

Europe 4

Dimension Parameter

Overall dimension (L×W×H mm)

5290×1880×2210

Front/rear wheel tread (mm)

1504/1425

Front/rear suspension (mm)

1015/1425

Wheelbase (mm)

3815

Approach/departure angle (°)

24/16

Number of axles

2

Drive mode

Rear axle driving

Tyre model/quantity

7.00-16

Weight Parameter

Curb weight (kg)

3060

Maximum gross vehicle weight (kg)

8000

Laden weight distributed to the front axle (kg)

3000

Laden weight distributed to the rear axle (kg)

5000

Rated load weight (kg)

5000

Performance Parameter

Rated passenger capacity

3

Maximum running speed (km/h)

98

Lifting capacity (t)

3 Tons

Maximum dump angle(°)

45

Rated pressure of the hydraulic system (MPa)

16

Garbage bin volume (m3)

6

Minimum ground clearance (mm)

≥220

Minimum turning diameter (m)

≤14.8

Engine

Model

4KH1-TCG40

Rated power (kW)/(r/min)

88/2600



Recently Customer Build Examples:

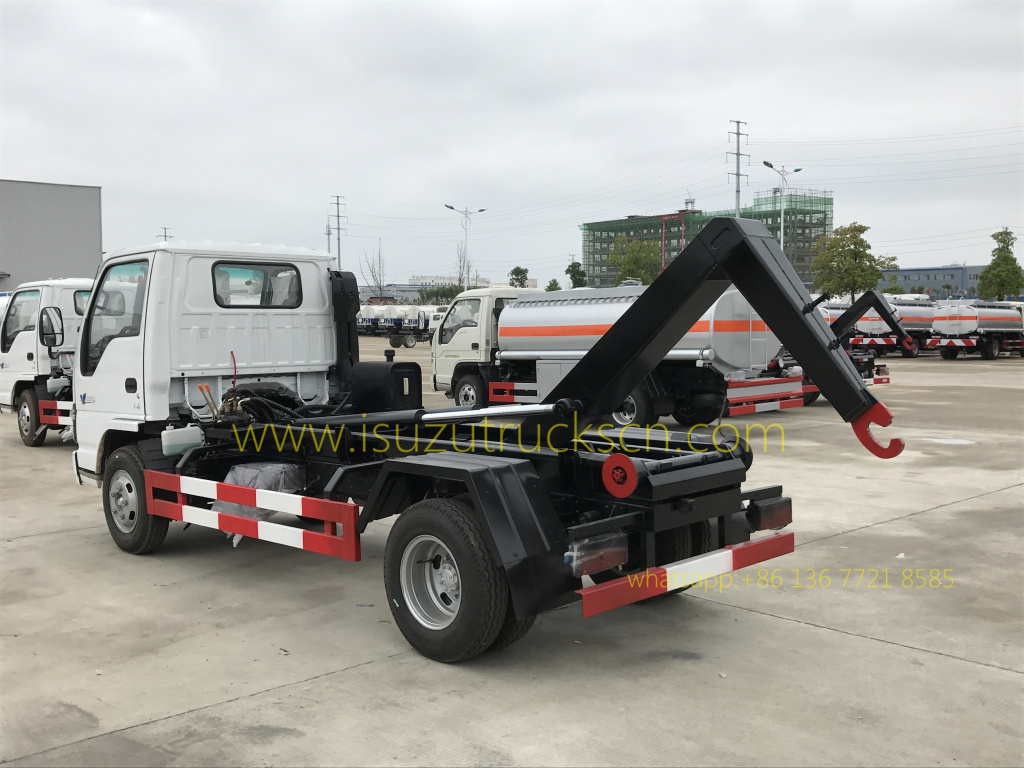

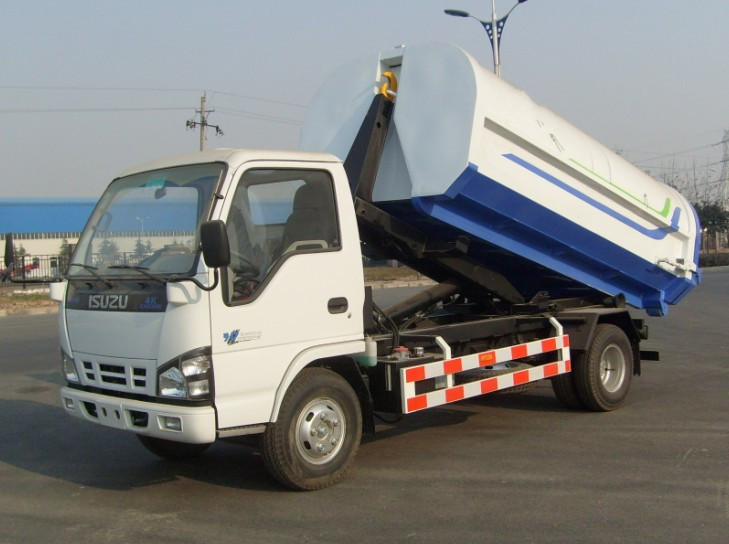

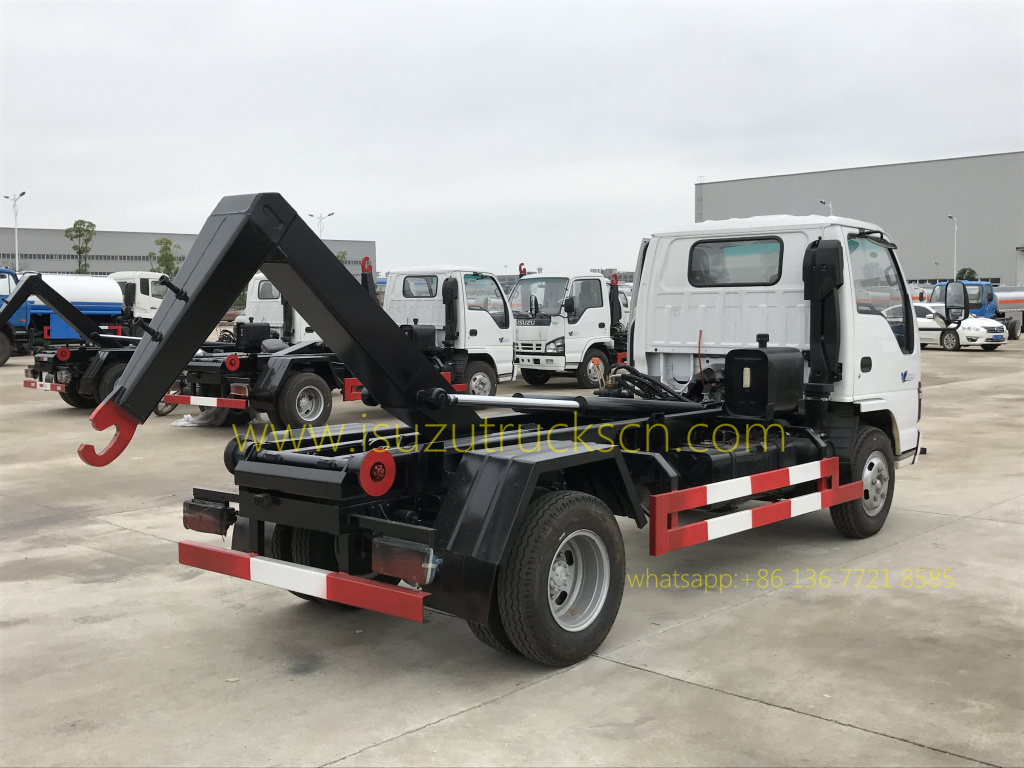

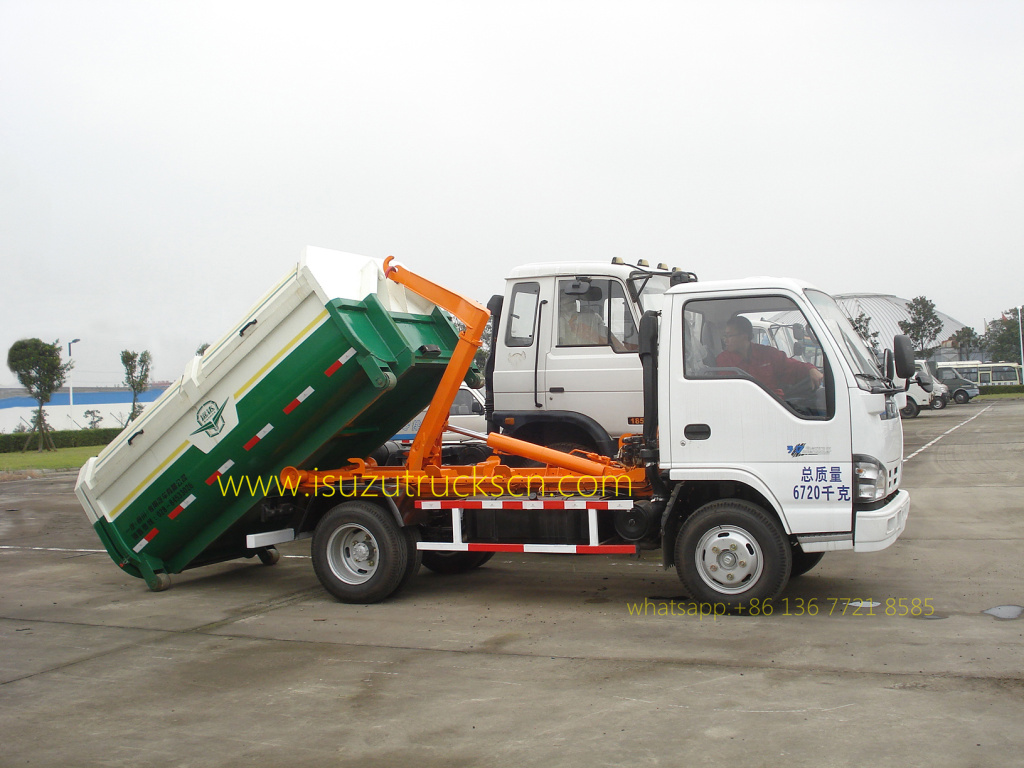

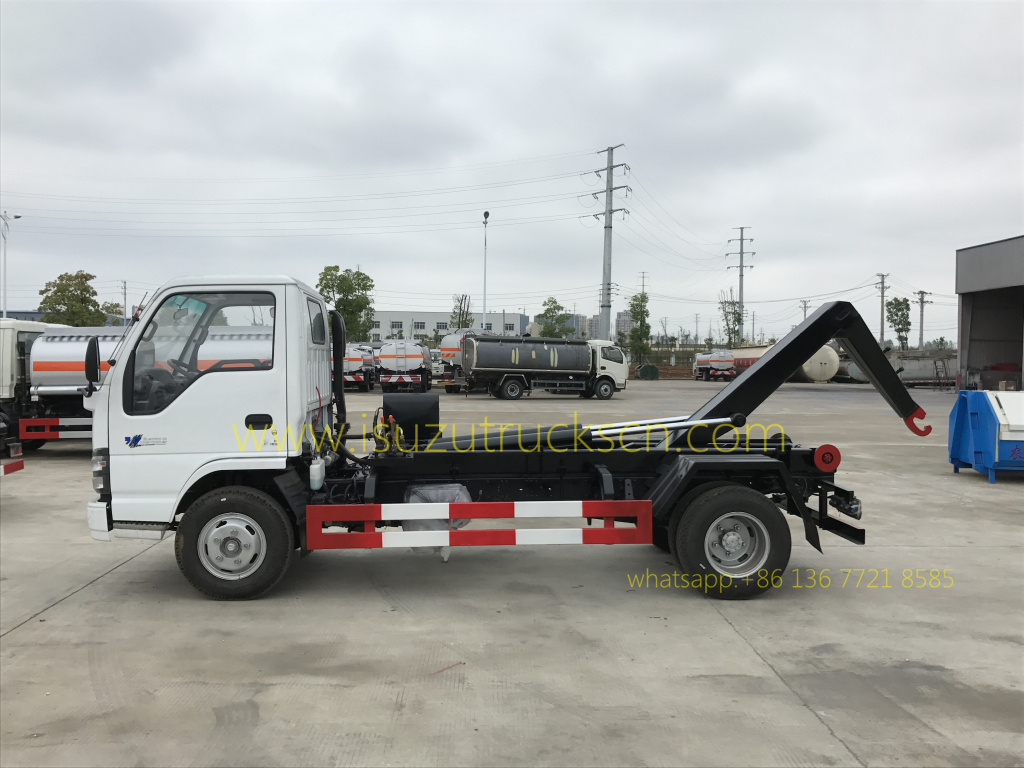

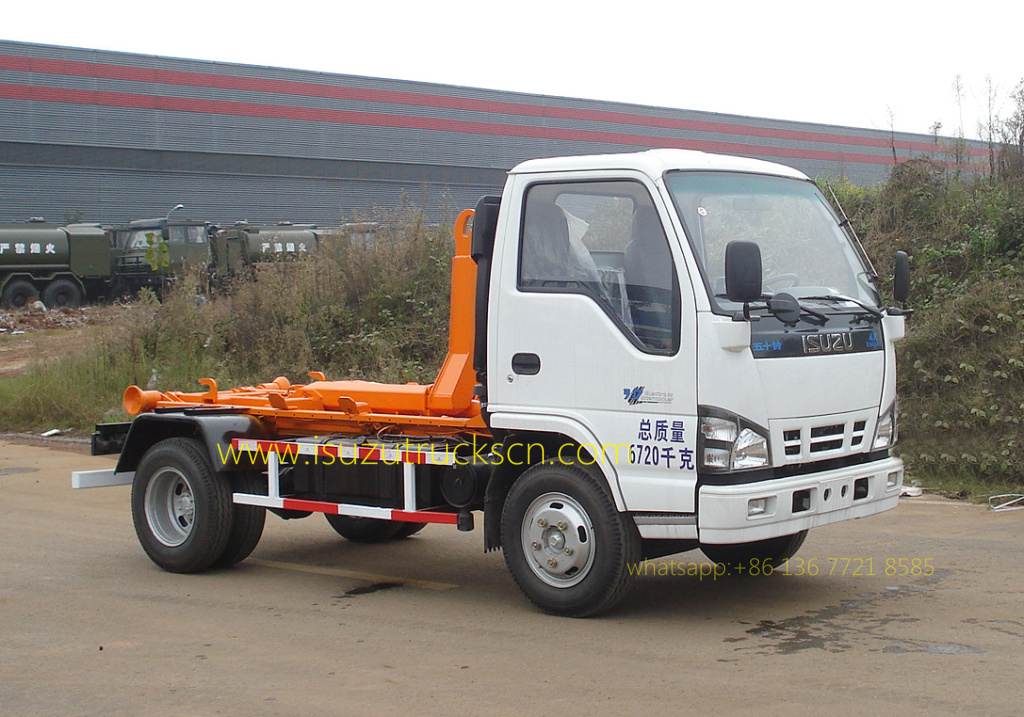

hydraulic lifter truck Isuzu hook lift garbage truck small roll off garbage truck pictures


hydraulic lifter truck Isuzu hook lift garbage truck small roll off garbage truck pictures


hydraulic lifter truck Isuzu hook lift garbage truck small roll off garbage truck pictures


hydraulic lifter truck Isuzu hook lift garbage truck small roll off garbage truck pictures

5cbm/m3 Isuzu Garbage Truck / Hook-Lift Truck / Waste Container Vehicle


5cbm/m3 Isuzu Garbage Truck / Hook-Lift Truck / Waste Container Vehicle

5cbm/m3 Isuzu Garbage Truck / Hook-Lift Truck / Waste Container Vehicle

5cbm/m3 Isuzu Garbage Truck / Hook-Lift Truck / Waste Container Vehicle

5cbm/m3 Isuzu Garbage Truck / Hook-Lift Truck / Waste Container Vehicle
