6000Liter Philippines Isuzu Sewer Cleaning Combination Vacuum Jetting Trucks

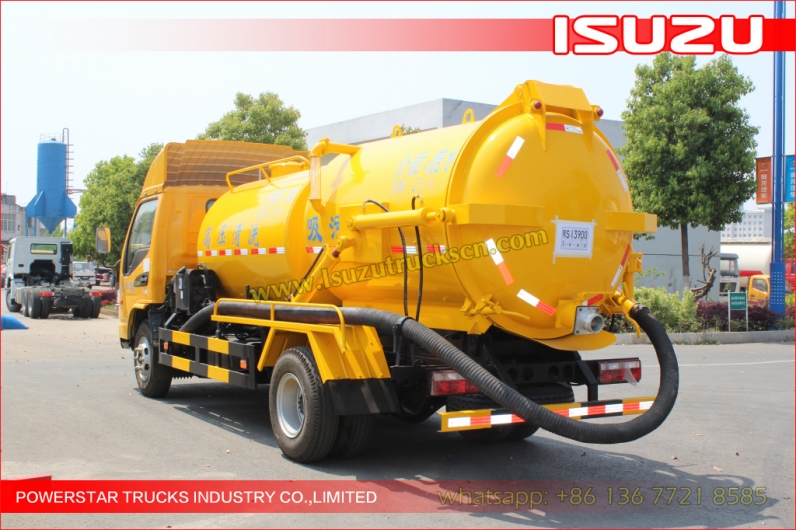

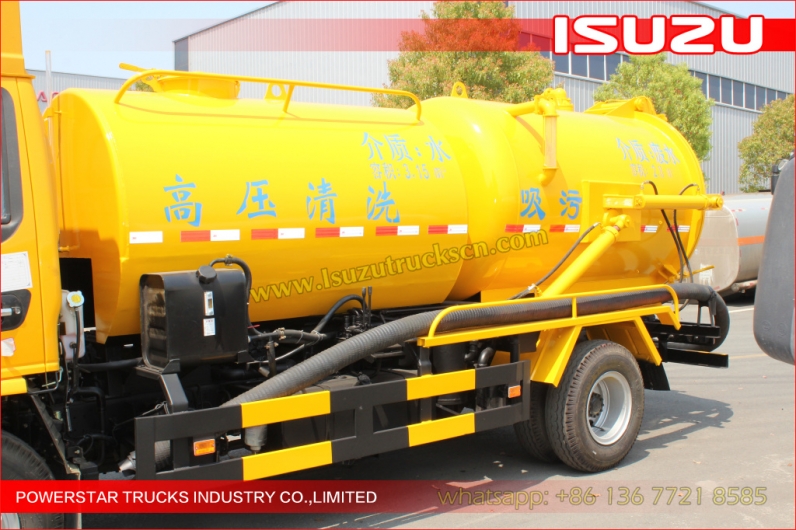

japanese NKR ELF FTR 6000Liter Isuzu Sewer Cleaning Combination Vacuum Jetting Trucks

Details

ISUZU Trucks mounted Jetting vacuum trucks



6000Liter Isuzu Sewer Cleaning Combination Vacuum Jetting Trucks



Basic Description

Isuzu Combination Jetting vacuum Vehicle also called as Isuzu trucks Sewage jetting and vacuum truck, Combined sewer jet truck, Isuzu truck mounted jetting suction tank truck.


Isuzu Combined sewer jetting and suction truck is used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and/or sanitary sewer by the flushing action of high pressure water.



The unit includes a quality vacuum pump and a high pressure water pump, as a multi-functional combination unit integrating a high pressure jetting system, a slurry separation system, a sewage discharge system and vacuum suction system. It becomes the most advanced combination unit in China with its key components imported from Europe.


Key Features

   ISUZU NPR Chassis, Durable & Performance.

   Widely used in environment and sanitation field

   Stainless steel sewage water tank and clear water tank

   High performance vacuum pump & high pressure pump

   POWERSTAR 20 years’ experience on Vacuum Tanker truck exporting.

Main specifications

ISUZU NPR Sewer Jetting and Vacuum Truck (6,000 litres)
General Vehicle Brand Powerstar
Chassis Brand ISUZU
Overall Dimension 7600 * 2500 * 3400 mm
GVW / Kerb Weight 9,800 kg / 5,200 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is equipped
Engine Fuel Type Diesel
Engine Brand ISUZU 4HK1-TCG40
Power 190 Hp (140 KW)
Displacement 5200 ml
Emission Standard Euro 4
Chassis Drive Type 4X2, left hand drive
Transmission 6-speed front, 1 reverse
Wheelbase 4175 mm
Number of axle 2
Tyre Specification 8.25-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Water Tank Tank Capacity 3,000 Litres (about 800 gals)
Tank Material Carbon steel
High Pressure Pump Italy Imported brand / 16Mpa
Flow Speed 125 L/min
High Pressure Hose 60m
Suction Head 6 m
Nozzles A cluster of nozzles included
Sewer Tank Tank Capacity 3,000 Litres (about 800 gals)
Tank Material Carbon steel
Vacuum Pump PN106D, Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.
Rear door can be hydraulic opened for complete discharge of solid stuff.
All standard accessories: manhole, tool kit, English manual……..
Optional

** Tank material could be stainless steel

** Vacuum pump and jetting pump can be optional

*  Control panel: English or appointed language

** Tank color and LOGO can be customized

** High pressure hose length could be customized.

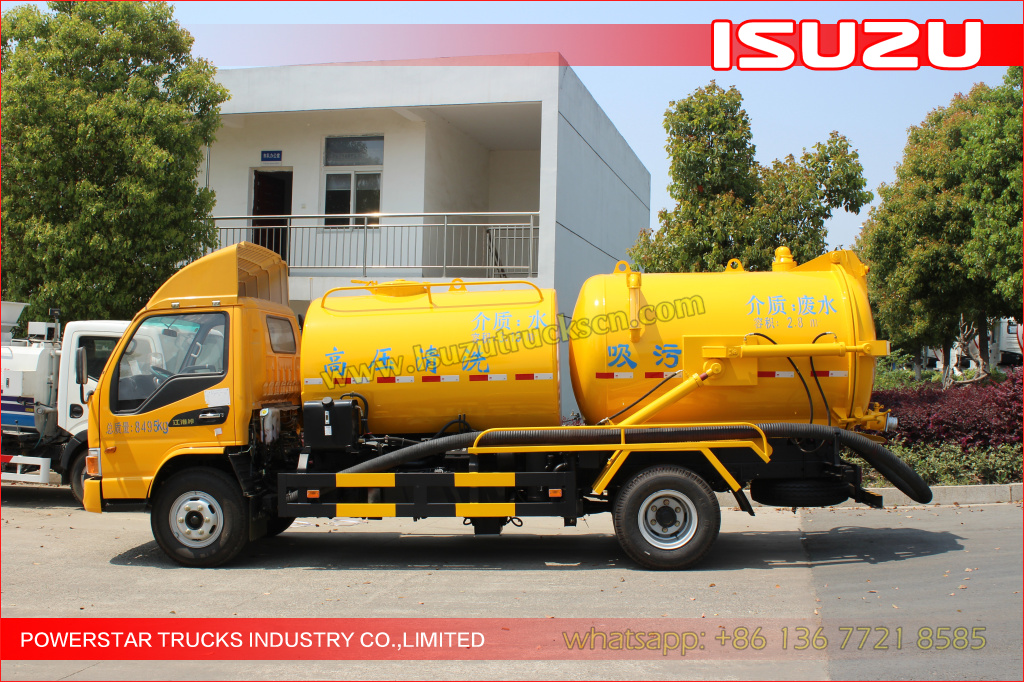

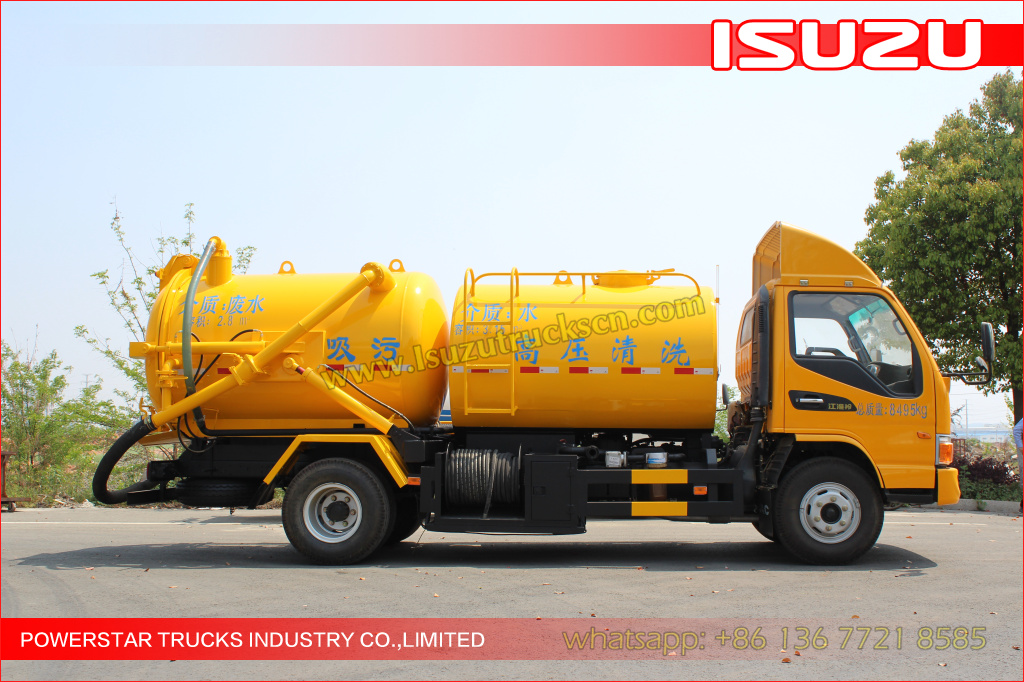

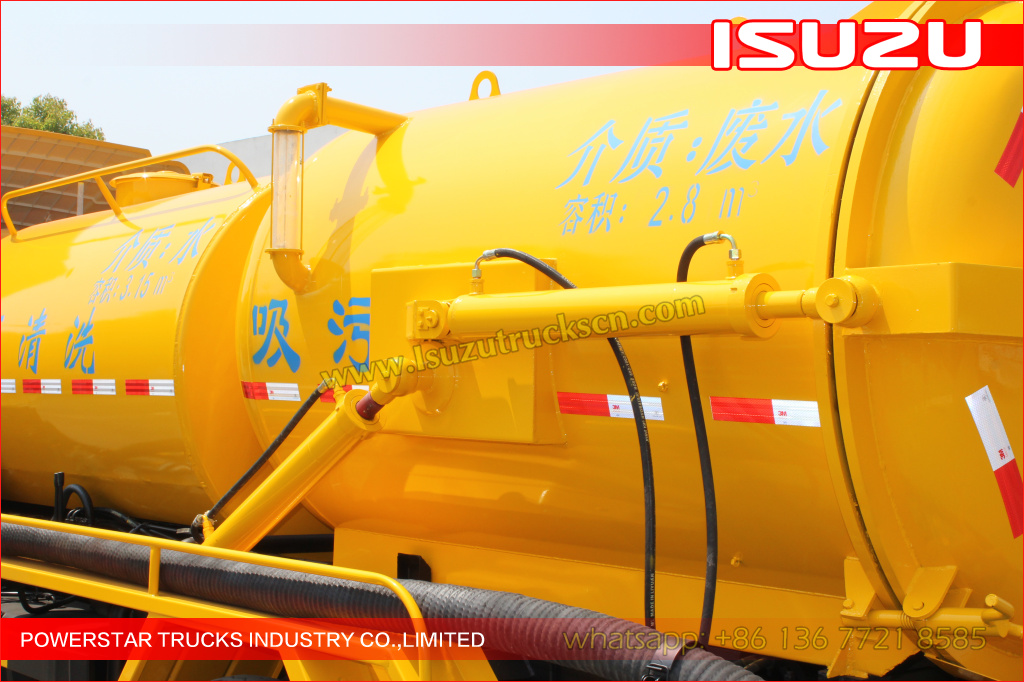

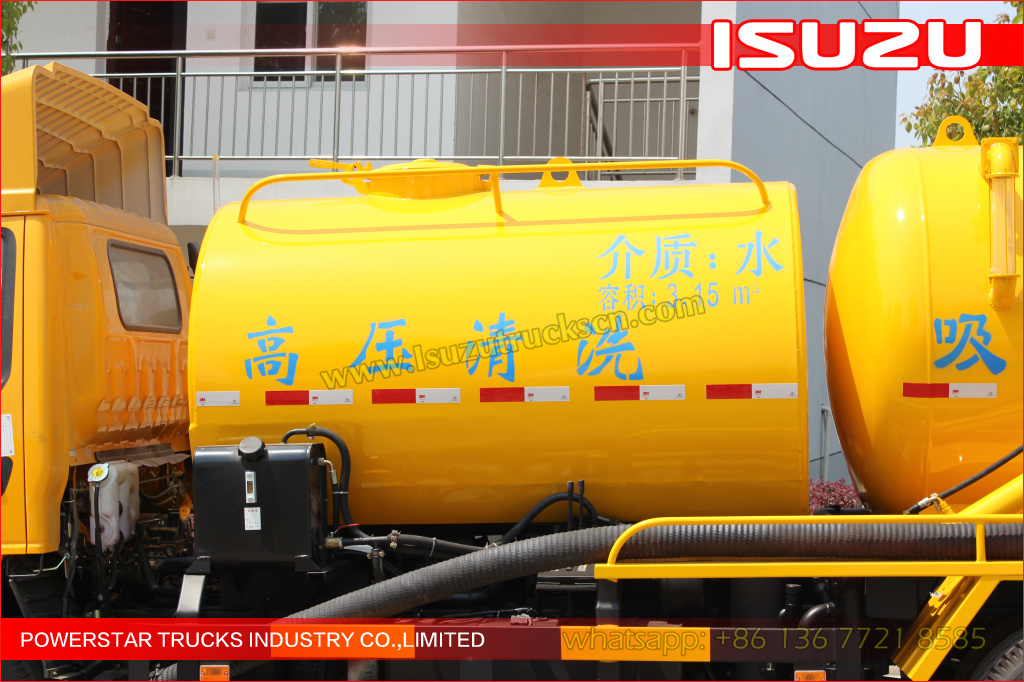

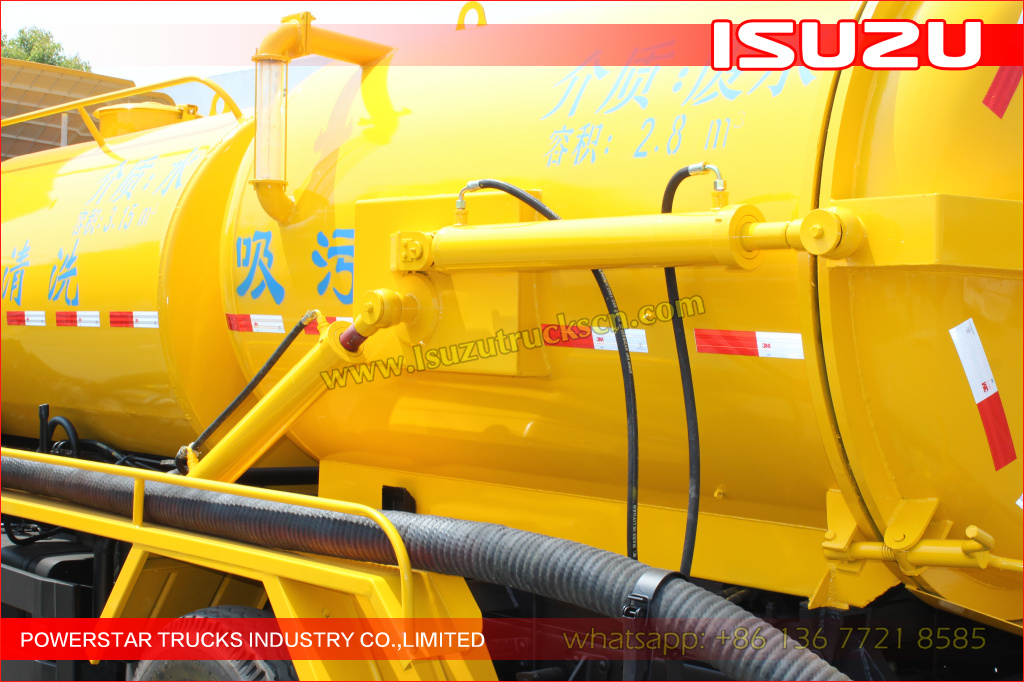

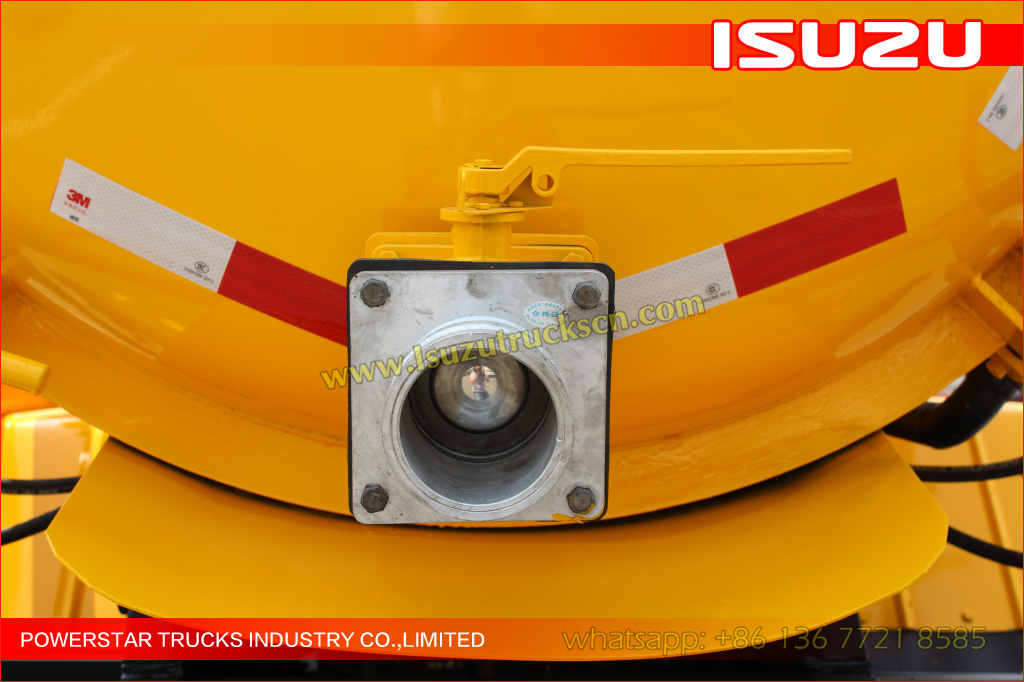

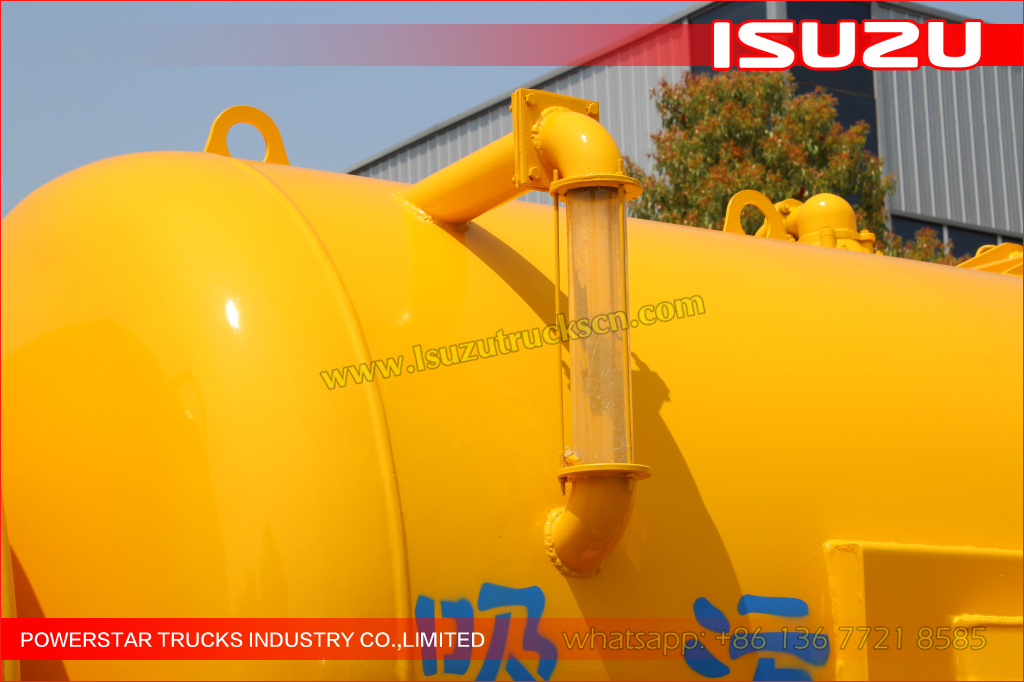

Overview of the ISUZU combination vehicle:

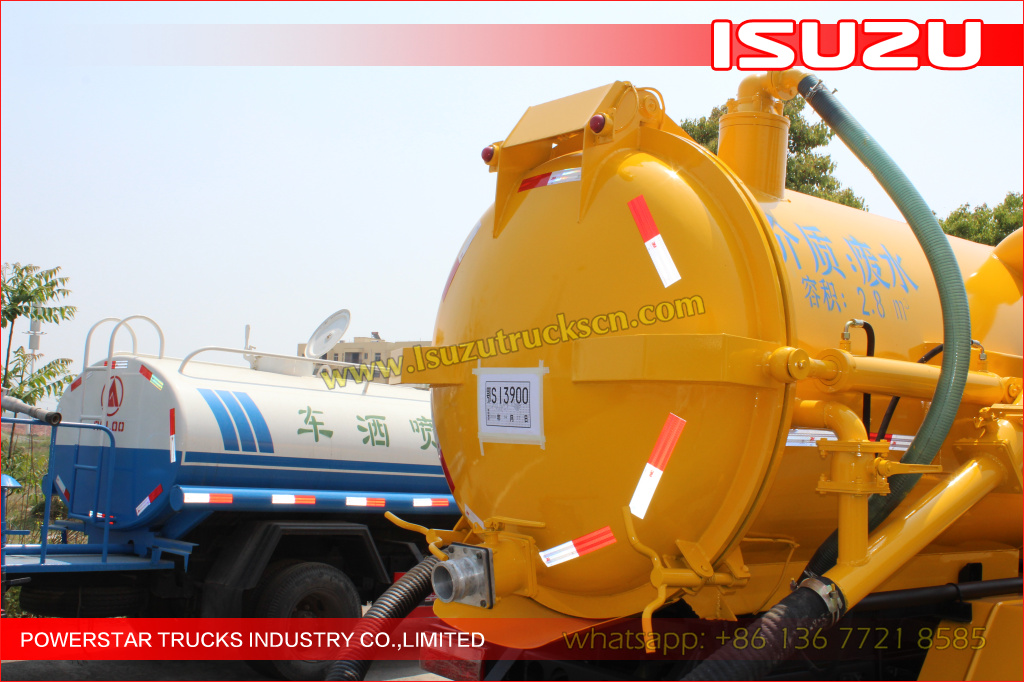

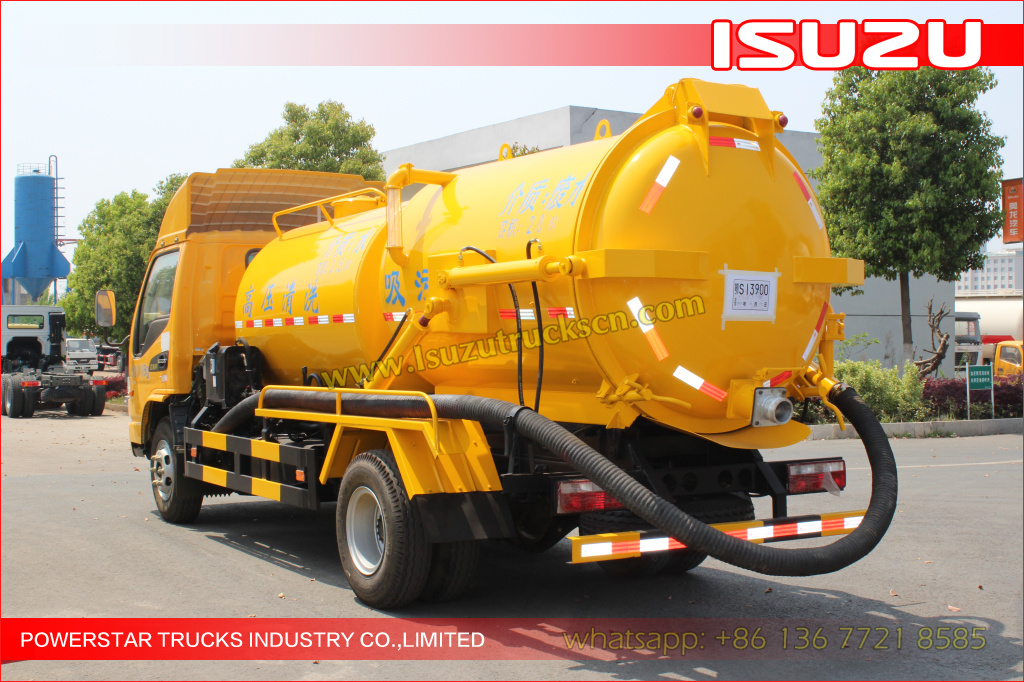

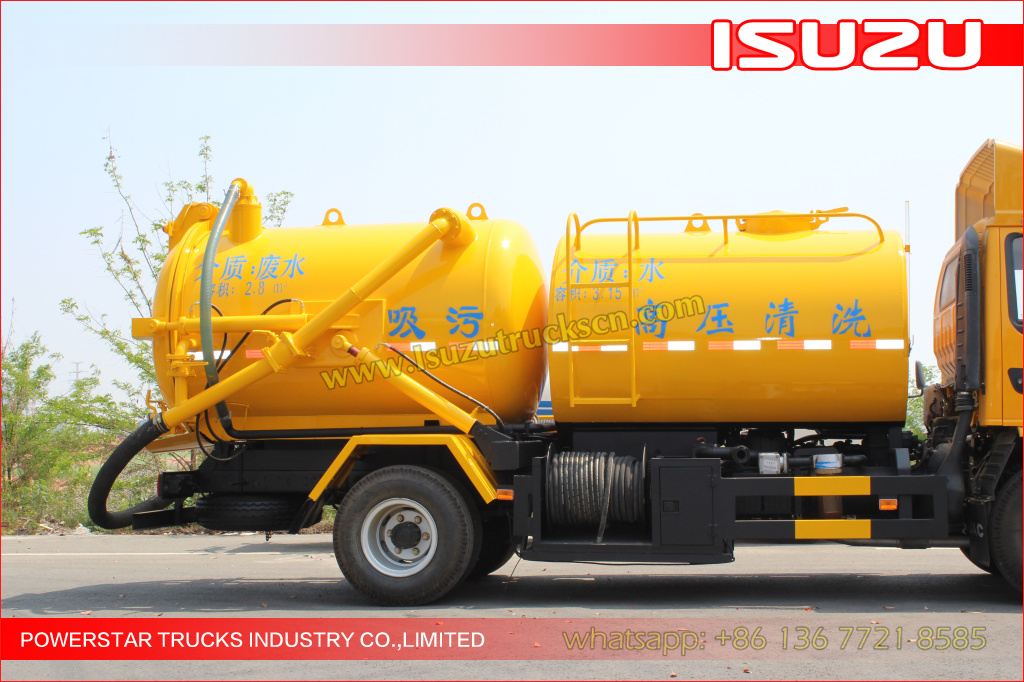

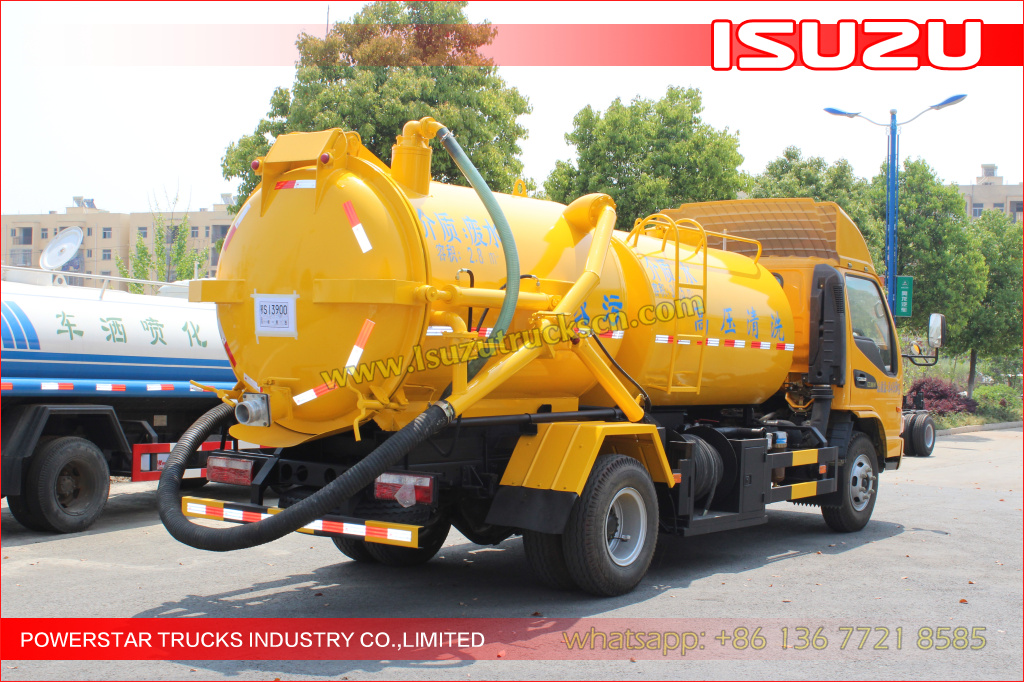

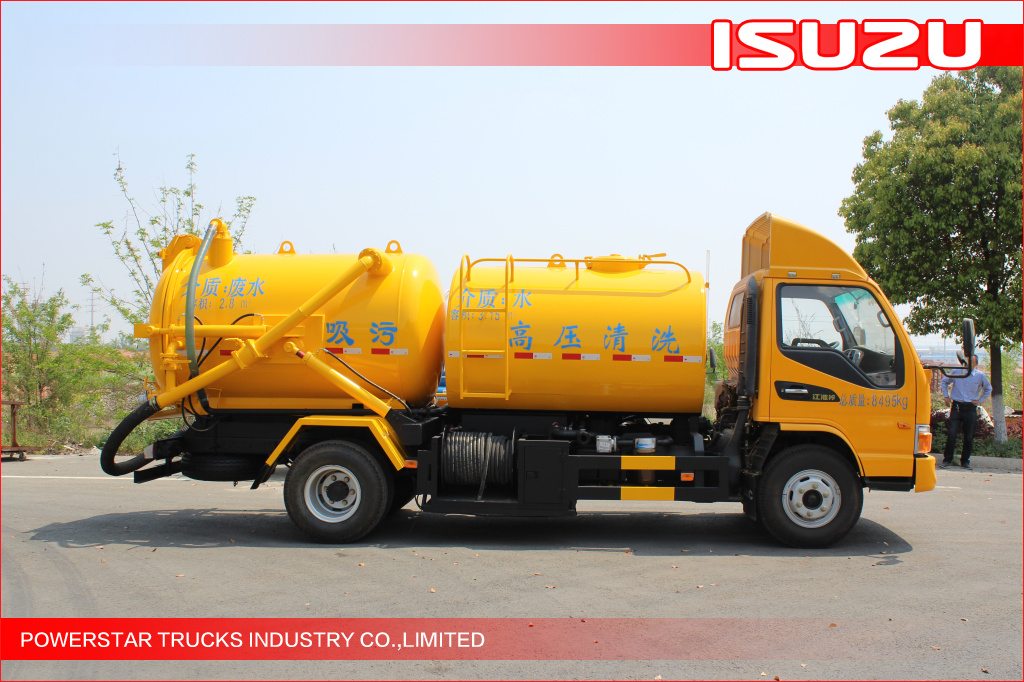

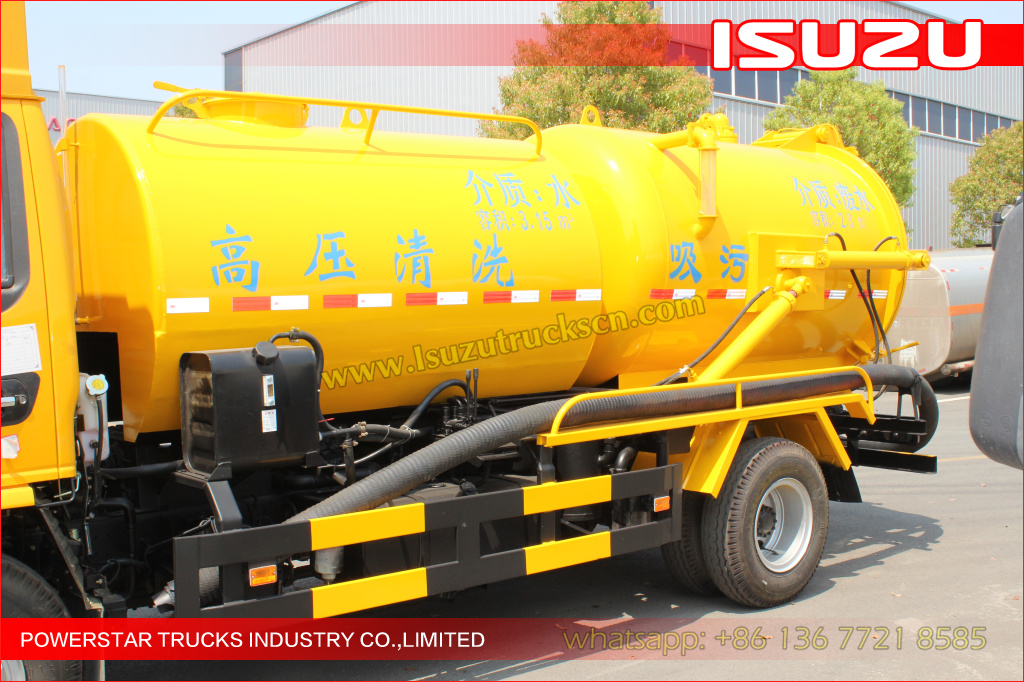

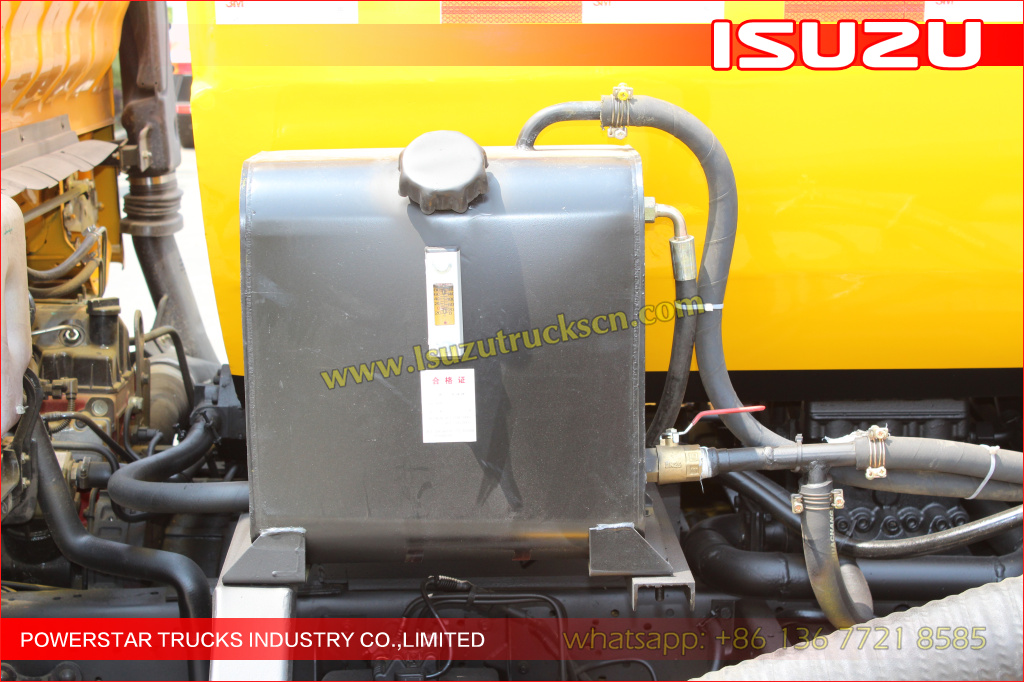

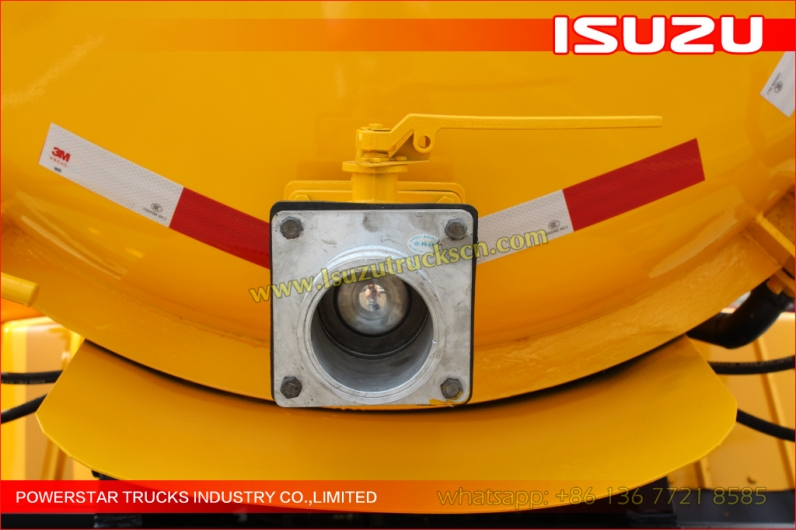

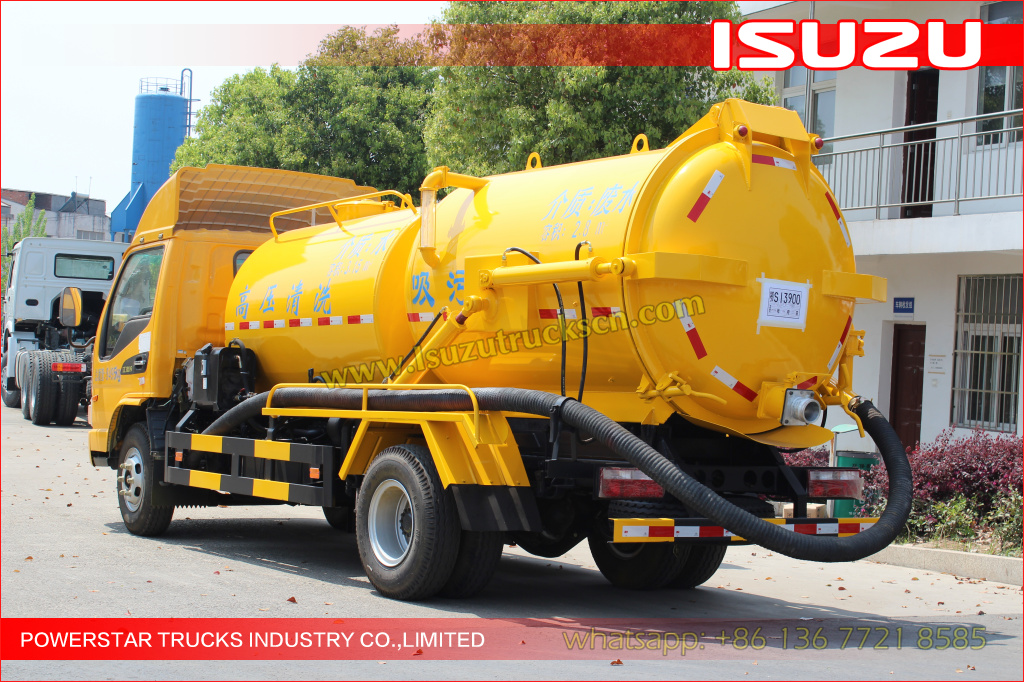

 ISUZU Trucks mounted Jetting vacuum trucks    ISUZU Trucks mounted Jetting vacuum trucks

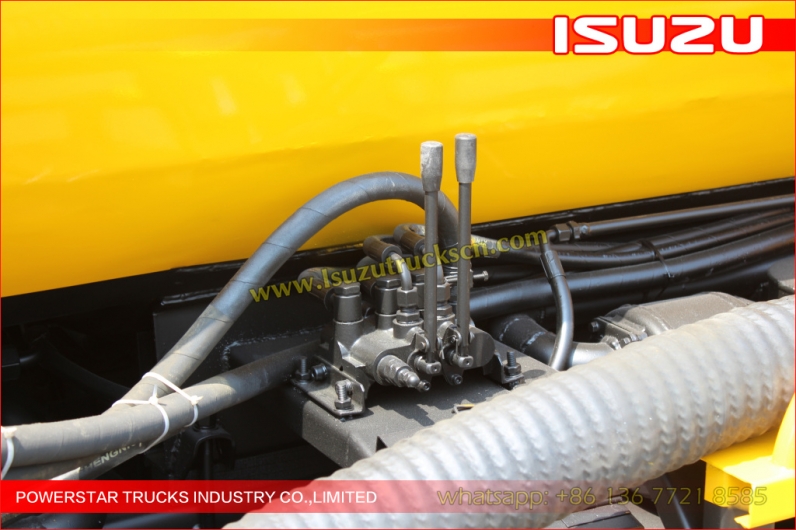

 ISUZU Trucks mounted Jetting vacuum trucks    ISUZU Trucks mounted Jetting vacuum trucks operation panel

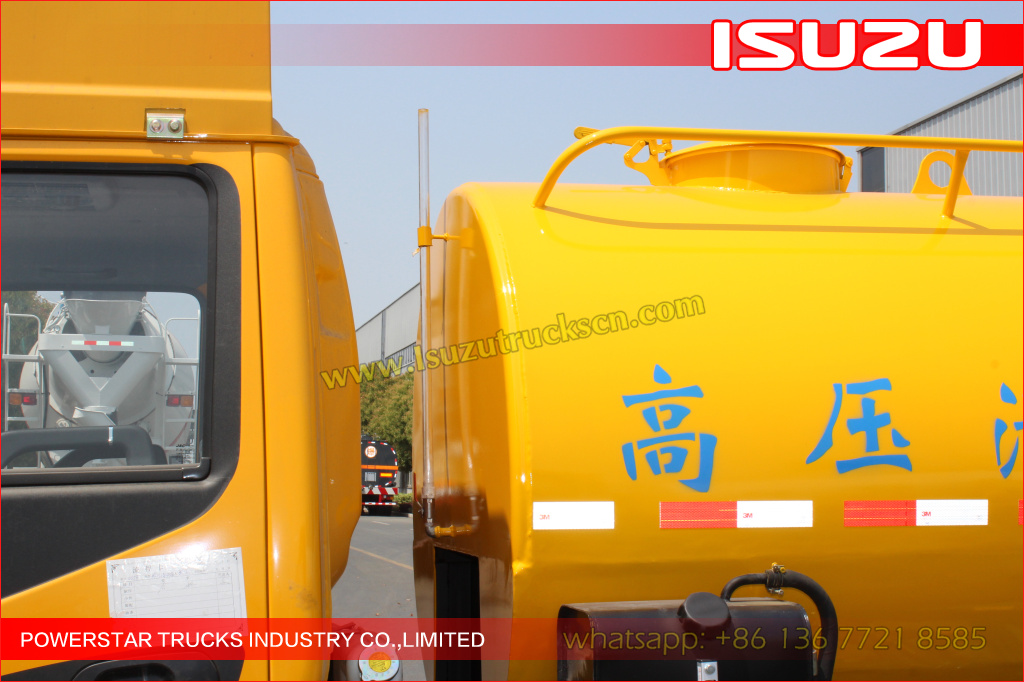

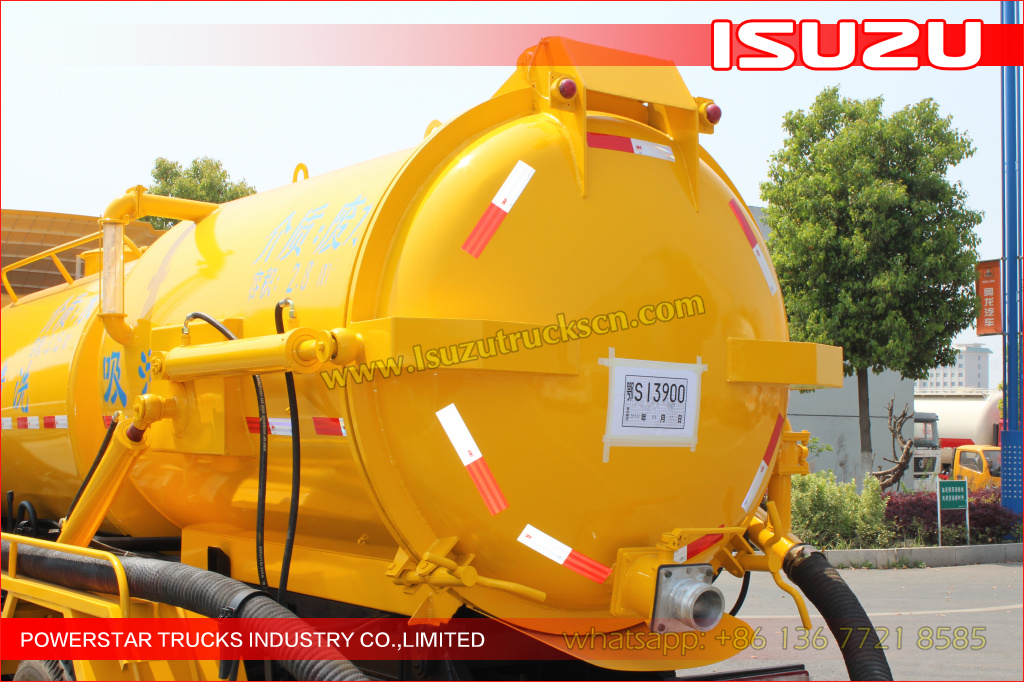

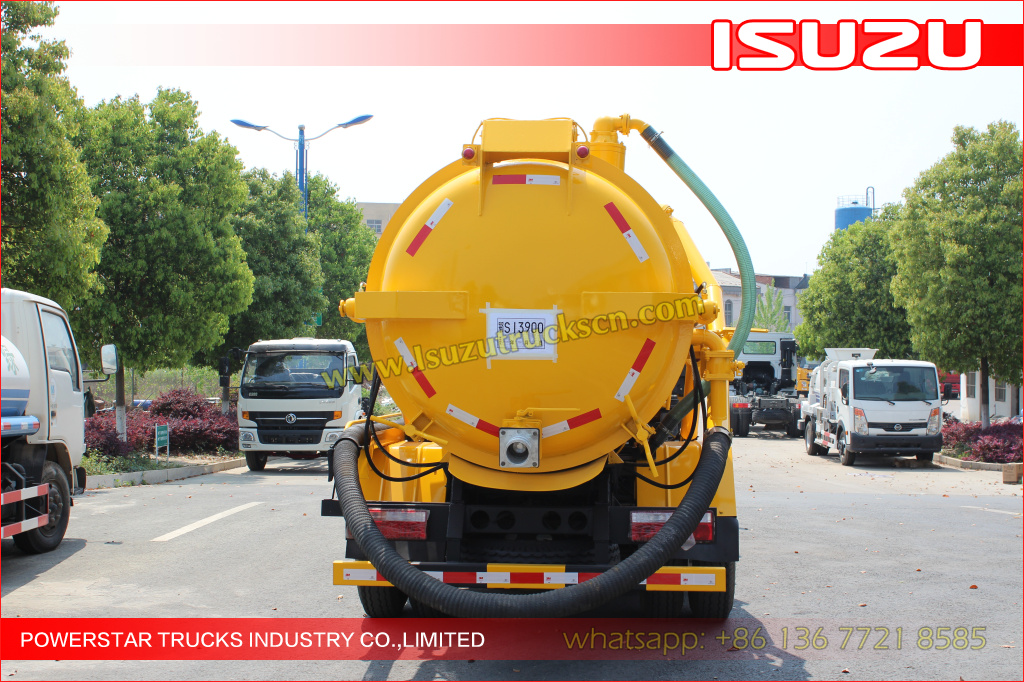

ISUZU Trucks mounted Jetting vacuum trucks


ISUZU Trucks mounted Jetting vacuum trucks


ISUZU Trucks mounted Jetting vacuum trucks


ISUZU Trucks mounted Jetting vacuum trucks


ISUZU Trucks mounted Jetting vacuum trucks


ISUZU Trucks mounted Jetting vacuum trucks



How to operation Combined sewer jetting and vacuum truck Isuzu brand?

How to operation Combined sewer jetting and vacuum truck Isuzu brand?


Over view  of  ISUZU Trucks mounted Jetting vacuum trucks

ISUZU Trucks mounted Jetting vacuum trucks operation panel


Customers build examples:
