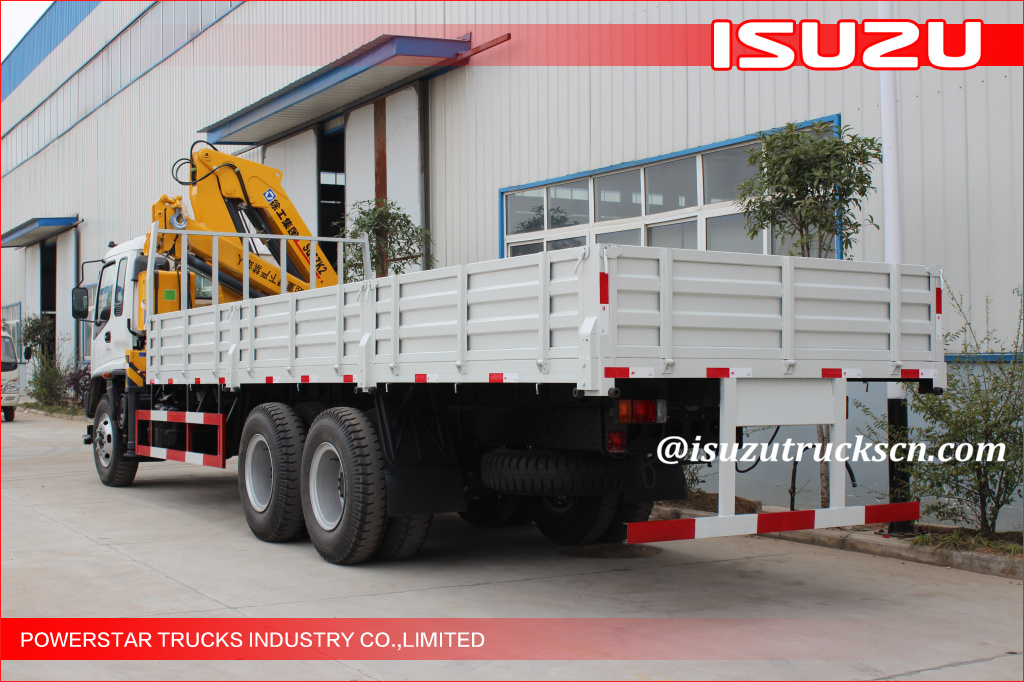

8 Ton Isuzu Cargo Folding Boom Truck Mounted Crane For Telecommunications facilities

Isuzu Brand hydraulic cylinder pickup truck crane,truck with crane 10ton

Details

8 Ton Isuzu Cargo Folding Boom Truck Mounted Crane For Telecommunications facilities

8 Ton Isuzu Cargo Folding Boom Truck Mounted Crane For Telecommunications facilities

Durable 8 Ton Cargo Folding Boom Truck Mounted Crane For Telecommunications



  1. Name: Knuckle boom crane, Lorry mounted crane, Cargo truck crane, Truck loader crane, Hydraulic truck crane
  2. Max Lifting Capacity: 8000 kg
  3. Max Lifting Moment: 16 t.m
  4. Max Oil Flow of Hydraulic System: 40 L/min
  5. Max.Lifting height: 13meters
  6. Brand: XCMG
  7. Crane Weight: 2970 kg
  8. Oil Tank Capacity: 160 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Truck mounted pick and carry Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.


Knuckle boom crane SQ8ZK3Q is lifting capacity is 8tons, moment is 16T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Knuckleboom cranes have the ability to easily load and unload materials in just about any possible situation.





Specifications:



Model

SQ8ZK3Q

Unit

Max Lifting Moment

16

t.m

Max Lifting Capacity

8000

kg

Recommend Power Needed At Recommend Oil Flow

28

kw

Max Oil Flow of Hydraulic System

40

L/min

Rated Pressure Of Hydraulic System

28

MPa

Oil Tank Capacity

160

L

Rotation Angle

(360°) All Rotation

.

Crane Weight

2970

kg

Installation Space

1150

mm

Choice of Chassis

ISUZU





SQ8ZK3Q Lifting capability diagram

Working radius (m)

2

4.175

5.995

7.785

9.755

Lifting capacity (kg)

8000

3700

2400

1700

1250




 Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
