8000Liter Philippines ELF 700P Isuzu Septic suction Tanker Trucks

quality 8000Liter ELF 700P Isuzu Septic suction Tanker Trucks supplieers

Details

8000Liter Philippines ELF 700P Isuzu Septic suction Tanker Trucks



 8000Liter ELF 700P Isuzu Septic suction Tanker Trucks

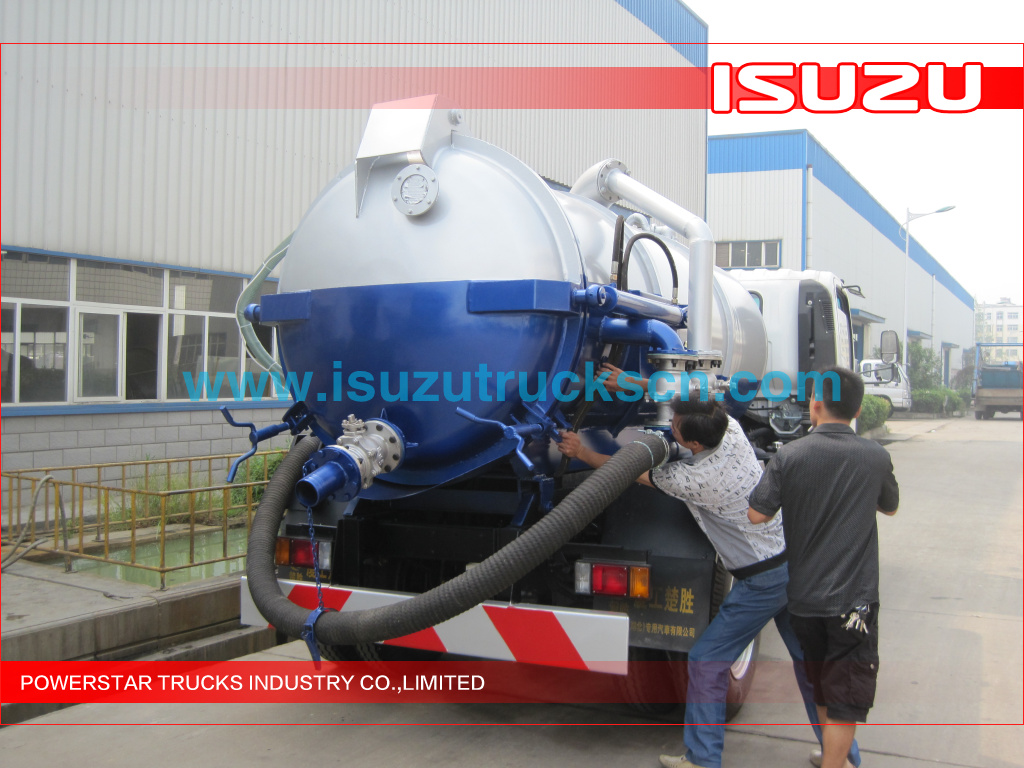

Isuzu vacuum suction truck is mainly used to suck, transport, unload, and load sewage and sludge existing in the sewer lines and rainwater wells, and it can also be used to suck and transport wastewater, industrial waste oil, and sewage in large factories. Furthermore, sometimes it can even be used to dredge and clean small watercourses.



Key Features:

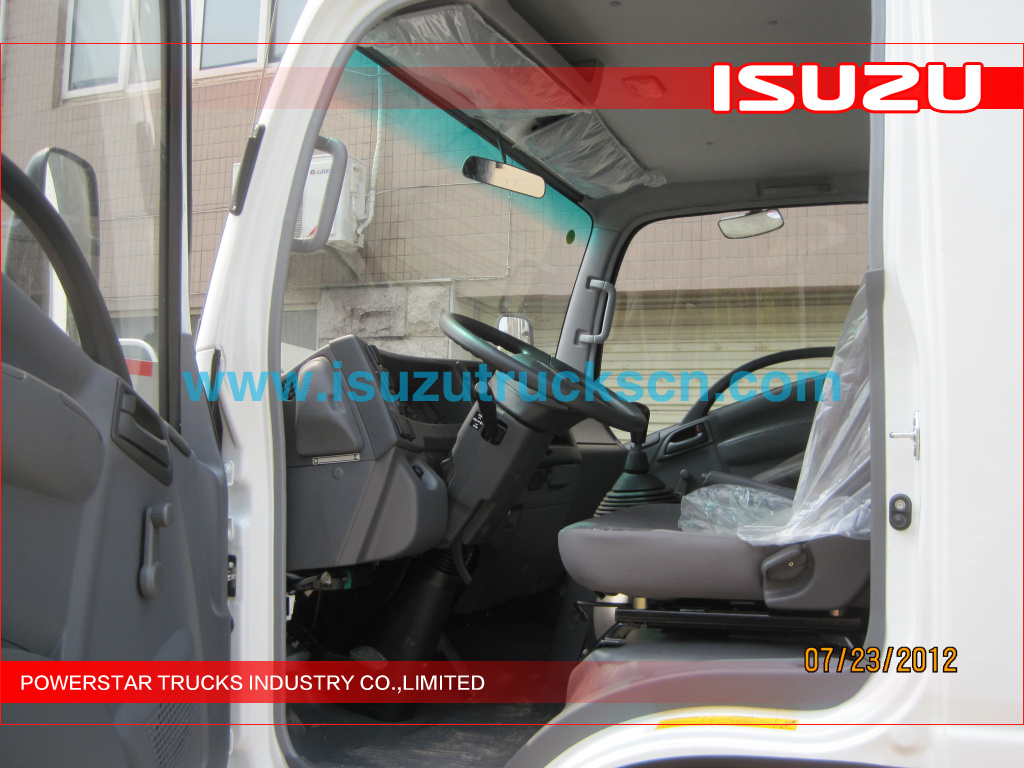

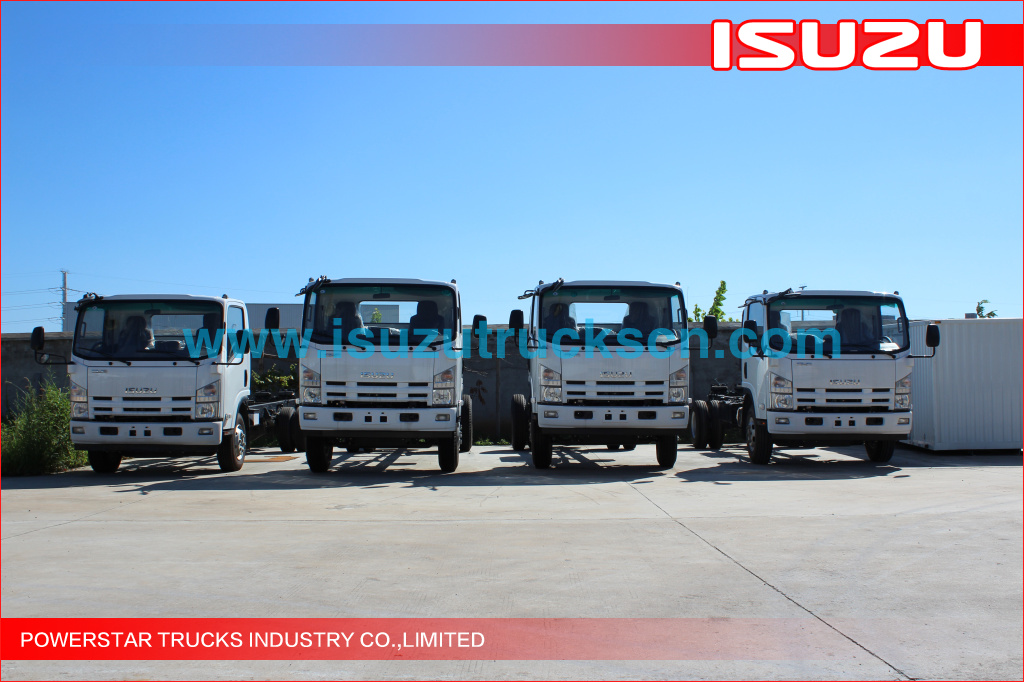

  Isuzu chassis, Durable and comfortable

  Tanker size:  3000 L up to 20,000 Liters

  English control panel is simple and easy to use

  Carbon Steel, Stainless Steel, and Aluminum Tanks Available

  Customer Preference Vacuum Pumps Available



Main specifications:



Model

PT5100JGK

Driving Type

4x2    (Left hand drive)

Wheelbase

3815 mm

Engine

139 kw (190hp)

Vacuum Tank

Tank shape

Cylinder

Material

Carbon Steel

Dirty water tank

6000 ~8000  Liters

Thickness

5 mm

Dish thickness

5 mm

Designed pressure

-0.9 bar

Strengthen ring

Cool bended U shape, add the strengthen ring on the tank our circle

Over Pressure device

Fixed on the top of the tank

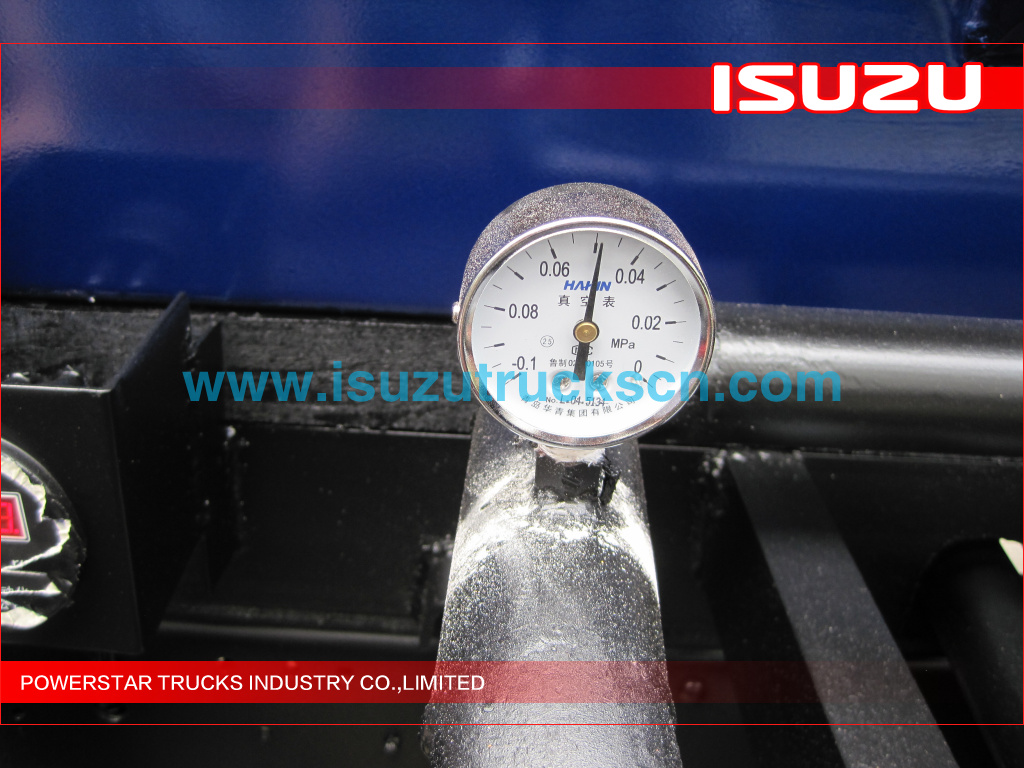

Vacuum valve

For keeping the tank's inside vacuum





Safety support

fix with safety valve during working

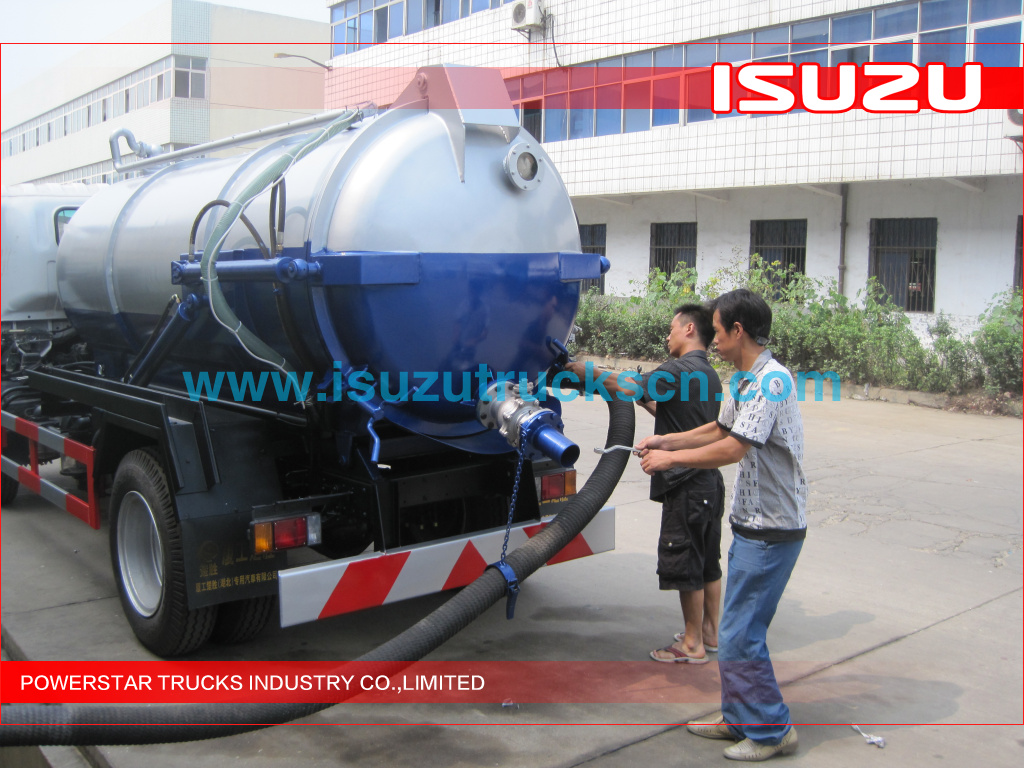

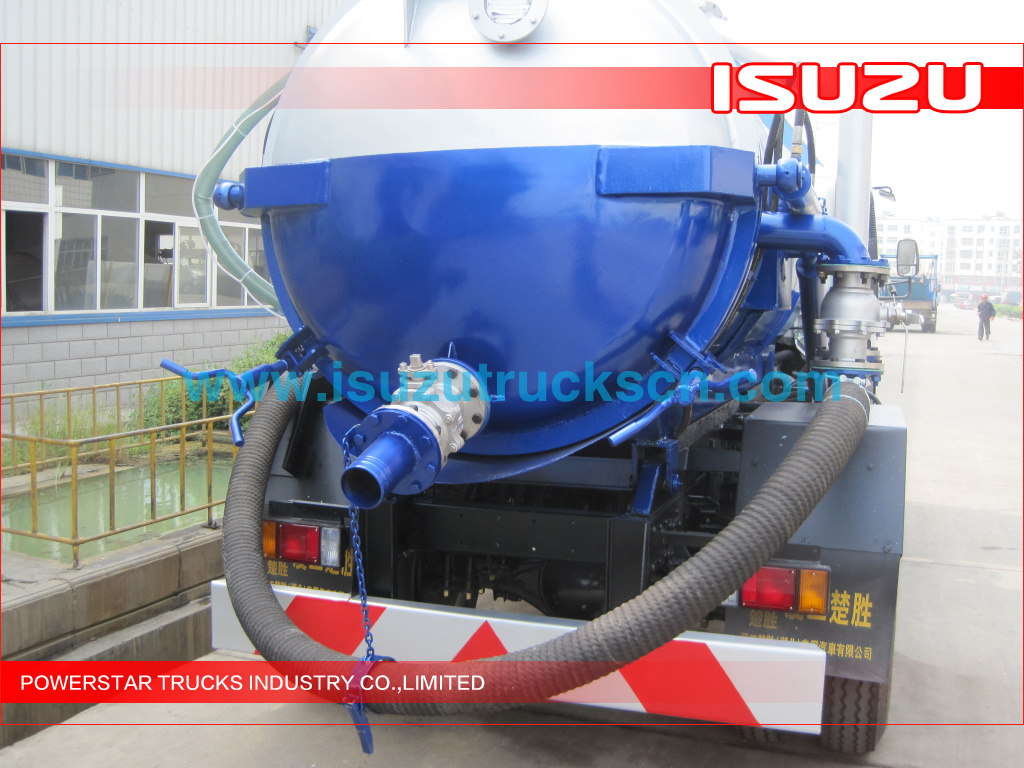

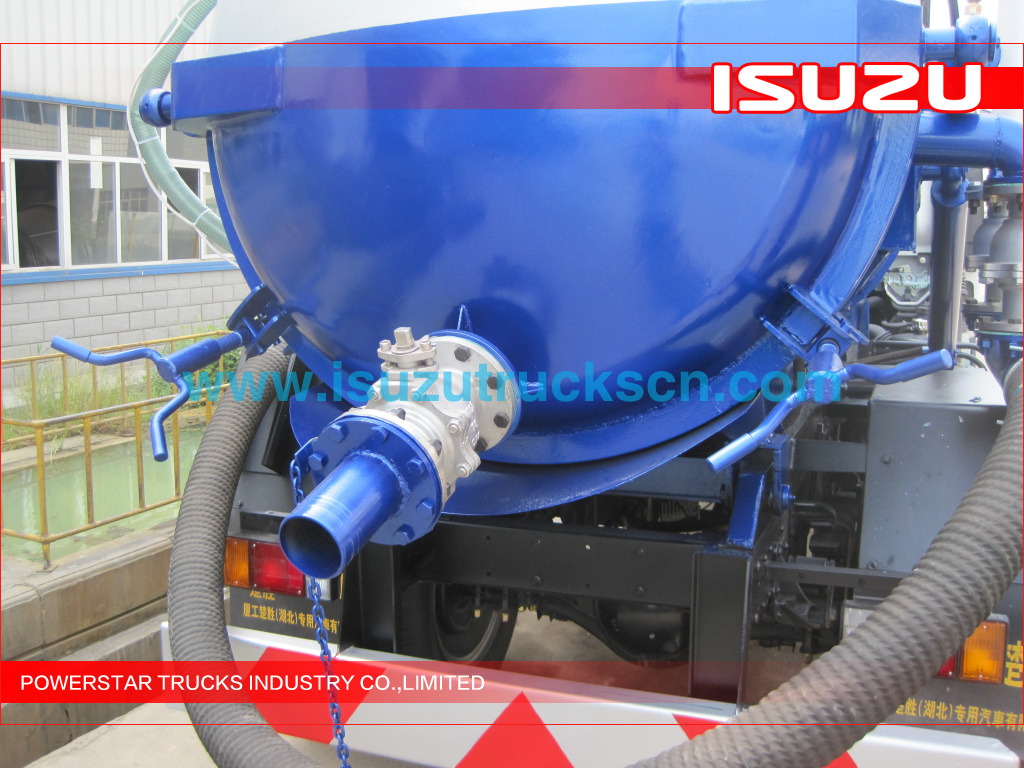

Rear Cover

Operation

Opened by hydraulic

Lock device

Manual locking device

Seal

Rigidity and manual synthetic rubber seal rings

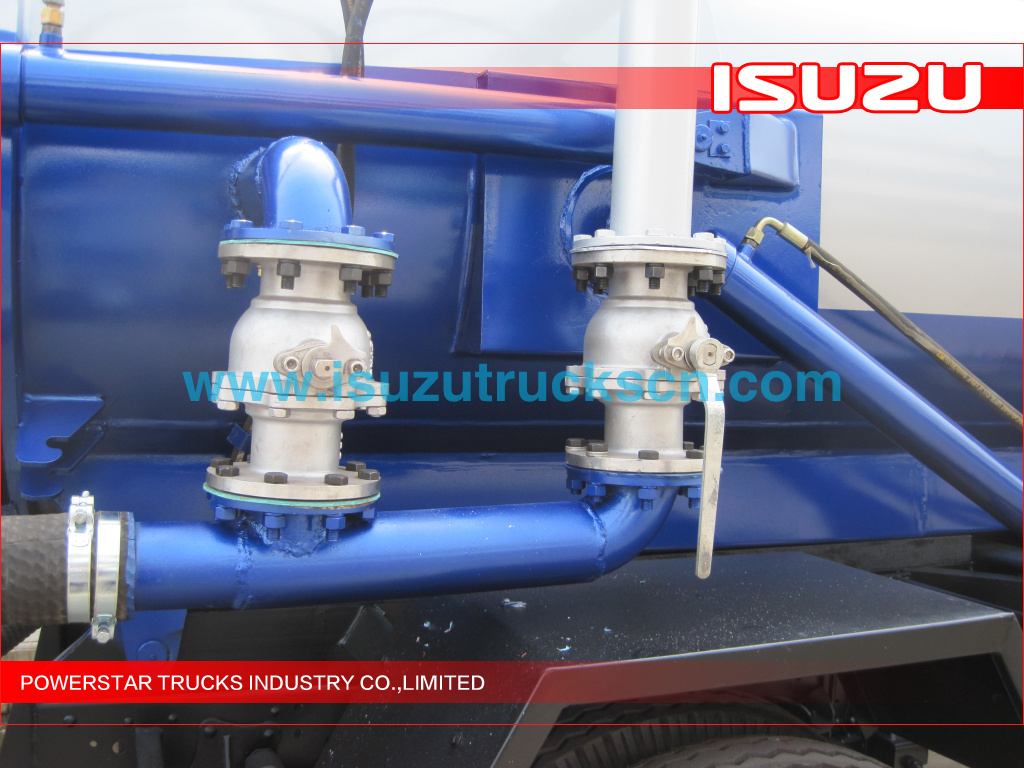

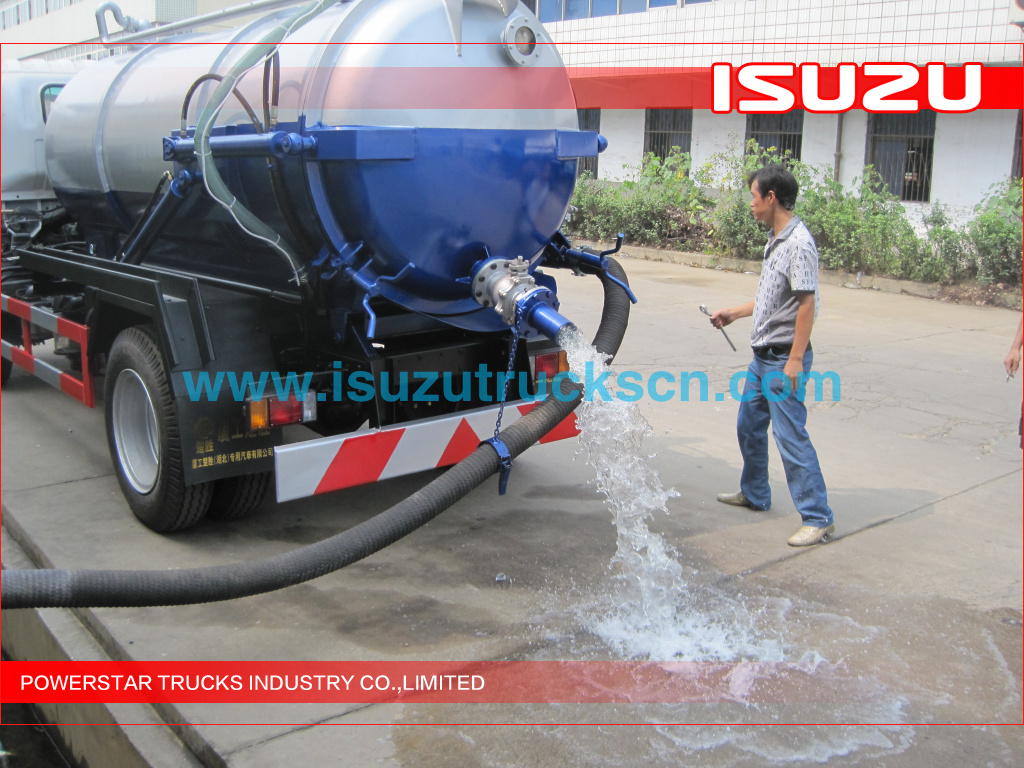

Water discharge valve

one way 100mm ball valve

Vacuum Pump

Model

As option

Working pressure

400 Pa

Flow rate

45 L/s

Color

As option

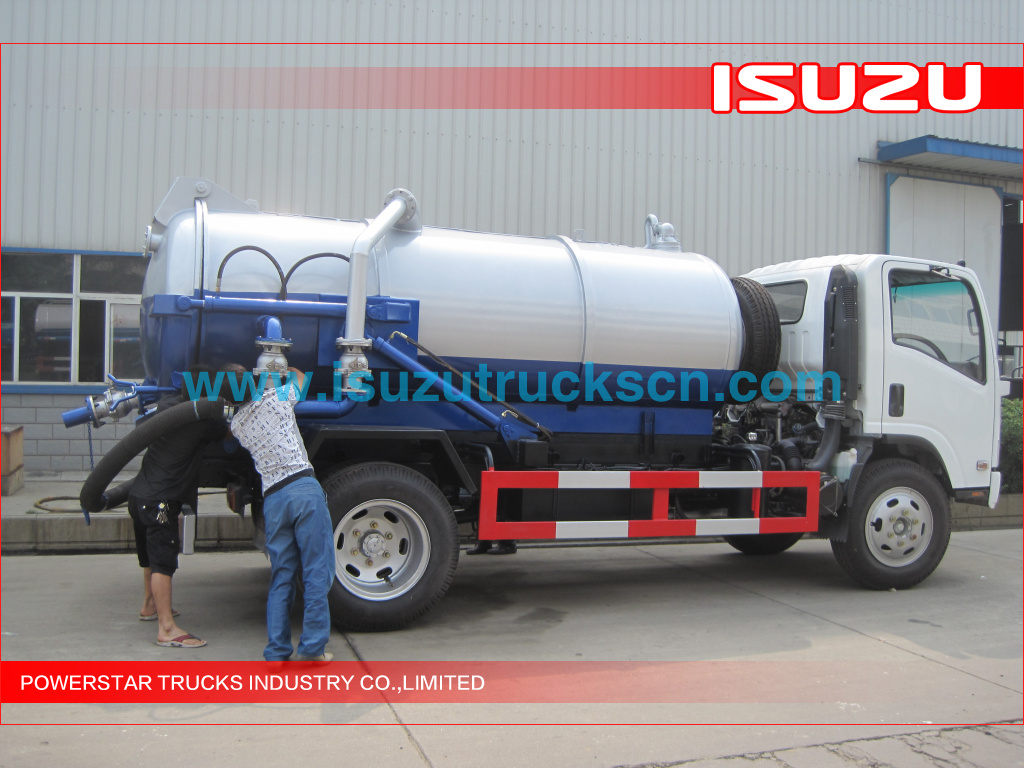

Customers build examples:
