8tons capacity Isuzu folding arms Crane Truck

china best Famous Best Quality Isuzu 4x2 6.3 Ton Truck Mounted Crane Manufacturer

Details

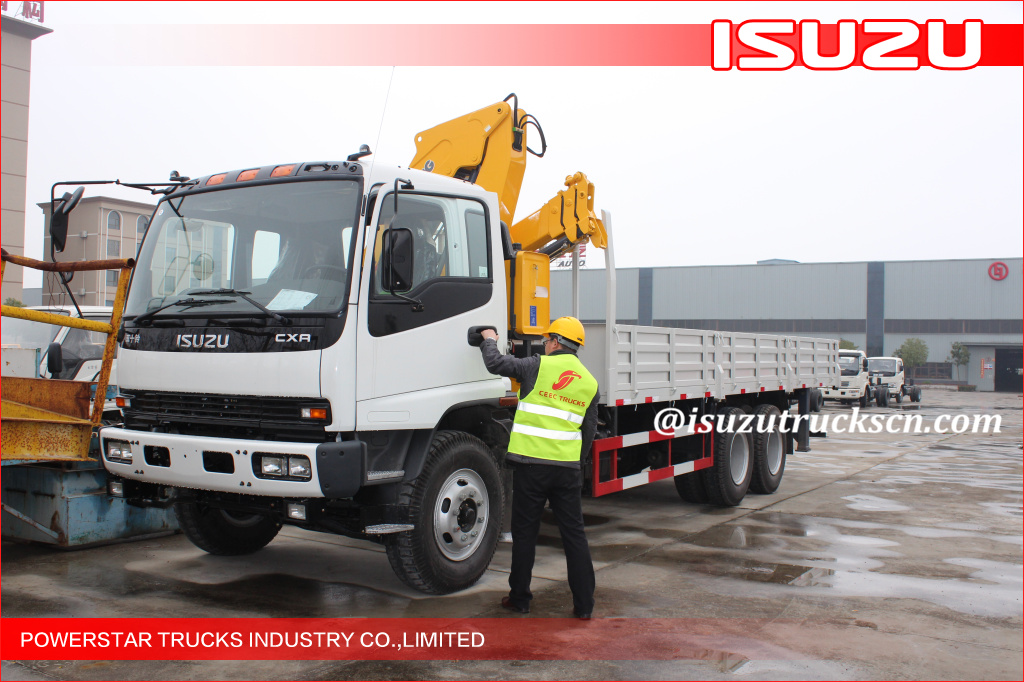

8tons capacity Isuzu folding arms Crane Truck

8tons capacity Isuzu folding arms Crane Truck



Durable 8T Knuckle Boom Truck Mounted Crane, 40 L/min Truck With Crane



  1. Name: Folding boom crane, Folding boom truck crane, Knuckled boom crane, Knuckle boom truck mounted crane
  2. Max Lifting Capacity: 8000 kg
  3. Max Lifting Moment: 16 t.m
  4. Max Oil Flow of Hydraulic System: 40 L/min
  5. Max.Lifting height:13meters
  6. Brand: XCMG
  7. Crane Weight: 2970 kg
  8. Oil Tank Capacity: 160 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.


Knuckle boom crane SQ8ZK3Q is lifting capacity is 8tons, moment is 16T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.



Specifications:



Model

SQ8ZK3Q

Unit

Max Lifting Moment

16

t.m

Max Lifting Capacity

8000

kg

Recommend Power Needed At Recommend Oil Flow

28

kw

Max Oil Flow of Hydraulic System

40

L/min

Rated Pressure Of Hydraulic System

28

MPa

Oil Tank Capacity

160

L

Rotation Angle

(360°) All Rotation

°

Crane Weight

2970

kg

Installation Space

1150

mm

Choice of Chassis

ISUZU





SQ8ZK3Q Lifting capability diagram

Working radius (m)

2

4.175

5.995

7.785

9.755

Lifting capacity (kg)

8000

3700

2400

1700

1250

Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
