9000Liter Ghana Isuzu Combined sewer jetting and suction trucks

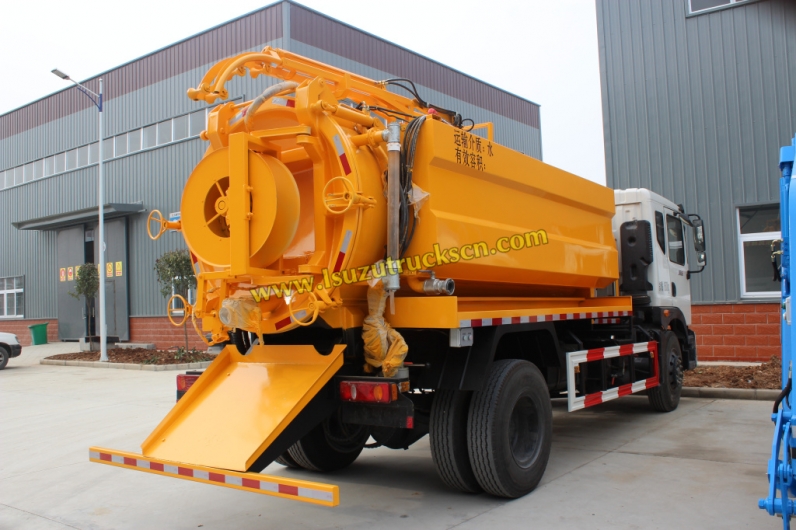

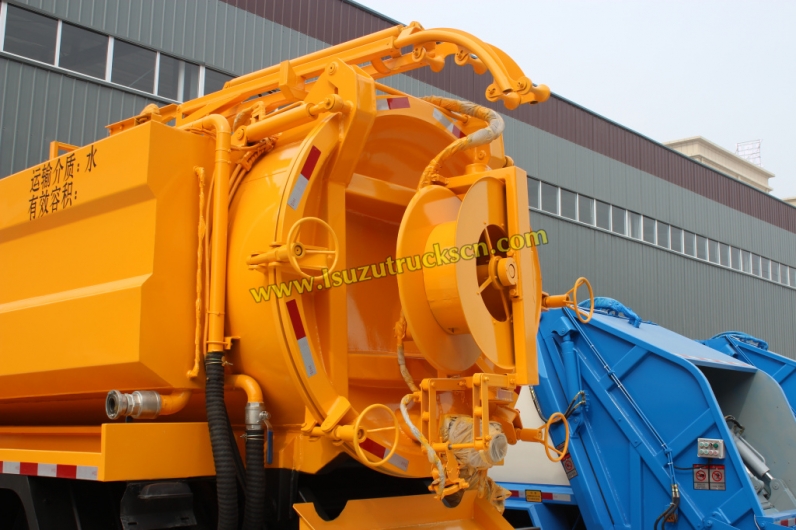

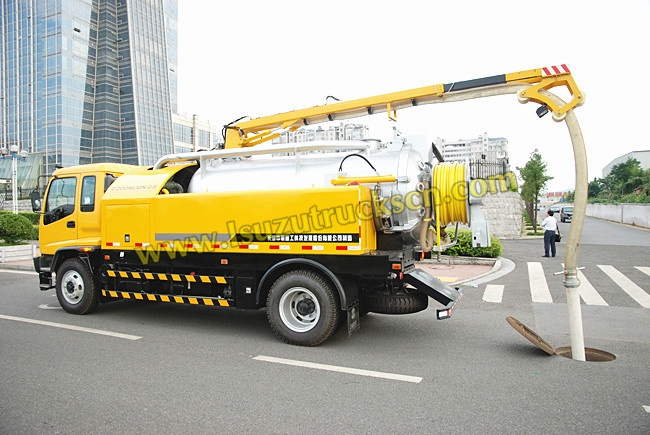

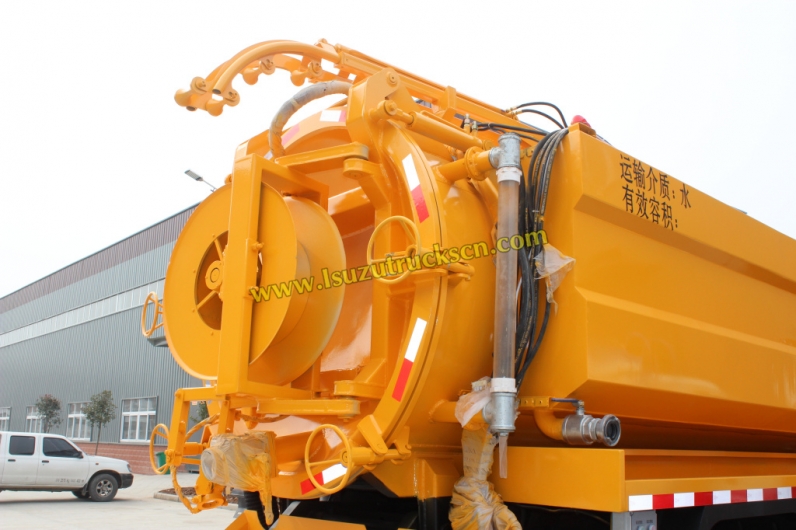

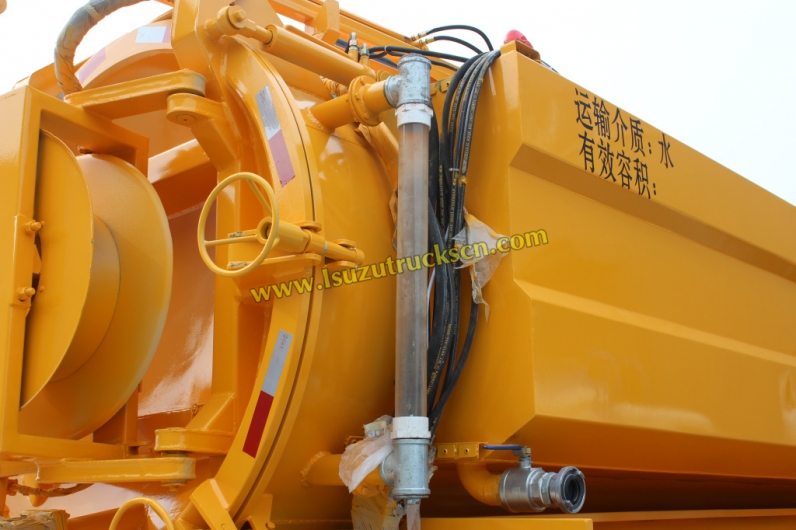

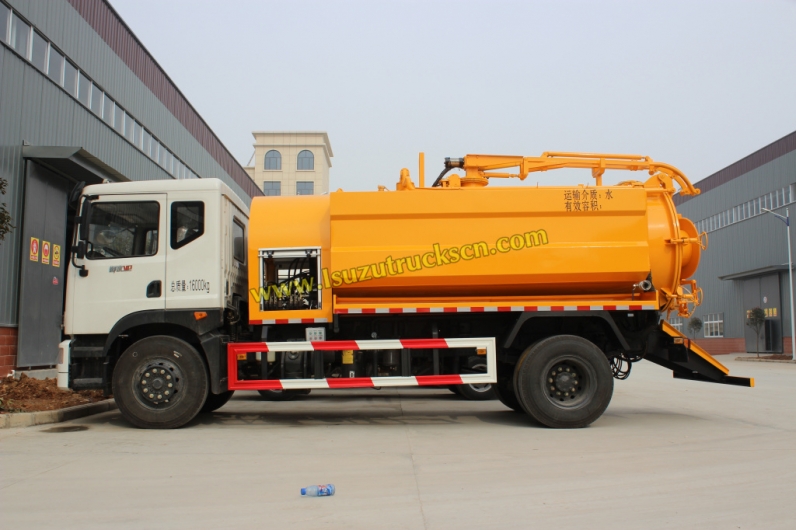

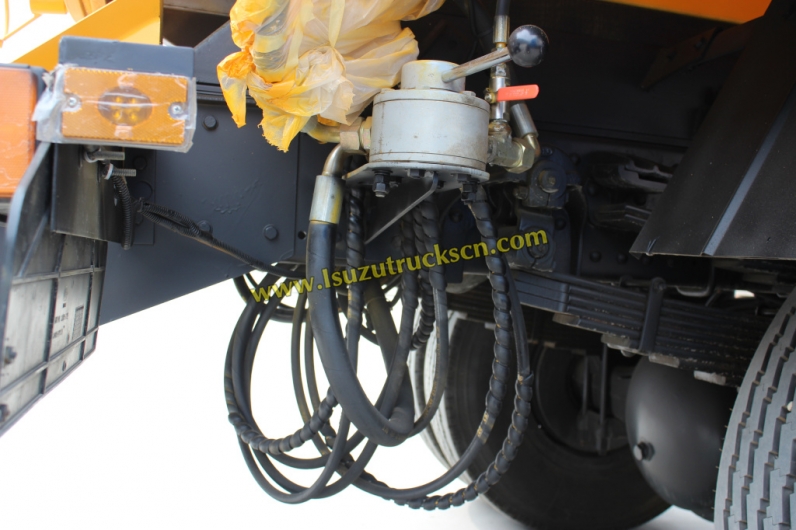

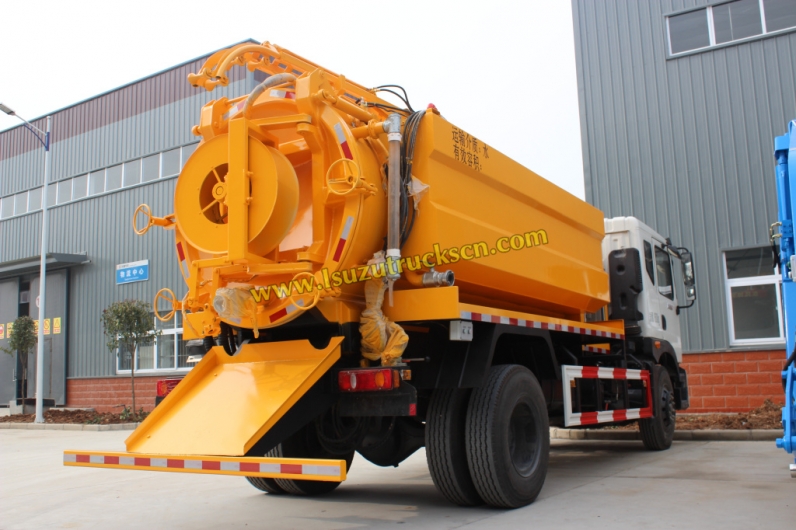

10wheesl Isuzu brand Combined Sewer Jetting Vacuum Trucks

Details

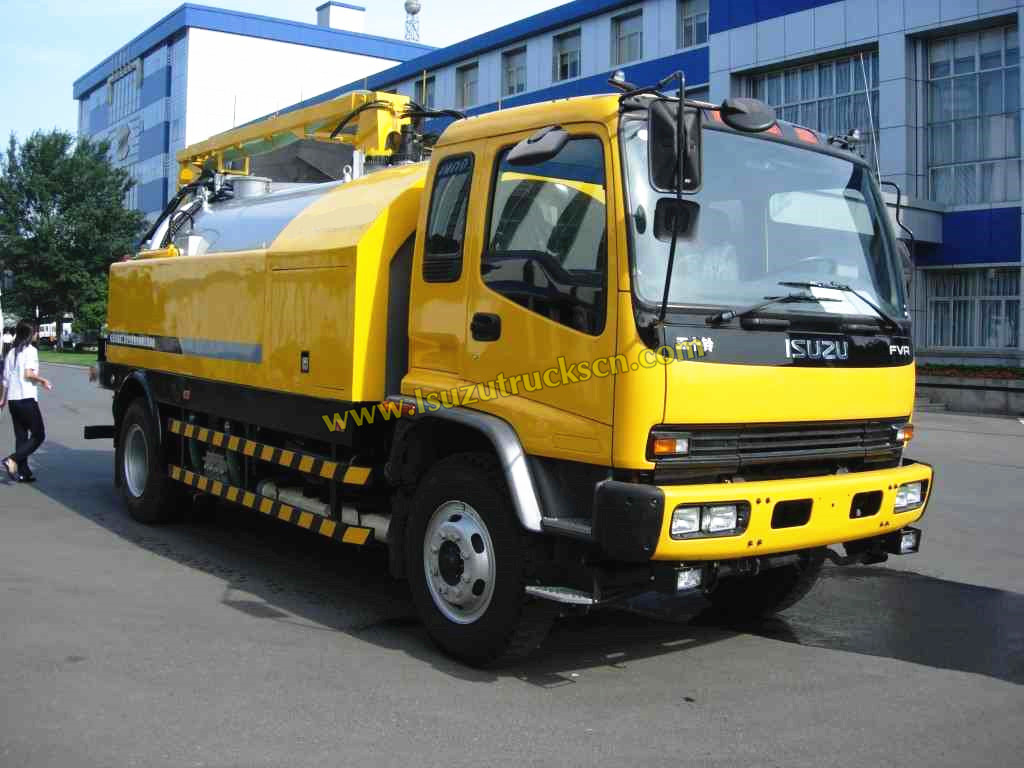

9000Liters Custom made Combination Sewer Cleaner Isuzu Trucks

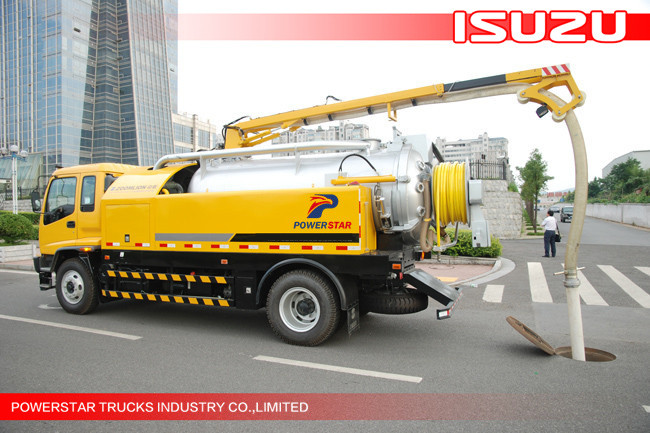

 9000Liter Isuzu Combined sewer jetting and suction trucks

Basic Description

Custom made Combination Sewer Cleaner Truck also called as Jetting and Suction Truck ISUZU, Japan Isuzu Combined Jet Suction Truck, Jet-Vac Tank Truck, combined Jetting Vacuum Truck Manufacturer.


Isuzu brand Sewer cleaner and vacuum truck is used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and/or sanitary sewer by the flushing action of high pressure water.



The unit includes a quality vacuum pump and a high pressure water pump, as a multi-functional combination unit integrating a high pressure jetting system, a slurry separation system, a sewage discharge system and vacuum suction system. It becomes the most advanced combination unit in China with its key components imported from Europe.


Key Features

   ISUZU FVR Chassis, Durable & Performance.

   Widely used in environment and sanitation field

   Stainless steel sewage water tank and clear water tank

   High performance vacuum pump & high pressure pump

   POWERSTAR 20 years’ experience on Vacuum Tanker truck exporting.

Main specifications

ISUZU Combined Sewer Cleaner Vehicles (9,000 litres)
General Vehicle Brand Powerstar
Chassis Brand ISUZU
Overall Dimension 8900 * 2500 * 3200 mm
GVW / Kerb Weight 16,000 kg / 9,800 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand ISUZU 6HK1
Power 240 Hp (178 KW)
Displacement 7790 ml
Emission Standard Euro 4
Chassis Drive Type 4X2, left hand drive
Transmission 6-speed front, 1 reverse
Wheelbase 4700 mm or 5000 mm
Number of axle 2
Tyre Specification 9.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 110 km/h
Paint Metallic paint
Superstructure Water Tank Tank Capacity 4,000 Litres (about 900 gals)
Tank Material Carbon steel
High Pressure Pump Italy Imported brand / 16Mpa
Flow Speed 125 L/min
High Pressure Hose 60m
Suction Head 6 m

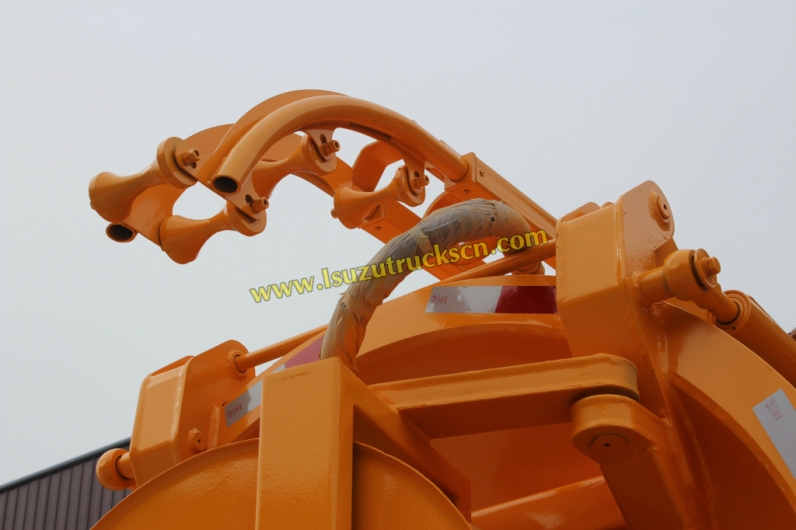

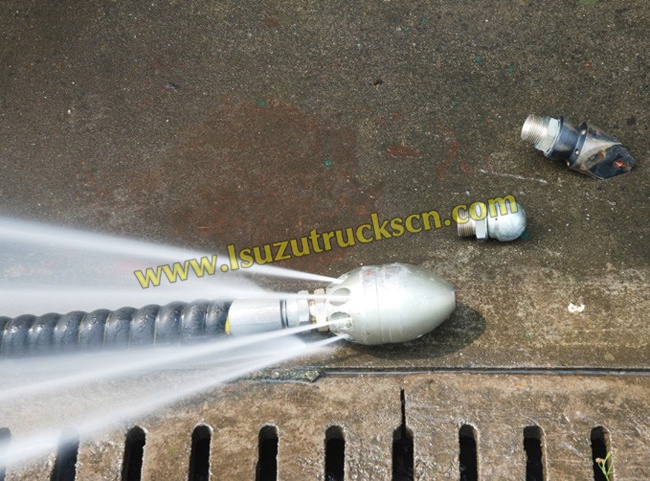

Nozzles A cluster of nozzles included
Sewer Tank Tank Capacity 5,000 Litres (about 1,100 gals)
Tank Material Carbon steel

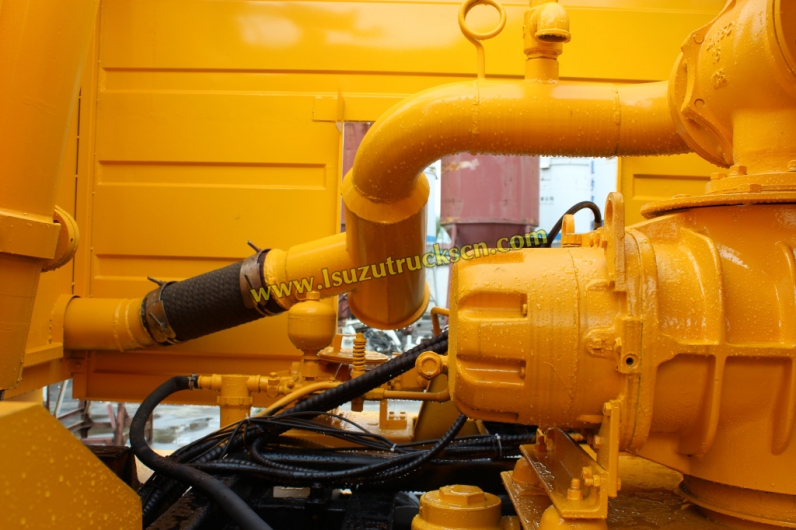

Vacuum Pump Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.

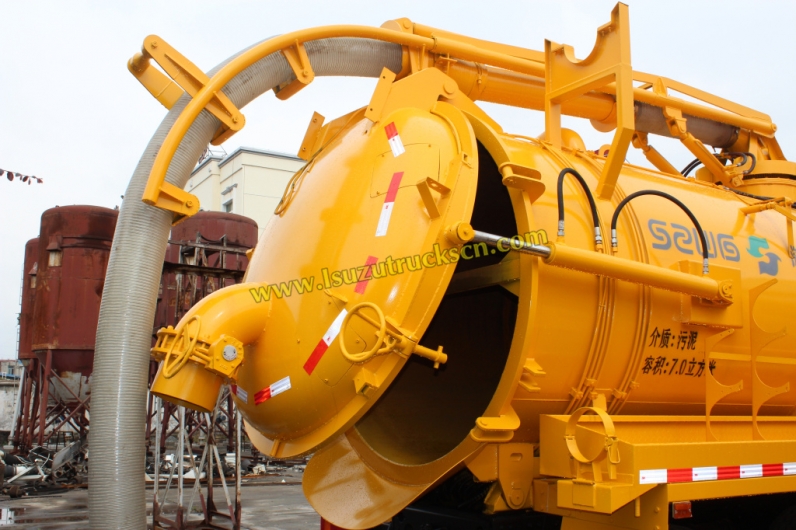

Rear door can be hydraulic opened for complete discharge of solid stuff.
All standard accessories: manhole, tool kit, English manual……..
Optional ** Tank material could be stainless steel.
** High pressure hose length could be customized.



HOT sale Isuzu Trucks

 Isuzu Fuel Tank Truck Excellent Quality for Africa Market  8000L ISUZU NPR refueling tanker trucks  Isuzu ELF water fire fighting trucks Isuzu ELF water fire fighting trucks
 Isuzu foam fire vehicle for export  Japan Isuzu water foam fire fighting tender fire engine  Philippines custom made 5tons street cleaning sweeper truck Isuzu  Japan high performance Isuzu sweeping vehicle
 5tons city used garbage compactor truck Isuzu trucks  Japan quality Isuzu rubbish compactor trucks  Customized 5tons Isuzu trucks mounted crane for sale  Africa ghana order Isuzu heavy duty truck with crane
 Japan 16Meters Isuzu Aerial plaftform trucks  Isuzu Water Jetting high pressure truck for sale  Isuzu 3tons flatbed tow wrecker trucks  Customized fuel oil tanker semi trailer made in china




Overview of the ISUZU combination vehicle:





9000Liters Custom made Combination Sewer Cleaner Isuzu Trucks



9000Liters Custom made Combination Sewer Cleaner Isuzu Trucks



9000Liters Custom made Combination Sewer Cleaner Isuzu Trucks



9000Liters Custom made Combination Sewer Cleaner Isuzu Trucks



9000Liters Custom made Combination Sewer Cleaner Isuzu Trucks



9000Liters Custom made Combination Sewer Cleaner Isuzu Trucks

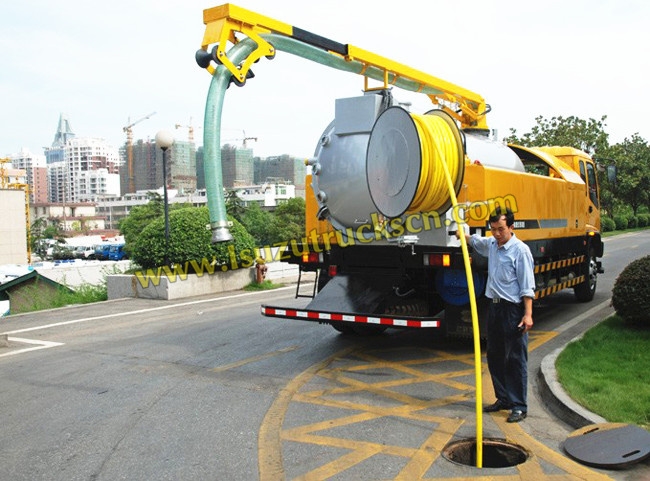

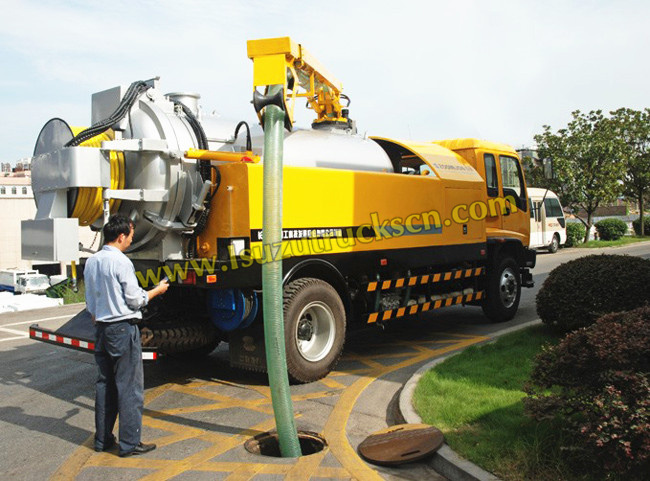

How to operation Combined sewer jetting and vacuum truck Isuzu brand?


How to operation Combined sewer jetting and vacuum truck Isuzu brand?

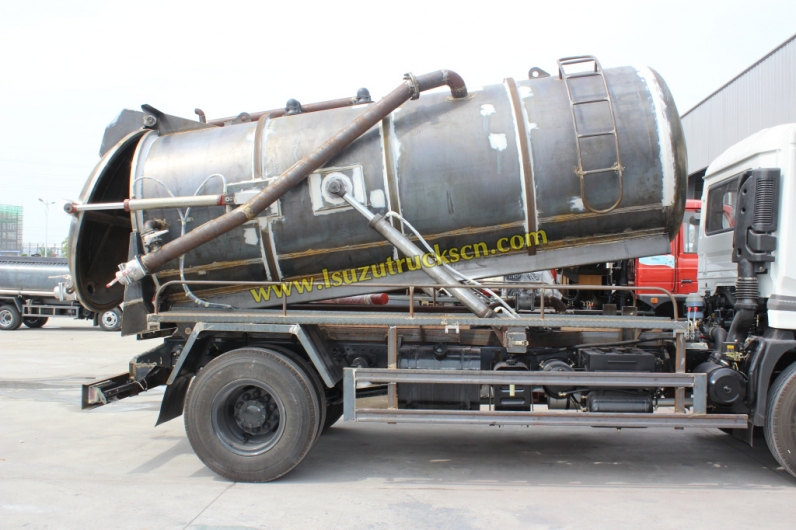

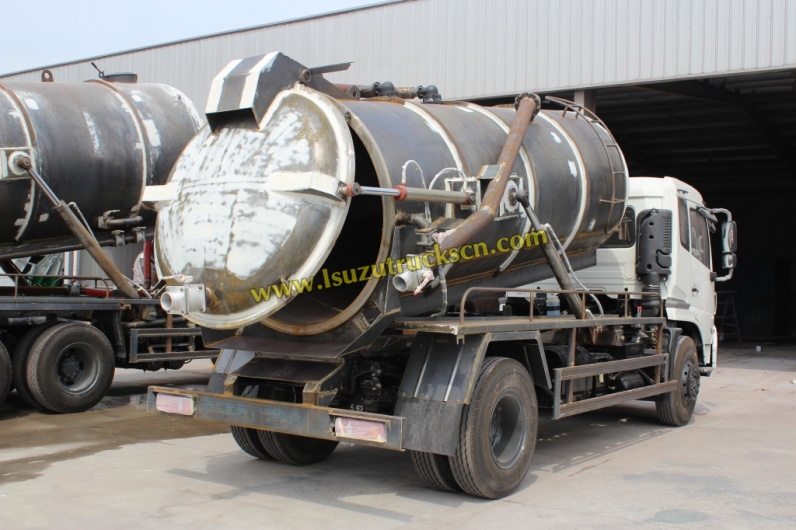

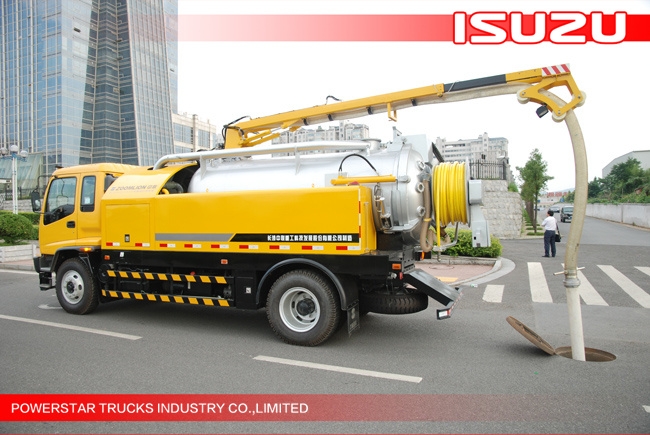

Over view  of  ISUZU Trucks mounted Jetting vacuum trucks

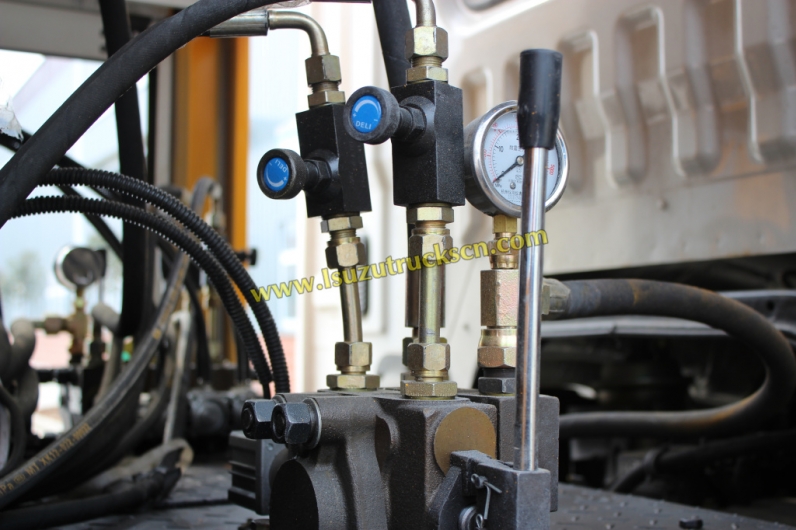

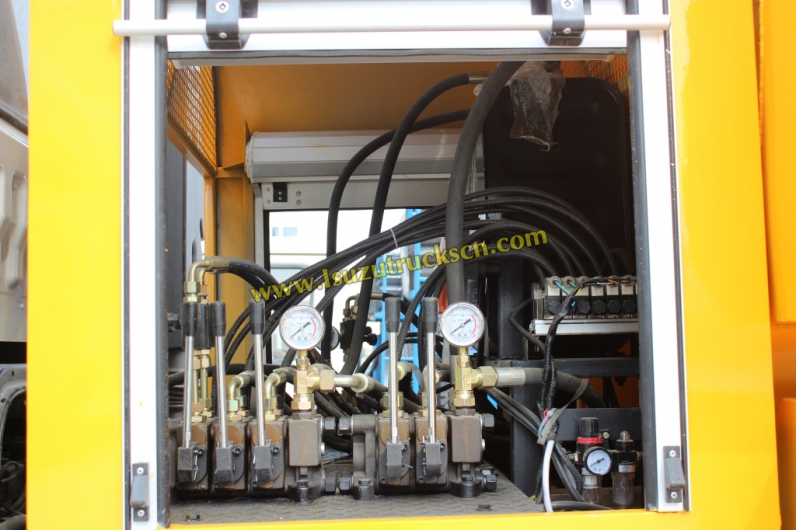

ISUZU Trucks mounted Jetting vacuum trucks operation panel
