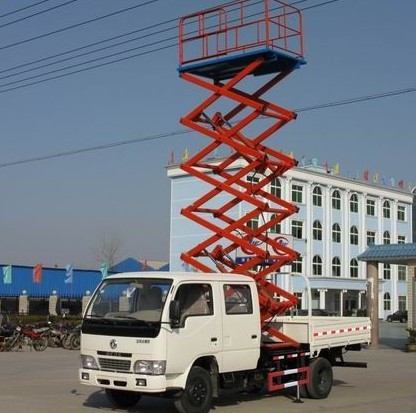

16M~16M Aerial Working Platform Truck Dongfeng
Aerial Working Truck Isuzu (also called Hydraulic aerial platform truck, overhead working truck, aerial boom lift, aerial lift truck, truck mounted aerial platform, Man lift truck, bucket boom truck, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
---- DONGFENG truck chassis ensures perfect driving performance;
---- YUCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
Similar Key Words: Aerial work platform, bucket crane trucks, Hydraulic beam lifter, Man lift truck, Hydraulic lifting platform, bucket boom trucks
|
Model Number |
Rate load |
Maximum height(mm) |
Minimum
height |
Platform size |
Overall Dimensions |
Rise time |
Power supply |
Power(kw) |
weight(kg) |
|
SJC0.3-6 |
300 |
6000 |
950 |
1780×840 |
3000×1100×1100 |
35 |
24 |
1.5 |
1450 |
|
SJC0.45-6 |
450 |
6000 |
950 |
1780×840 |
3000×1100×1100 |
38 |
24 |
1.5 |
1450 |
|
SJC0.45-7.5 |
450 |
7500 |
1350 |
2100×1000 |
3500×1350×1550 |
72 |
40 |
1.5 |
2700 |
|
SJC0.3-9 |
300 |
9000 |
1500 |
2100×1000 |
3500×1350×1700 |
84 |
40 |
1.5 |
2800 |
|
SJC0.45-9 |
450 |
9000 |
1600 |
2000×1000 |
3500×1350×1850 |
95 |
40 |
1.5 |
2900 |
|
SJC0.3-11 |
300 |
11000 |
1600 |
2100×1200 |
3500×1350×1850 |
85 |
40 |
1.5 |
3100 |
|
SJC0.45-11 |
450 |
11000 |
1600 |
2100×1200 |
4000×1800×2000 |
93 |
40 |
1.5 |
3100 |
|
SJC0.3-14 |
300 |
14000 |
1800 |
2600×1500 |
4000×1800×2000 |
135 |
40 |
3 |
4200 |
|
SJC0.45-14 |
450 |
14000 |
1800 |
2600×1500 |
4000×1800×2000 |
200 |
40 |
3 |
4400 |
|
SJC0.3-16 |
300 |
16000 |
1980 |
2600×1500 |
4000×1800×2180 |
150 |
40 |
3 |
4700 |
Isuzu Chassis 14m Truck Mounted Aerial Working Platform Isuzu Brand 14M Telescopic Boom Aerial Working Platform Technical Parameters (PT5061JGK10S GKS-14QX) Working Condition 1, Altitude: 0-1000m 2, Temperature: -25° C--+45° C, environmental relative humidity ≤ 90% 3, Allowed working condition: Solid, stable land, the vehicle should be horizontal 4, Wind force: ≤ 6 degree (wind speed ≤ 12.5m/s ) Working Range PT5061JGK Telescopic Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on. The structure type is telescopic boom and the lifting boom is flexible, convenience and performance with the negative point, more suitable for narrow site conditions or other special operations. Bulletin No. KFM5061JGK10S Type GKS-14QX External dimensions ( mm ) 7050×2020×3250 Structure type Three-section telescopic boom Working Cage Internal size ( mm ) 1200×600×1100 Rated loading ( kg ) 200 ( or 2 persons ) Max. Working height ( mm ) 14000 Max. Height from ground ( mm ) 12300 Max. Working radius ( mm ) 9300 Working radius when doing the highest height ( mm ) 1320 Working Boom Lifting angle of main boom ( º ) -24_78° Out rate speed ( mm/sec ) 8500/50 Ret rate speed ( mm/sec ) 8500/50 Boom rack rotation angle ( º ) 360 Boom rack rotation speed ( r/min ) 1.0 Outrigger Vertical span ( mm ) 3050 Horizontal span ( mm ) 3600 Traveling of vertical outrigger ( mm ) 450 Adjustment Single adjustable
