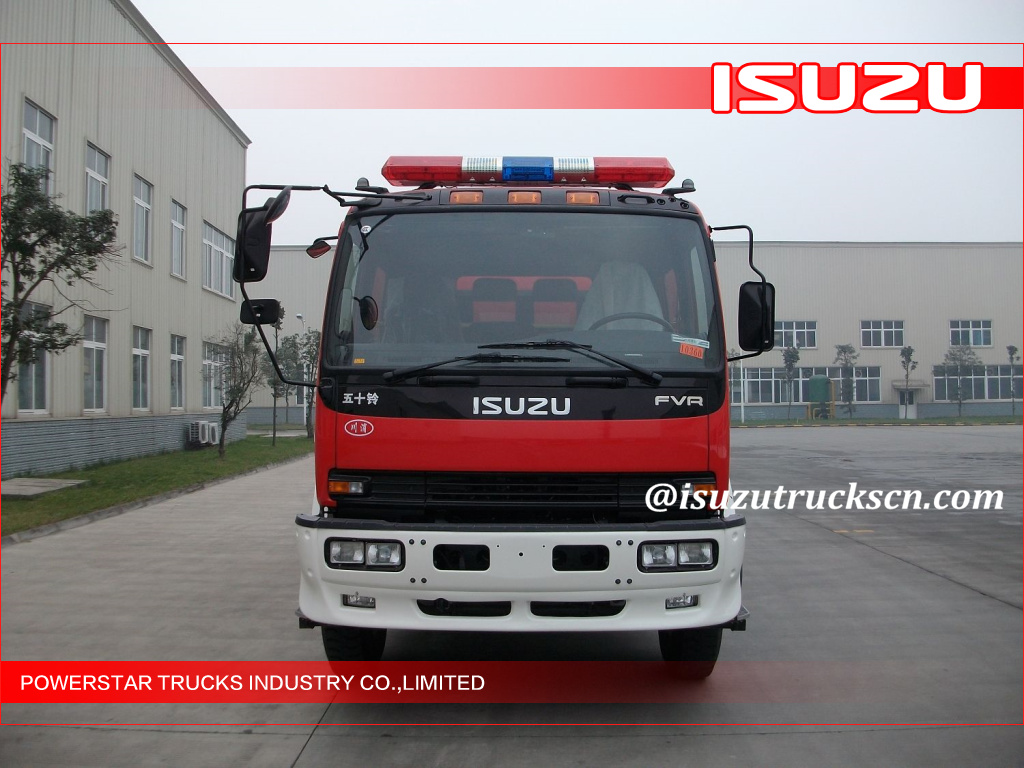

CB20.10/20.40 fire pump 5Ton fire fighting truck

Isuzu brand CB20.10/20.40 fire pump 5Ton fire fighting truck

Details

CB20.10/20.40 fire pump 5Ton fire fighting truck

CB20.10/20.40 fire pump 5Ton fire fighting truck



Detailed Info

                                                  Main performance parameters

Item

parameter

Chassis

FVR34G2

Dimensions(lengthXwidthX height)

≤7500X2490X3500

Cab seating capacity

6

Engine model

6KH1-TC   EURO III

Engine power(kw/r/min)

191/2500

Wheelbase(mm)

4500

Max.speed(km/h)

≥110

Tank capacity(kg)

water:1000

foam 1000

Pump model

CB20.10/20.40

Pump flow

Normal pressure(L/S/Mpa)40/1.0

Middle pressure(L/S/Mpa)20/2.0

Fire monitor model

PL32/PS40W

Fire monitor flow(L/S/Mpa)

32/40(1.0)

Fire monitor reach(m)

water≥50

foam≥45
