Isuzu 10 ton Knuckle Boom Truck Mounted Crane For Lifting Heavy Things

China famous brand dongfeng free card 4*2 95hp 2ton crane truck with mini truck mounted crane

Details

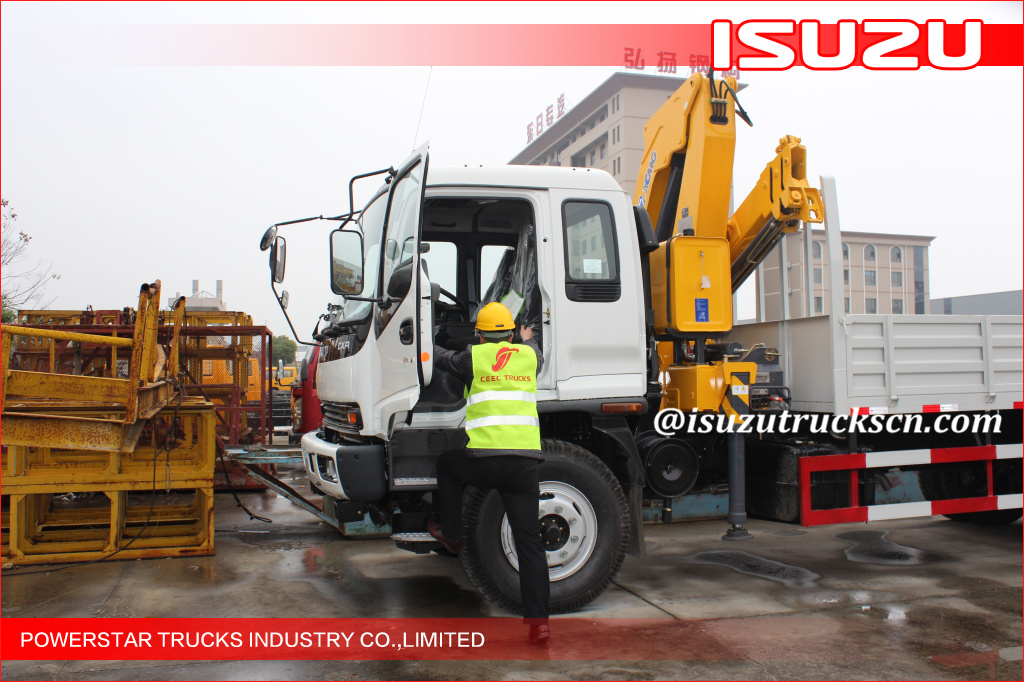

Isuzu 10 ton Knuckle Boom Truck Mounted Crane For Lifting Heavy Things

Isuzu 10 ton Knuckle Boom Truck Mounted Crane For Lifting Heavy Things

Durable XCMG Knuckle Boom Truck Mounted Crane 20 t.m For Lifting Heavy Things



  1. Name: Folding boom crane, Folding boom truck crane, Knuckled boom crane, Knuckle boom truck mounted crane
  2. Max Lifting Capacity: 10 ton
  3. Max Lifting Moment: 20 t.m
  4. Max Oil Flow of Hydraulic System: 40 L/min
  5. Max.Lifting height: 13meters
  6. Brand: XCMG
  7. Crane Weight: 3477 kg
  8. Oil Tank Capacity: 160 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.


Knuckle boom crane SQ10ZK3Q is lifting capacity is 10tons, moment is 20T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.



Specifications:



Model

SQ10ZK3Q

Unit

Max Lifting Moment

20

t.m

Max Lifting Capacity

10000

kg

Recommend Power Needed At Recommend Oil Flow

28

kw

Max Oil Flow of Hydraulic System

40

L/min

Rated Pressure Of Hydraulic System

28

MPa

Oil Tank Capacity

160

L

Rotation Angle

(360°)All Rotation

.

Crane Weight

3477

kg

Installation Space

1150

mm

Choice of Chassis

ISUZU





SQ10ZK3Q Lifting capability diagram

Working radius (m)

2

4.17

5.99

7.78

9.75

Lifting capacity (kg)

10000

 4600

3050

2280

1700



Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
