Isuzu 3.2 ton Ton Telescopic Boom Truck Mounted Crane For Landscape Jobs

Top brand isuzu Max Heavy Things Small Telescopic Boom Truck Mounted Crane

Details

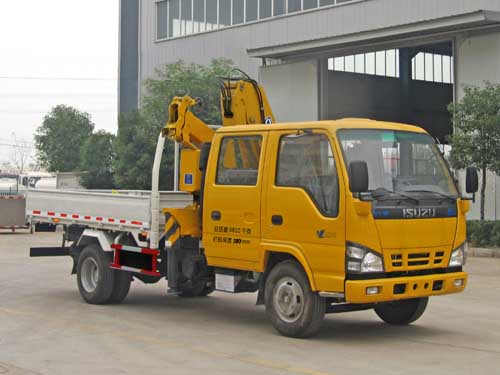

 Isuzu 3.2 ton Ton Telescopic Boom Truck Mounted Crane For Landscape Jobs

Isuzu 3.2 ton Ton Telescopic Boom Truck Mounted Crane For Landscape Jobs

Isuzu 3.2 ton Ton Telescopic Boom Truck Mounted Crane For Landscape Jobs



ISUZU NKR77 Cargo Mobile Crane Truck 3.2 Ton, ISUZU Truck With Crane



  1. Name: Telescopic boom crane, Telescoping boom crane, Hydraulic truck crane
  2. Max Lifting Capacity: 3.2 ton
  3. Max Lifting Moment: 6.72 T.M
  4. Max Oil Flow of Hydraulic System: 25 L/min
  5. Max.Lifting height: 9meters
  6. Brand: XCMG
  7. Crane Weight: 1229 kg
  8. Oil Tank Capacity: 30 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



ISUZU Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

ISUZU is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.

Telescopic boom crane SQ3.2SK2Q is lifting capacity is 3.2tons, moment is 6.72T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.





Specifications:



Model

SQ3.2SK2Q

Unit

Max Lifting Capacity

3200

kg

Max Lifting Moment

6.72

T.M

Recommend Power

14

kw

Max Oil Flow of Hydraulic System

25

L/min

Max Pressure of Hydraulic System

20

MPa

Oil Tank Capacity

30

L

Rotation Angle

360° All Rotation



Crane Weight

1229

kg

Installation Space

850

mm

Choice of Chassis

ISUZU ALL series





SQ3.2SK2Q Lifting capability diagram

Working radius (m)

2.1

5

7.56

Lifting capacity (kg)

3200

990

500
