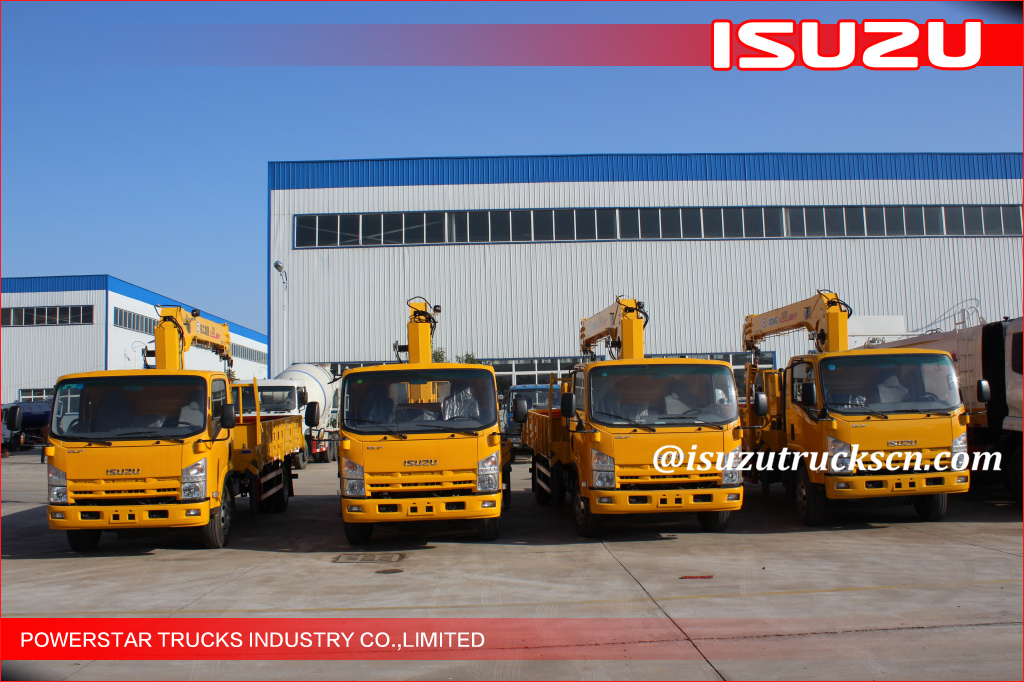

Isuzu 6.3ton Knuckle Boom Truck Mounted Crane For Safety Transport

Isuzu 6300kg telescopic boom truck mounted crane

Details

Isuzu 6.3ton Knuckle Boom Truck Mounted Crane For Safety Transport

isuzu 6.3ton kunckle boom truck crane for city transport

Durable Mobile Commercial Knuckle Boom Truck Mounted Crane For Safety Transport



  1. Name: Folding boom crane, Folding boom truck crane, Knuckled boom crane, Knuckle boom truck mounted crane
  2. Max Lifting Capacity: 6300 kg
  3. Max Lifting Moment: 13.23 t.m
  4. Max Oil Flow of Hydraulic System: 25 L/min
  5. Max.Lifting height: 13meters
  6. Brand: XCMG
  7. Crane Weight: 2226 kg
  8. Oil Tank Capacity: 90 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters.

Knuckle boom crane SQ6.3ZK3Q is used for lifting 6.3tons, moment is 13.23T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.



Specifications:



Model

SQ6.3ZK3Q

Unit

Max Lifting Moment

13.23

t.m

Max Lifting Capacity

6300

kg

Recommend Power Needed At Recommend Oil Flow

18

kw

Max Oil Flow of Hydraulic System

25

L/min

Rated Pressure Of Hydraulic System

28

MPa

Oil Tank Capacity

90

L

Rotation Angle

(360°)All Rotation

°

Crane Weight

2226

kg

Installation Space

1050

mm

Choice of Chassis

ISUZU



SQ6.3ZK3Q Lifting capability diagram

Working radius (m)

2.1

4.54

6.3

8.11

9.92

Lifting capacity (kg)

6300

2700

1700

1200

 850

Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
