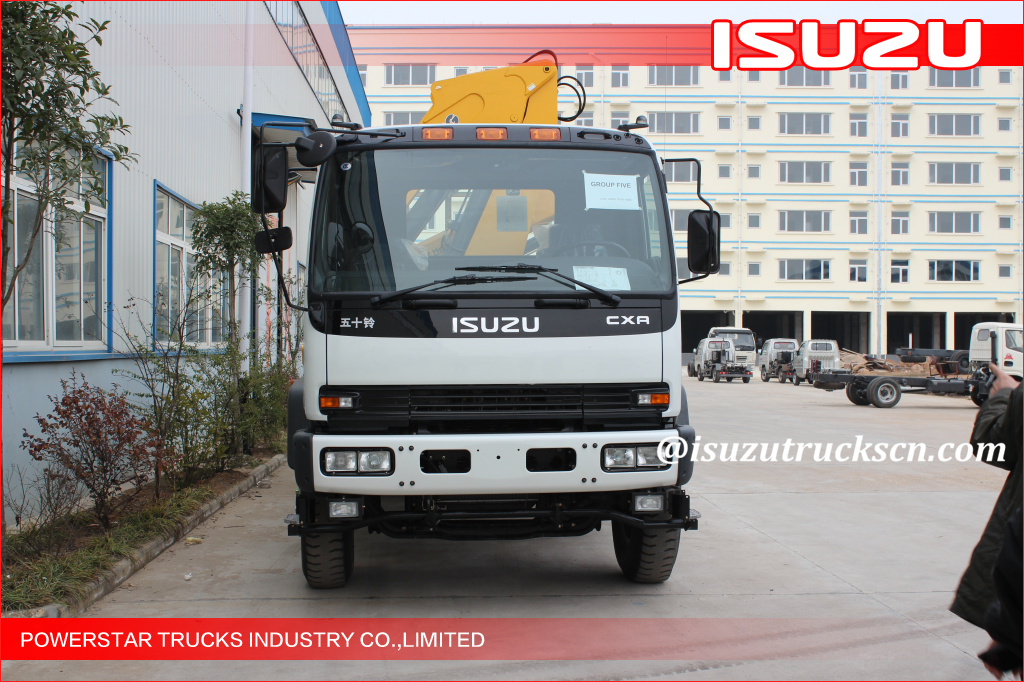

ISUZU 8 Ton Transportation Telescopic Boom Truck Mounted Crane with Wire Rope

isuzu Small hydraulic Telescopic kunckle boom truck with crane for sale

Details

ISUZU 8 Ton Transportation Telescopic Boom Truck Mounted Crane with Wire Rope

ISUZU 8 Ton Transportation Telescopic Boom Truck Mounted Crane with Wire Rope



Durable ISUZU 8 Ton Transportation Telescopic Boom Truck Mounted Crane, Wire Rope



  1. Name: ISUZU Telescoping boom crane, pick and carry crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
  2. Max Lifting Capacity: 8 ton
  3. Max Lifting Moment: 20 T.M
  4. Max Oil Flow of Hydraulic System: 55 L/min
  5. Max.Lifting height: 13.5meters
  6. Brand: XCMG
  7. Crane Weight: 3315 kg
  8. Oil Tank Capacity: 160 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



ISUZU Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.


Telescopic boom crane SQ8SK3Q is lifting capacity is 8 tons, lifting moment is 20 T.M.





Applications:



Those kinds of crane can be applied on most common Commercial Truck. Our product's range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.





Specifications:



Model

SQ8SK3Q

Unit

Max Lifting Capacity

8000

kg

Max Lifting Moment

20

T.M

Recommend Power

27

kw

Max Oil Flow of Hydraulic System

55

L/min

Max Pressure of Hydraulic System

27

MPa

Oil Tank Capacity

160

L

Rotation Angle

All Rotation

Crane Weight

3315

kg

Installation Space

1200

mm

Choice of Chassis

ISUZU, UD, HINO



SQ8SK3Q Lifting capability diagram

Working radius (m)

2.5

4.5

7

9

11.5

Lifting capacity (kg)

8000

4400

2500

1750

1100

Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
