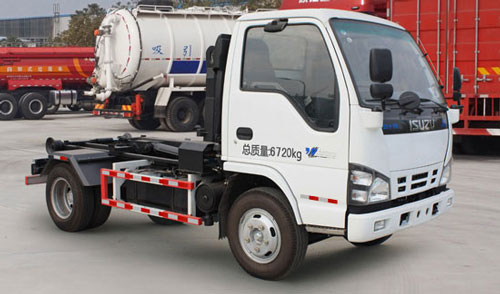

Isuzu Detachable container garbage truck hook lift truck

2 - 3tons Detachable Roll Off Garbage Truck Isuzu

Details

Isuzu Detachable container garbage truck hook lift truck

2 - 3tons Detachable Roll Off Garbage Truck Isuzu,Isuzu Detachable container garbage truck hook lift truck, Hook Lift Garbage Truck Isuzu

Isuzu Detachable container garbage truck hook lift truck

Description:



Isuzu Detachable container garbage truck is a vehicle combined function of loading, unloading, and transport. Use the pull arm to load the garbage containers (bulk load container, combined compress container, separated compress container), and unload automatically. The efficiency will greatly improved by reduce the empty run and loading time via multi-container application. 1,2,3 tons series apply for the concerned container for bulk loading. 5 to 12 tons series can use as bulk loading and small size horizontal detachable refuse transfer station. Bigger than 14 tons can match the large size horizontal detachable refuse transfer station.





Applications:



ISUZU hook lift garbage truck produced is a kind of special sanitation vehicle. The product is more economic and energy-saving, flexible and highly efficient, and it is especially applicable to the garbage handling work in populated areas in cooperation with garbage transfer station.





Specifications:



Vehicle Model

PT5060ZXX

chassis Model

NKR77

Maximum lifting capacity

3000kg

maximum total mass

6195kg

Kerb Moss

2800kg

Rated pay load

3265kg

Tilt

≥48°

Time of container loading

≤60

Time of container unloading

≤60

Max. pressure of hydraulic system

20Mpa

Size(length×width×height)

4780*1880*2160mm

wheel base

2765mm

height of hook center

900mm

track width of the box

1070mm





Competitive Advantage:



1. Hooklift arm device are complied with industry standards, with high standardization, Highly optimized for general use.

Simplify electric arcuit and reduce failure rate by adopt electric-gas-liquid integration control technology and PLC control

2. Control buttons and levers are designed with humanity are easy to operation.

3. Two control ways of electric and hand-operated control electric control are opeted in the cab in order to improve the working conditions and reduce operation intensity manual operation are adopoted out of cab in order to make sure the work performed normally when the electric systems
