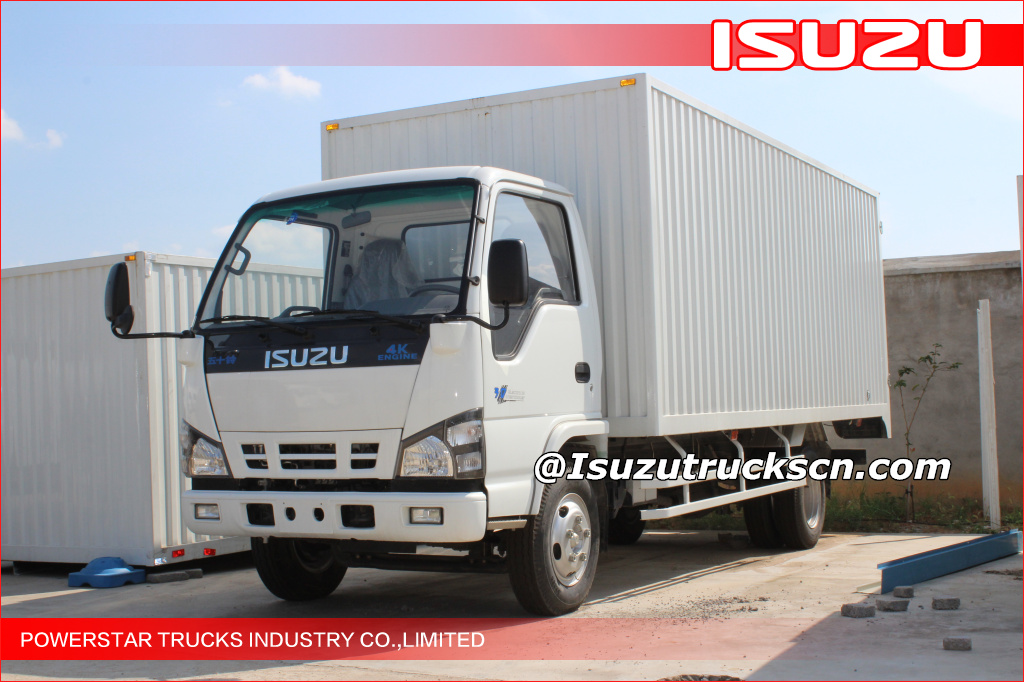

Isuzu ELF 4X2 light duty van type truck 3T van cargo truck

isuzu light trucks,6 wheelers cargo truck,3.5tons van cargo truck for sale,small cargo trucks

Details

Isuzu ELF 4X2 light duty van type truck 3T van cargo truck

Isuzu ELF 4X2 light duty van type truck 3T van cargo truck



1.The specification of this ISUZU 4X2 van truck:

Products Technical Specification

Type

4X2,120hp Cargo Van Truck

Brand

ISUZU

Cab

Single row with A/C

Vehicle Description

Overall dimensions(mm)

5995*1980*2850

G.V.W (kg)

4500

Curb weight(kg)

2800

Loading capacity(mm)

1500

Max speed (Km/h)

90

Engine Description

Engine model

4KH1-TCG40


Maximum power

88kw/120hp

Emission standard

Euro 4

Displacement (L)

2.999

Cylinder number

4

Chassis Description

Chassis Model

NKR77

Wheel base(mm)

3360

Rear axle loading capacity(kg)

2695

F/R track base(mm)

1440/1425

Spring plate

7/4+5

Type of fuel

Diesel

Gear box

5 forwards & 1 reverse

Brake system

Air braking

Operation control system

Steering wheel

Tires&Quantity

7.00R16 6+1

Oil tank capacity(L)

210

Cargo Box Description

Standard equipment

Cargo van length:4130mm

Cargo van width:1810mm

Cargo van height:1850mm

Two rear door and one side door

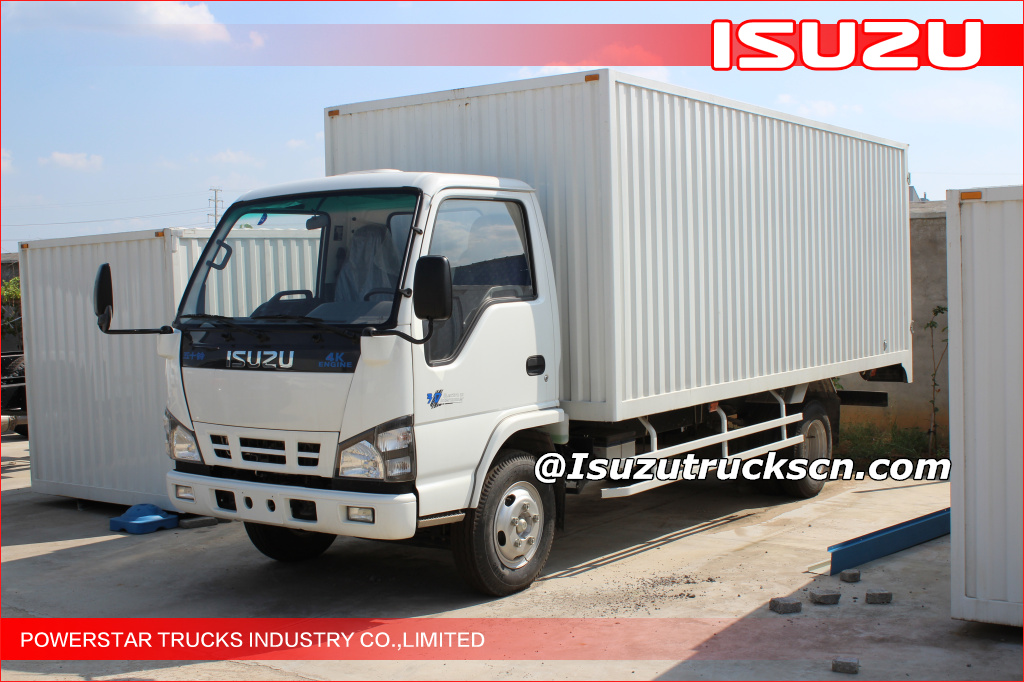

 Isuzu ELF 4X2 light duty van type truck 3T van cargo truck

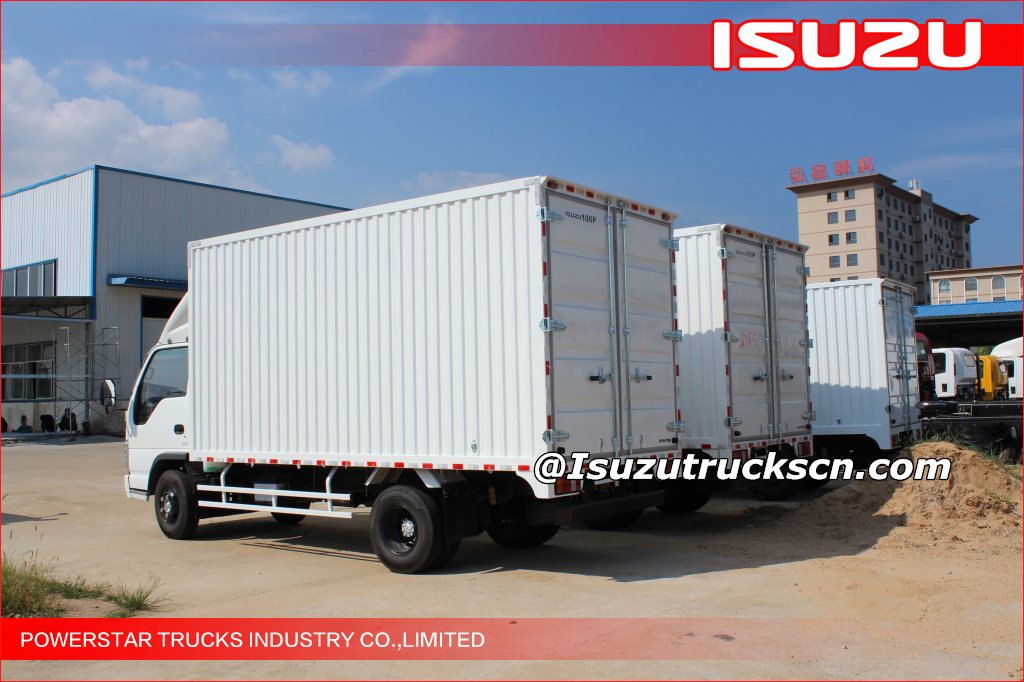

Isuzu ELF 4X2 light duty van type truck 3T van cargo truck

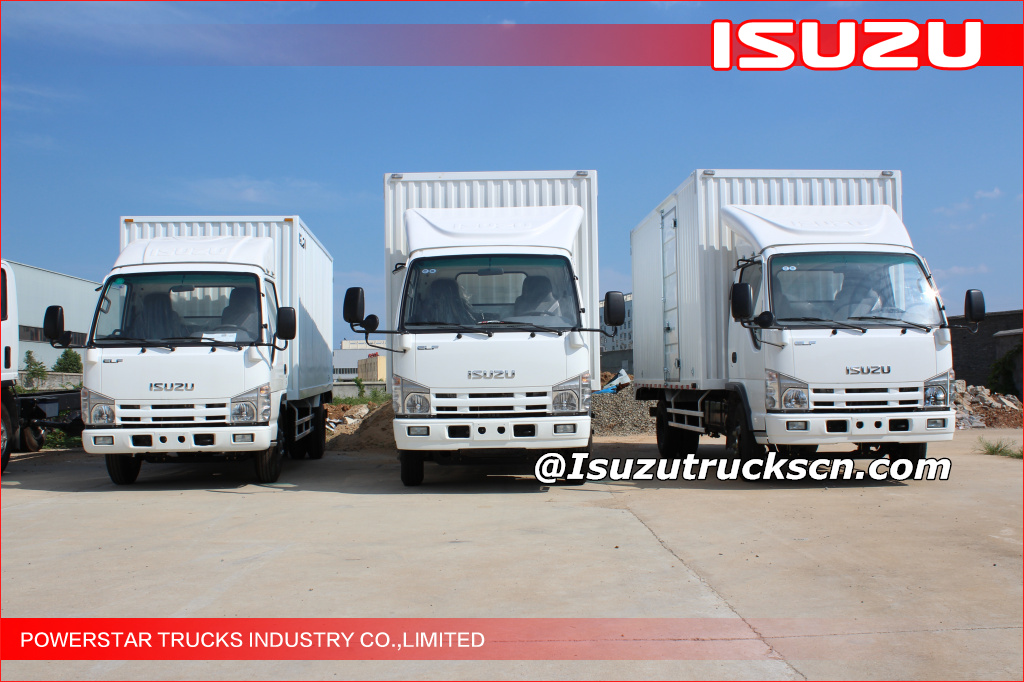

Isuzu ELF 4X2 light duty van type truck 3T van cargo truck

Isuzu ELF 4X2 light duty van type truck 3T van cargo truck

Isuzu ELF 4X2 light duty van type truck 3T van cargo truck

Isuzu ELF 4X2 light duty van type truck 3T van cargo truck

Isuzu ELF 4X2 light duty van type truck 3T van cargo truck
