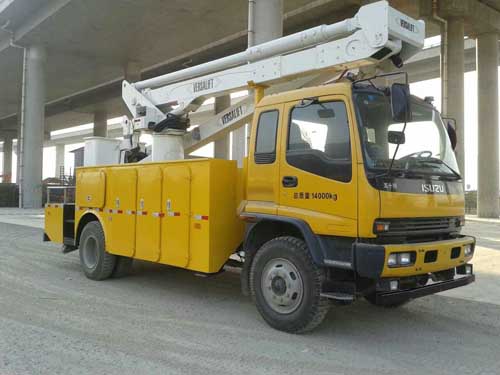

ISUZU FTR FVR Truck Mounted Articulated Boom Type Aerial Work Platform
Order(MOQ):
1ISUZU FTR FVR Truck Mounted Articulated Boom Type Aerial Work Platform
| Chassis | Brand | ISUZU | |
| Chassis model | FTR FVR |
||
| Drive model | 4×2, LHD |
||
| Tire | 9.00-20 | ||
| Brake | Air brake | ||
| Engine | Model | 4HK or 6HK |
|
| Horse Power(hp) | 190 | ||
| Displacement(cc)/Power(kw) | 5900 | ||
| Emission | Euro 3 | ||
| Main Parameter |
Overall dimension (L*W*H/mm) | 9400*2498*3790 | |
| Wheelbase(mm) | 5000 | ||
| Axles No. | 2 | ||
| Weight(kg) | GVW | 10950 | |
| Curb weight | 10755 | ||
| Leaf spring No. | 7/9+6 | ||
| Approaching/Departure Angle(°) | 24/12 | ||
| Front/Rear trace(mm) | 1880/1800 | ||
| Front/Rear suspension(mm) | 1430/2496 |
||
| Max speed(km/h) | 95 | ||
| Gear box | 6 forward, 1 reverse | ||
| Front/Rear Axle Load | 4320/6630 | ||
| Max. Working height | 20m | ||
| Rotation angle | 360° | ||
| Max. operation radius(outreach) | 6.3m | ||
| Bucket rated load/passengers | 200kg /2 | ||
| Lifting hook tonnage | 1000kg | ||
| Max lifting height | 6.5m | ||
| Hydraulic outriggers/legs | 4pcs | ||
| Paint | High quality ,color as customer's request | ||
| Cab | Double row, 4 doors, with A/C | ||
Isuzu Chassis 14m Truck Mounted Aerial Working Platform Isuzu Brand 14M Telescopic Boom Aerial Working Platform Technical Parameters (PT5061JGK10S GKS-14QX) Working Condition 1, Altitude: 0-1000m 2, Temperature: -25° C--+45° C, environmental relative humidity ≤ 90% 3, Allowed working condition: Solid, stable land, the vehicle should be horizontal 4, Wind force: ≤ 6 degree (wind speed ≤ 12.5m/s ) Working Range PT5061JGK Telescopic Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on. The structure type is telescopic boom and the lifting boom is flexible, convenience and performance with the negative point, more suitable for narrow site conditions or other special operations. Bulletin No. KFM5061JGK10S Type GKS-14QX External dimensions ( mm ) 7050×2020×3250 Structure type Three-section telescopic boom Working Cage Internal size ( mm ) 1200×600×1100 Rated loading ( kg ) 200 ( or 2 persons ) Max. Working height ( mm ) 14000 Max. Height from ground ( mm ) 12300 Max. Working radius ( mm ) 9300 Working radius when doing the highest height ( mm ) 1320 Working Boom Lifting angle of main boom ( º ) -24_78° Out rate speed ( mm/sec ) 8500/50 Ret rate speed ( mm/sec ) 8500/50 Boom rack rotation angle ( º ) 360 Boom rack rotation speed ( r/min ) 1.0 Outrigger Vertical span ( mm ) 3050 Horizontal span ( mm ) 3600 Traveling of vertical outrigger ( mm ) 450 Adjustment Single adjustable
