Isuzu high performance streest sweeping trucks

Isuzu brand industrial sweeper/street sweeper/workshop sweeper

Details

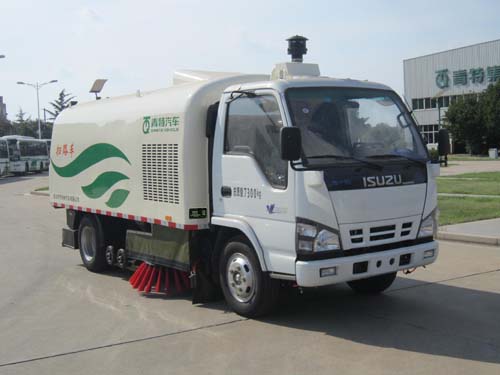

Isuzu high performance streest sweeping trucks

Isuzu high performance streest sweeping trucks



ISUZU 3.5m3 dust tank 0.8m3 water tank street sweeper

Main technical parameters Name road sweeper Outline size(mm) 5970x2000x2380
Model PT5065TSL Gross weight(kg) 7495
Engine model 4KH1
Loading weight(kg) 1920
Emission/ ( ml/Kw) 2999ml/88kw, 120Hp Curb weight(kg) 5380
Engine type Diesel, 4 Cylinders, Direct line,  Turbocharge and water cooling
Fuel type diesel Wheelbase(mm) 3360
Max speed(km/h) 90 Tire model / number

7.00-16 / 6 Units

Operation control system Electrically hydraulic  Transmission
5 speed
Traction system 4x2 Electric System 24v
Approaching angle(°) 20 Front / rear track(mm) 1586/1538
Departure angle(°) 15 Front/rear hang(mm) 1115/1480
Upstructure configuration Dust tank 3500 L Waste water tank 800 L
Material carbon steel, stainless steel, side thickness 3mm, bottom thickness 4mm
Max. cleaning width 3000mm Max.cleaning Capacity 60000 m2/h
Cleaning degree 90% Max. cleaning speed 20 km/h
Max. tipping angle 45° Max. dumping height 800mm
Max.Sunciton 0bject <=100mm (2g/cm3) Auxiliary engine 493Q1
