Isuzu Vaccum road sweeper dust suction truck Manufacturer

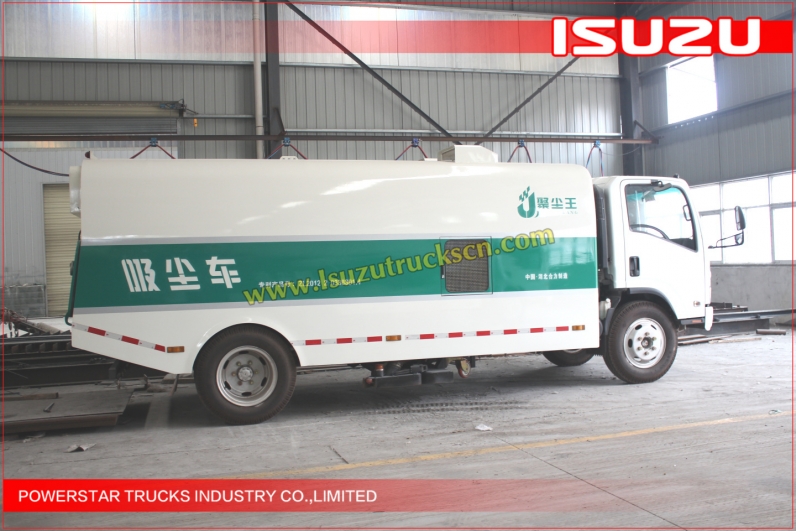

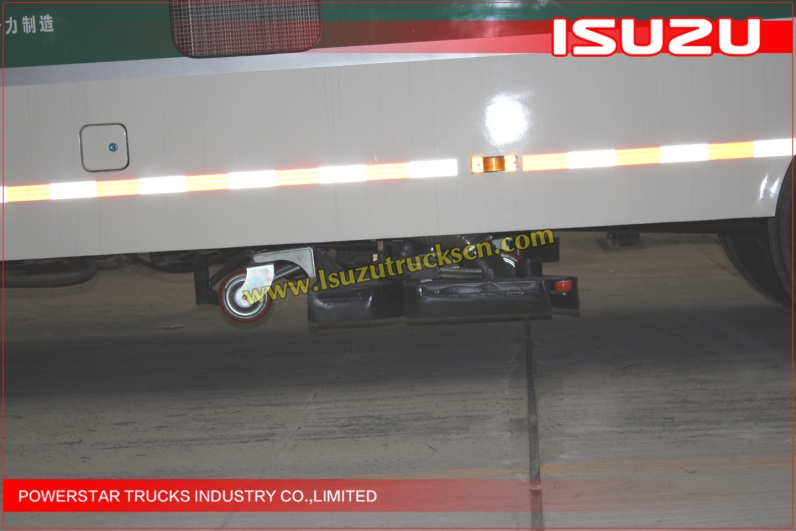

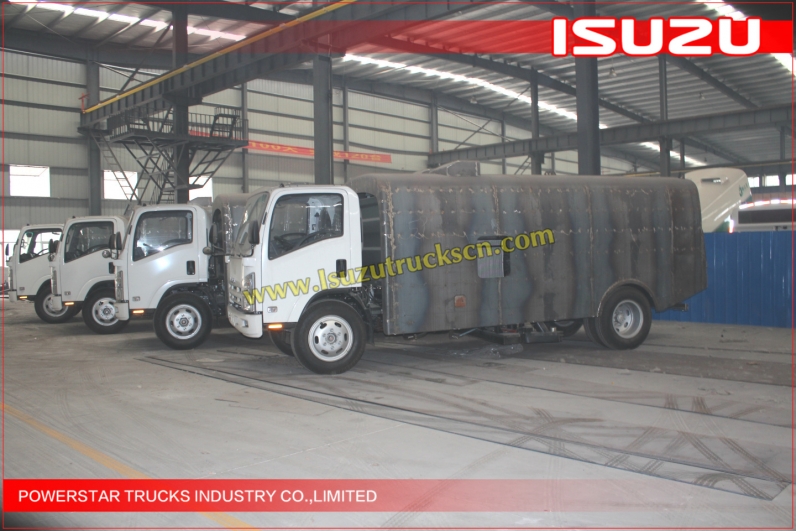

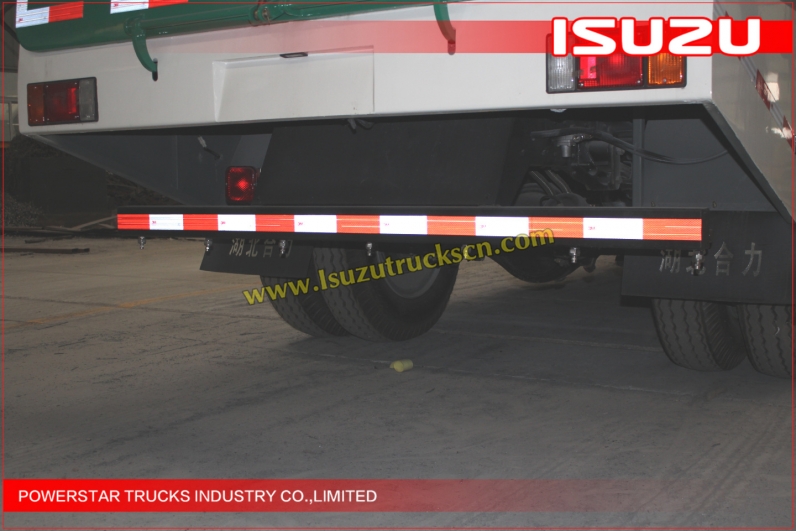

ELF NPR ISUZU Dust Suction Truck 10M3 Sweeper Truck 10CBM Road sweeper Truck For Sale

Details

Airport Highway dust suction truck Isuzu street dust sweeper vehicle



 Brand Algeria New 6~8m3 Isuzu Dust Suction Sweepers Truck


Description:

Our new Vacuum Suction Sweeper truck changes the traditional mode for a past motor sweeper to brush and sweep with its disc brush rolling, entirely adopts air current to complete an operation, and makes use of air current movement modes to collect and store dust and garbage, with very high cleanness.

These products can effectively reduce dust contamination, exalt air quality, lower the contents of absorbable particles in the air and improve people’s living environment.



Features:

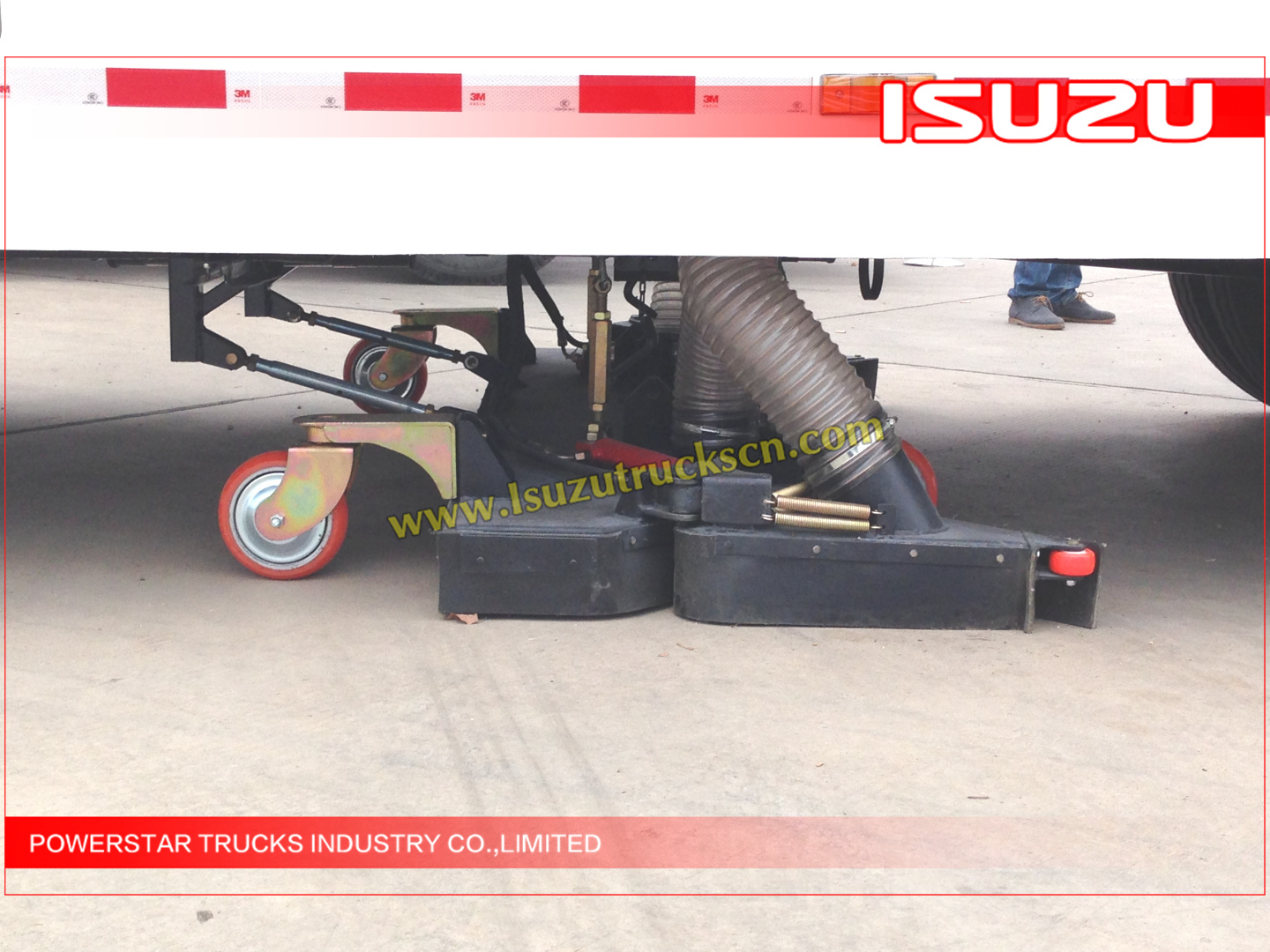

   Entire sucking dry. An operation uses air current for completion, with the combination of blowing and suction but without secondary dust emission.

   With a dry suction type. As soon as it passes, the ground will be very clean

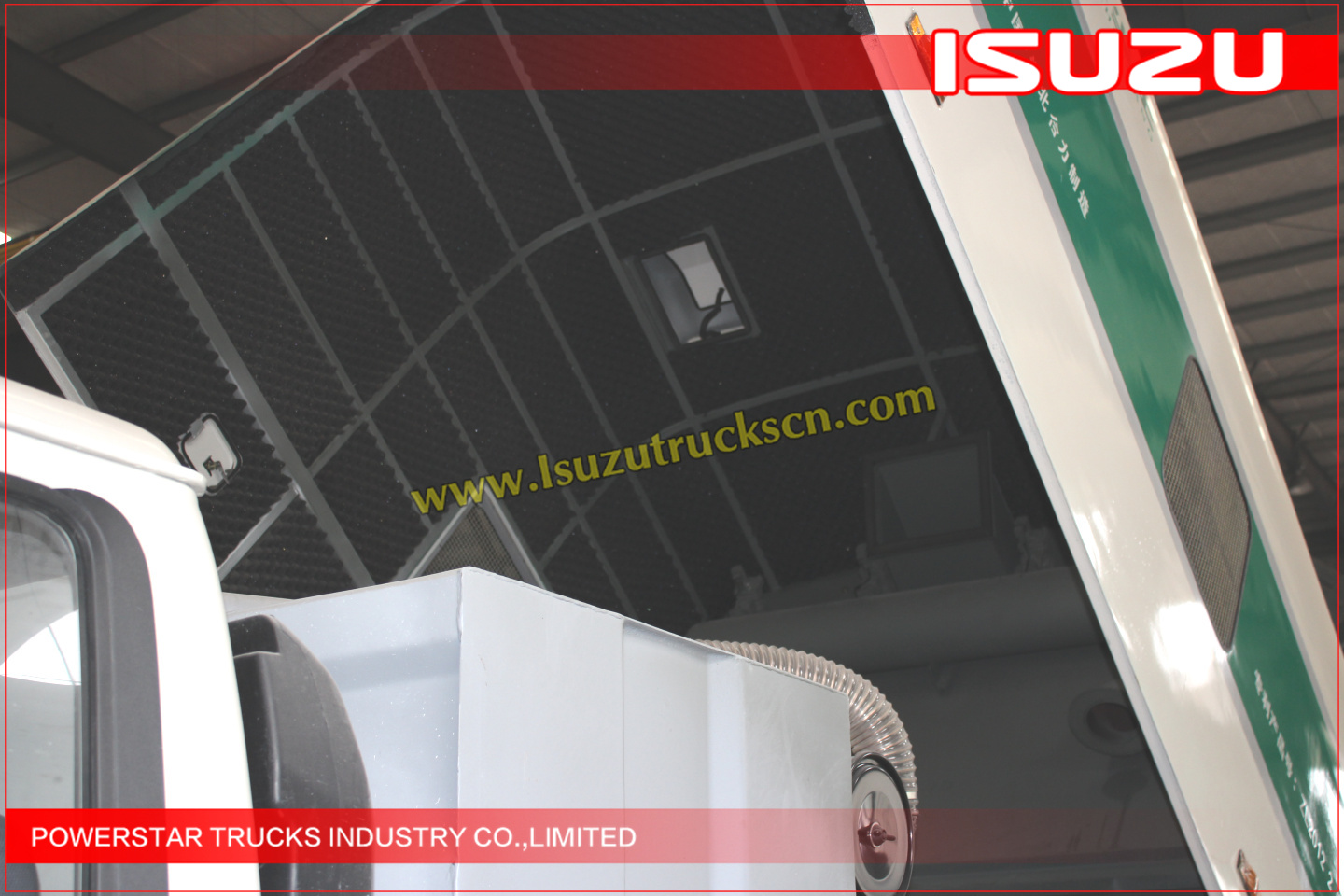

   The dustbin is made of stainless steel, corrosion resistance and large capacity, which can last for a long time without stop

  With imported PLC (programmable logic controller) for integrated control

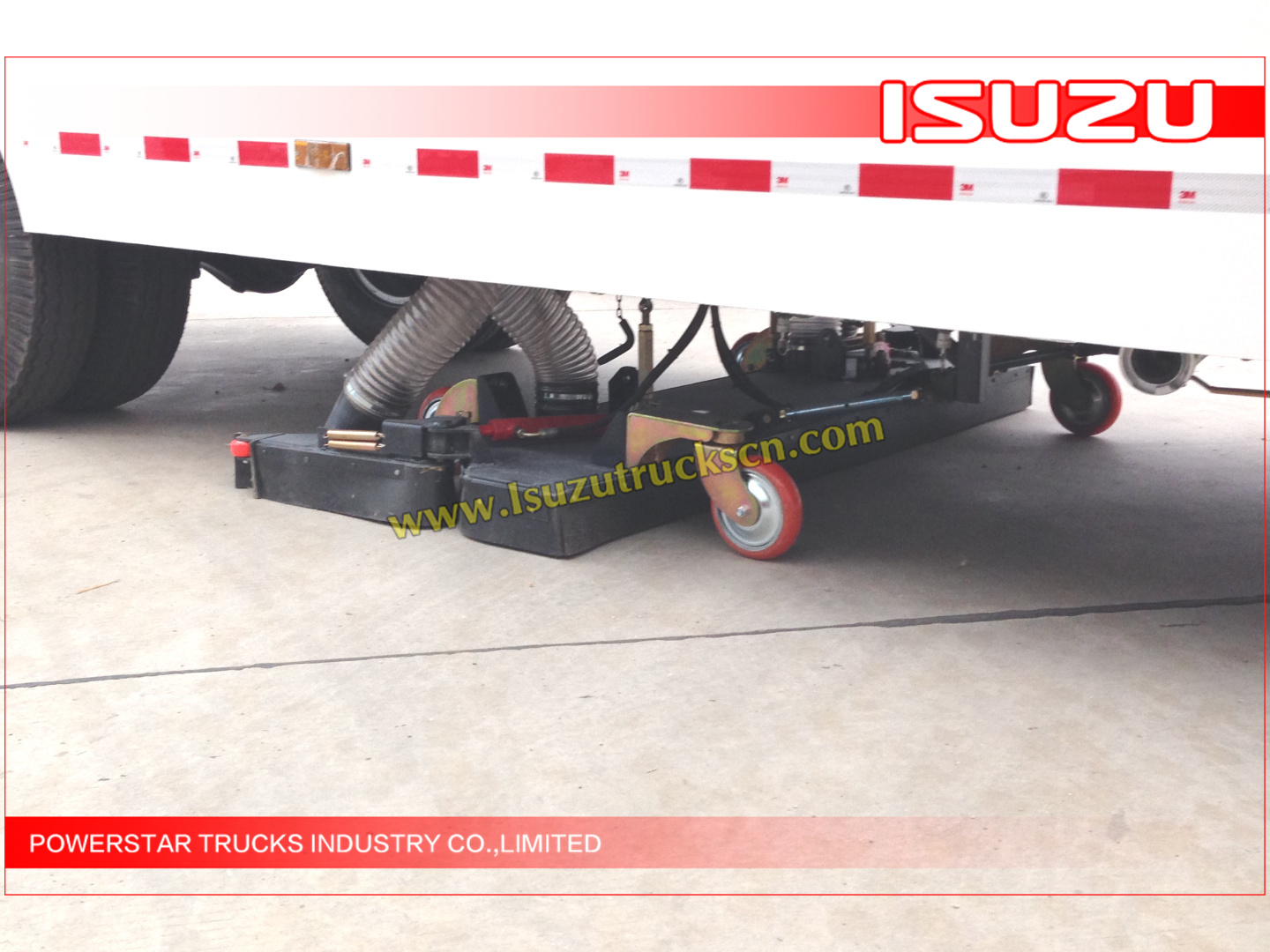

  Very good dust suction effect. It can effectively clear away waste matter ranging from dust of tens of microns to general small stones, tree leaves, etc.

  Its structure is simple, worn parts are few, use and maintenance are convenient and operation is simple.



Isuzu diesel engines can run up to 10,000 miles between oil changes, minimizing downtime for maintenance. Both diesel engines that come standard in all Isuzu diesel trucks feature a B-10 life of 310,000 miles, meaning, 90% of our engines will still be operating normally at this high mileage.



Standard on NPR-HD, NQR and NRR

The 4HK1-TC 215 horsepower turbocharged intercooled diesel engine is equipped with electronic high-pressure common-rail direct injection and a water-cooled EGR system.


Specification:



Main specifications:


Model

PT5100TXC

Driving Type

4x2    (Left hand drive)

Wheelbase

4475 mm

Overall Dimension

7320x2250x2800 mm

Cab

Forward control over engine, all-steel-welded construction

Sweeping System

Working radius (mm)

3200

Maximum speed of sweeping (km/h)

20.8

Volume of dust collecting chamber (L)

5000

Percentage of finished sweeping (%)

98.6

Weight of the biggest particle collected (g)

1250

Diameter of the equivalent ofthe biggest particle inhaled (mm)

110

Biggest angle of overturn of the dust collecting chamber (°)

47

Cleaning ability (/h)

70000

Engine

Model

4HK1-TCG40

Type

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power

139 KW (195 HP)

Gearbox

MLD 6-shift, mechanical type, 6 forward and 1 reverse with

Tire

8.25-20

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h

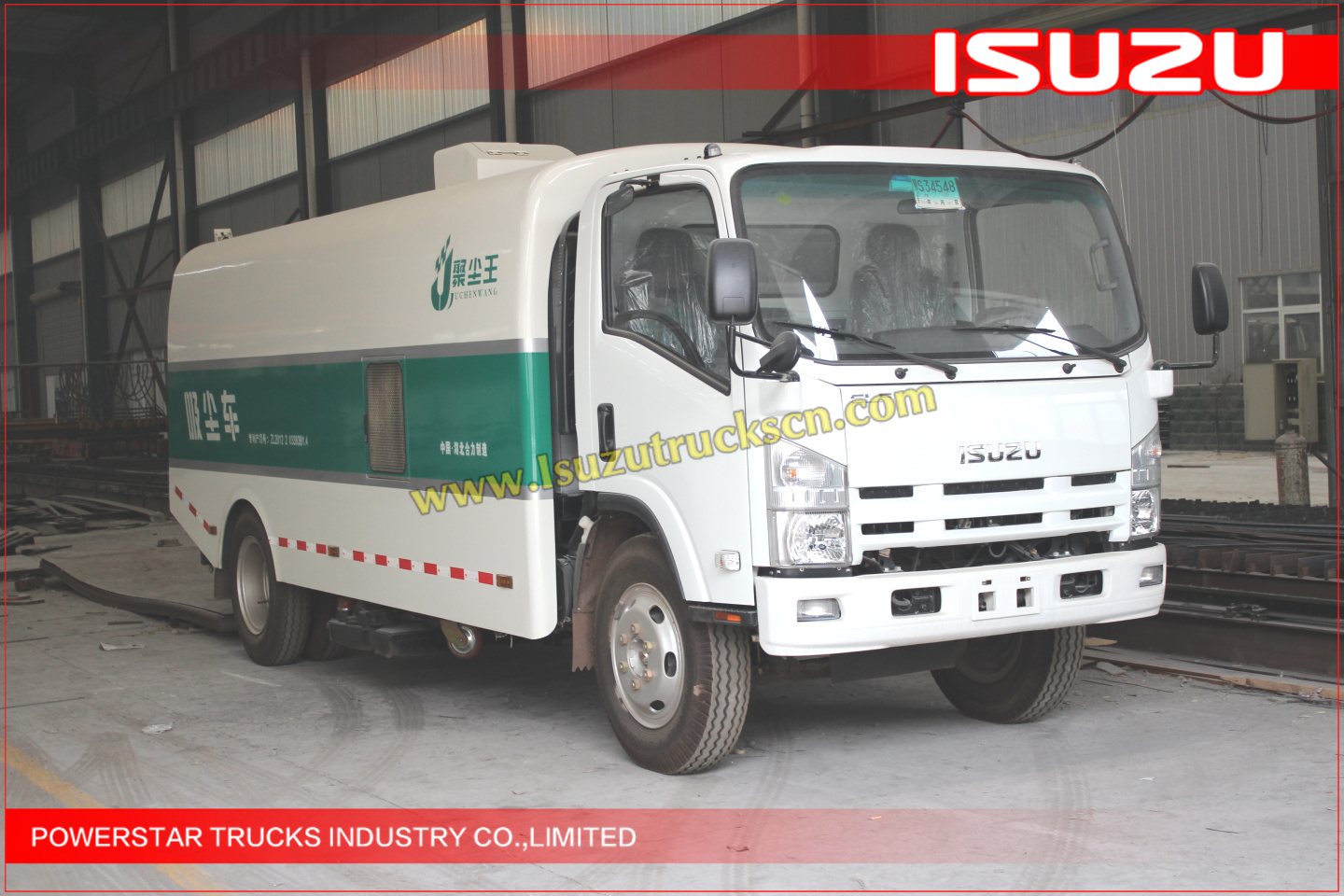

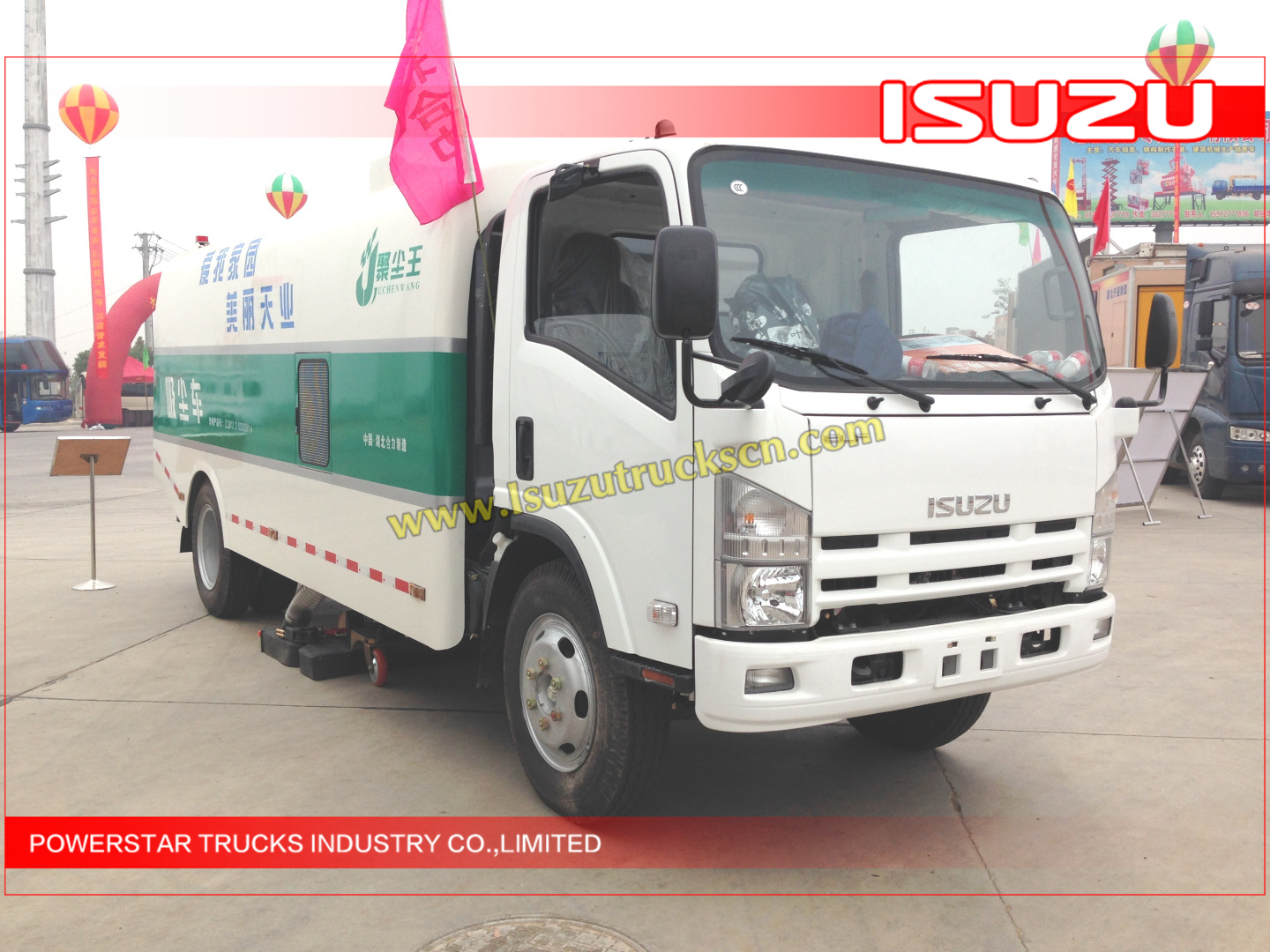

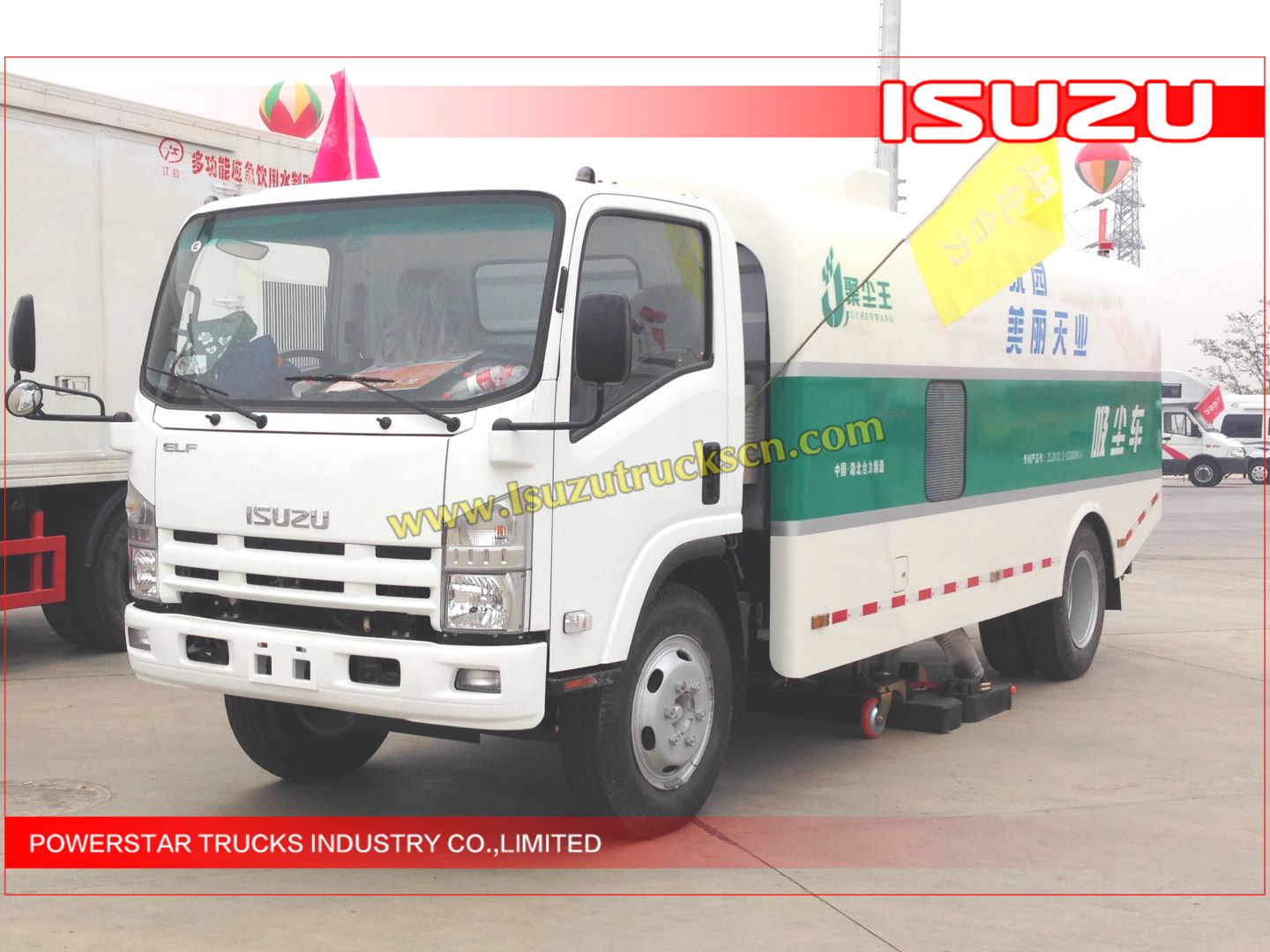

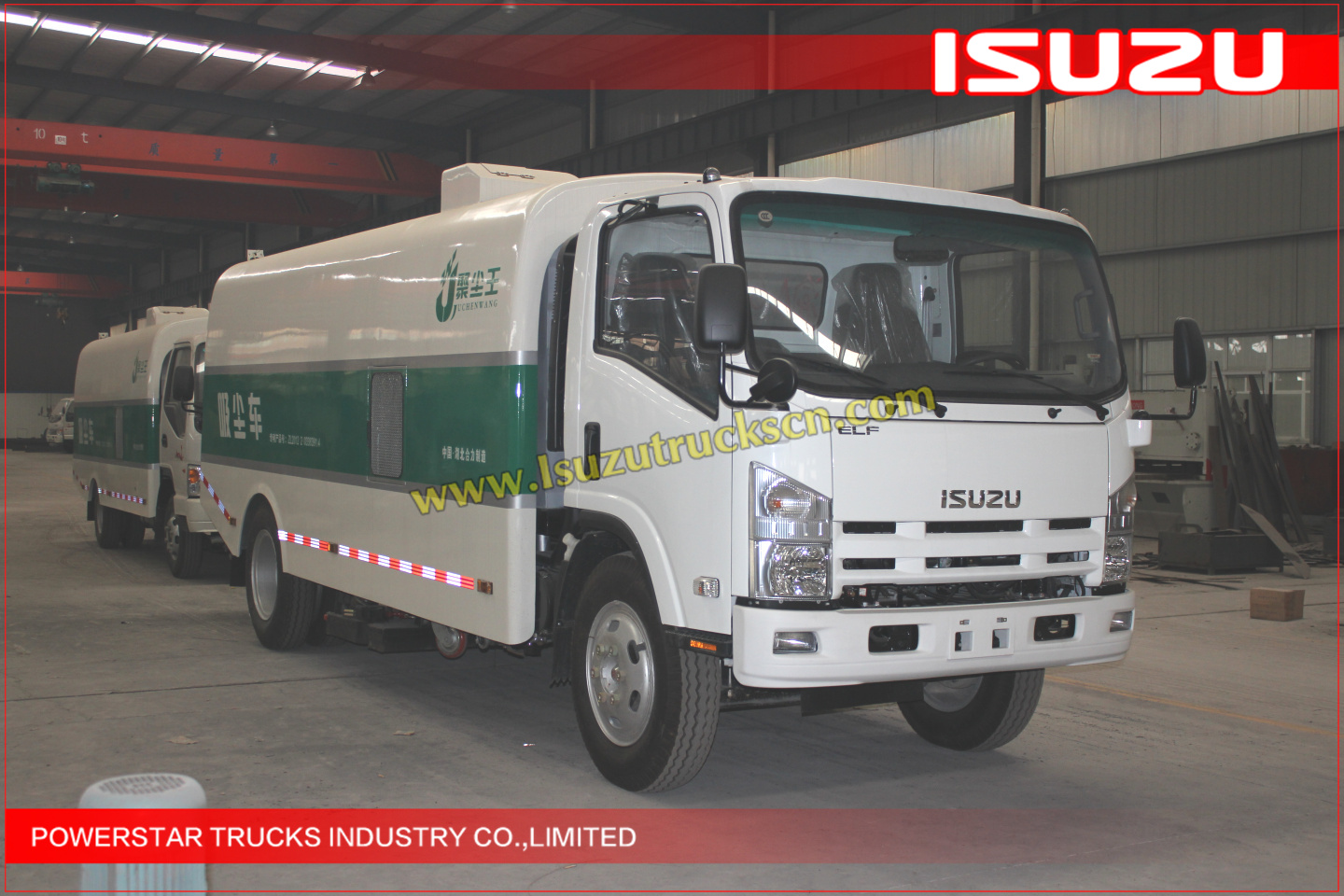

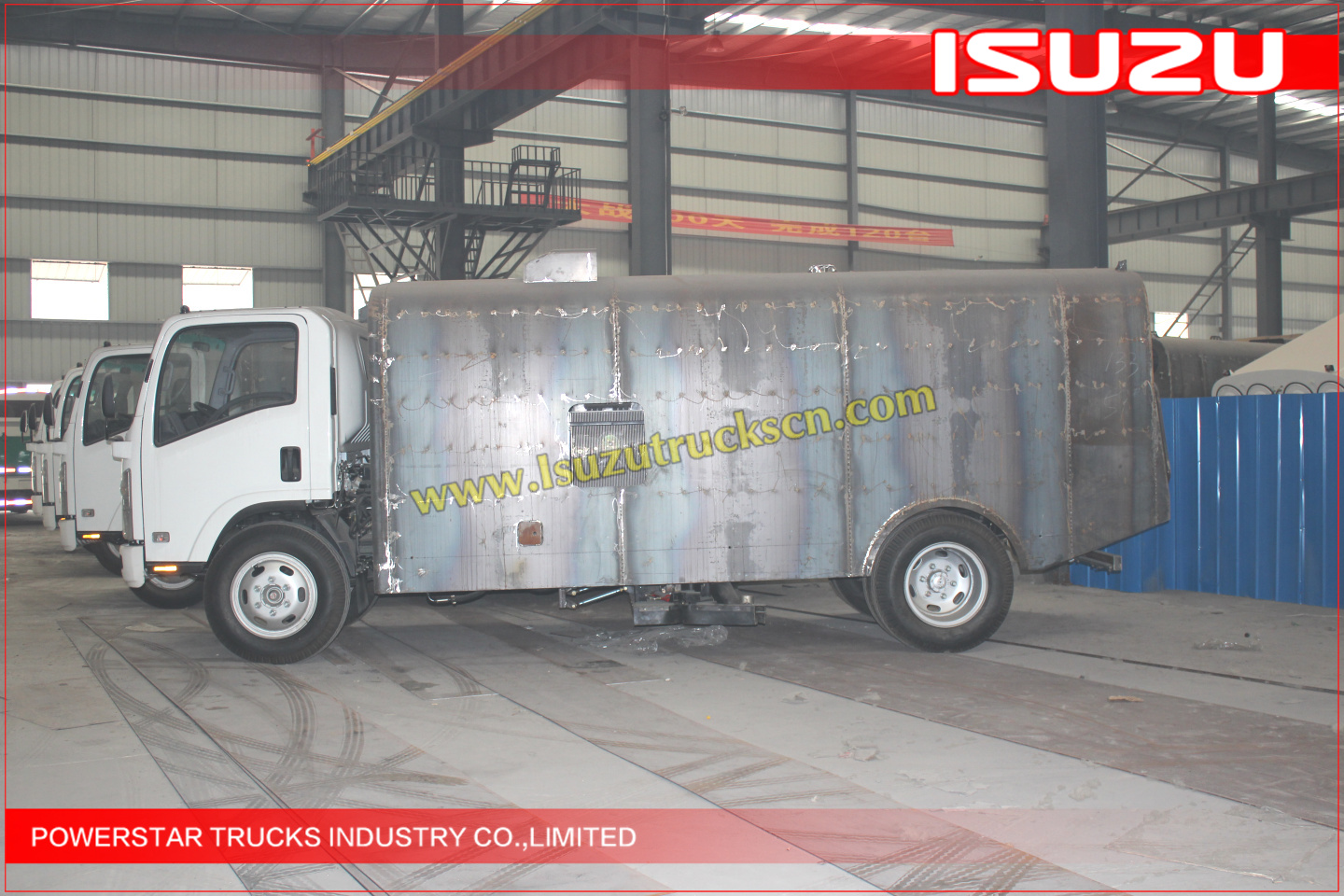

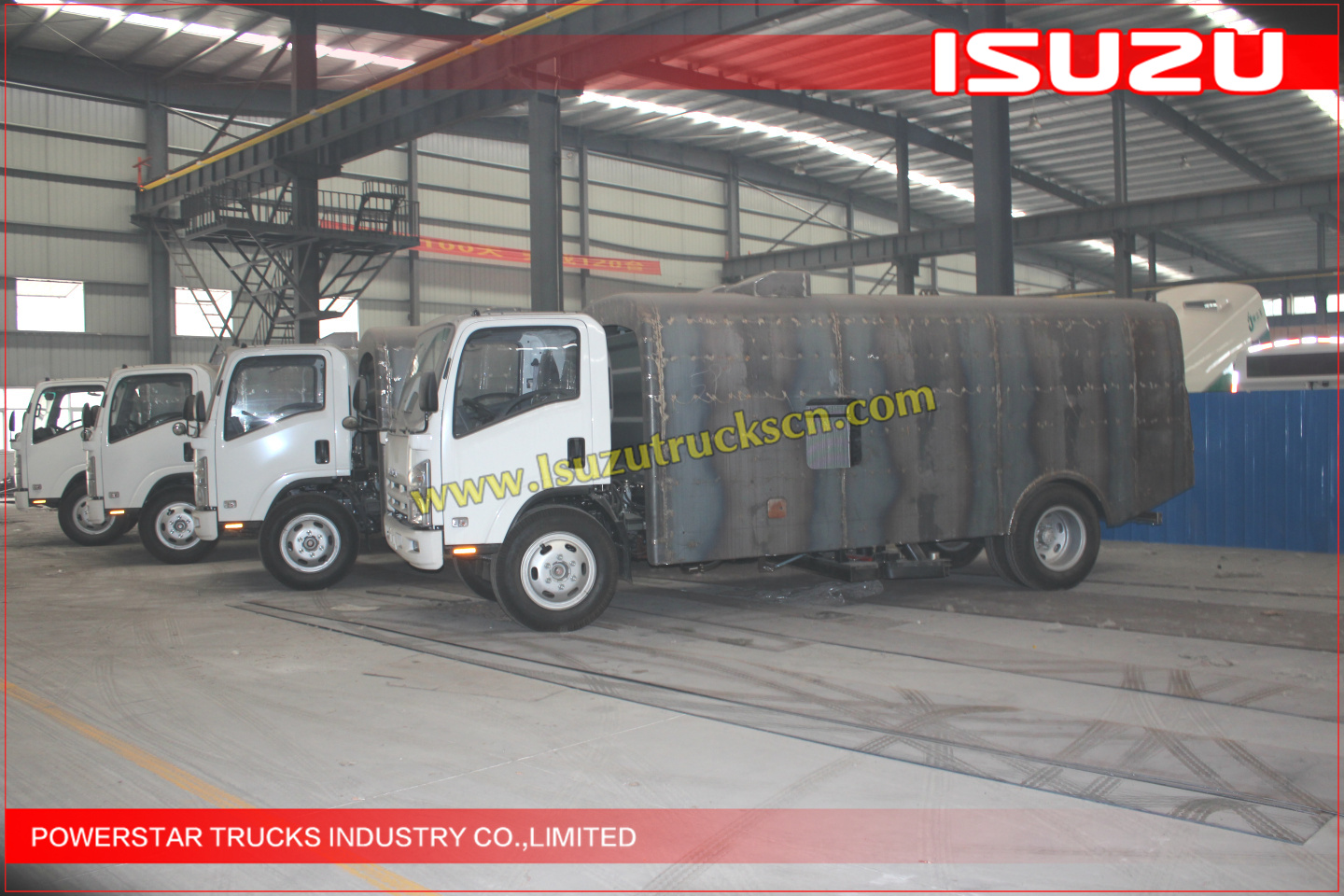

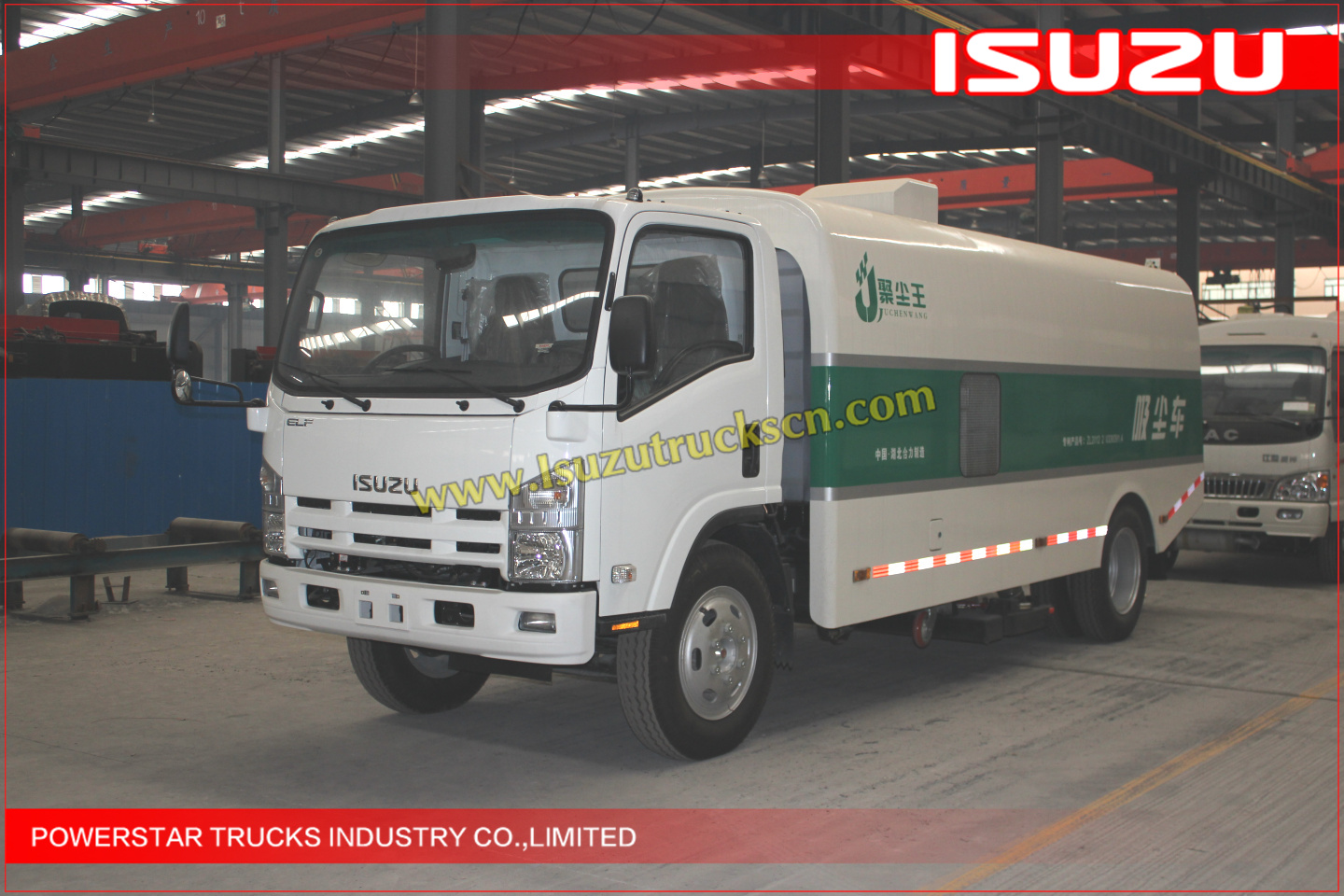

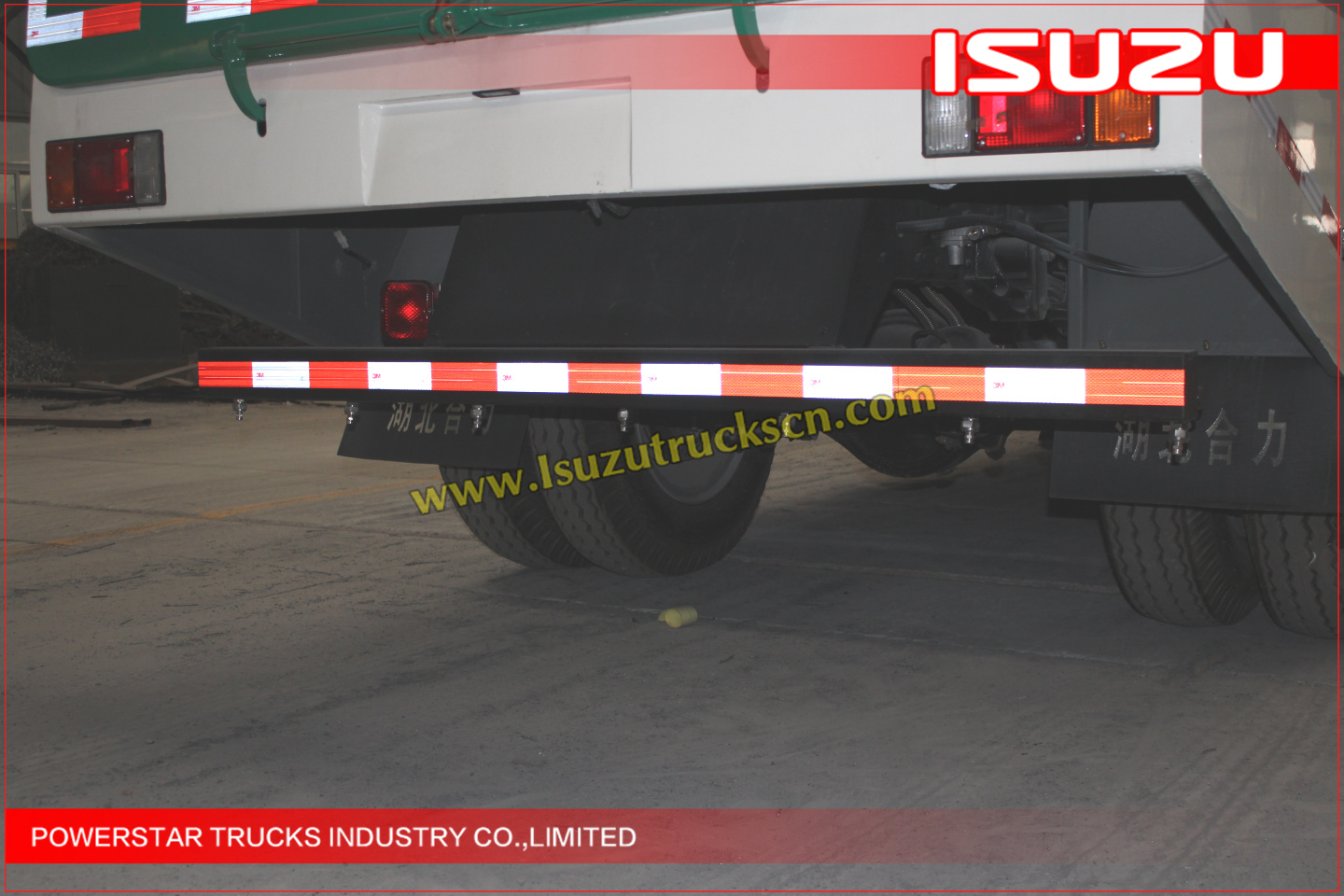

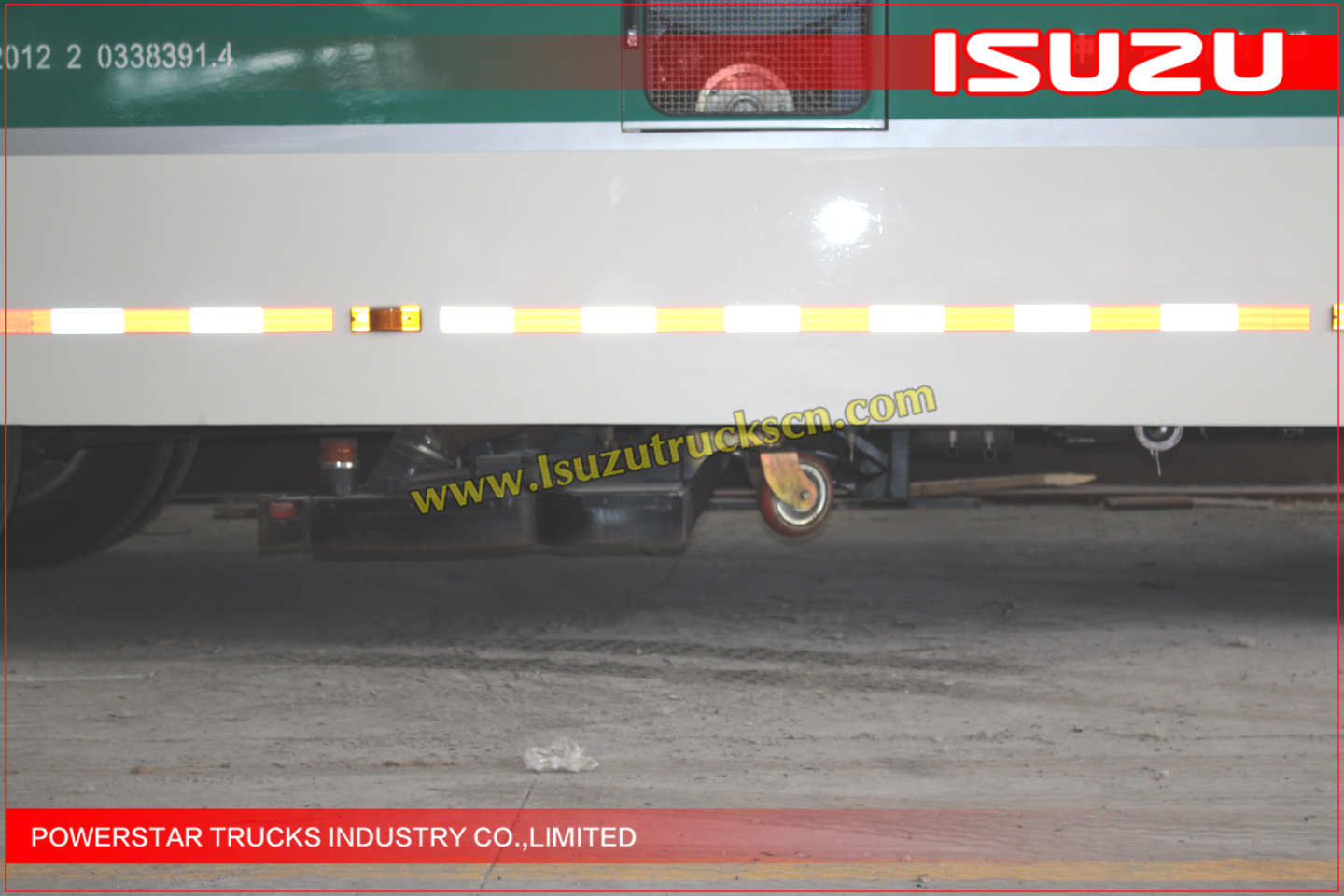

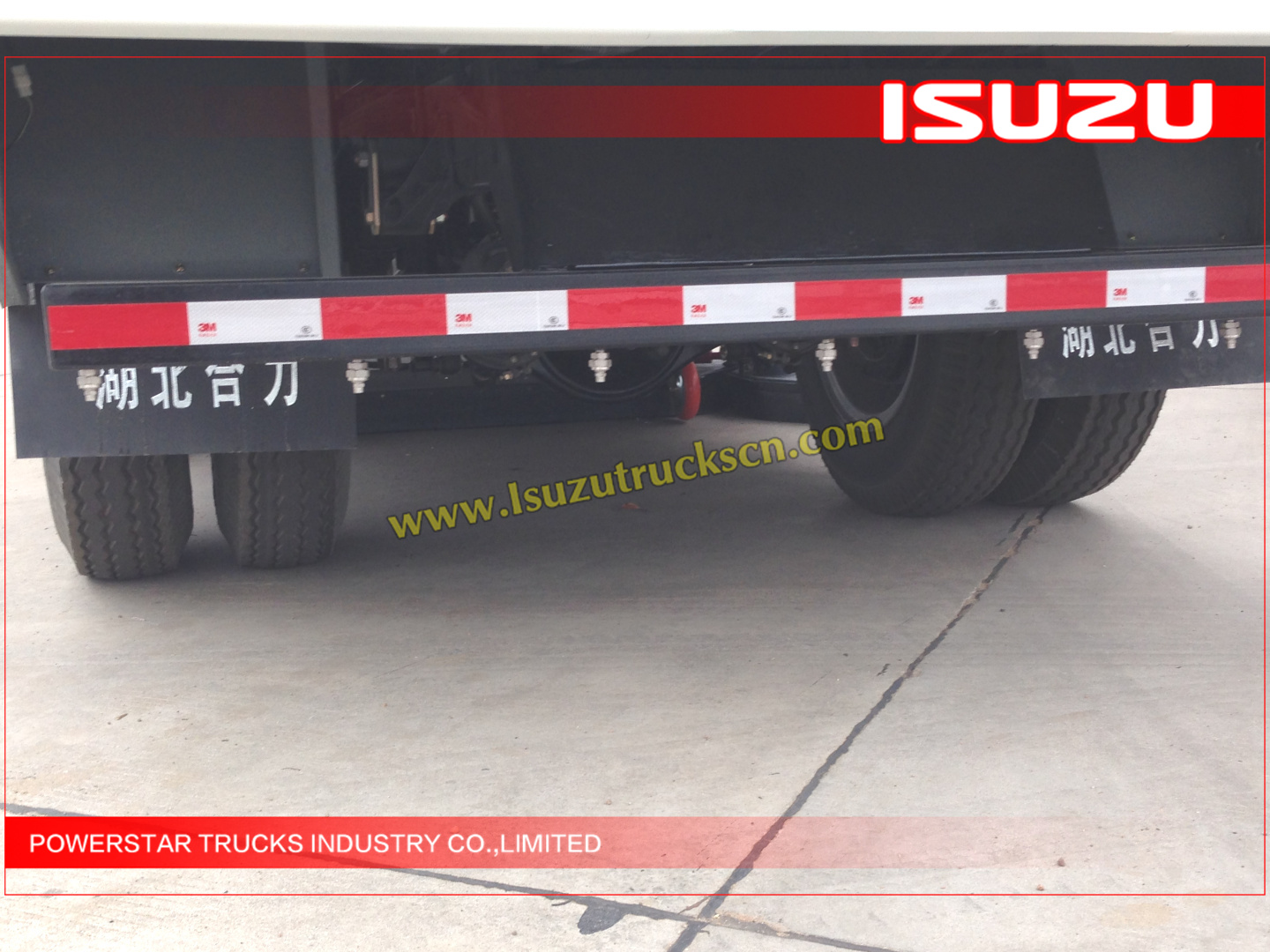

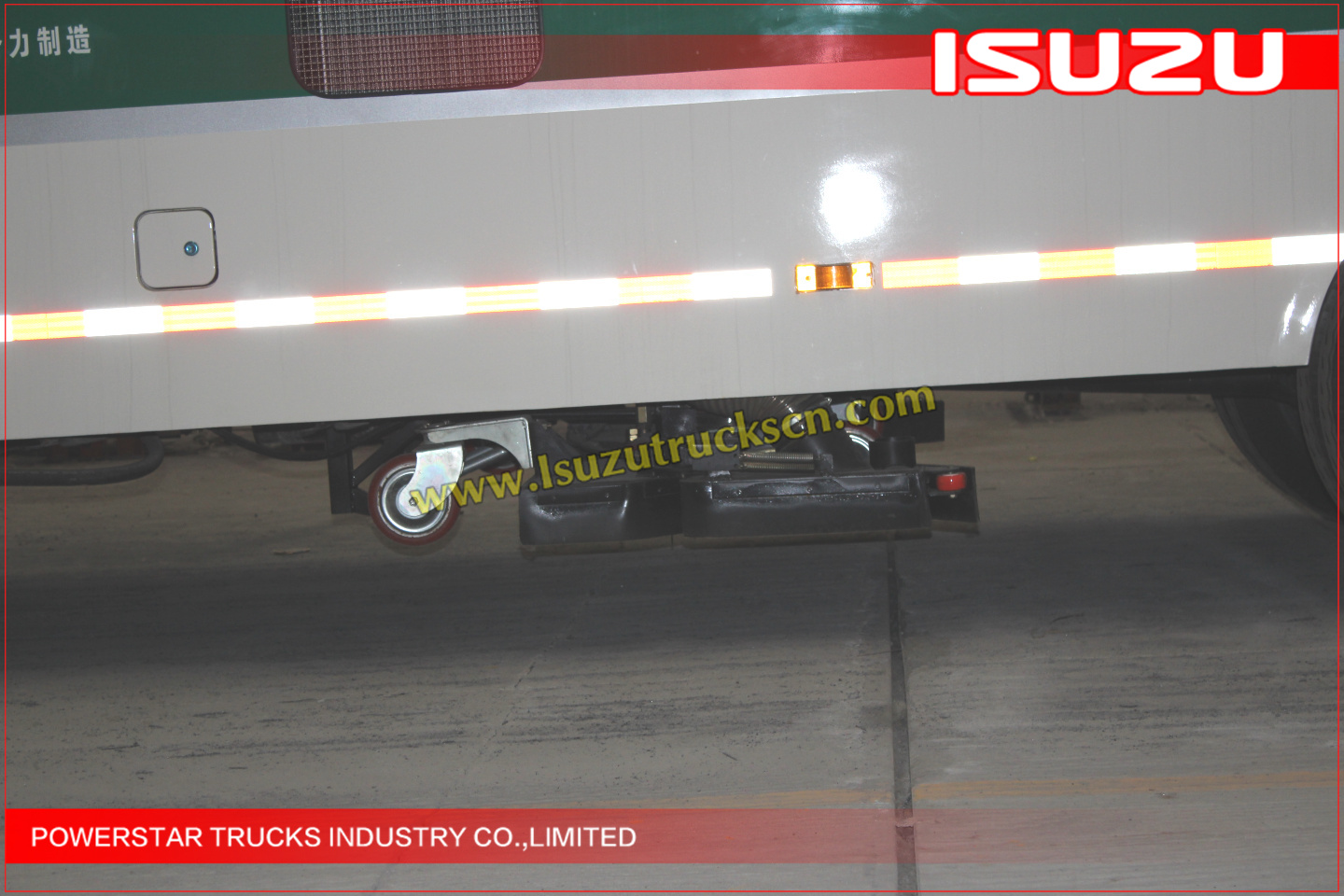

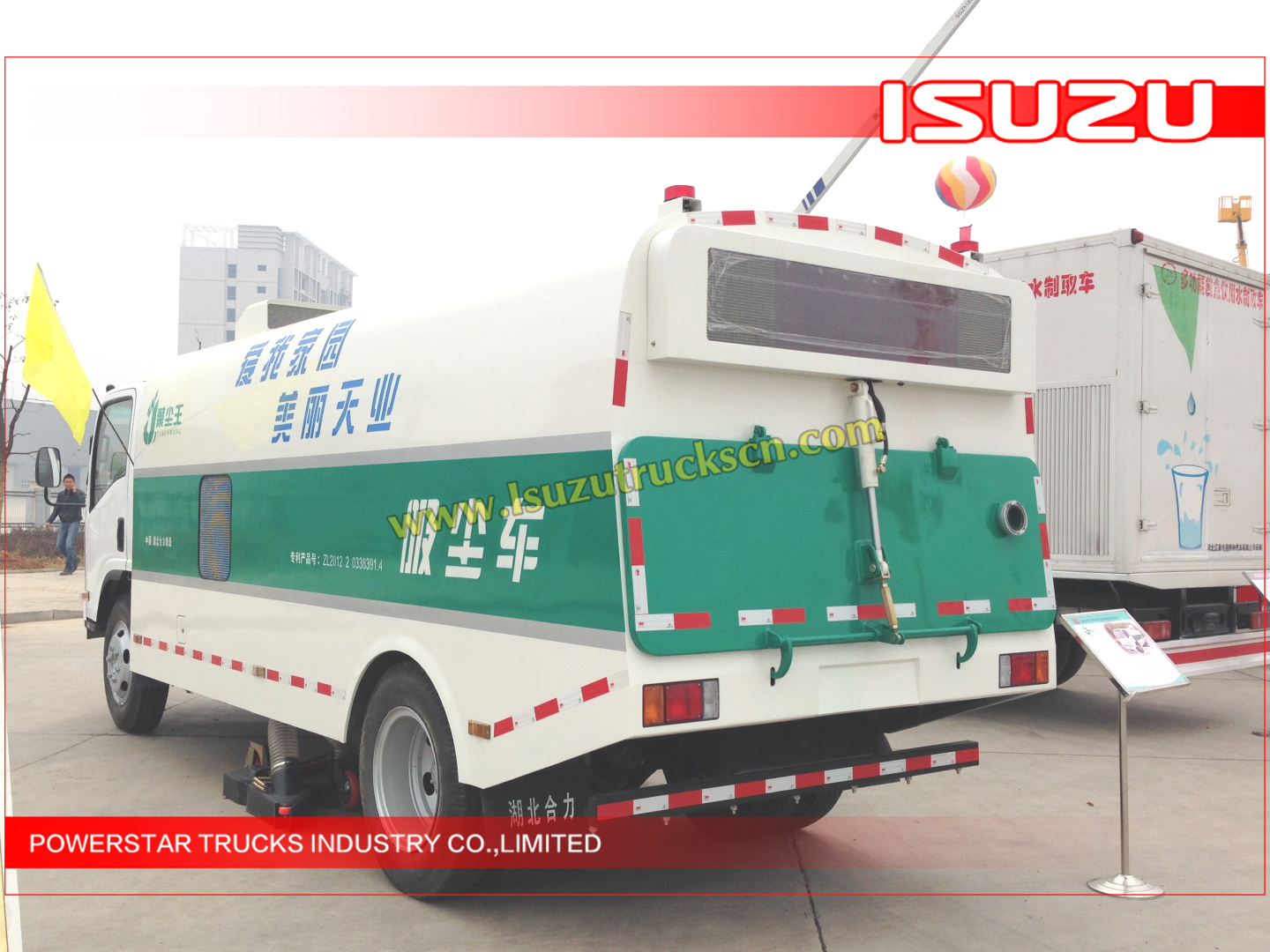

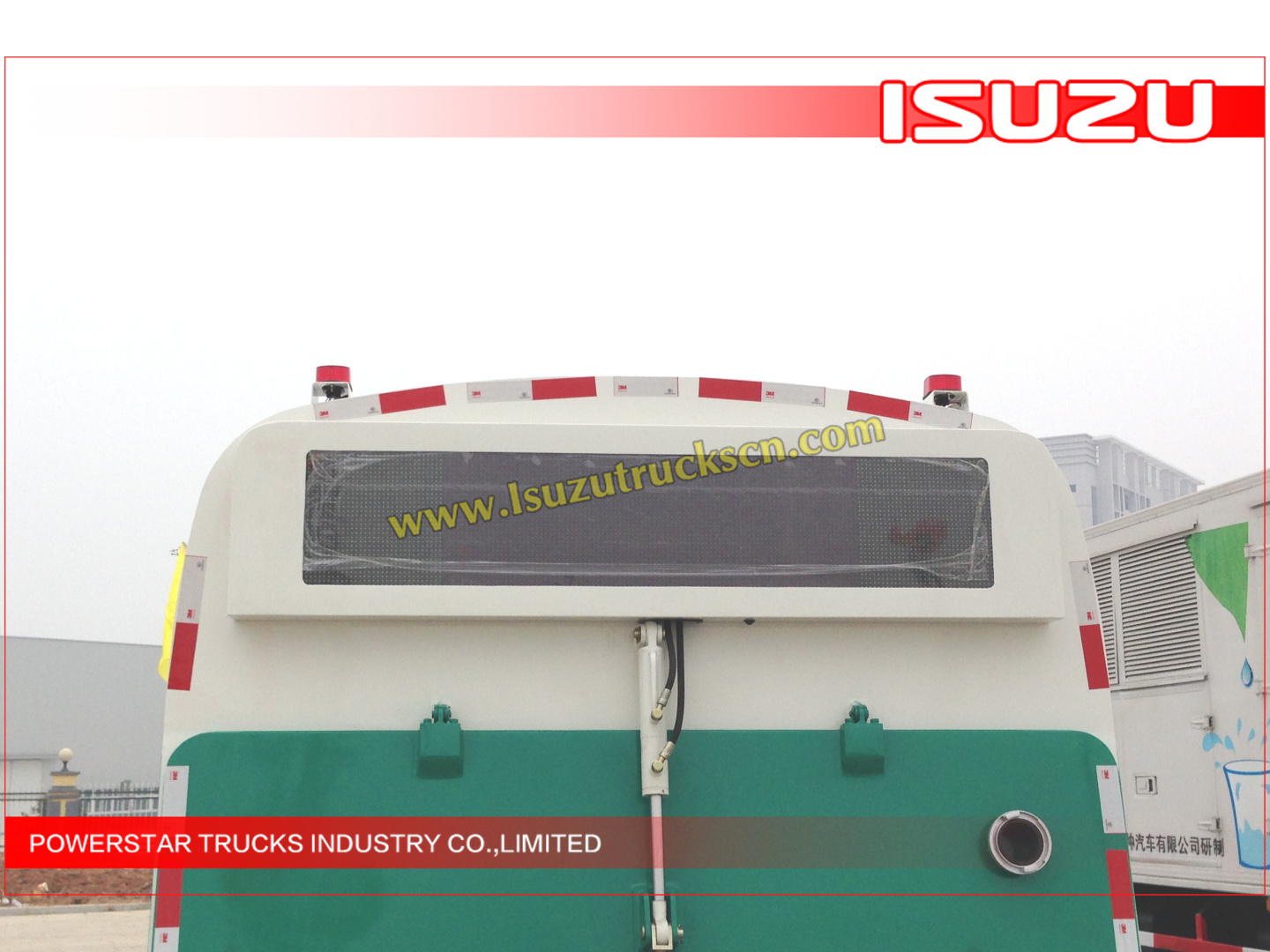

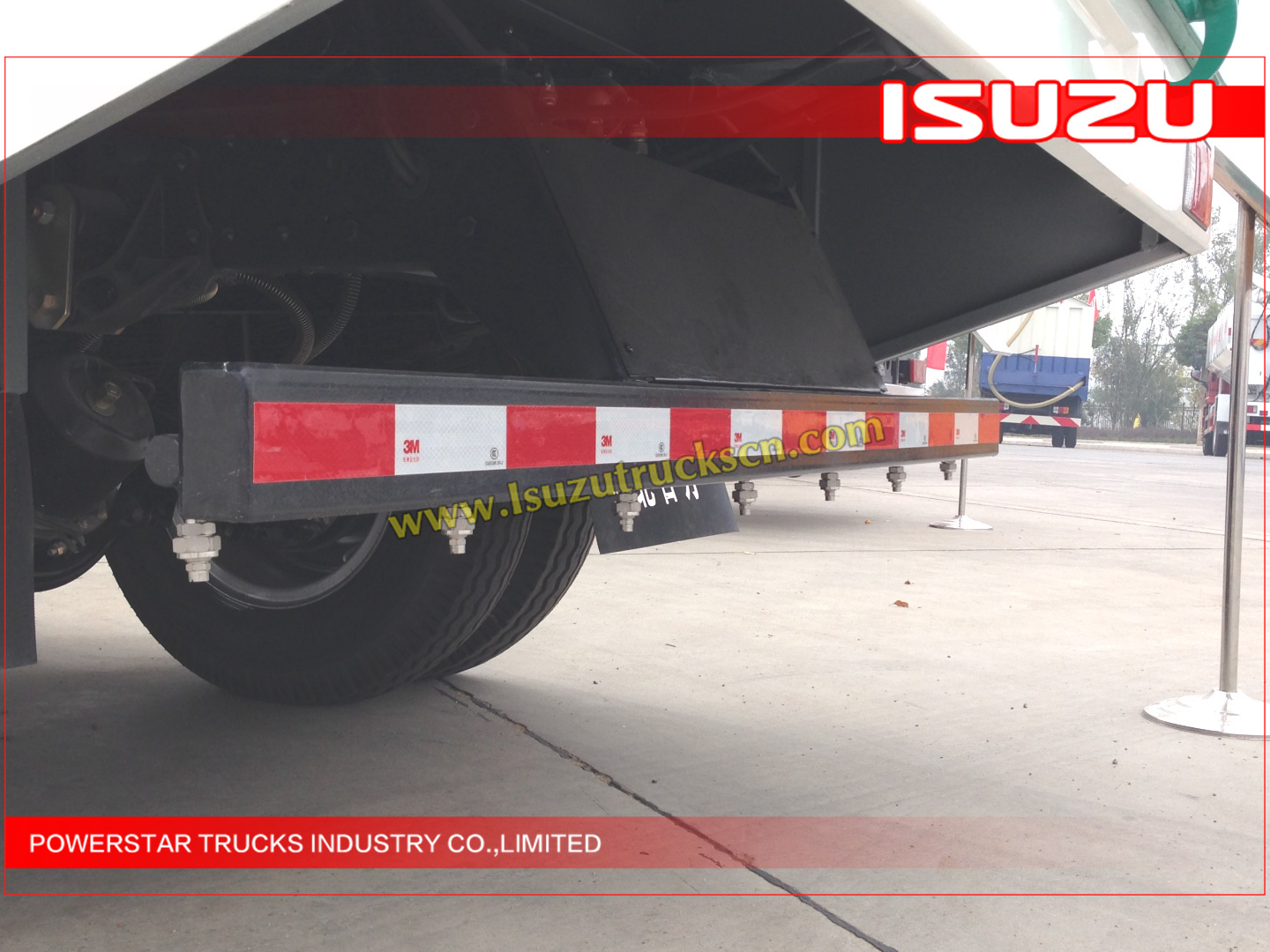

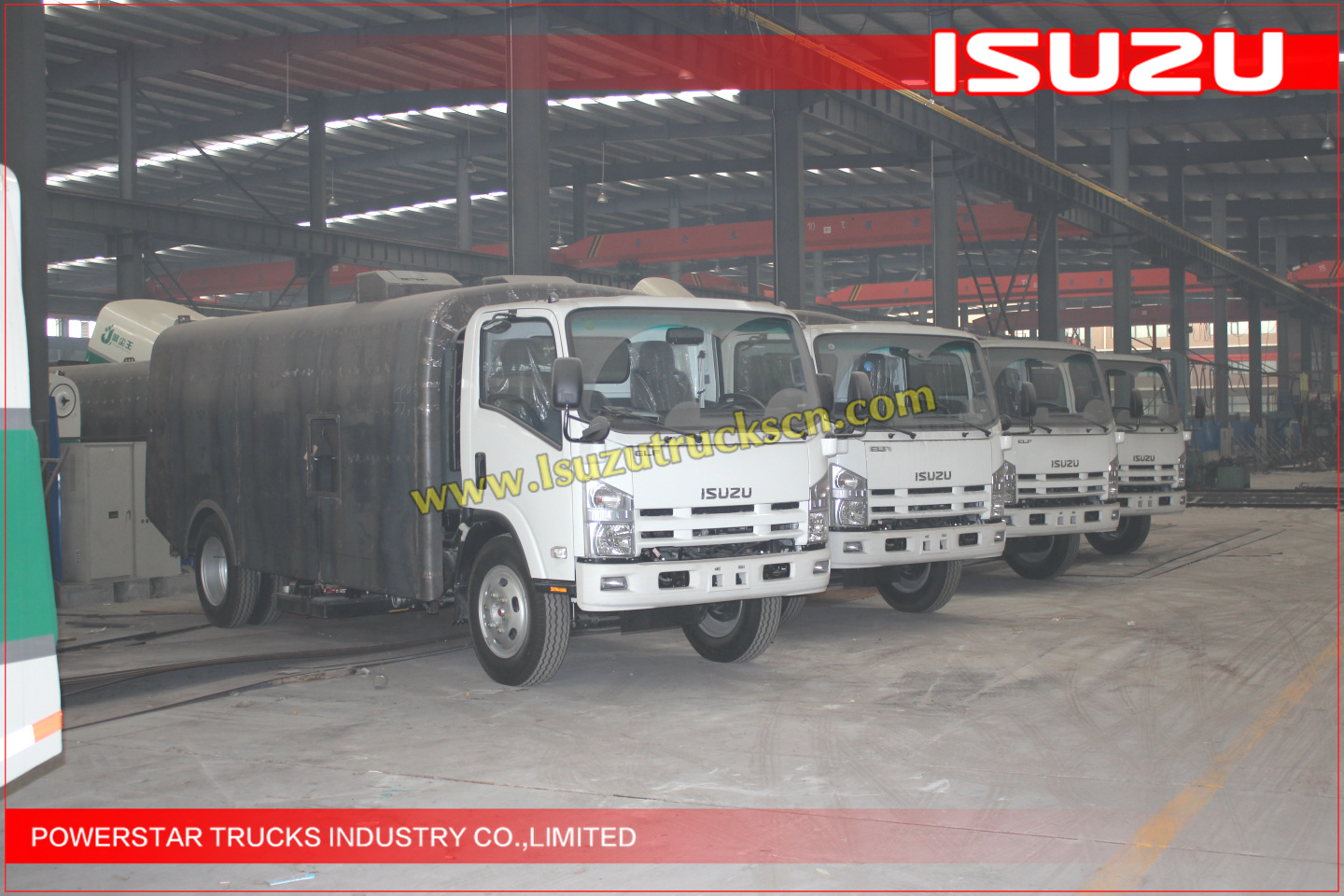

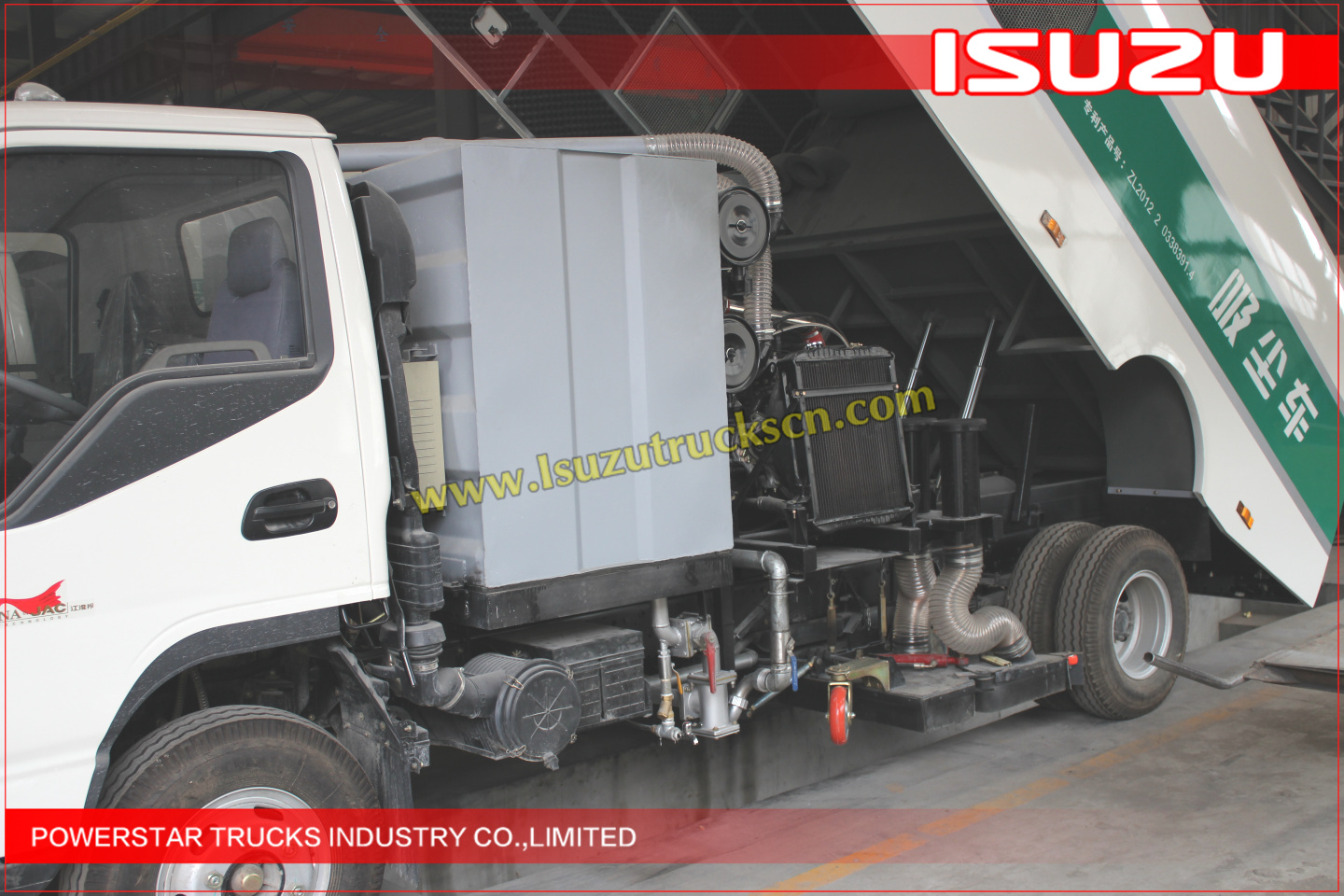

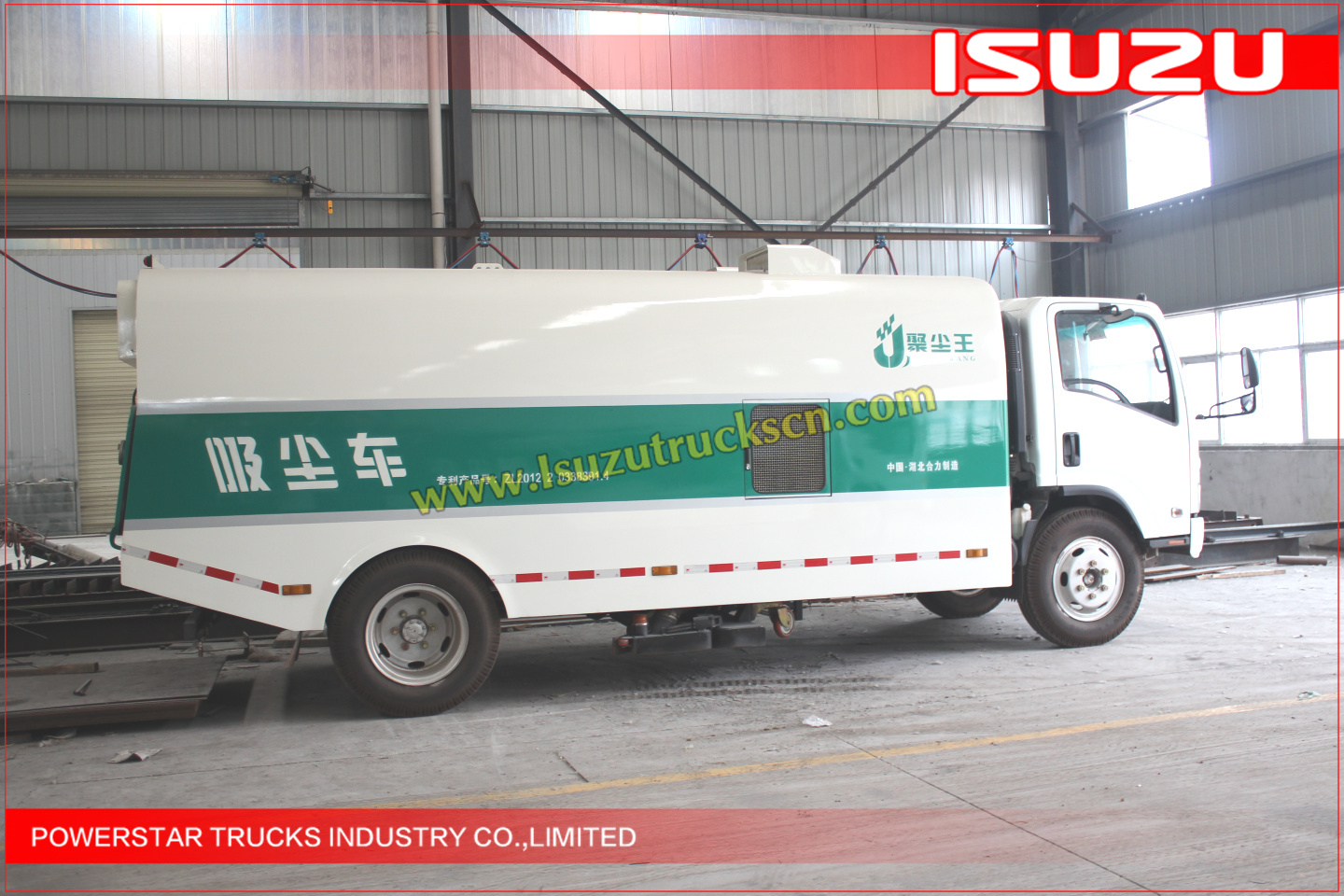

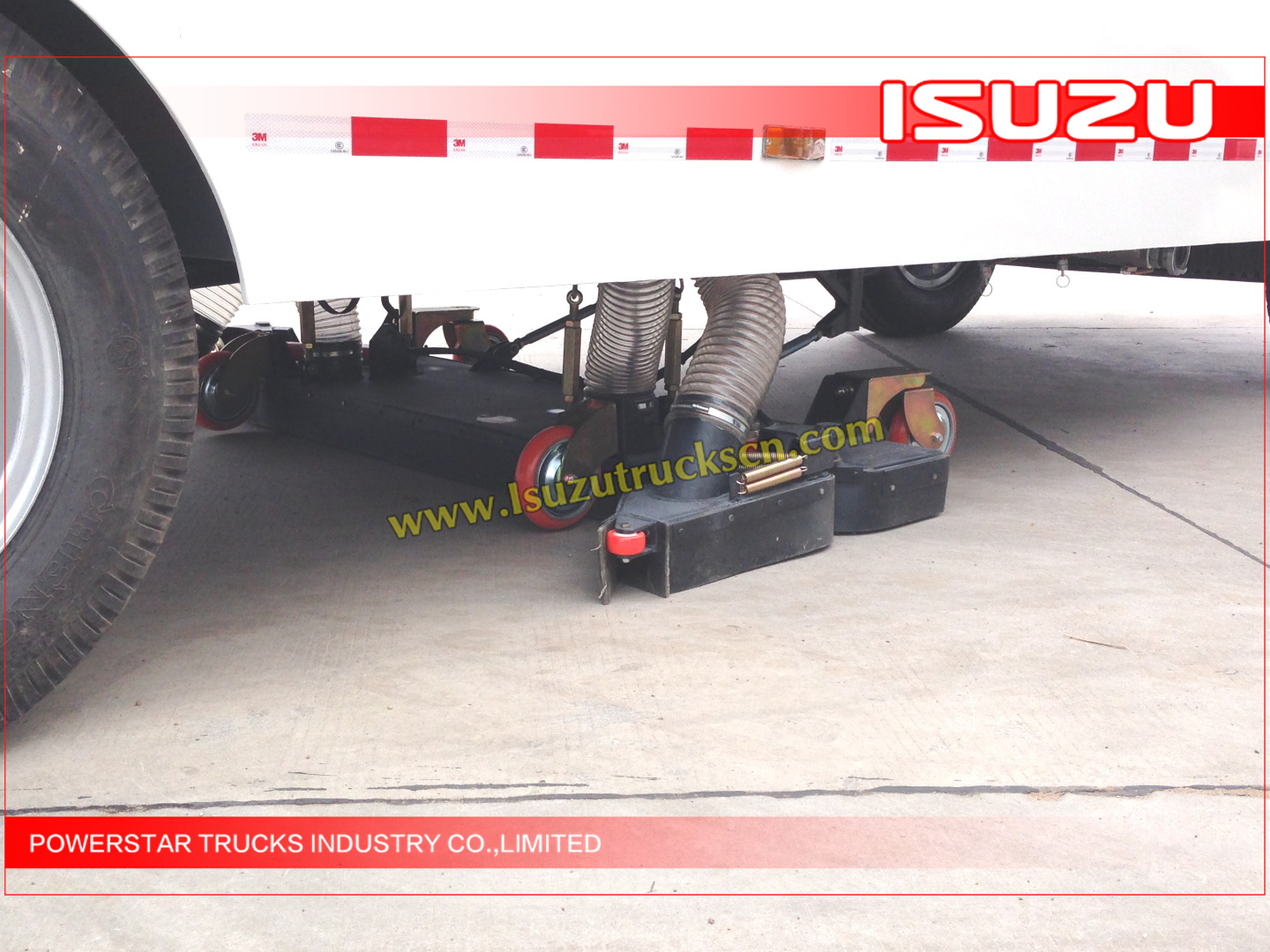

Customer build example:

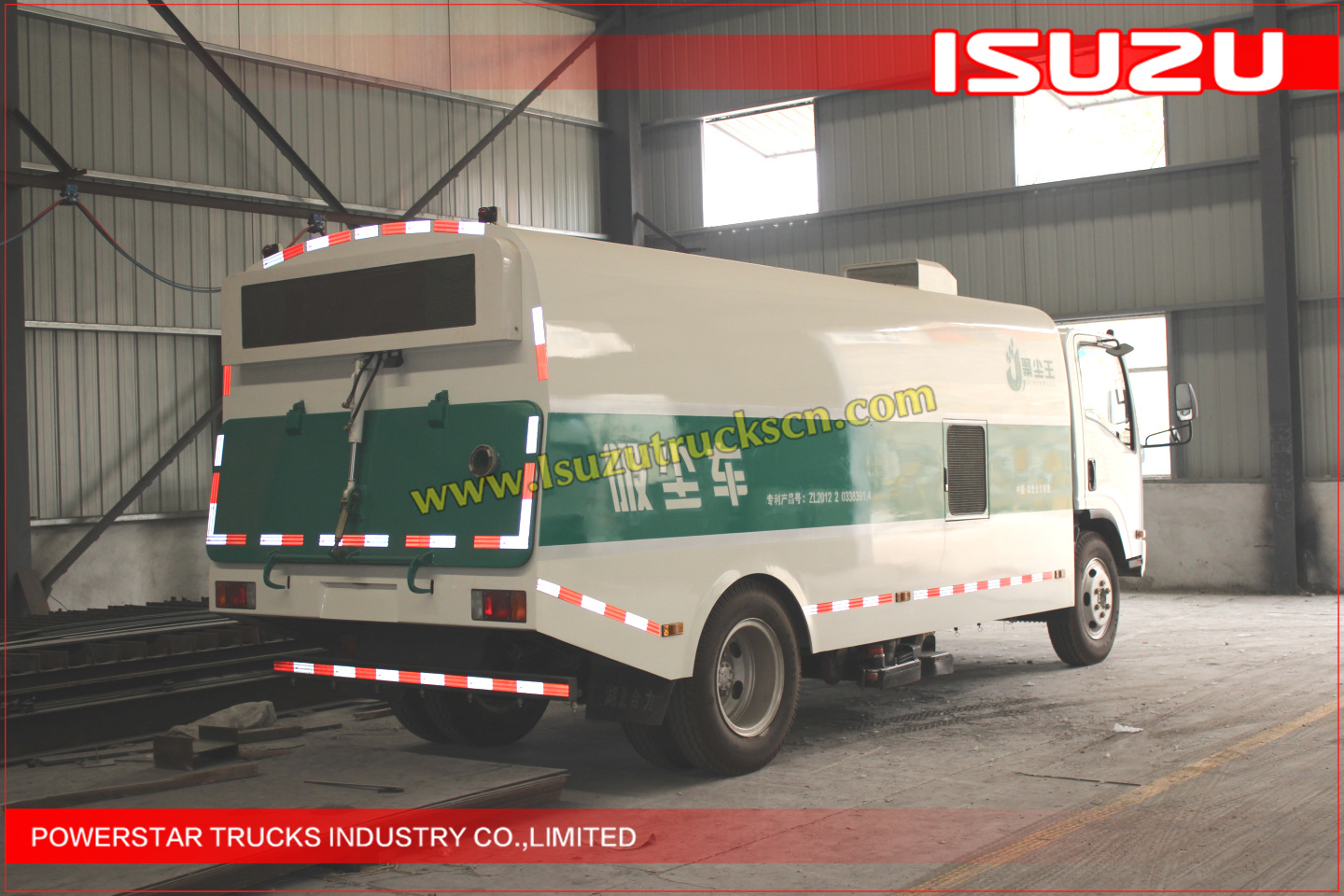

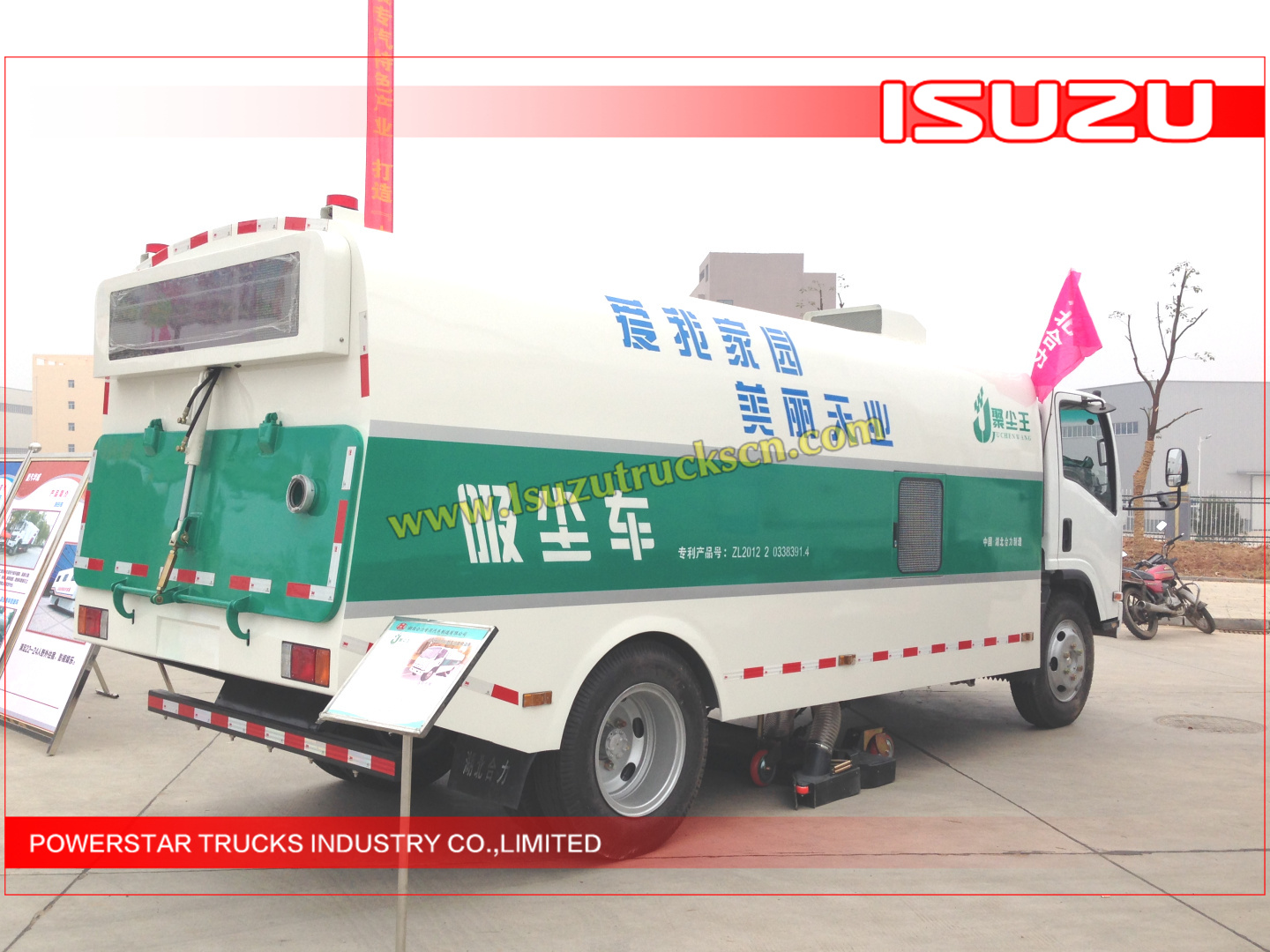

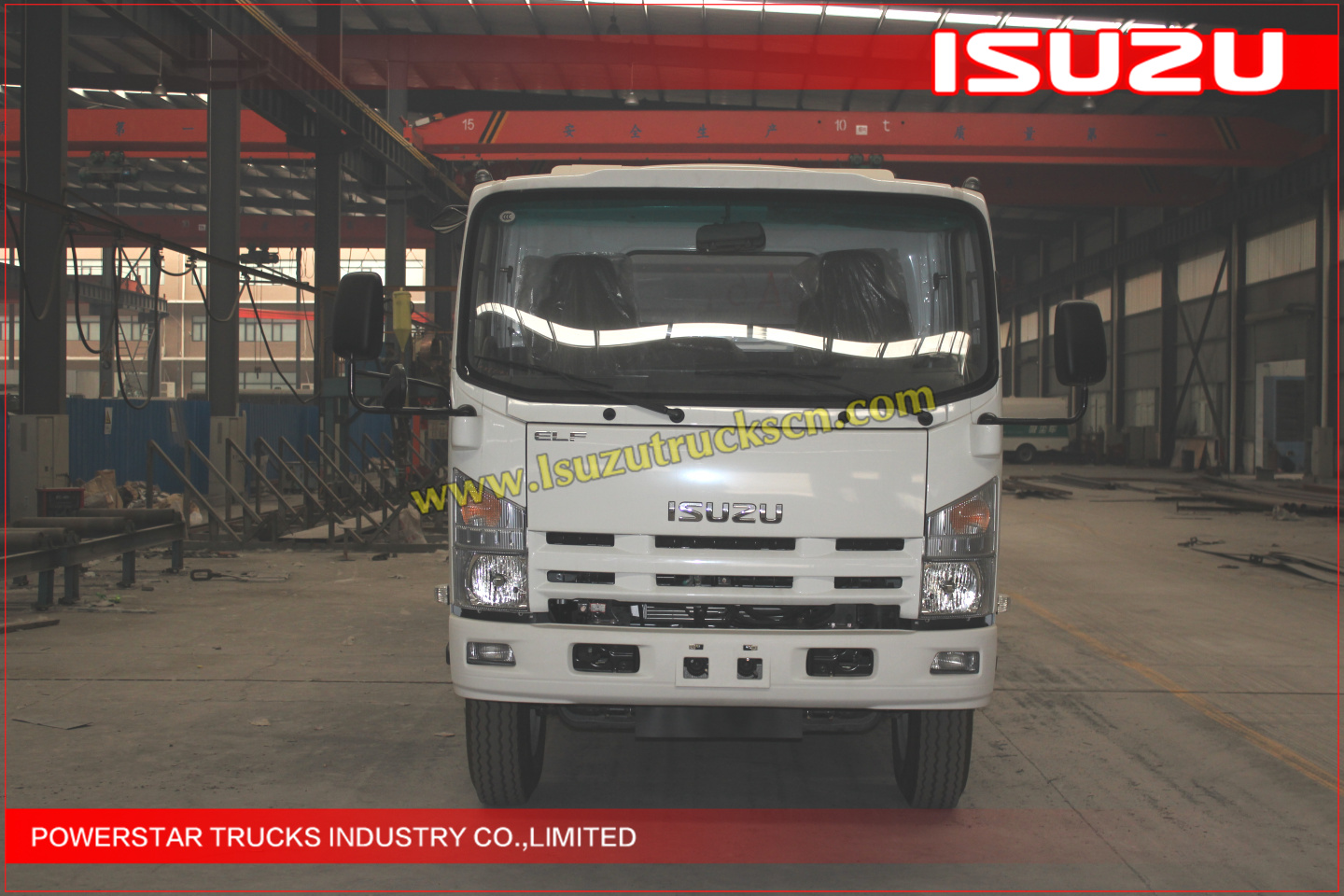

EFL Isuzu road clean vacuum sweeper truck industrial street sweeper Isuzu



EFL Isuzu road clean vacuum sweeper truck industrial street sweeper Isuzu



EFL Isuzu road clean vacuum sweeper truck industrial street sweeper Isuzu



EFL Isuzu road clean vacuum sweeper truck industrial street sweeper Isuzu



EFL Isuzu road clean vacuum sweeper truck industrial street sweeper Isuzu



EFL Isuzu road clean vacuum sweeper truck industrial street sweeper Isuzu



EFL Isuzu road clean vacuum sweeper truck industrial street sweeper Isuzu



EFL Isuzu road clean vacuum sweeper truck industrial street sweeper Isuzu



EFL Isuzu road clean vacuum sweeper truck industrial street sweeper Isuzu



EFL Isuzu road clean vacuum sweeper truck industrial street sweeper Isuzu



EFL Isuzu road clean vacuum sweeper truck industrial street sweeper Isuzu



EFL Isuzu road clean vacuum sweeper truck industrial street sweeper Isuzu
