Man lift truck IVECO

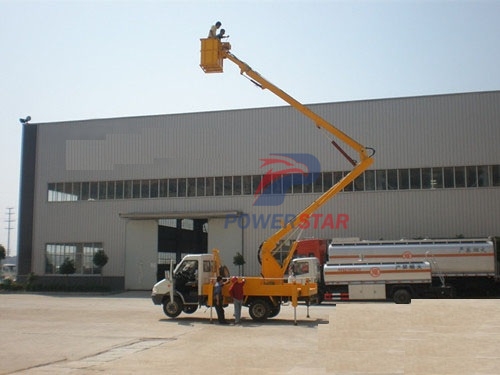

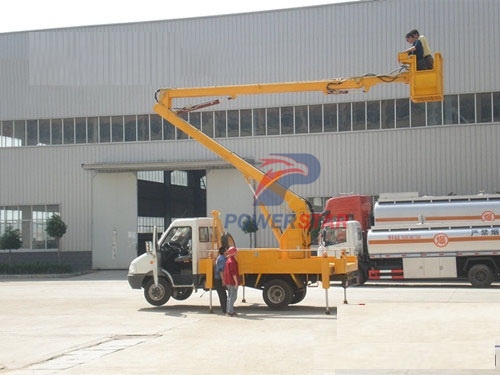

Skylift Truck IVECO aerial work platform truck

Details

Man lift truck IVECO



Function:

Mobile Man Lift Truck IVECO (also called Aerial platform vehicle, truck mounted platform, aerial truck with basket, hydraulic man lift truck, Aerial truck with basket, aerial platformt truck, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.



Features:

---- FAW chassis ensures perfect driving performance;
---- FAW engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specification:

Similar Key Words:  skylift truck, articulated boom lift, aerial platform truck, bucket lift truck, truck mounted beam lifter, working platform vehicle, basket crane truck, hydraulic aerial platform vehicle


 Man Lift turck IVECO (8M~12)
General Vehicle Brand POWERSTAR
Chassis Brand FAW
Overall Dimension 9650 x 2500 x 3250 mm
GVW / Kerb Weight 16,000 kg / 12,485 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand IVECO engine
Power 115Ps (85KW)
Displacement 2798 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand drive
Transmission 5-forward gears & 1 reverse
Wheelbase/No. of axle 4700 mm / 2
Tyre Specification 6.50-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 8~12 m
Beam The beam is articulated & telescopic extension type, hydraulic actuated and controlled
Slewing Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
Control Control both on the ground and remote control in cage
Safety Device Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
Leveling System Hydraulic stabilizer to level the vehicle on uneven ground
Optional Insulated cage; Wireless remote control system

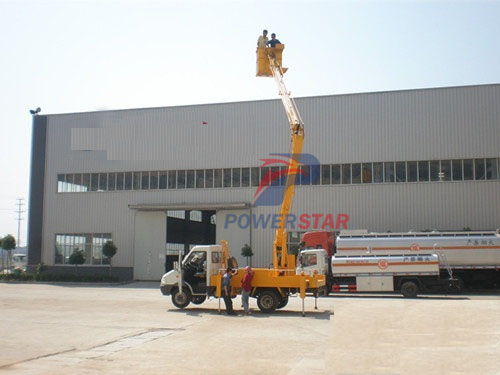

 Man lift truck IVECO  Man lift truck IVECO  Man lift truck IVECO
