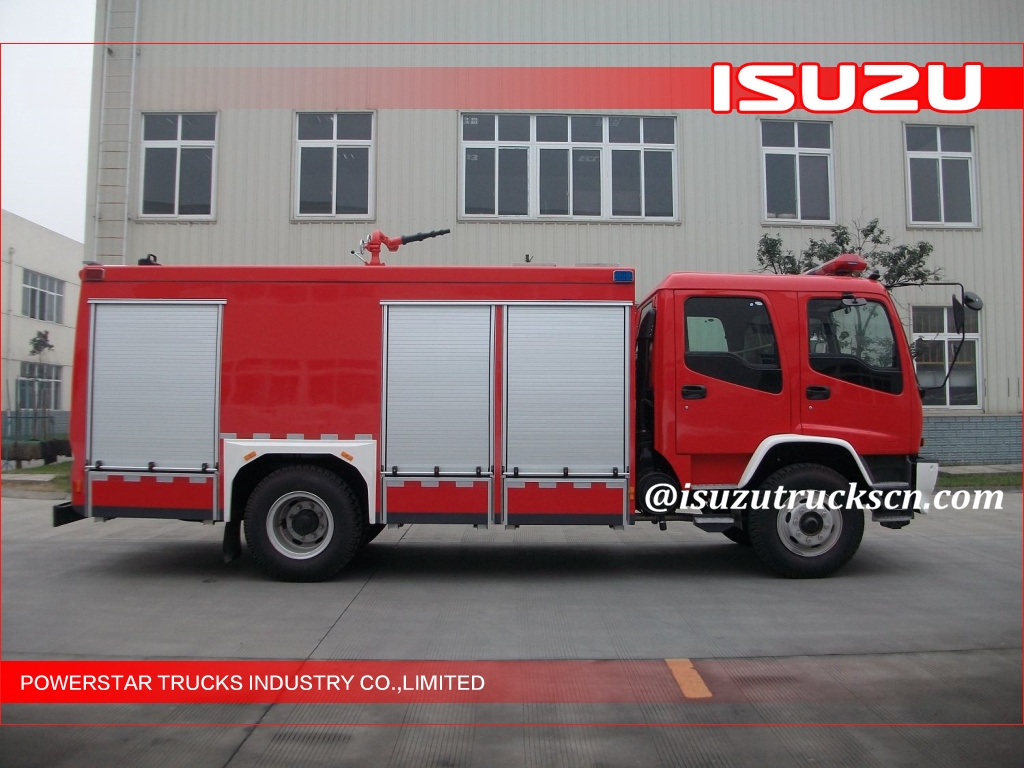

MiniCAFS(HALE) Isuzu CAFS foam fire engines

Fire Fighting Foam Truck ISUZU CHASSIS

Details

MiniCAFS(HALE) Isuzu CAFS foam fire engines

MiniCAFS(HALE) Isuzu CAFS foam fire engines



Detailed Info

Main performance parameter

ltem
Parameter
CAFS A fire truck
PT5160GXF CFA
Chassis
FVR34J2
Dimensions (length×width×height) (mm)
8155×2490×3400
Cab seating capacity
5
Engine model
6HK1-TC
Engine power(kW)
191/2500r/min
Wheel base(mm)
4500
Max. speed(km/h)
≥110
Tank capacity (kg)
6000(water 4000,class A foam 300、class B foam 1700)
Pump model
MG(HALE)
Pump flow(L/s/MPa)
50/1.0
Fire monitor
Model
PL48/PS40W
flow(L/s)
48/40
(m)Reach
water≥60,foam≥55,class A foam monitor≥35
Compressed air class A foam system model
MiniCAFS(HALE)
Max. flow/pressure of mixture
0.7MPa/5L/s
Max. flow/pressure of compressed air
0.7MPa/23.6L/s
