1China Sanitation road sweeper truck Dongfeng
China sanitation vacuum road sweeper truck DongFeng (also called as Road sweeper Dongfeng truck, street sweeper Dongfeng, road street washer sweeper truck, Mechanical road sweeping truck, road cleaner sweeper, waste collection sweeper truck, street cleaner sweeper) This Isuzu road sweeper truck has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working. The whole vehicle is stable in performance.

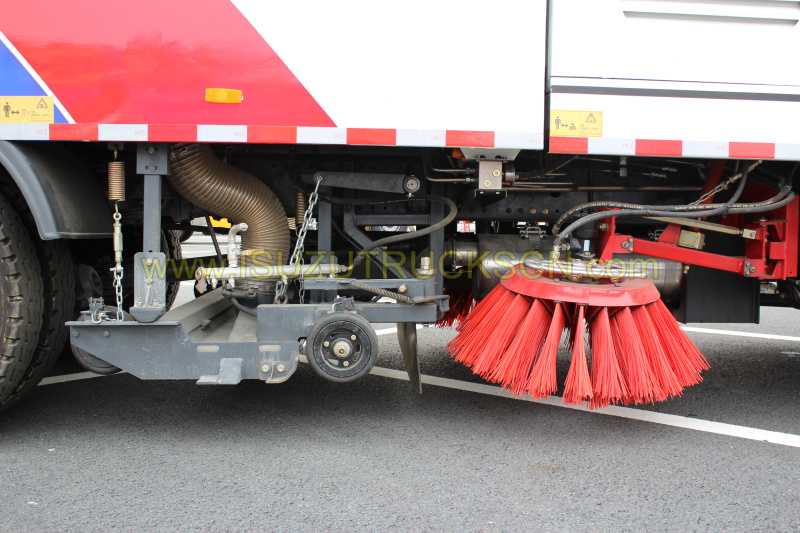

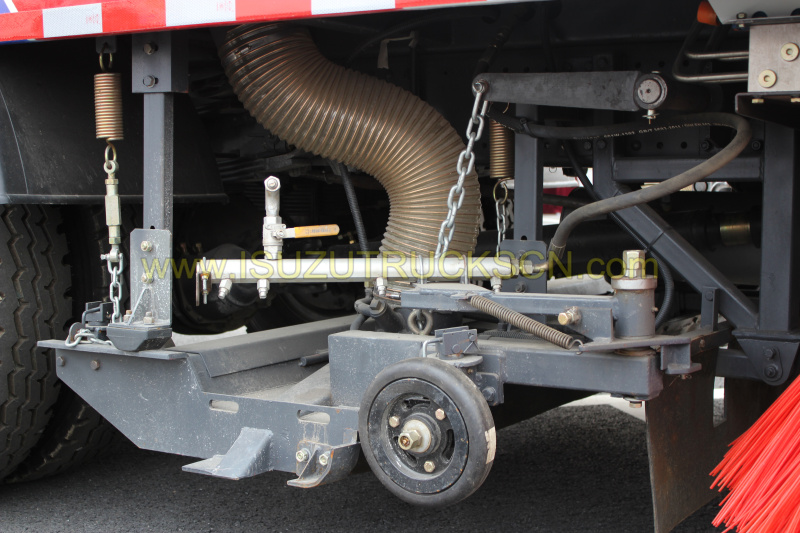

With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.

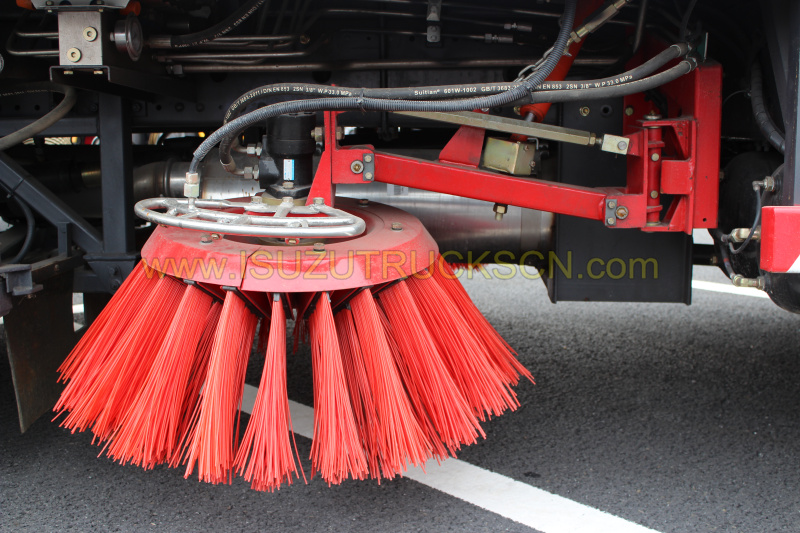

The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.
DONGFENG Chassis, Durable & Performance.
Sweeping, Sprinkling and garbage transportation
Stainless steeel garbage bin & Stainless water tank, longer service life
Fuel Dispenser, Flow meter, Level gauage can be optional
POWERSTAR 20 years’ experience on road sweeper truck exporting.
|
|
|
|
|
|
|
PT5150TSL |
||
|
Driving Type |
4x2 (Left hand drive) |
|
|
Wheelbase |
4500 mm |
|
|
Overall Dimension |
8600X2500X3340 mm |
|
|
Cab |
Forward control over engine, all-steel-welded construction |
|
|
Sweeping System |
Auxiliary engine |
Cummins tech engine |
|
Stainless Steel Hopper Effective Volume |
8CBM |
|
|
Stainless Steel Water Tank Volume (L) |
4000 |
|
|
Sweeping Width (mm) |
3200 |
|
|
Sweeping speed (km/h) |
6~50 |
|
|
Sweeping Capacity (m2/h) |
16500~82500 |
|
|
Blower rated rotation speed (rpm) |
1800 |
|
|
Blower air capacity (m3/h) |
8000 |
|
|
Blower air pressure (Pa) |
7000 |
|
|
Side Brush Sweeping Brush Drive and Control |
Electric control lever and switch control, Hydraulic driving |
|
|
Engine |
Model |
Cummins 6HK1 |
|
Type |
Diesel, turbo charged inter-cooled, 4 cylinder |
|
|
Max. Power |
140 KW (190 HP) |
|
|
Gearbox |
6-shift, mechanical type, 6 forward and 1 reverse with |
|
|
Tire |
10.00-20 |
|
|
Color |
Red (Any color & logos up to wish) |
|
|
Max Speed |
100 km/h |
|
Customer build example:
|
|
|

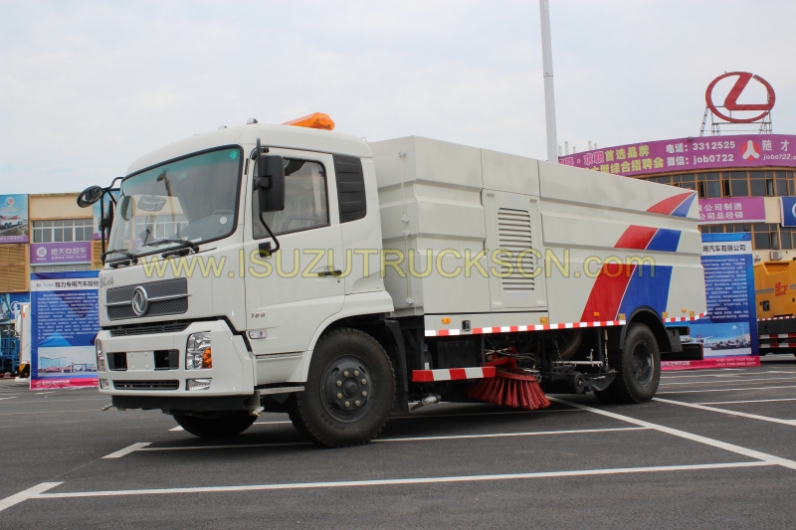

Front right view |

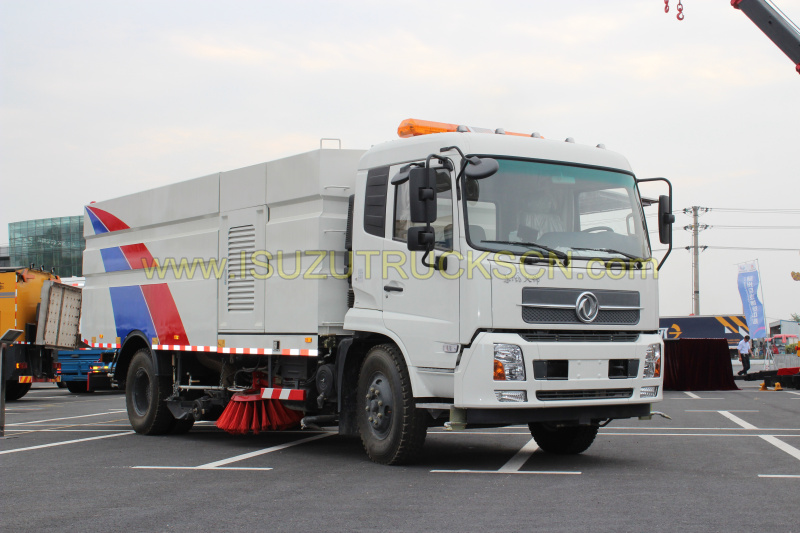

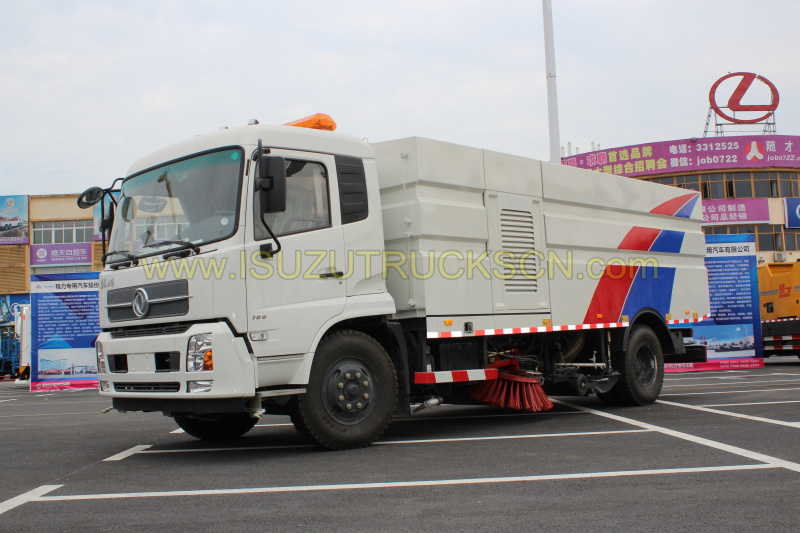

Front left view |
|
|

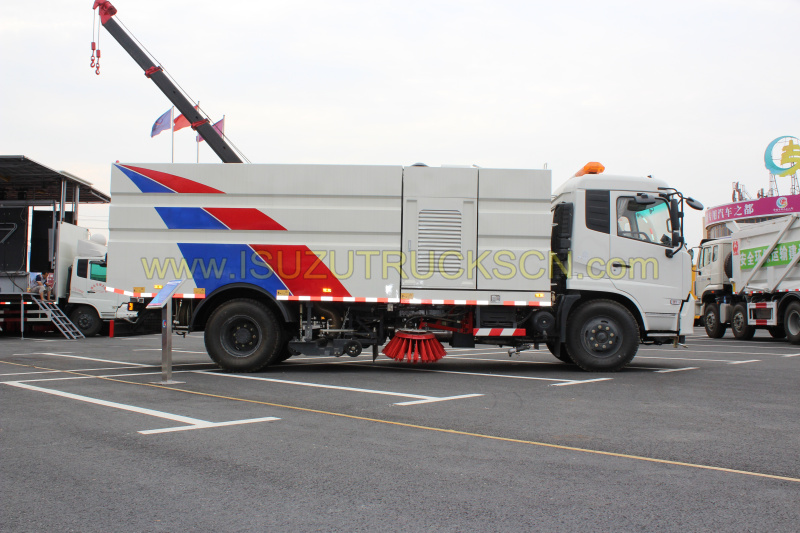

| Right side view |

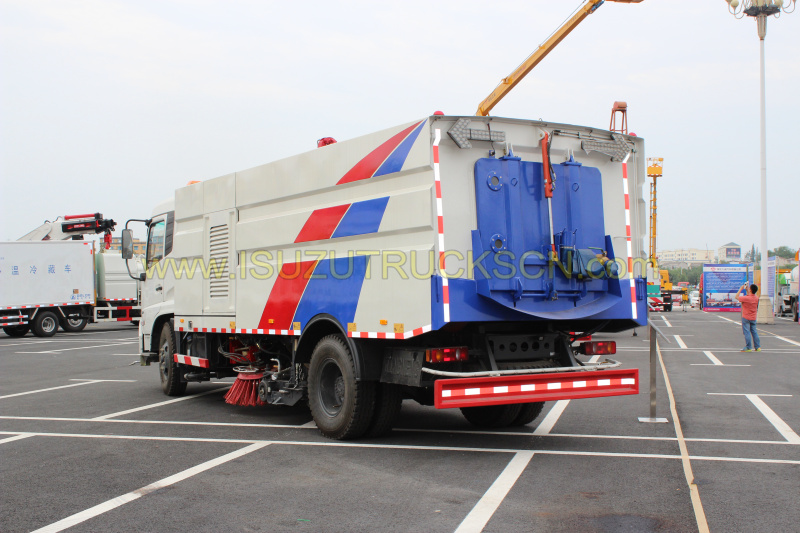

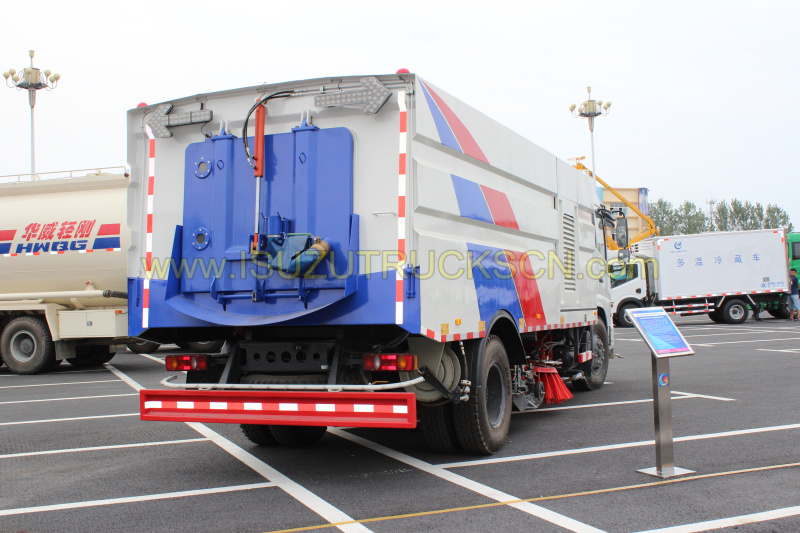

Rear right view |
