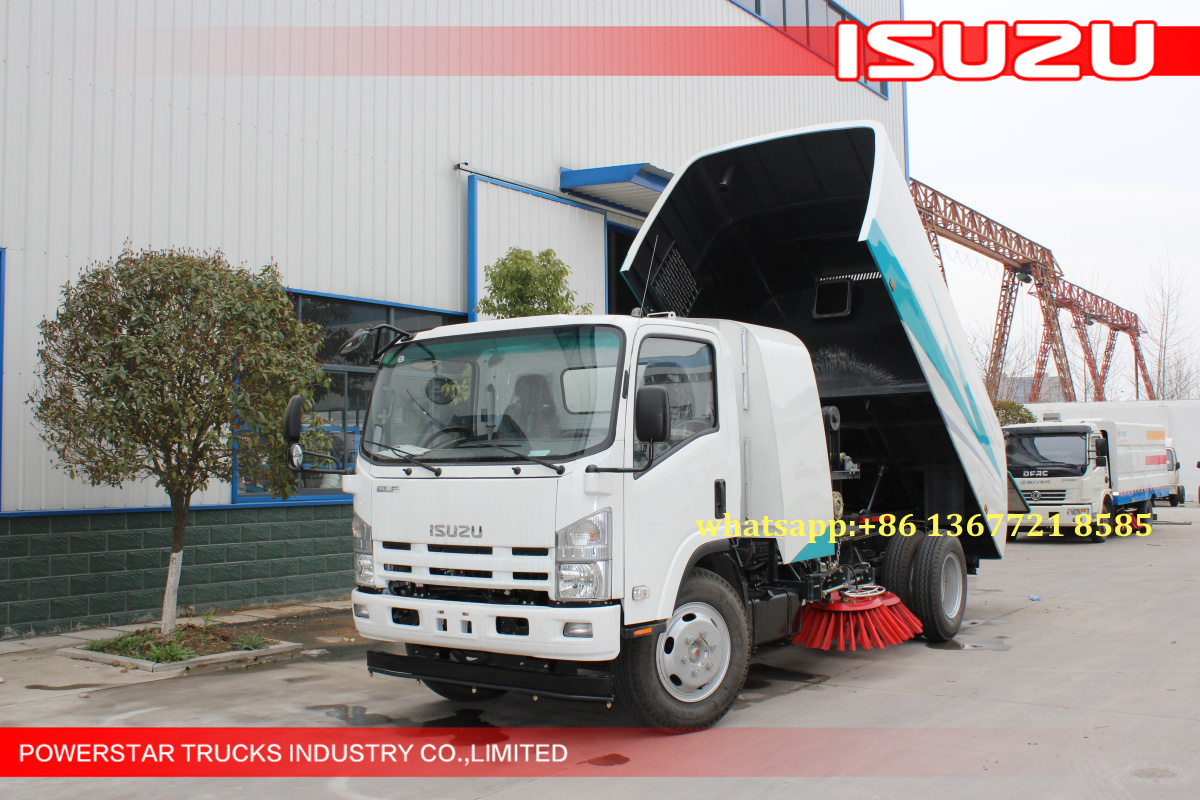

Myanmar 8cbm ISUZU NPR ELF Road Sweeper trucks sweeper master

NPR ISUZU Vacuum Truck Mounted Road Sweeper

Details

Myanmar 8cbm ISUZU NPR ELF Road Sweeper trucks sweeper master

Myanmar 8cbm ISUZU NPR ELF Road Sweeper trucks sweeper master

ISUZU Road sweeper truck (also called Isuzu street sweeper vehicle, road cleaning vehicle, vacuum road sweeper ISUZU, Isuzu elf truck mounted road sweeper, customer road sweeper truck, street sweeping vehicle, street washers sweeper trucks, highways cleaner road sweeper truck, Environment sweeper truck, waste collection sweeper truck) can be widely used in sweeping city roads, highways, construction sites, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.



Features:

   Easy operation and easy maintenance!

  Combined suction and sweeping, wet methods of dust elimination, make sure swept clean and also prevent dust from spread

   The dustbin is made of stainless steel, corrosion resistance and large capacity, which can last for a long time without stop

  With imported PLC (programmable logic controller) for integrated control

  Sub-engine drive blower and working equipment which ensure that power can meet the work demands in any case

  Rotating speed of sweeping tray can be adjusted according to working condition

  The sweeping broom has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically



Main specifications of ISUZU ROAD SWEEPER:



Model

PT5100TSL

Driving Type

4x2    (Left hand drive)

Wheelbase

4175 mm

Overall Dimension

6925X2200X2550 mm

Cab

Forward control over engine, all-steel-welded construction

Sweeping System

Auxiliary engine

Isuzu tech engine

Stainless Steel Hopper Effective Volume

6 CBM

Stainless Steel Water Tank Volume (L)

2000

Sweeping Width (mm)

3200

Sweeping speed (km/h)

3~25

Sweeping Capacity (m2/h)

16500~82500

Blower rated rotation speed (rpm)

1800

Blower air capacity (m3/h)

8000

Blower air pressure (Pa)

7000

Side Brush Sweeping Brush Drive and Control

Electric control lever and switch control, Hydraulic driving

Engine

Model

4HK1-TCG40

Type

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power

139 KW (195 HP)

Gearbox

MLD 6-shift, mechanical type, 6 forward and 1 reverse with

Tire

8.25-20

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h
