Prime Mover UD Quester Tractor trucks

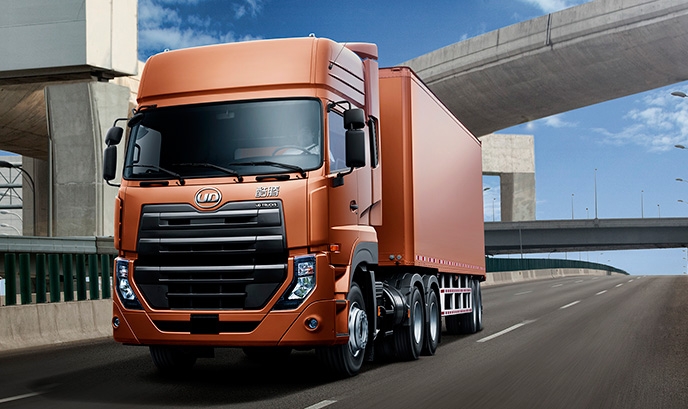

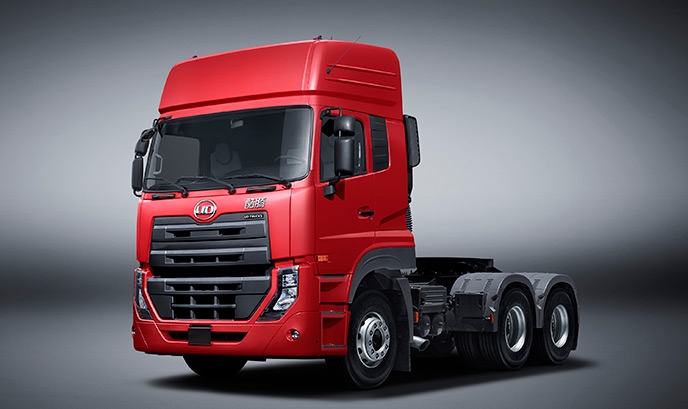

UD heavy TRACTOR UNIT

Details

UD Quester Truck Series

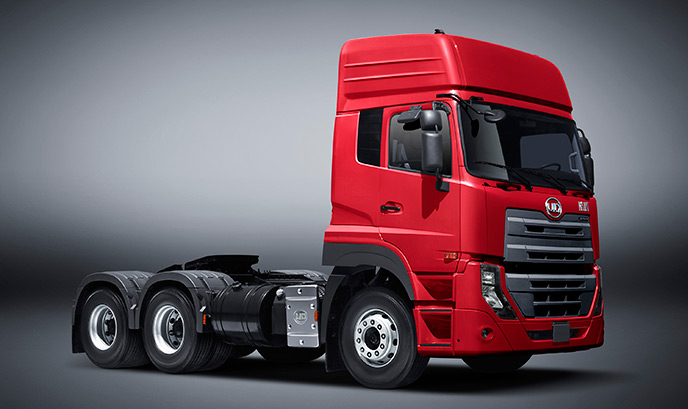

UD QUESTER TRACTOR TRUCK


Prime Mover UD Quester Tractor trucks detail pictures


Prime Mover UD Quester Tractor trucks detail pictures


Prime Mover UD Quester Tractor trucks detail pictures


2. Tractor truck Introduction

Prime Mover UD Quester Tractor trucks detail picturesPrime Mover UD Quester Tractor trucks detail pictures

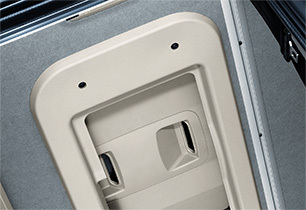

Tractor truck Roof hatch

Emergency exit for any unexpected situations

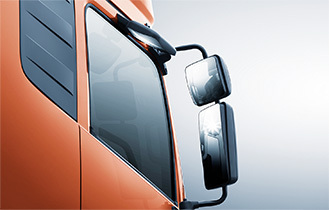

Multi view angle mirror

Considerately designed Mirror combination ensures full view for the driver; electrical-heated mirror as optional effectively improves driving safety in severe weather.

Prime Mover UD Quester Tractor trucks detail pictures
Prime Mover UD Quester Tractor trucks detail pictures

Tractor truck Dashboard with delicate layout

Well laid out dashboard improves driving safety substantially with controllers and switches in arm reach; high luminance and high contrast display of 4.5 inch size provides with easily readable information

Prime Mover UD Quester Tractor trucks detail pictures

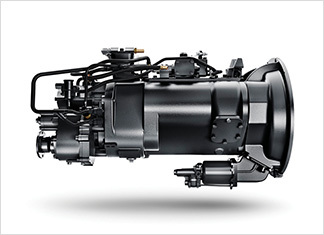

Tractor truck gearbox cooling system

Equipped with transmission oil cooler for longer gearbox life

Prime Mover UD Quester Tractor trucks detail pictures

Tractor truck hub reduction axle

For heavy cargo transportation and poor working condition, hub reduction axle as optional.

Prime Mover UD Quester Tractor trucks detail pictures



Specification:



Prime Mover UD Quester (6x4, 380 HP )
General Brand UD Quester
Overall Dimension 7035 * 2500 * 3730 mm
GVW / Kerb Weight 25,000 kg / 8,805 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand UD engine
Power 380 PS (280 KW)
Displacement 10837 ml
Emission Standard Euro IV
Chassis Drive Type 6X4, left hand drive
Transmission 12-speed forward, 2 reverse
Wheelbase/No. of axle 3400+1370 mm / 3
Tyre Specification 12.00R20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 100 km/h
Fuel Tanker 380 Litres made of aluminum alloy
Fifth Wheel 50# or 90#
Paint Metallic paint
All other standard accessories: Tool kit, English manual
Optional ** Medium cabin, high cabin.
** Burglar alarm & immobilizer, audible reverse beeper, reverse camera, central locking, GPS, VDR.
** JOST fifth wheel





Prime Mover UD Quester Tractor trucks detail pictures



Prime Mover UD Quester Tractor trucks detail pictures



Prime Mover UD Quester Tractor trucks detail pictures



Prime Mover UD Quester Tractor trucks detail pictures



Prime Mover UD Quester Tractor trucks detail pictures



Prime Mover UD Quester Tractor trucks detail pictures











Similar Key Words: Trailer tractor truck, Trailer head vehicle, Prime Mover, heavy duty truck tractor,
