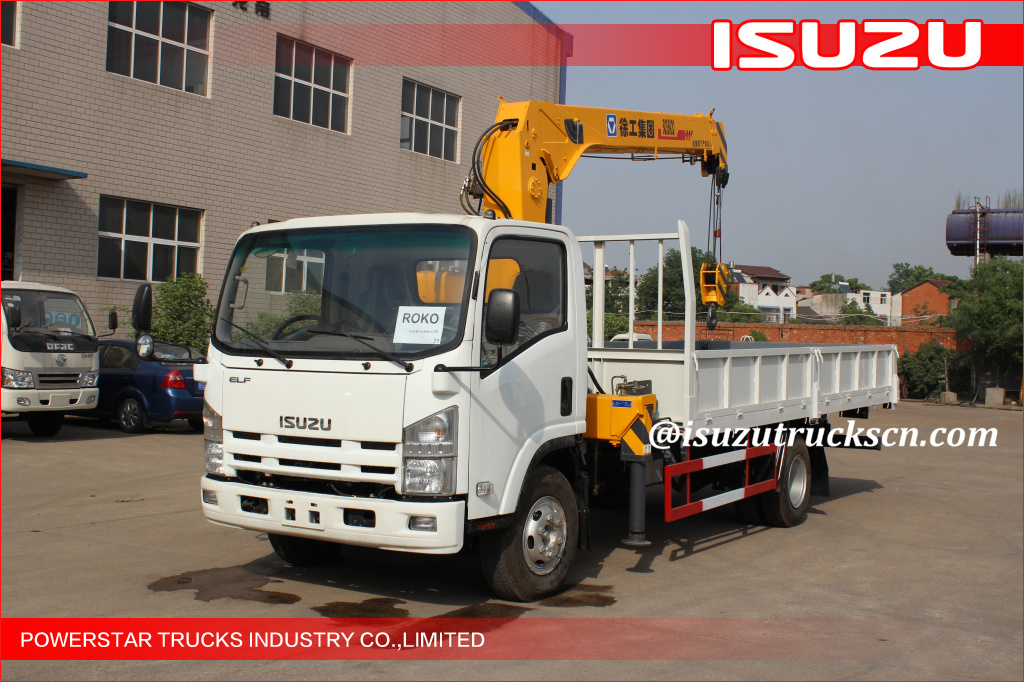

Quality Isuzu brand 5 TonS Hydraulic Lifting Truck Mounted Crane

Hot sale ISUZU 4*2 5T dump truck with crane/truck mounted crane

Details

Quality Isuzu brand 5 TonS Hydraulic Lifting Truck Mounted Crane

Quality Isuzu brand 5 TonS Hydraulic Lifting Truck Mounted Crane



Durable 5 Ton Hydraulic Lifting Truck Mounted Crane , XCMG 2035kg Crane





  1. Name: Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane

  2. Max Lifting Capacity: 5 ton

  3. Max Lifting Moment: 10.5T.M

  4. Max Oil Flow of Hydraulic System: 25 L/min

  5. Max.Lifting height: 10meters

  6. Brand: XCMG

  7. Crane Weight: 2035 kg

  8. Oil Tank Capacity: 90 L

  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology

  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions, lifting kinds of goods





Description:



The Knuckle Boom crane is built as a normal crane, with the exception of the boom, which is hinged at the middle, creating a knuckle. Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.


Telescopic boom crane SQ5SK2 is lifting capacity is 5tons, moment is 10.5T.M.





Applications:



It could be applied on most common Commercial Truck-mounted Cranes.
Range covers light to medium crane. With small mounting size and weight to save your payload, saving loading and unloading time, is the best choice of truck mounted crane facilities.



Specifications:



Model

SQ5SK2

Unit

Max Lifting Capacity

5000

kg

Max Lifting Moment

10.5

T.M

Recommend Powe

18

kw

Max Oil Flow of Hydraulic System

25

L/min

Max Pressure of Hydraulic System

28

MPa

Oil Tank Capacit

90

L

Rotation Angle

All Rotation



Crane Weight

2035

kg

Installation Space

1100

mm

Choice of Chassis

ISUZU





Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
