SQ6.3SK3Q ISUZU Truck Loader Crane for sale

Durable Hydraulic Lifting Telescopic Boom Truck Crane ISUZU truck Mounted With 2270 kg Crane

Details

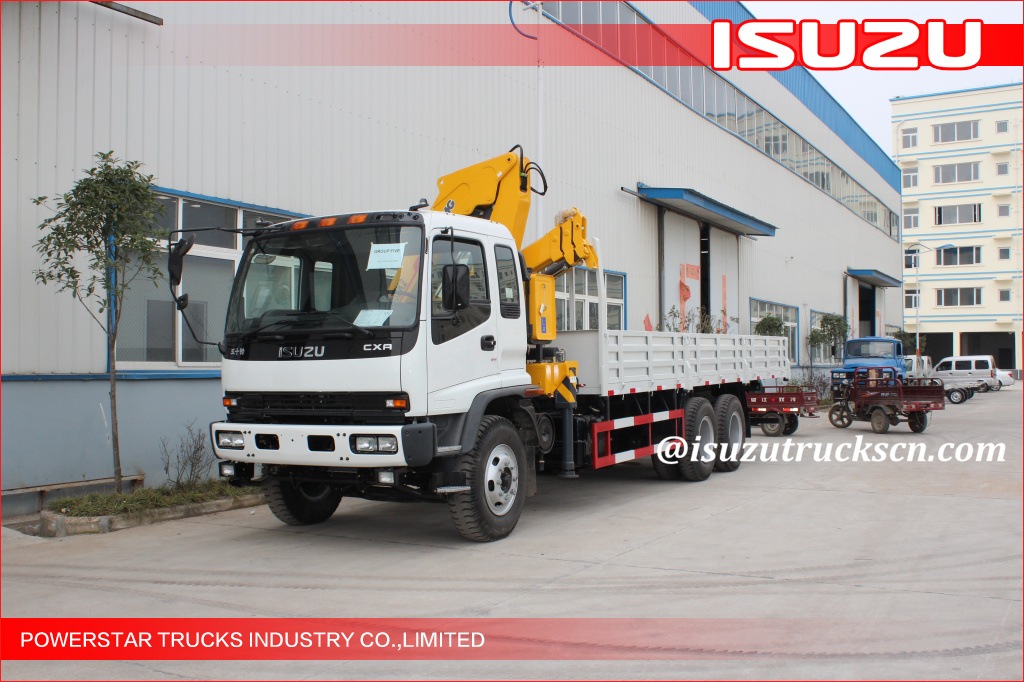

SQ6.3SK3Q ISUZU Truck Loader Crane for sale

SQ6.3SK3Q ISUZU Truck Loader Crane for sale



Isuzu brand Telescopic Boom Truck Crane  Mounted With 2270 kg Crane





  1. Name: isuzu Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
  2. Max. Lifting Capacity: 6300 kg
  3. Max. Lifting Moment: 15.7 T.M
  4. Max. Oil Flow of Hydraulic System: 40 L/min
  5. Max. Lifting Height:13meters
  6. Brand: XCMG
  7. Crane Weight: 2270 kg
  8. Oil Tank Capacity: 90 L
  9. Feature: safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



ISUZU Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.


Telescopic boom crane SQ6.3SK3Q is lifting capacity is 6.3tons, moment is 15.7T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.





Specifications:



Model

SQ6.3SK3Q

Unit

Max Lifting Capacity

6300

kg

Max Lifting Moment

15.7

T.M

Recommend Power

20

kw

Max Oil Flow of Hydraulic System

40

L/min

Max Pressure of Hydraulic System

20

MPa

Oil Tank Capacity

90

L

Rotation Angle

All Rotation

Crane Weight

2270

kg

Installation Space

900

mm

Choice of Chassis

ISUZU, UD, HINO



SQ6.3SK3Q Lifting capability diagram

Working radius (m)

2.5

3.96

6.3

8.6

11

Lifting capacity (kg)

6300

2800

1600

1200

600



Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
