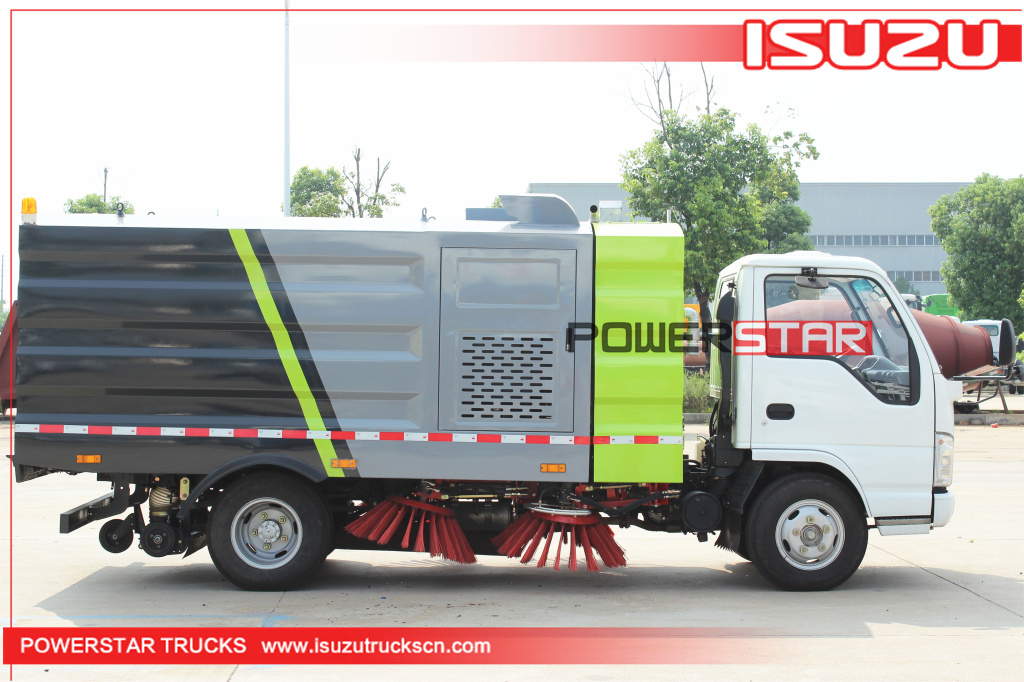

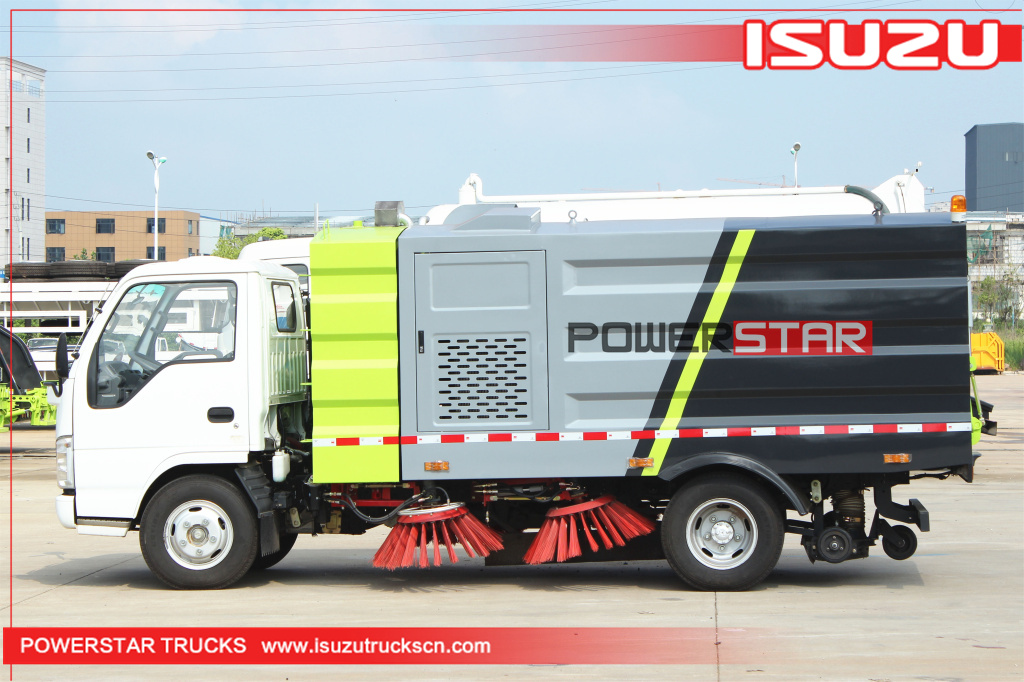

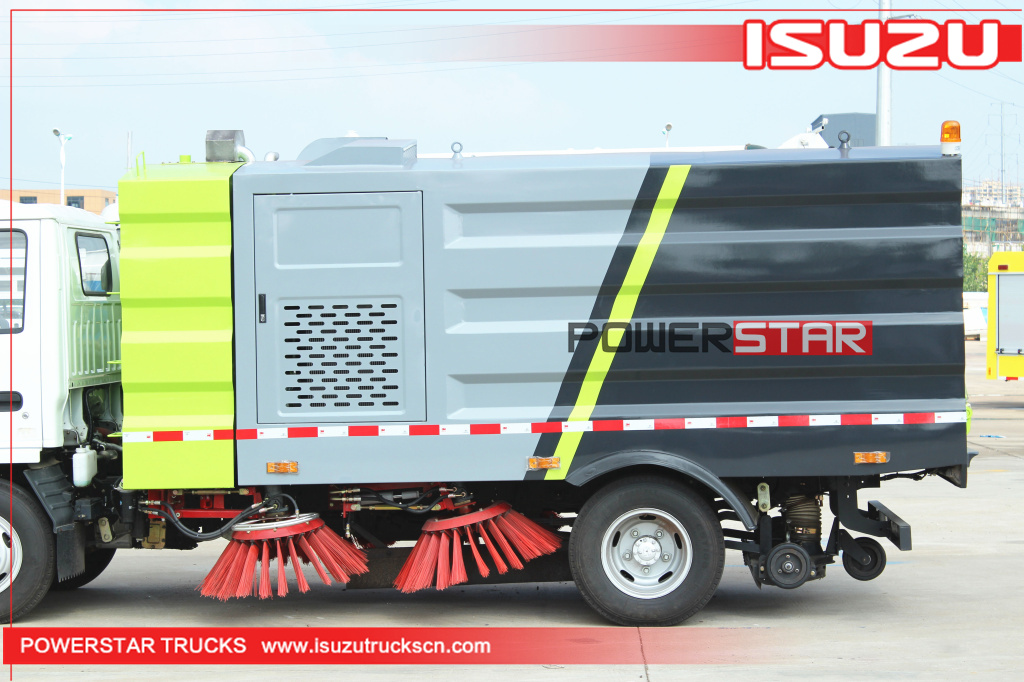

Street Sweeping trucks Isuzu garbage vehicle

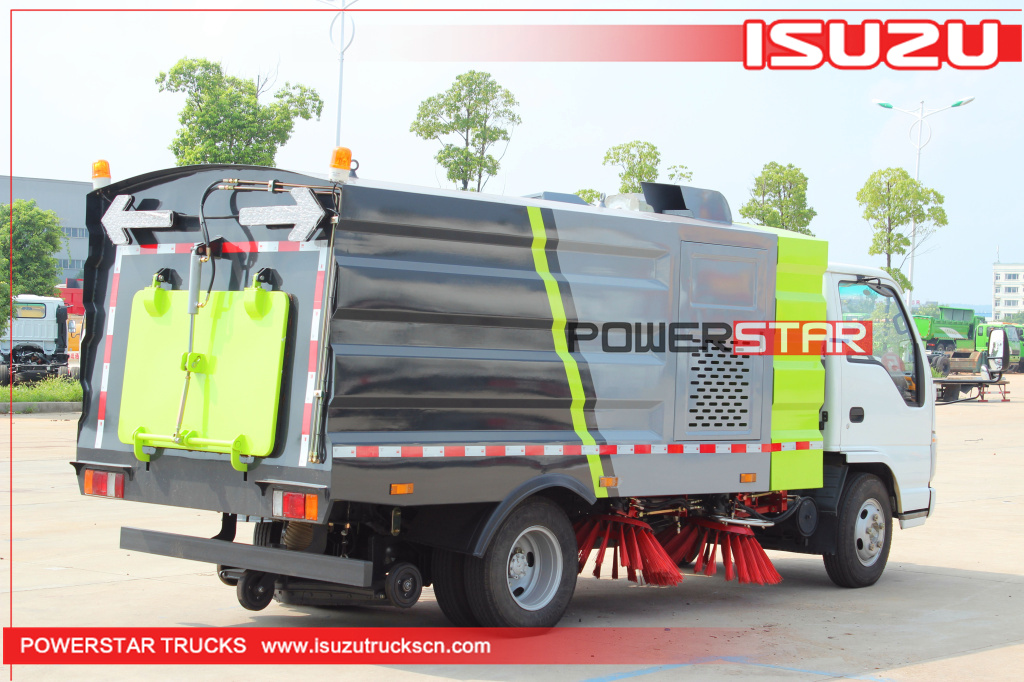

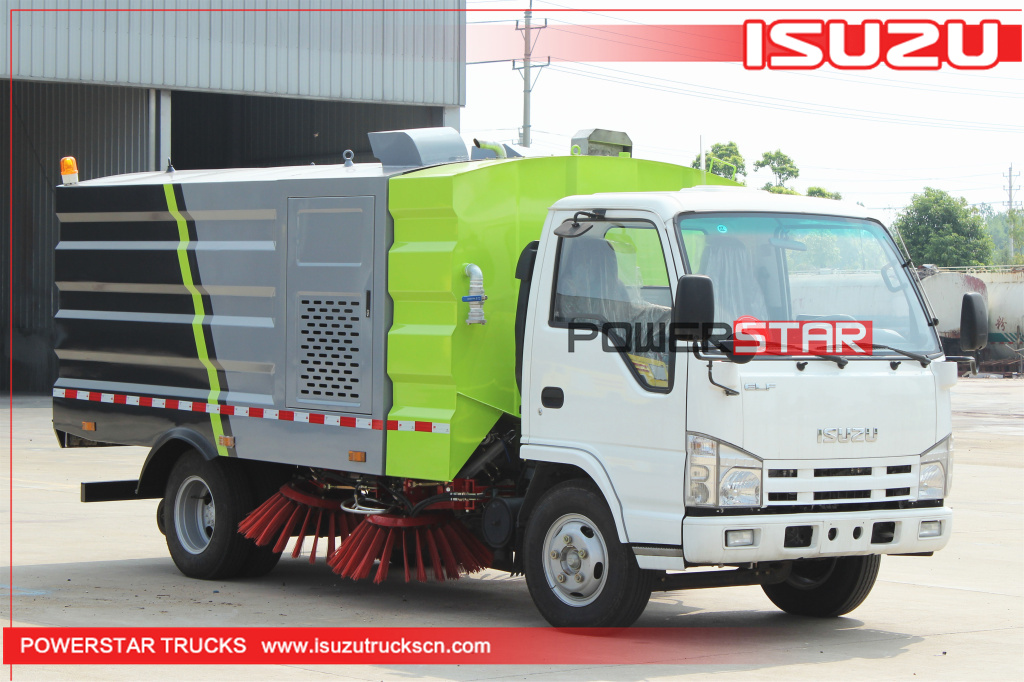

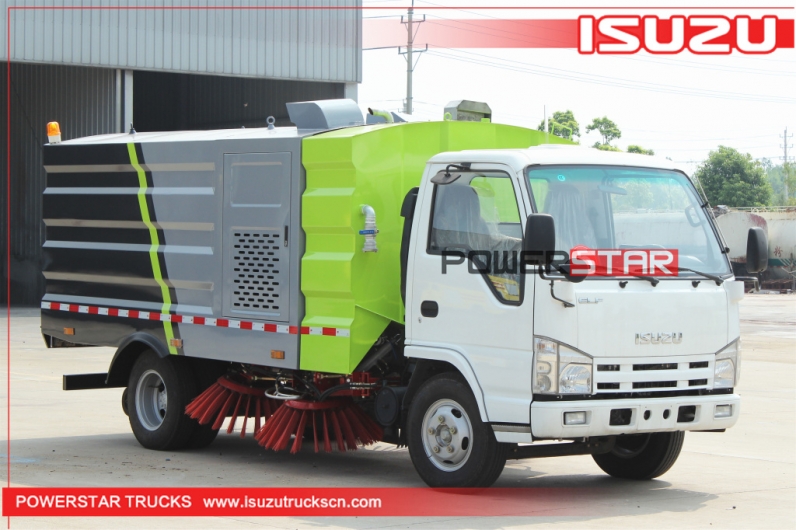

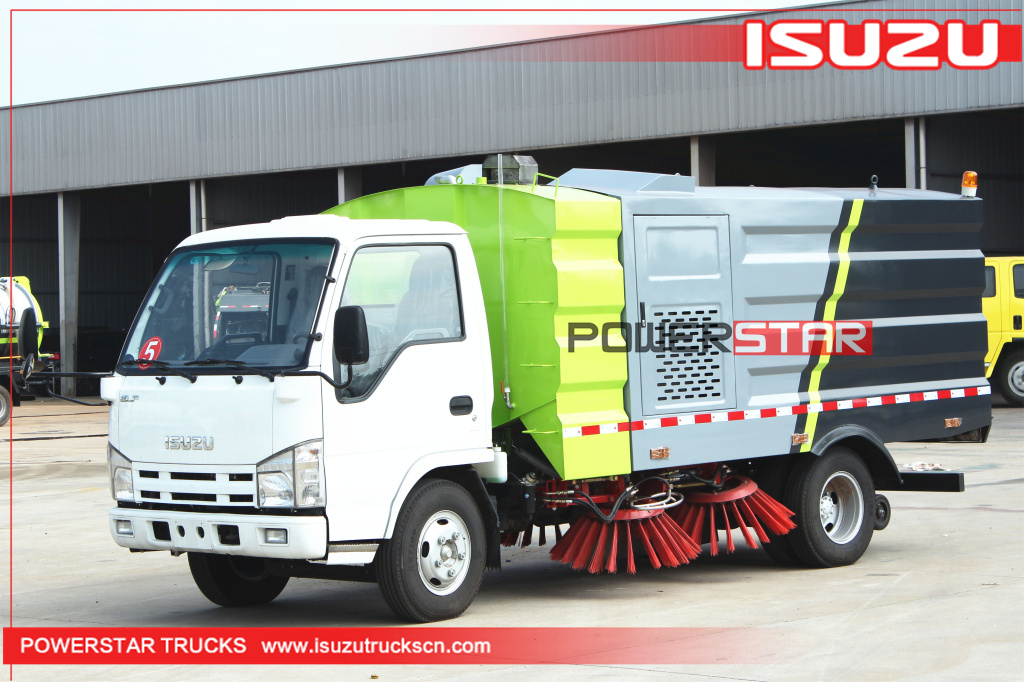

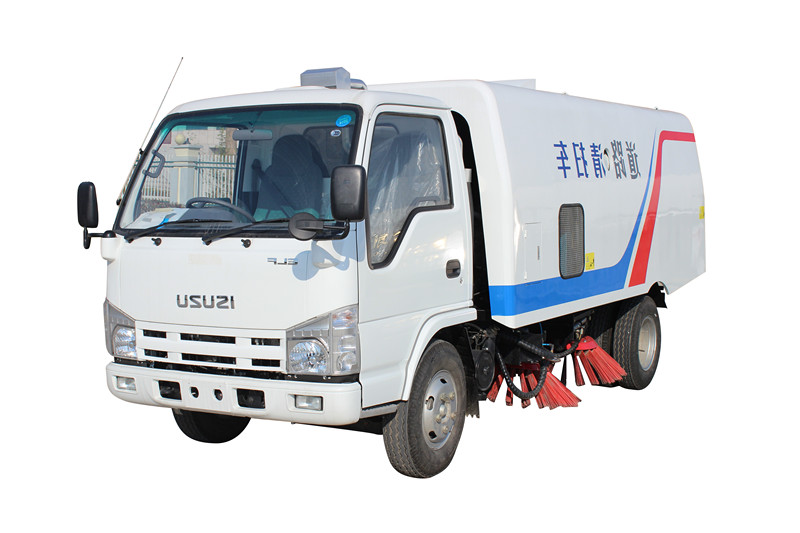

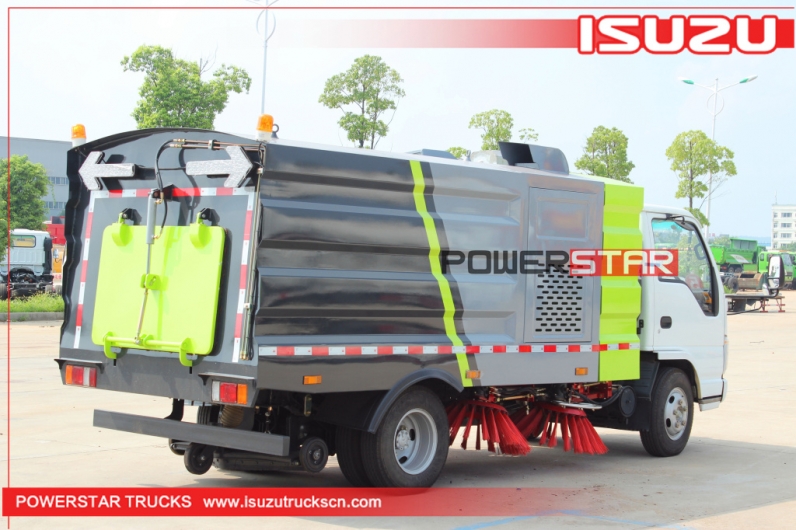

Isuzu brand 4x2 street road sweep truck sweeper sweeping vehicle for public roads

Details

Street Sweeping Vehicle Isuzu for sale






 Applications:

Street sweeper trucks Isuzu (also called Sanitation vacuum sweeper truck, brand new sweeper truck, road sweeper vehicle, road sweeper manufacturers, dust cleaner road sweeper truckadopts the way of suction and sweeping combination, wet dust removal, electro-hydraulic control and hydraulic dumping unloading to clean the road.

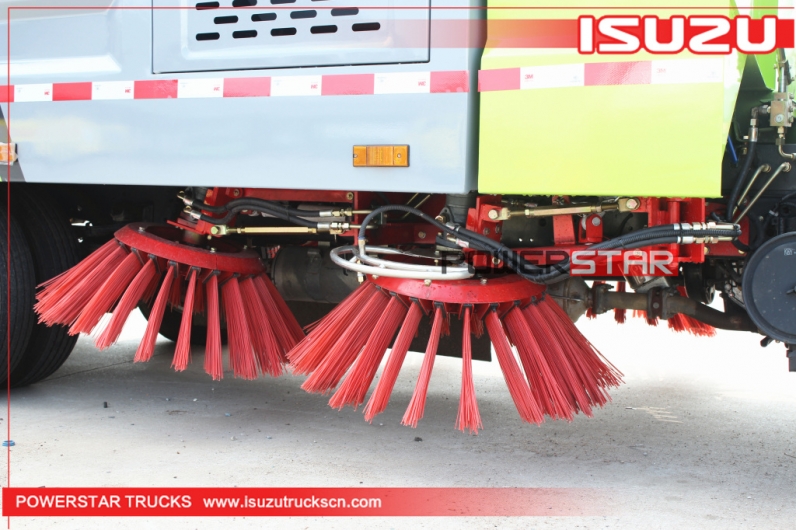

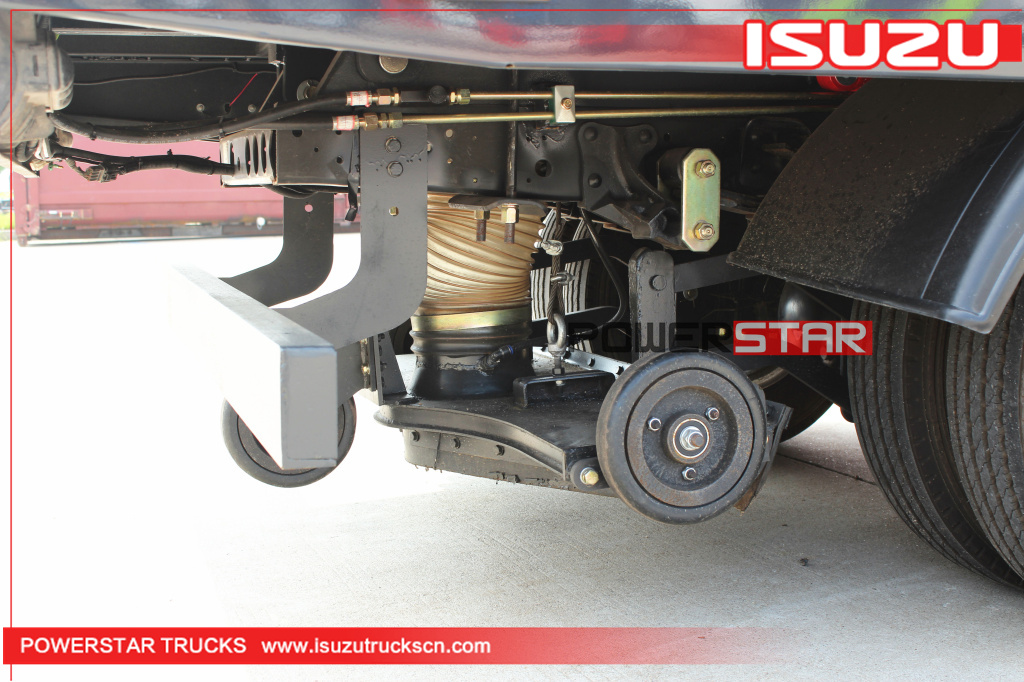

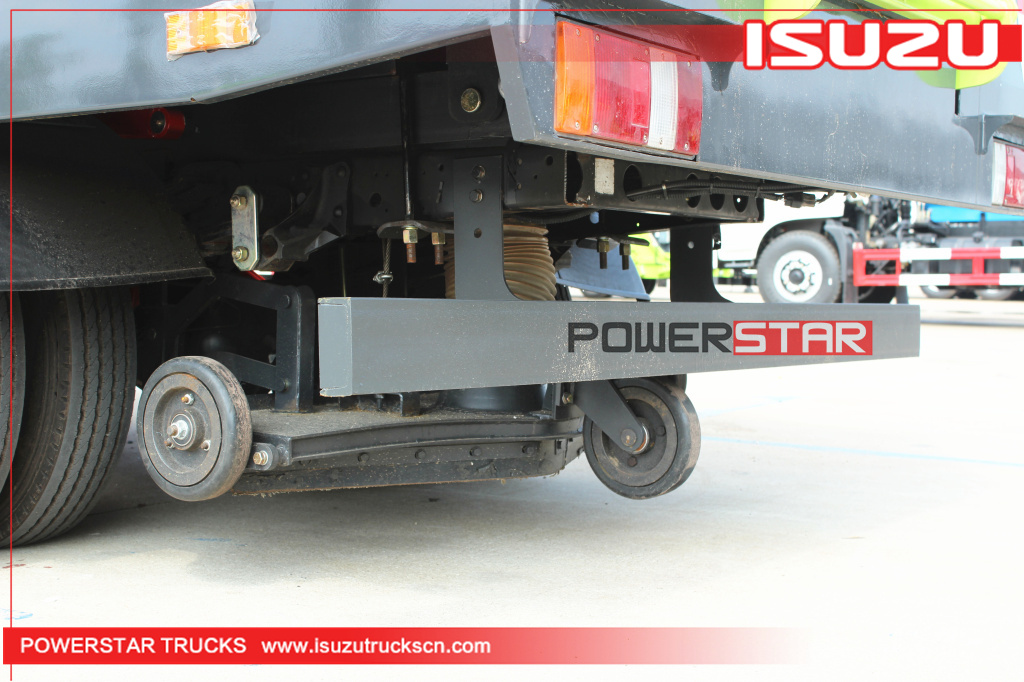

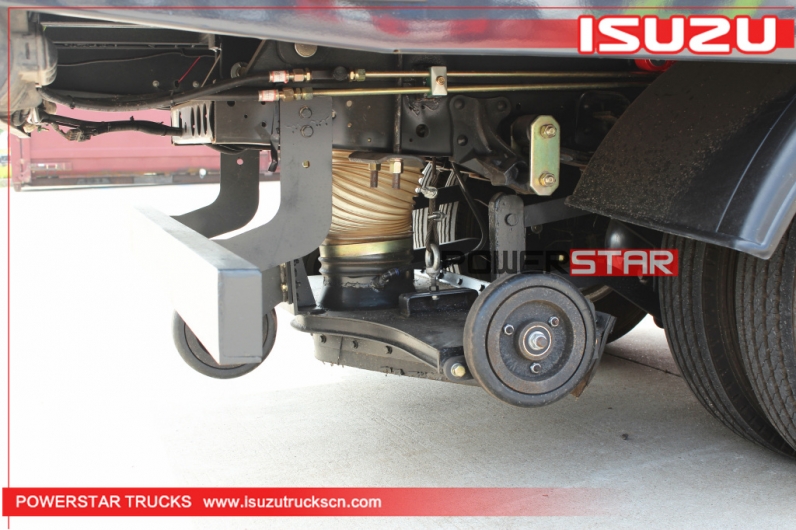

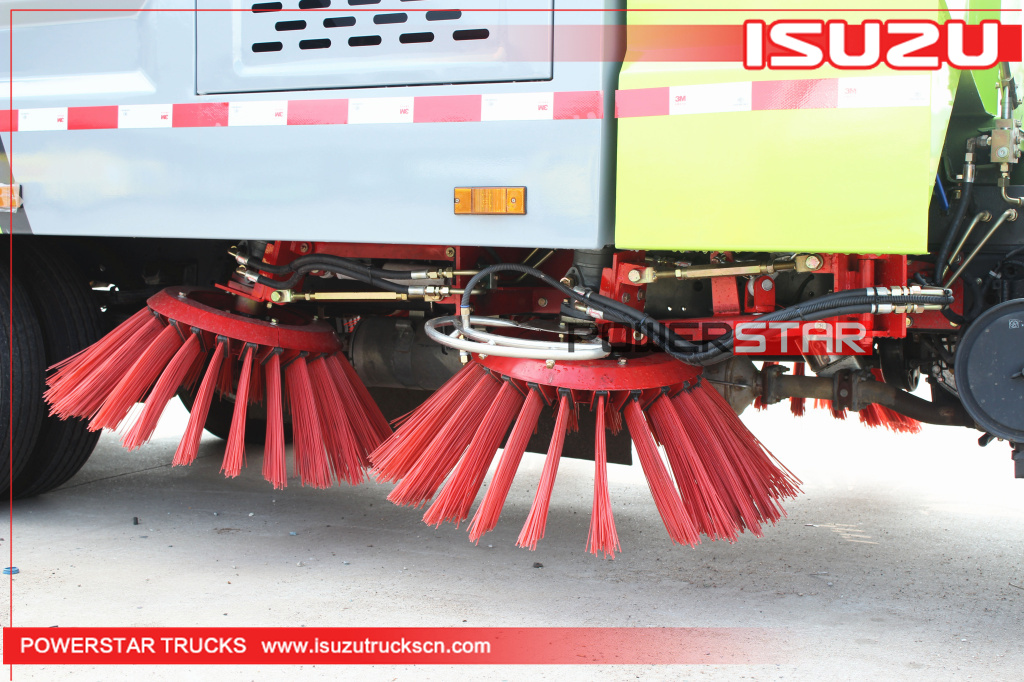

With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.
An automatic clutch is set up on the transmission between the vice-engine and the fan, which can ensure the automatic separation of the vice-engine from the fan when the vice-engine startup or shutdown. Also simplified the operation, reduced the impact on vice-engine and improved the reliability and service life of vice-engine.

The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.



 Key Features:

---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin tank capacity from 3 to 15 Cublic Meter.
---- Easy operation and easy maintenance.

---- More customer wished equipment are available.



 Specifications:

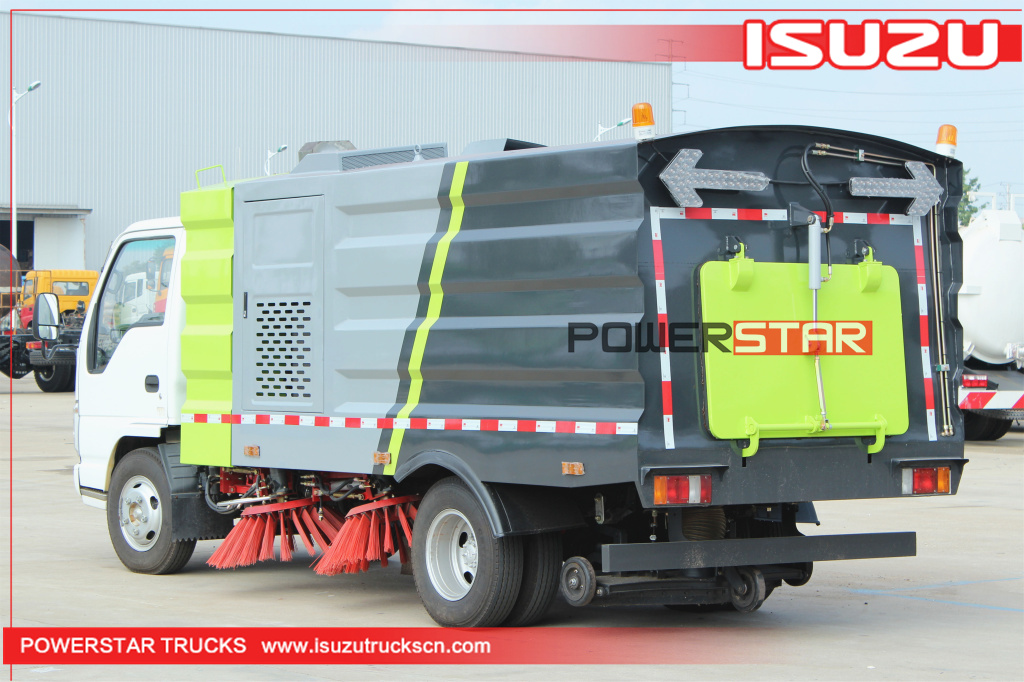

Truck mounted road sweeper Isuzu (3+1)

General

Vehicle Brand

POWERSTAR

Chassis Brand

ISUZU

Overall Dimension

5450 * 1980 * 2430 mm

GVW / Kerb Weight

7,000kg / 3,350kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

98 HP (72 KW)

Displacement

2799ml

Emission Standard

Euro IV or V

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MSB 5 speed levers with 1 reverse

Wheelbase/No. of axle

3815 mm / 2

Tire Specification

7.00-15

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Dustbin Tank

3 cbm

Water Tank

1 cbm

Sweeping width

 3 Meter

Sweeping speed

3~20 km/h

Gutter brooms

4 sets

Control system

Electrically Hydraulic control

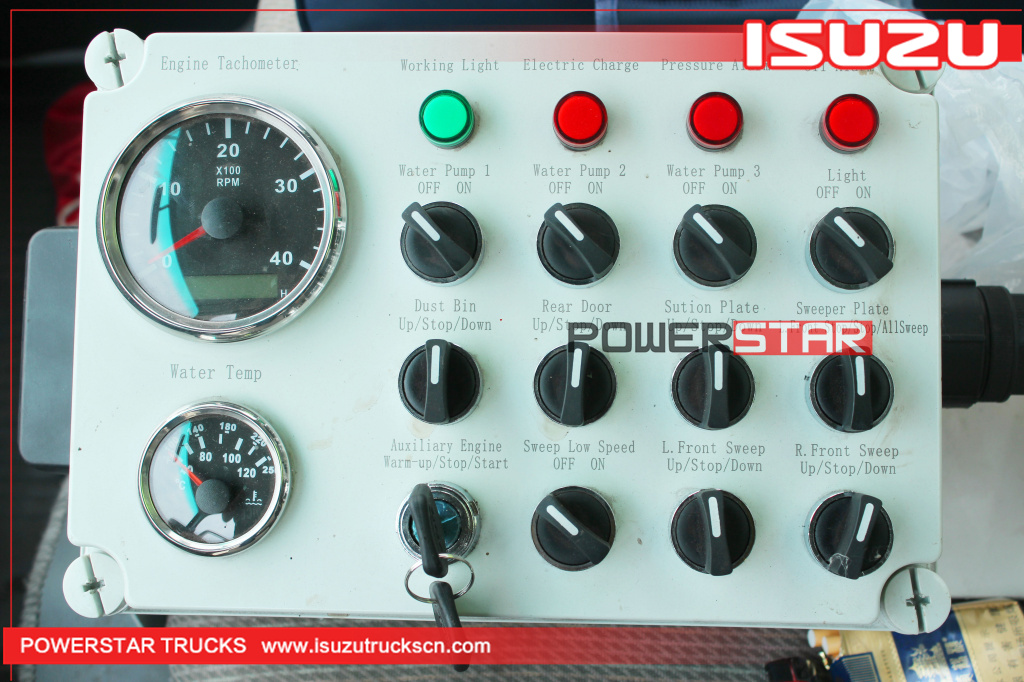

Control panel

English or Your language

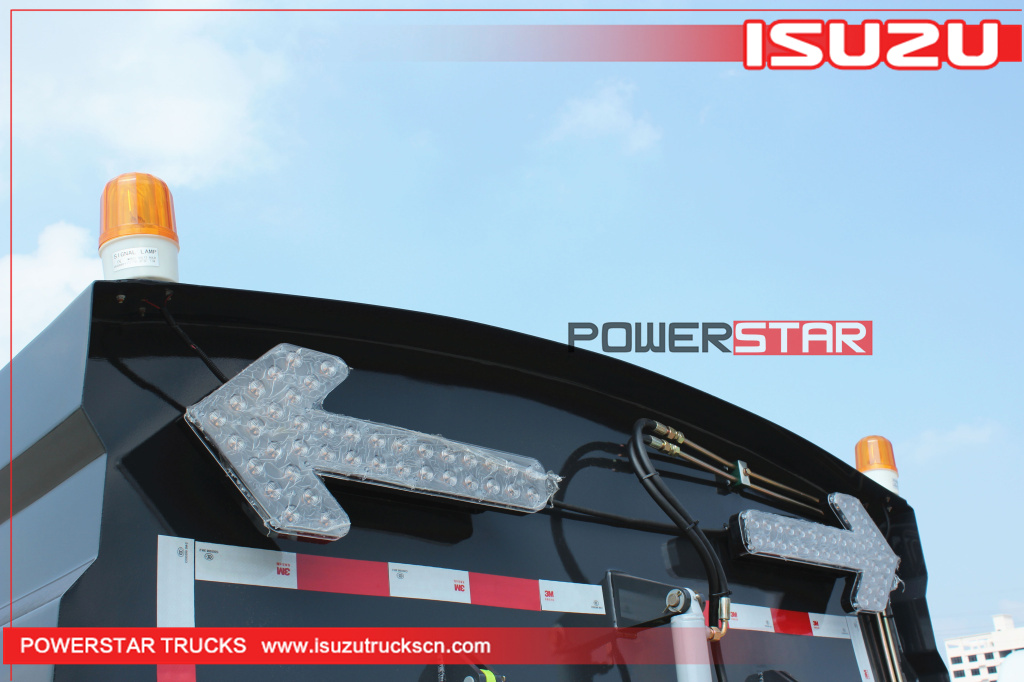

All standard accessories: Back-up alarm,Ladder, warning lights, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** High-pressure water jetting system.

** Square body or ARC body.







POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER


---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.

Powerstar truck inspection team

 Working Principles of Garbage Compactor

Technical drawing for Isuzu NPR Refuse compactor (Garbage compactor truck)

Different bin optional:


 bin hopper for garbage compactor truck

  bin hopper for garbage compactor truck

 bin hopper for garbage compactor truck    bin hopper for garbage compactor truck

POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER



---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.

 parts supply by powerstar trucks

POWERSTAR TRUCKS SPARE PARTS AND TOOLS

 Operation Manual  Chassis parts    Maintenance Tools



POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER



---- 15 years experiences Design & Export.

---- 100% customer made trucks.

---- Fast delivery assurance.



workshop of powerstar trucks



POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER



---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...


POWERSTAR TRUCKS EXPORT DOCUMETNS FOR ISUZU TRUCKS



POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER


---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely


POWERSTAR TRUCK FOR EXPORT


POWERSTAR TRUCKS ISUZU TRUCKS SUPPLIER



---- Quickly ship to worldwide.

---- Color and LOGO can be wished.


Isuzu garbage trucks instore by powerstar trucks
