Product Detail

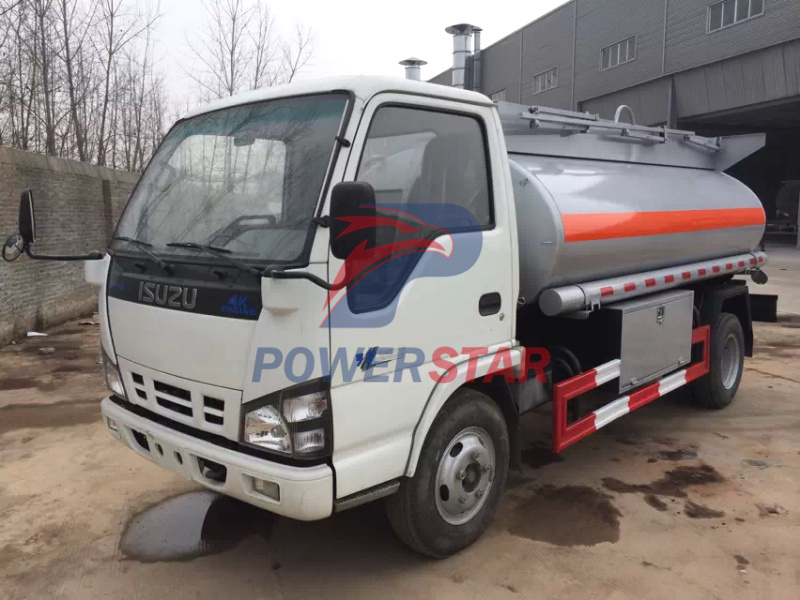

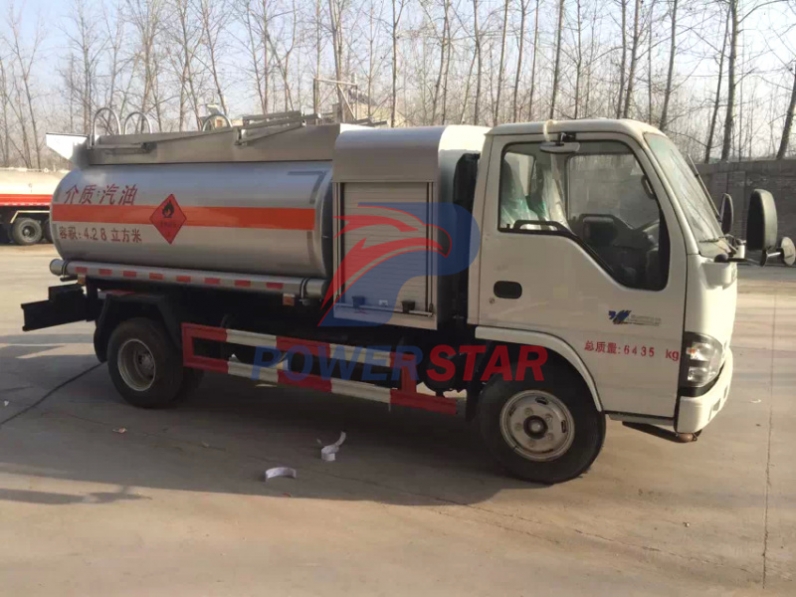

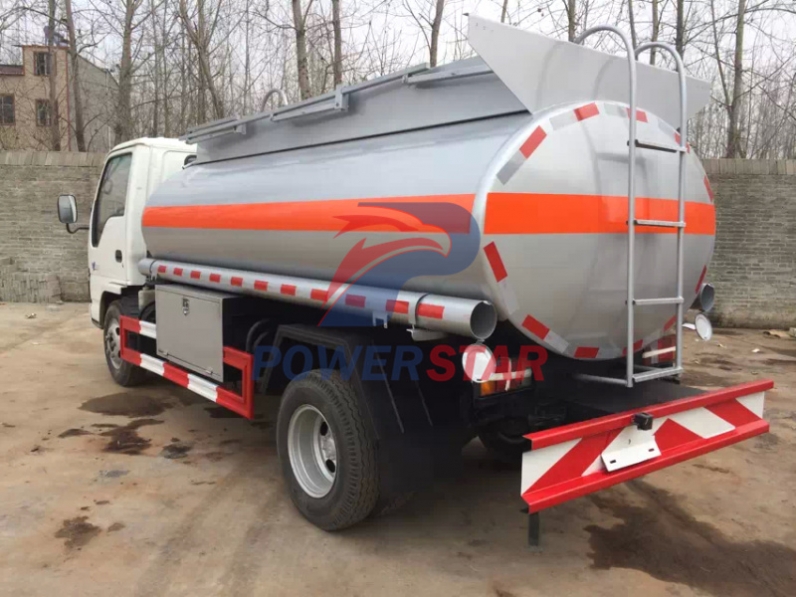

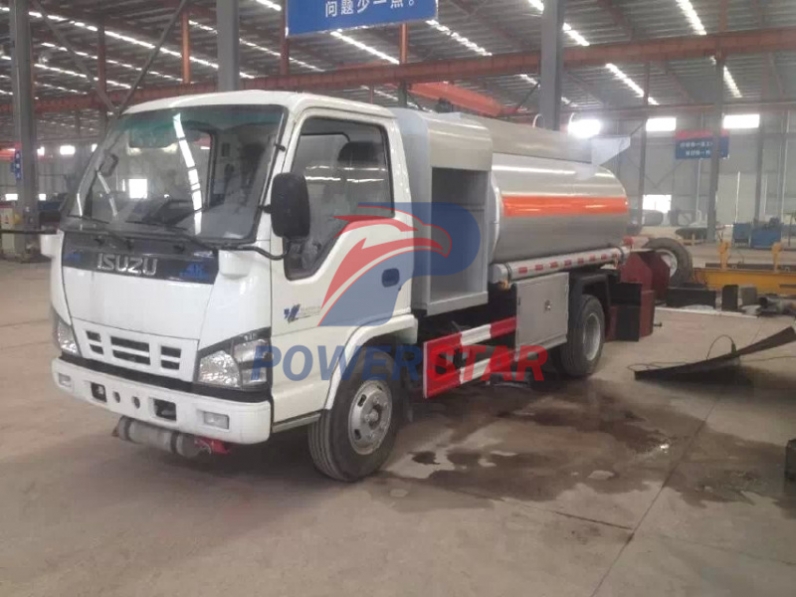

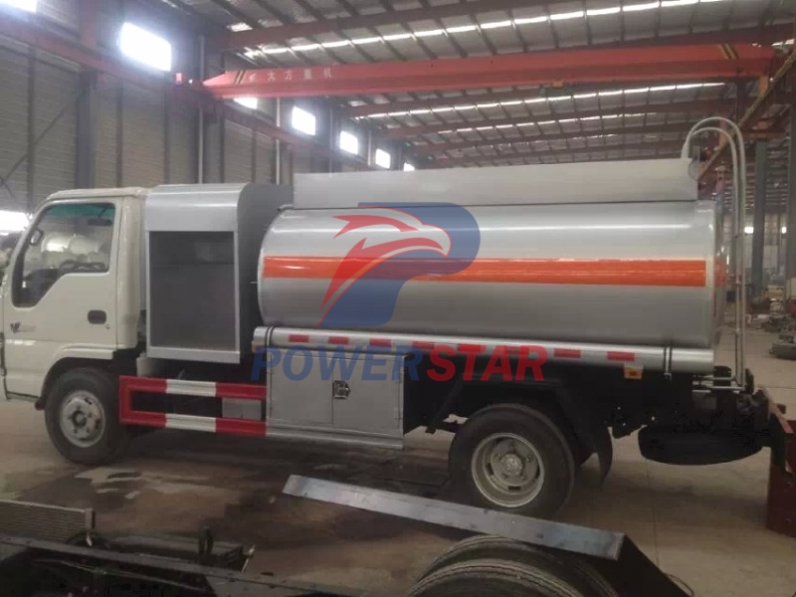

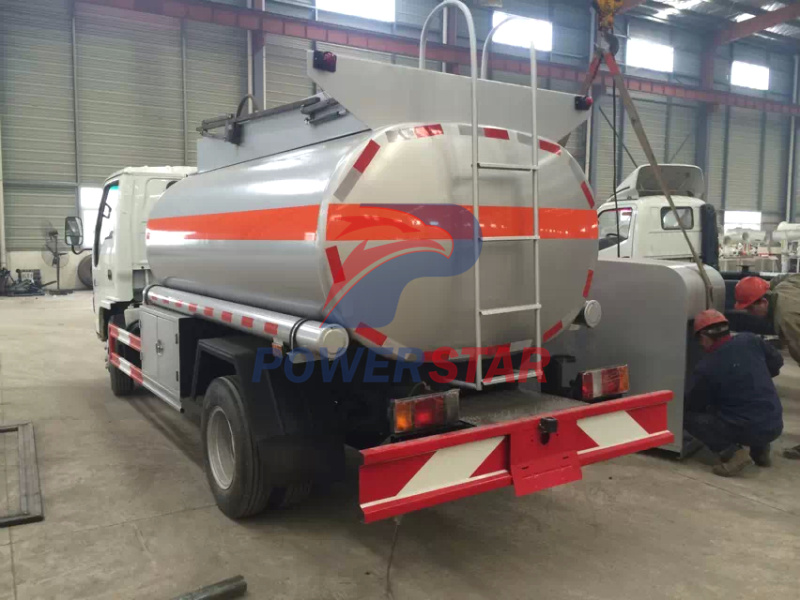

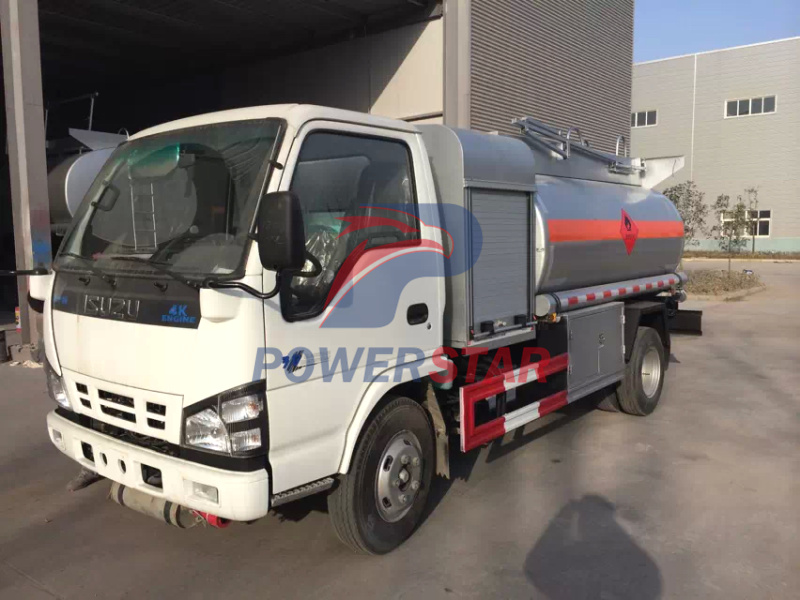

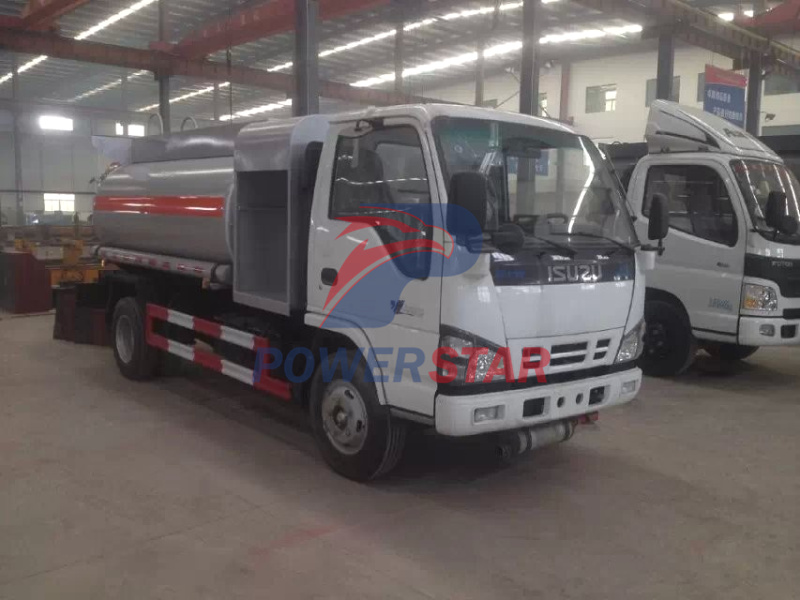

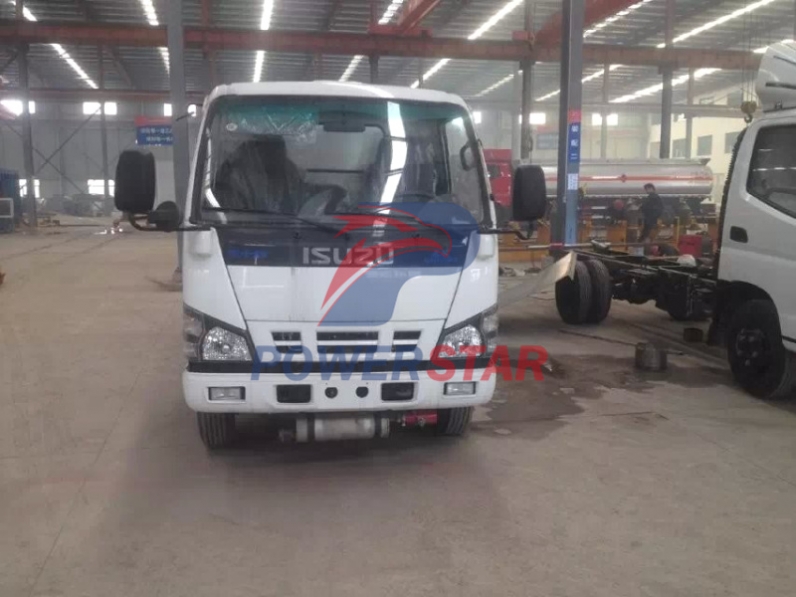

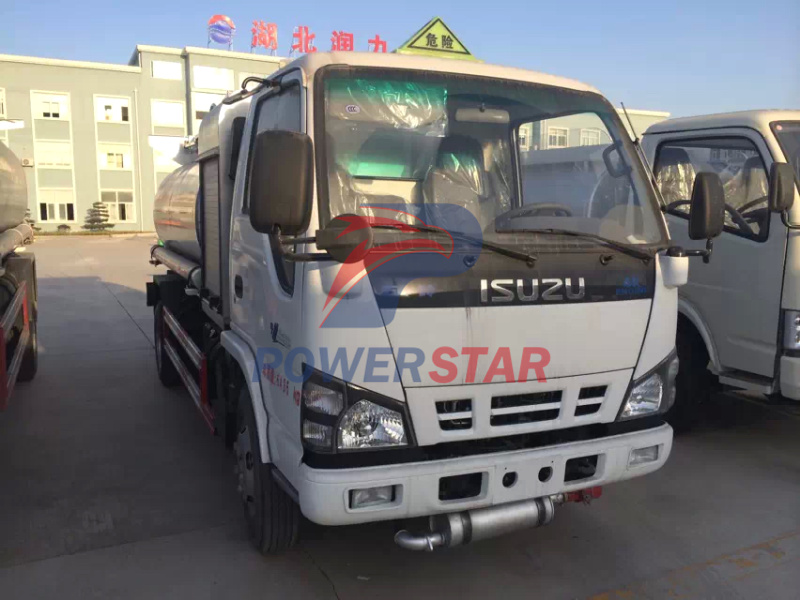

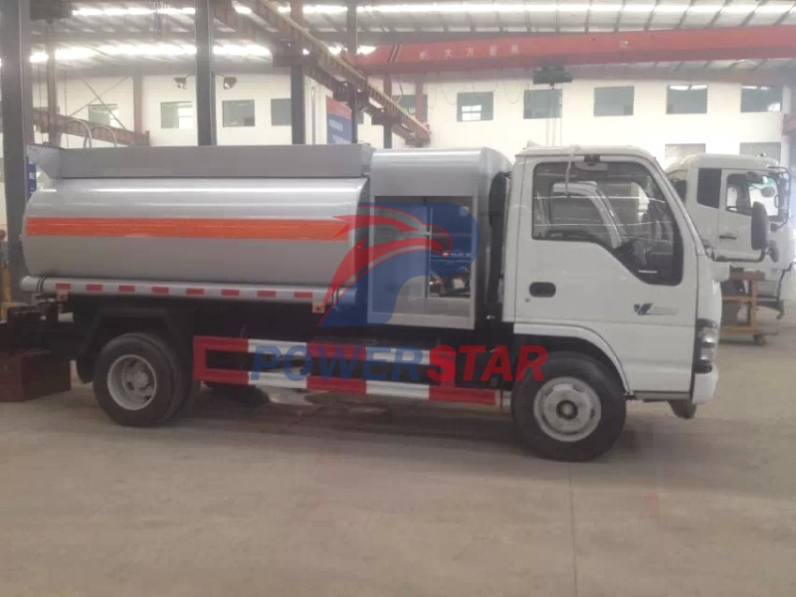

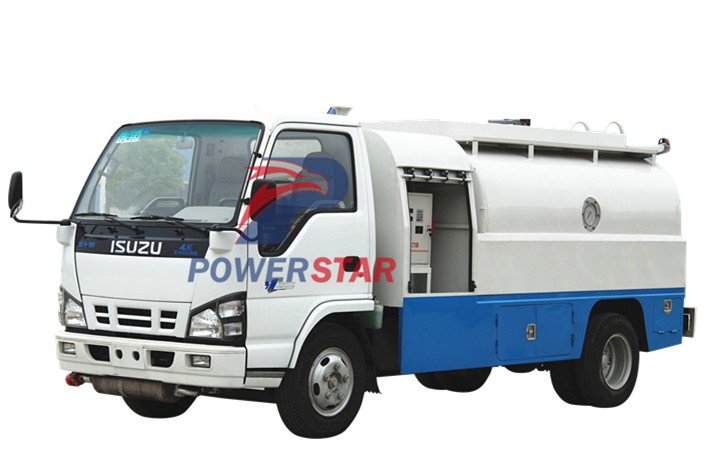

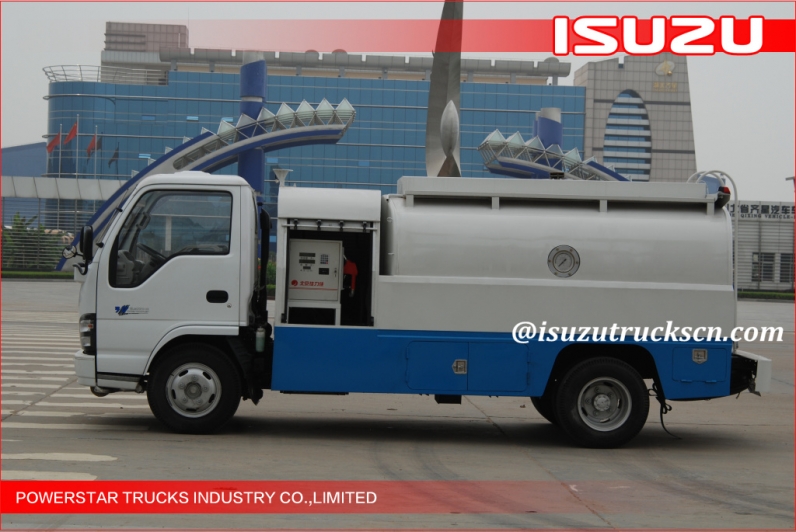

4000L Isuzu Fiscal Refuel Tank Truck for Gasoline/Light Diesel Delivery
Details
Custom Made Isuzu NKR 4cbm Oil Fuel Tank Truck for Philippines
Basic Description
ISUZU oil tank truck is a special purpose vehicle used for the storage and transport of various oil derivatives, such as gasoline, diesel, crude oil, lubricating oil and coal tar oil. Depending on different purposes and using environments, the refueling tank truck can achieve a variety of functions, such as refueling, oil transport, oil absorbing, oil pumping, oil splitting, charging and storing, etc.
Key Features
ISUZU NKR Chassis, Durable & Performance.
Tanker between 3,000 Liters and 25,000 Liters
Tank material can be Carbon steel, Aluminum ally or Stainless steel
Fuel Dispenser, Flow meter, Level gauage can be optional
POWERSTAR 20 years’ experience on Fuel/oil tank truck exporting.
ISUZU Fuel truck Technical drawings:
The Isuzu fuel tank transportation series, also called as ISUZU Fuel Tank Truck ELF 5CBM Fuel Truck, Philippines Isuzu Diesel Oil Tank Fuel Tanker Trucks for Sale, Fuel tank Isuzu Exported to UAE Fuel Tank Transport Truck, ELF ISUZU 4X2 8000liters Diesel Engine Oil Fuel Tank Truck

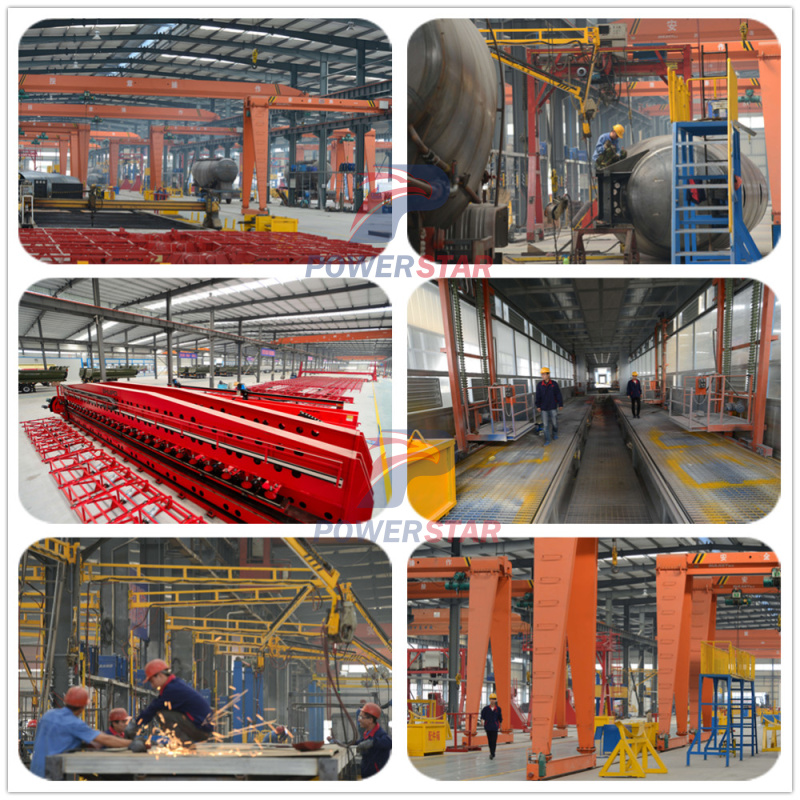

Huge experience on tank design and manufacturing
Quickly delivery the truck, and ship to worldwide with safety
Easy use and long service life
Fuel Tank Body Work:
Optional Equipment of ISUZU Fuel Tanker Truck
 |
 |
 |
 |
|||
| Computer Fuel Dispenser | API Adaptor Valve | Bottom Valve | Manhole Cover | |||
 |
 |
 |
 |
|||
| Ball Valve | Three Ways Set Ball Valve | Level Gauge | Oil and Gas Recovery Valve |
Main specifications
|
PT5070GJY |
||
|
Driving Type |
4x2 (Left hand drive) |
|
|
Wheelbase |
3360 mm |
|
|
Engine |
88 kw (120hp) |
|
|
Tyre |
7.00-16 |
|
|
Tank |
Material: |
Carbon steel(Q345) |
|
Shell Body |
5 mm nominal thickness |
|
|
Head |
6 mm nominal thickness |
|
|
Baffles |
3mm nominal thick, wave shape, four pieces with Ø 500mm service port |
|
|
Tank shape |
Ellipse |
|
|
Capacity |
Full capacity 4000L |
|
|
Compartment |
No |
|
|
Shell Finish |
Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement. |
|
|
Testing Pressure |
36kPa, Water pressure test |
|
|
Tank Fittings |
Top inlet port |
2pieces |
|
Manhole Cover |
Aluminum alloy, 20” self-latching manhole cover, with air-van. |
|
|
Outlet port: |
One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector. |
|
|
Pipe box: |

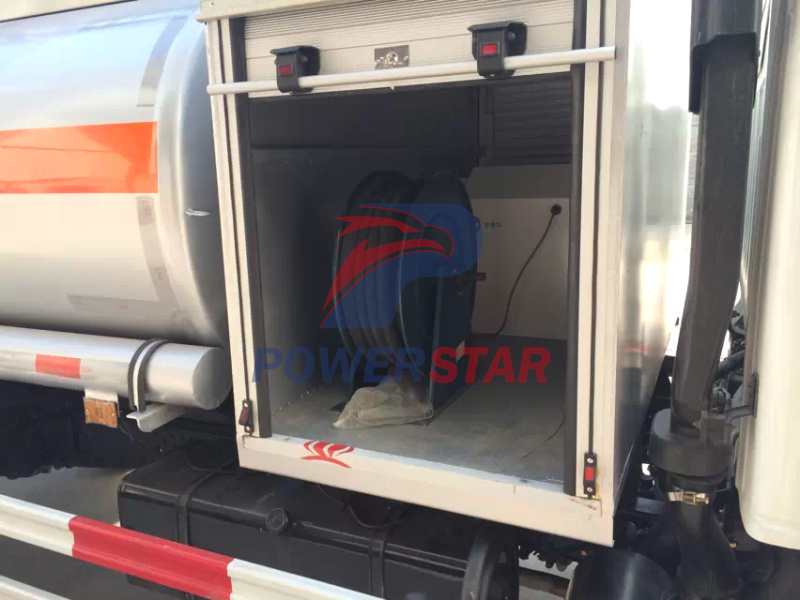

It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m) |
|
|
Anti –Static System: |
Static electricity plate , copper plate and earth cable reel |
|
|
Tank Accessories |
Ladder: |
Stainless Steel ladder fixed at rear of tank |
|
Walkway Platform: |
It fixed on the top of tank with anti – skid surface treatment. |
|
|
Handrail: |
No |
|
|
Fire Extinguisher Housing: |
2 units, suitable for 4 kg’s fire extinguisher |
|
|
Pump Device |
Yes |
|
|
Flow meter |
Yes |
|
|
Tool box |
Small box |
|
|
Color |
As option |
|

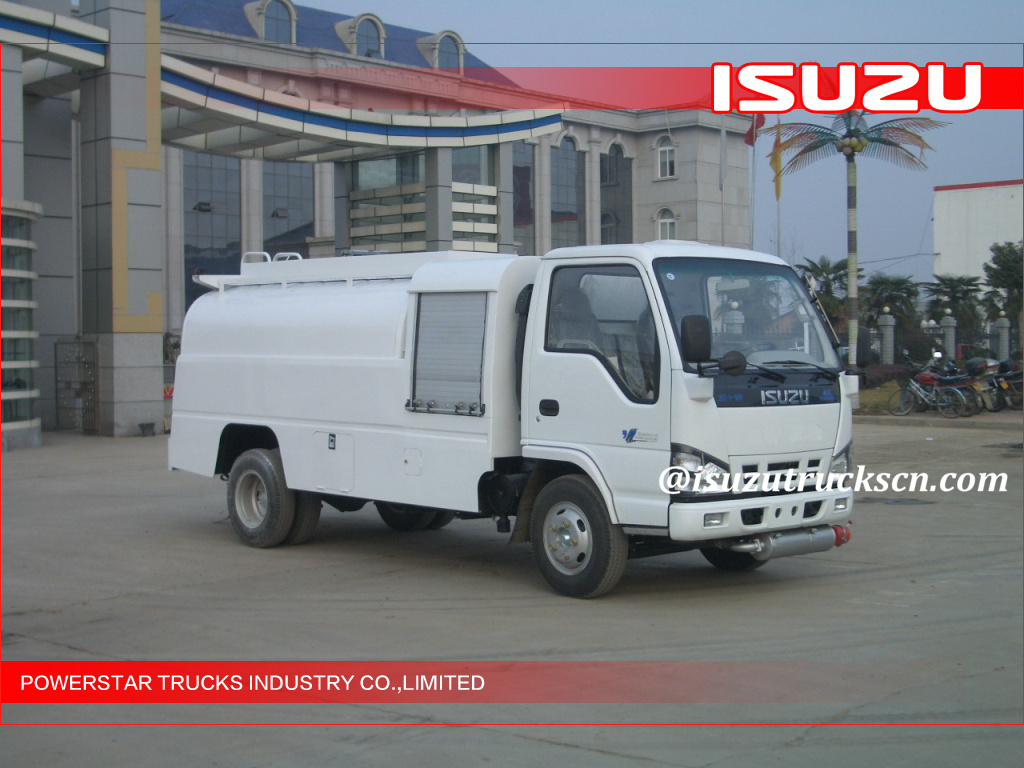

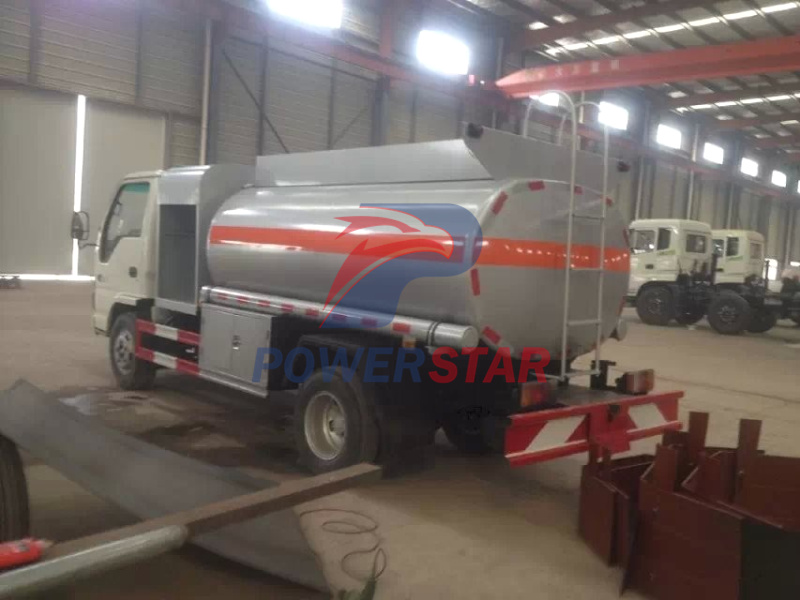

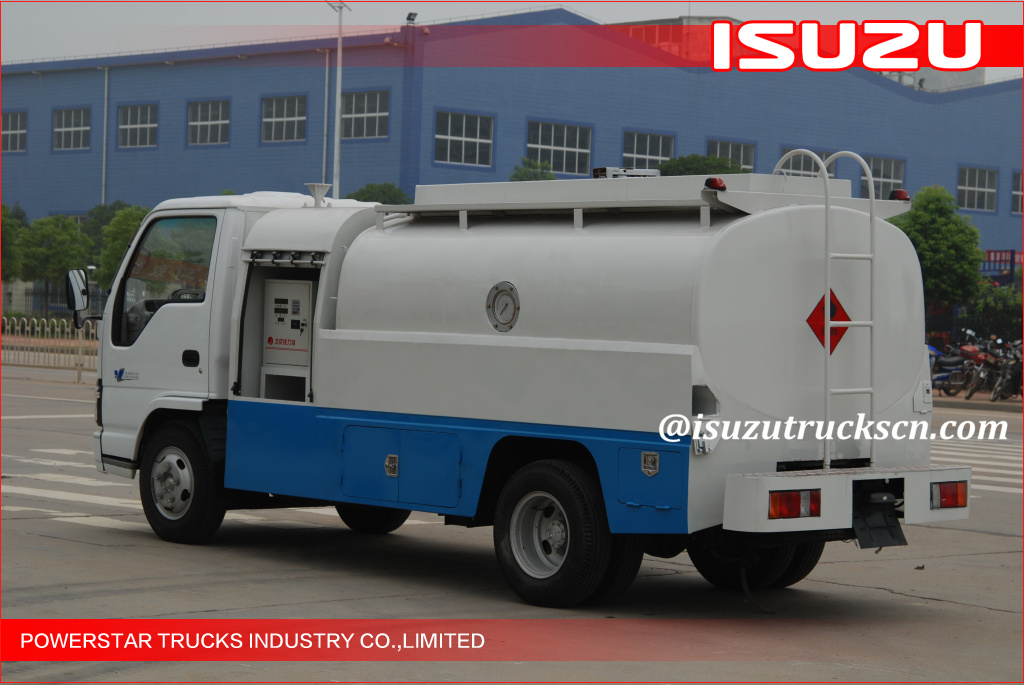

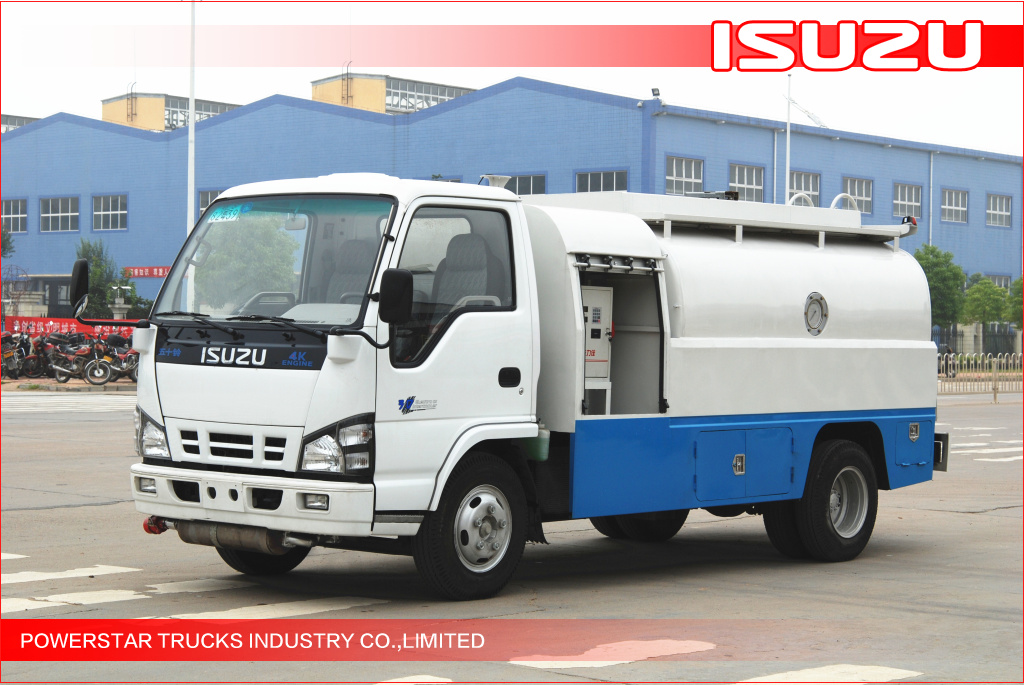

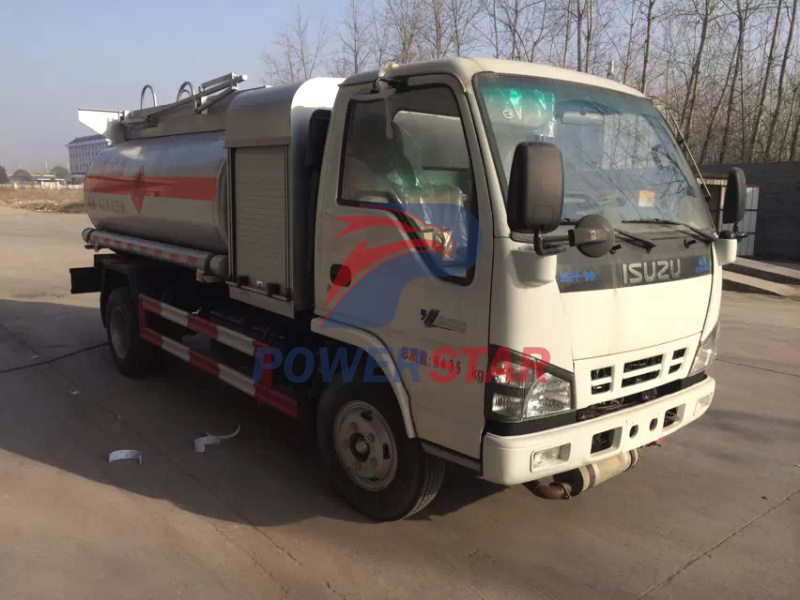

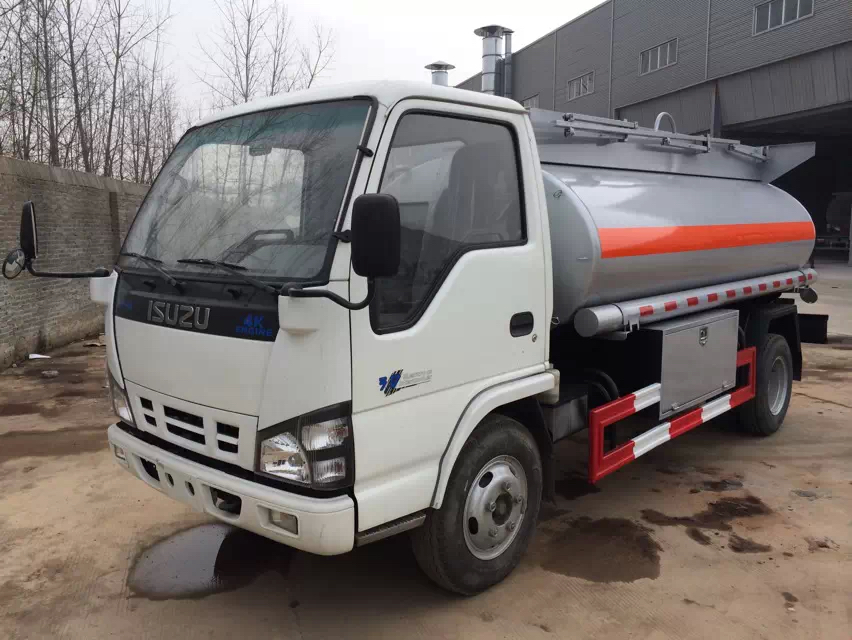

Recently Built Fuel Tank Trucks:
