3cbm,4cbm 6wheels ELF FTR FVR Isuzu Concrete Truck Mixers

good quality 3cbm 6wheels ELF FTR FVR Isuzu Concrete Truck Mixers

Details

3cbm Isuzu Concrete Truck Mixers

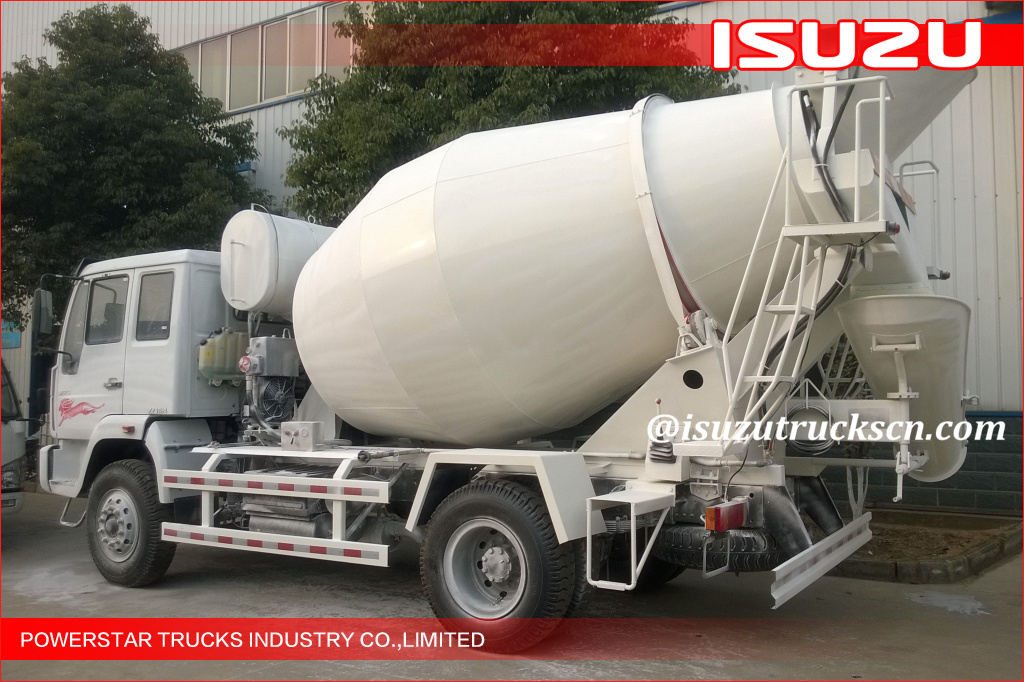

3cbm 4cbm 5cbm Isuzu Concrete Truck Mixers for cement transport



The concrete mixer is specially designed for mixing and carrying the concrete to the construction worksites. All cement mixer trucks are constructed with high-tensile steel for endurance and resistance to friction, it’s very easy to operation.



Key Features:

  World-class ISUZU heavy duty Chassis, High power and Fuel efficiency, Reliability, Uptime

  The hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;

  Pneumatic Water Supple System. The pressure is provided by the air tank on the chassis with pressure protection devices .The Water inlet connector fits for both normal water pipe and fire fitting.

  New technology T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance;

  Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;

  The optimized design of mixing drum ensure the concrete residue ratio is less than 1%;

  Colors can be customized.

  Mixer coverage can be customized.   3cbm, 5cbm,6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm.



Main specifications:

Model

PT5100GJB -3M3

Driving Type

4x2    (Left hand drive)

Max. External Diameter of Drum

Φ1616

Length of the Drum

3210

Geometric Volume of Drum

4.69

Mixing Capacity

3.31

Material of drum & blades

Q345MN/B520JJ

Inclination Angle for Drum

15

Padding rate

0.7069

Residual Rate

0.16%

Charging Speed

≥3

Discharging Speed

≥1.2

Mixing Speed

0-14

Slump Range

50-220

Capacity for Water Tank

300L

Water Supply Pressure

0.4

A Upper-fixing Length

4520

B Subframe Length

3820

C Chute Position

700

D Center of Gravity when Fully Load

1790

E Hopper Height

2040

F Upper-fixing Height

2050

Upper-fixing Width

2100

Overall Dimension(L×W×H)

4520×2100×2040

Weight

2700

Color

White   (Any color & logos up to wish)
