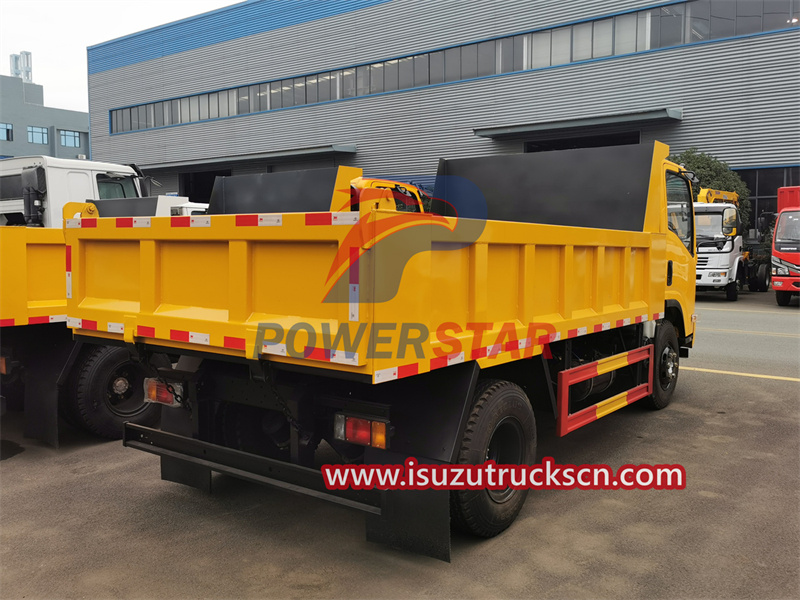

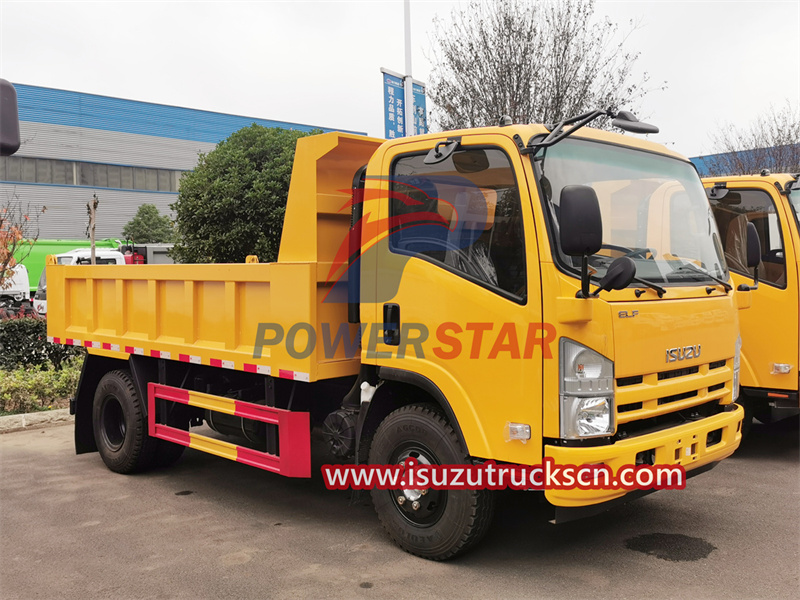

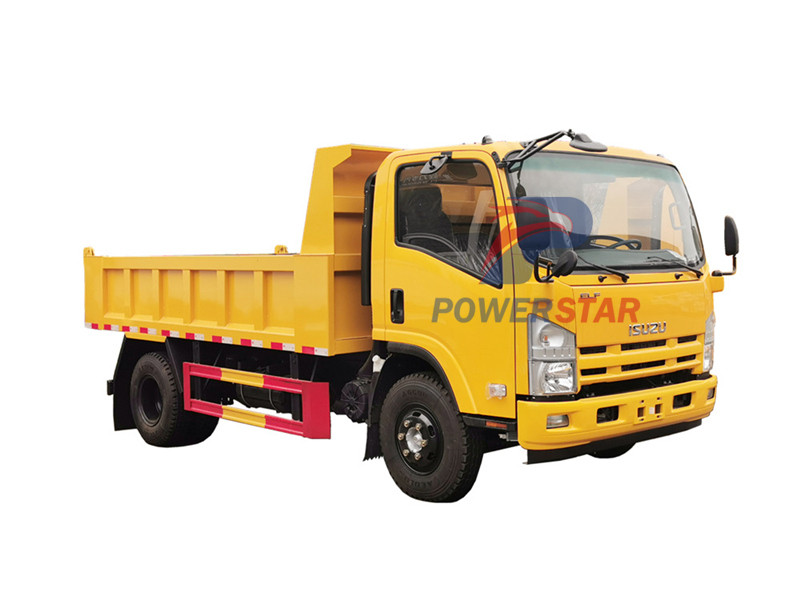

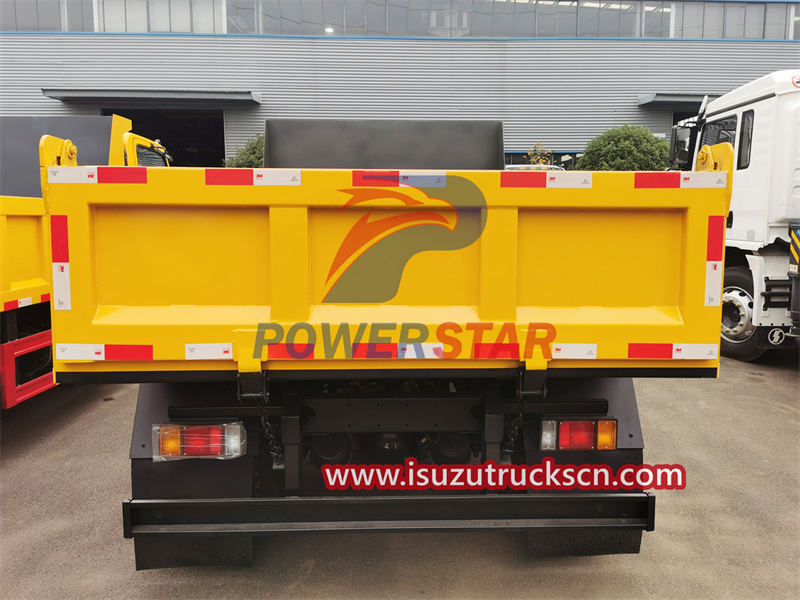

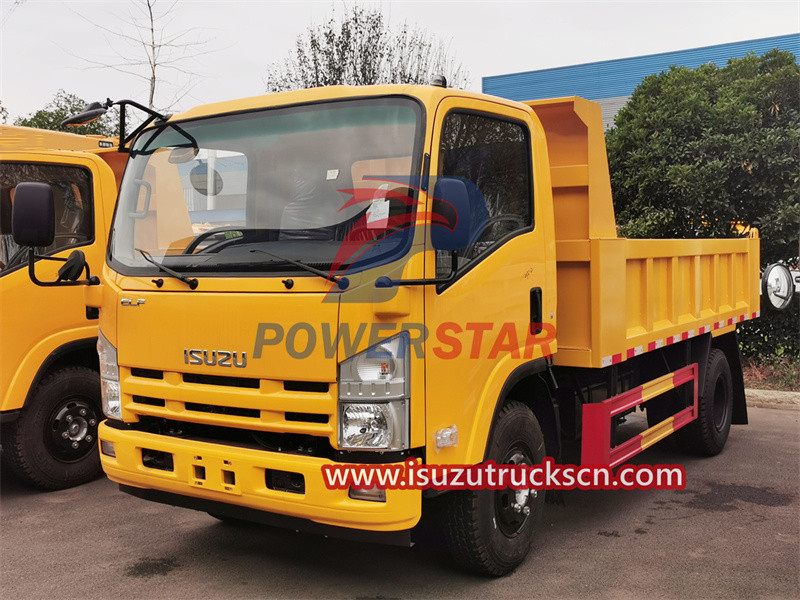

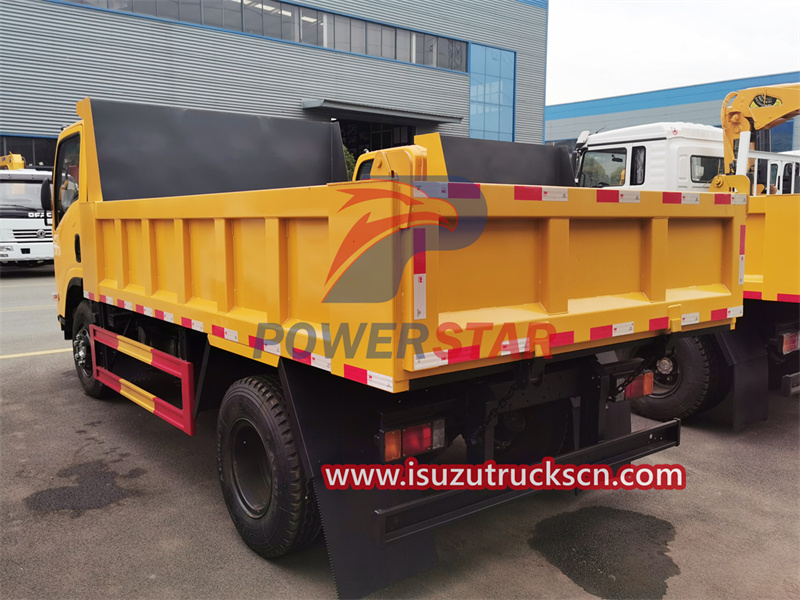

Isuzu NPR 4-5tons tipper truck uses the ISUZU NPR chassis model, which can be used for left/right drive and single-row cockpit. The maximum no-load speed can reach 95 kilometers/hour, and the maximum gradeability is 30%. Equipped with 4KH1 engine, vertical/in-line/four-stroke/four-cylinder/water-cooled/supercharged and intercooled. Paired with ISUZU MLD transmission and power steering, flexible control can be achieved. It comes standard with a flat frame, hydraulic system, unloading plate, safety protection device, rotating light, work light, handlebar, fender and rubber fender, etc.
Work capacity:
4-5 tonsTruck model:
ISUZU NPREngine power:
190HPEngine type:
4KH1-TC51Axle drive:
4x2Gear box:
ISUZU MLDRemarks:

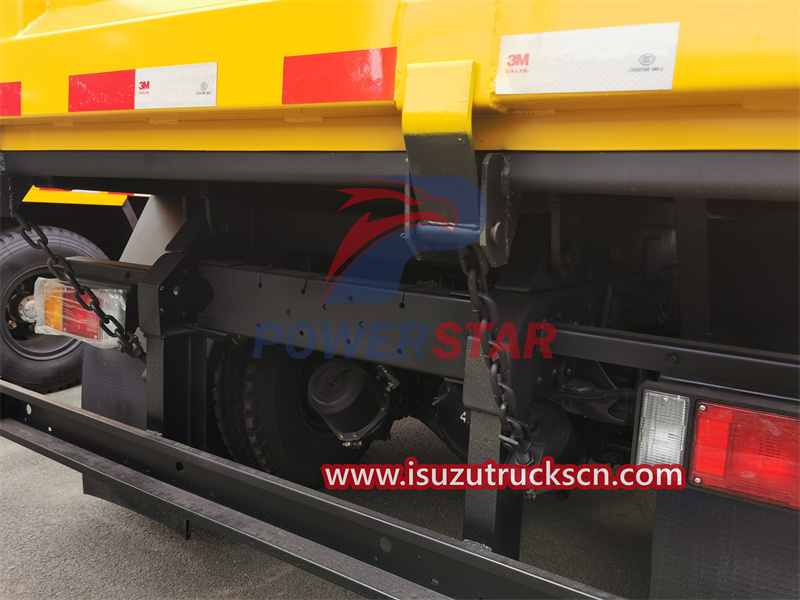

High-strength steelIsuzu medium-duty NPR 5tons dump truck has a solid frame and reliable suspension system to ensure that it can carry heavy loads stably during transportation. Its body is made of high-strength materials with excellent durability and damage resistance, and can withstand the test of various harsh working environments. In addition, the vehicle is equipped with a powerful engine and efficient transmission system, allowing it to drive smoothly on complex road conditions, thus improving work efficiency and safety. It is equipped with a reliable unloading device, which can control the lifting and dumping of the cargo box through the operation console, so that the cargo can be unloaded quickly and safely. This self-unloading function can greatly improve the loading and unloading speed and efficiency, save labor costs, reduce working hours, and has important economic value for logistics companies and construction sites.
Technical Parameters:
|
Chassis model |
ISUZU NPR |
|
|
Cabin model |
Left/Right hand drive,single Cabin |
|
|
Emission Standard |
Euro 5 |
|
|
Whole vehicle main dimensions |
Overall dimensions (L×W×H)(mm) |
5800×2350×2480 |
|
Inner dimensions of the cargo body (L×W×H)(mm) |
3500×2200×450 |
|
|
Driving type |
4*2 |
|
|
Wheel base (mm) |
3360 |
|
|
Weight data |
Curb weight(kg) |
3810 |
|
Rated payload(kg |
5000 |
|
|
seating capacity |
3 |
|
|
Whole vehicle main performance |
Max. speed(no load)(km/h) |
95 |
|
Max. gradeability(°) |
30% |
|
|
Engine |
Model |
4KH1 |
|
type |
vertical/in-line/four stroke/four cylinder/water cooling/supercharged intercooler/ |
|
|
Displacement(L) |
2.77L |
|
|
Rated Power(kw/rpm) |
76/3600 |
|
|
Gearbox |
Modle |
ISUZU MLD |
|
Steering gear |
power steering |
|
|
tire type/number |
235/75R17.5 |
|
|
Brake system |
Service brake |
Air brake |
|
Parking brake |
Central drum type braking |
|
|
Rate Voltage(V) |
12 |
|
|
Capacity of fuel tank(L) |
100L |
|
|
Factory Standard |
Flat Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|

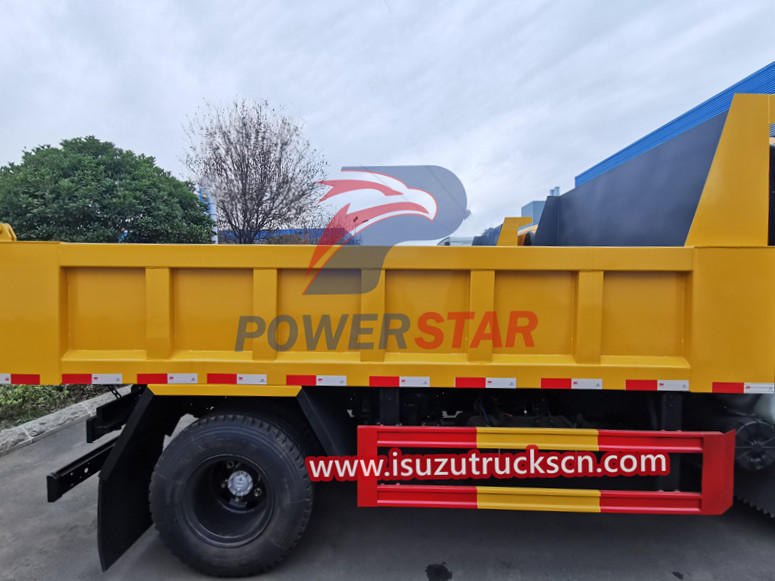

The main materials suitable for the Isuzu dump truck upper body are as follows:
1.High-strength steel: High-strength steel is one of the commonly used box materials for dump trucks. It has extremely high strength and durability and can withstand large load pressures and external impacts, ensuring the stability and safety of the box.
2.Aluminum alloy: Aluminum alloy is a lightweight and high-strength material with good corrosion resistance and durability, and is suitable for the manufacture of dump truck bodies. The use of aluminum alloy can reduce the weight of the vehicle and improve the vehicle's load capacity and fuel economy.
3.Composite materials: Some dump trucks also use composite materials to make their boxes. Composite materials are composed of layers of different materials, such as glass fiber reinforced plastics. They have high strength and lightweight characteristics, as well as good corrosion resistance and durability.
4.Iron plate: Some smaller dump trucks may use iron plate as the box material. Iron plates have a simple structure, low cost, and a certain degree of durability and strength, making them suitable for some light-load and low-demand scenarios.
20 Years experience Isuzu Dump Truck /Tipper Trucks manufacturer, Factory direct sales, high quality &low price, truck customized. Isuzu dump truck models start from 3000kgs and go up to 25,000kgs.The delivery time for a Isuzu 3-ton dump truck in Cambodia can vary depending on the supplier and the specific circumstances of the order. However, based on the available information, the delivery time for such trucks can range from 7 days for trucks in stock to 10-18 working days to the delivery port for other options.
