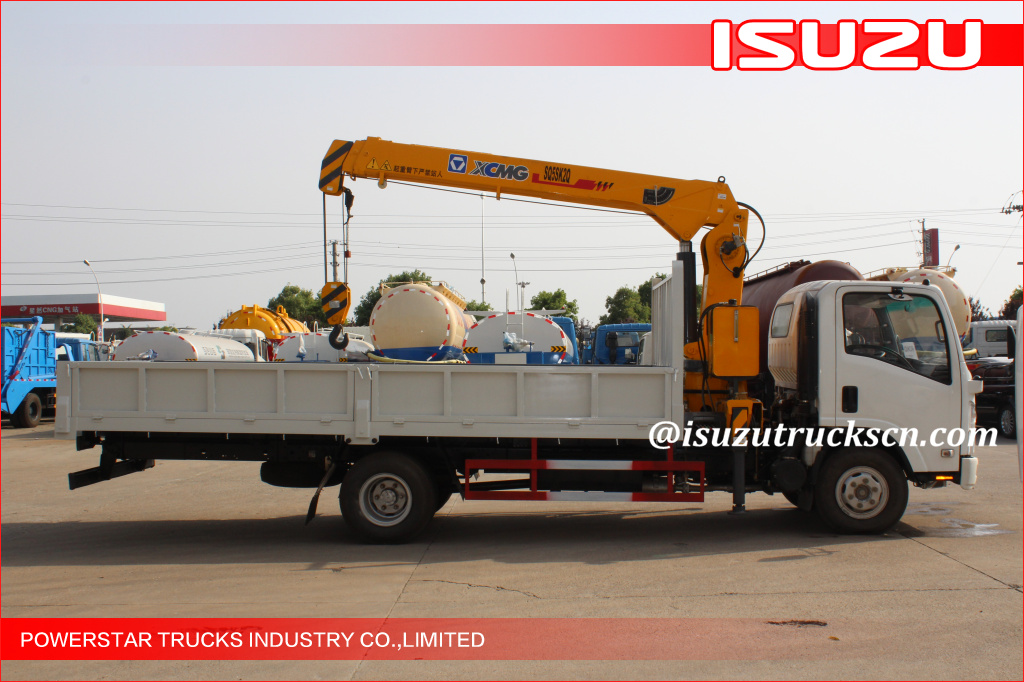

5tons Isuzu ELF Knuckle Boom Truck Mounted Crane for construction

Famous Best Quality ISUZU 4x2 5 Ton Truck Mounted Crane Manufacturer

Details

5tons Isuzu ELF Knuckle Boom Truck Mounted Crane for construction

5tons Isuzu ELF Knuckle Boom Truck Mounted Crane for construction



Durable Construction Knuckle Boom Truck Mounted Crane, 5 Ton Truck Loader Crane



  1. Name: Knuckled boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
  2. Max Lifting Capacity: 5 ton
  3. Max Lifting Moment: 10.5 t.m
  4. Max Oil Flow of Hydraulic System: 25 L/min
  5. Max. Lifting height: 11meters
  6. Brand: XCMG
  7. Crane Weight: 2035 kg
  8. Oil Tank Capacity: 90 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
  10. Application: used in commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.


Knuckle boom crane SQ5ZK2 is used for lifting 5tons, moment is 10.5T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.


If you want to know more information about ELF Crane Trucks,welcome to view more.



Specifications:



Model

SQ5ZK2

Unit

Max Lifting Moment

10.5

t.m

Max Lifting Capacity

5000

kg

Recommend Power Needed At Recommend Oil Flow

18

kw

Max Oil Flow of Hydraulic System

25

L/min

Rated Pressure Of Hydraulic System

28

MPa

Oil Tank Capacity

90

L

Rotation Angle

370

.°

Crane Weight

2035

kg

Installation Space

1100

mm

Choice of Chassis

ISUZU
