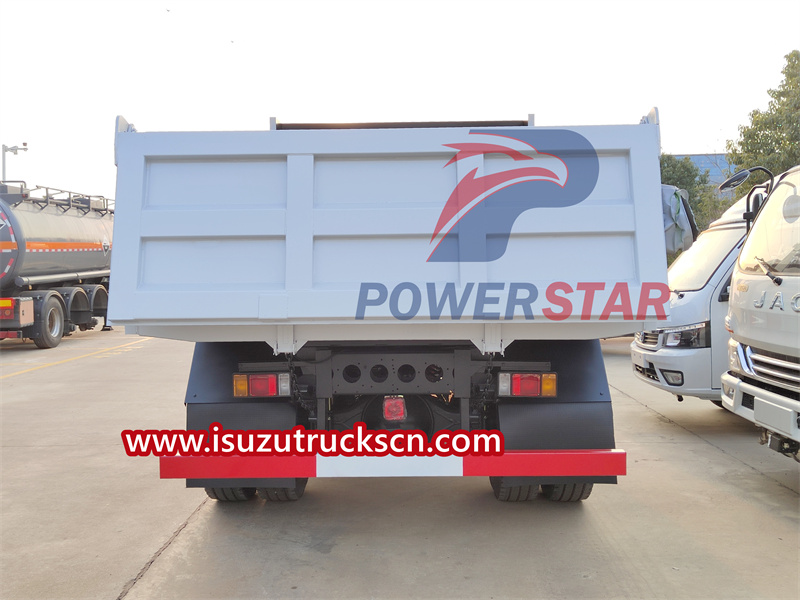

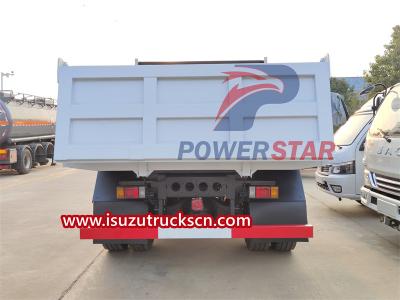

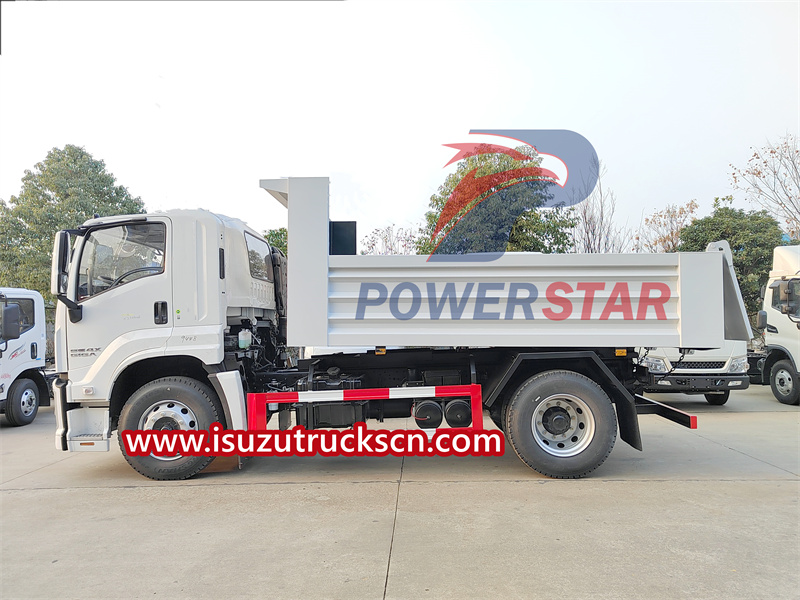

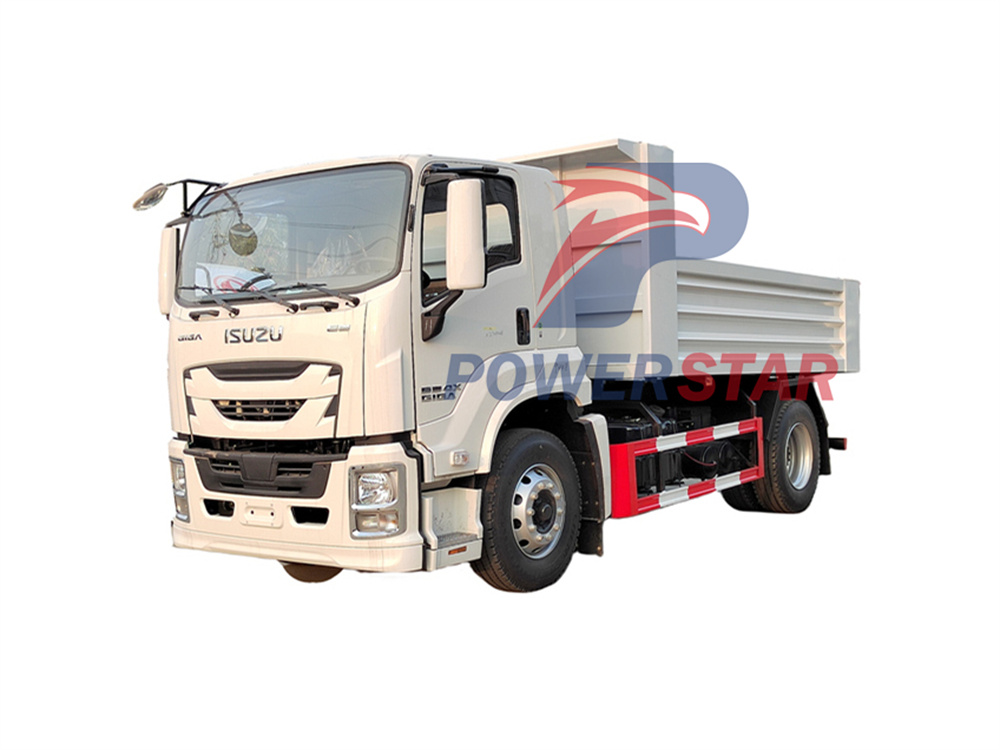

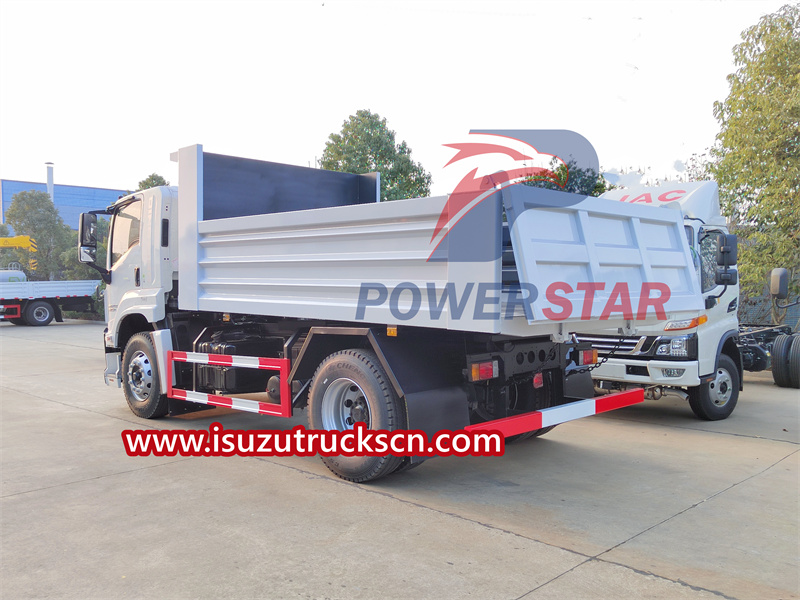

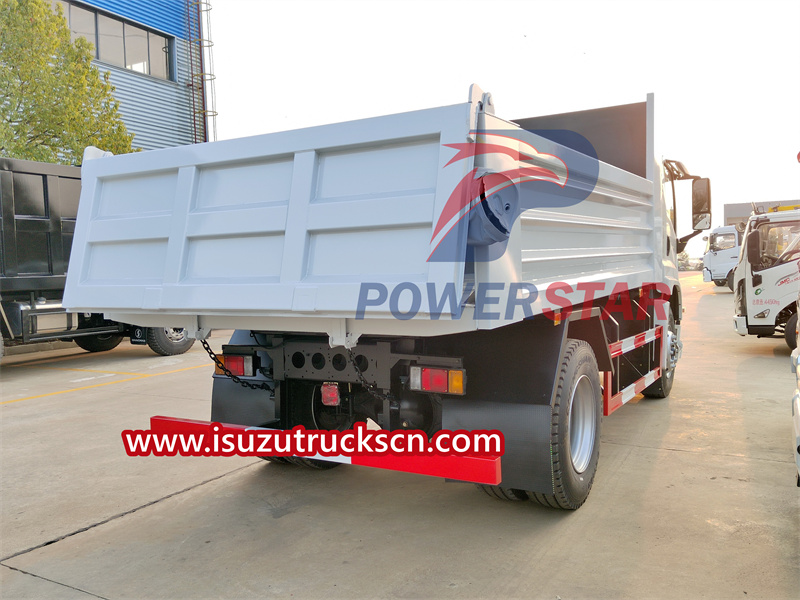

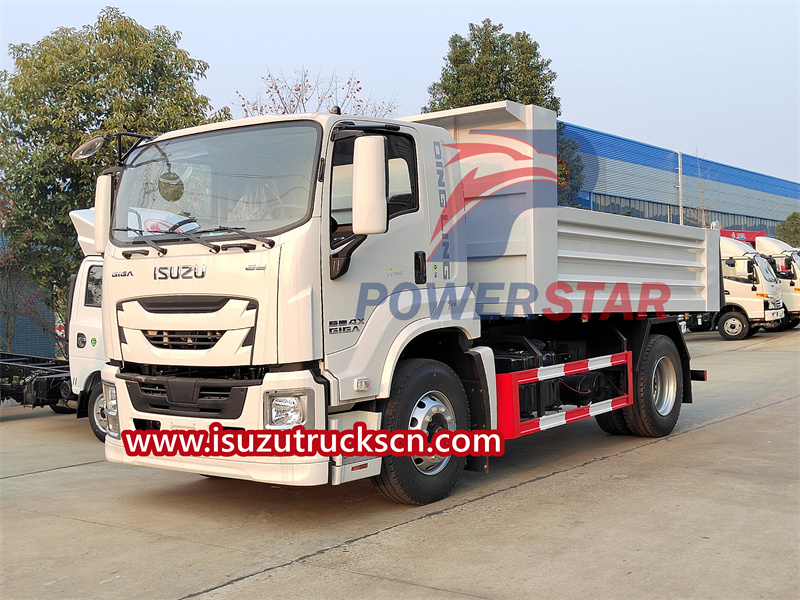

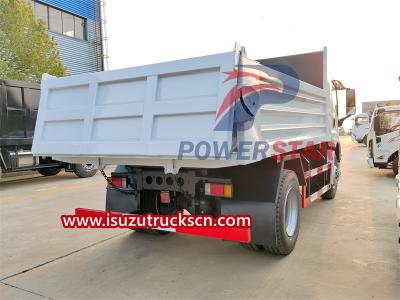

The Isuzu GIGA garbage dump truck is a powerful truck suitable for sanitation work such as garbage dumping. The car is equipped with two air suspension seats and a bed to provide a comfortable driving environment. The top speed is 95 kilometers per hour. The car is equipped with a 6HK1-TCG61 engine, which is a vertical, water-cooled, six-stroke, turbocharged and intercooled engine,the rated power is 240 horsepower. In terms of dump performance, the vehicle has a loading capacity of 15 tons and uses a dump box made of high-performance carbon materials.
Work capacity:
15 tonsTruck model:
PT3050DWYEngine power:
240hpEngine type:
Isuzu 6HK1-TCG61Axle drive:
4x2Gear box:
Fast 8 speed levers with 1 reverseRemarks:
garbage dumperThe Isuzu GIGA garbage dump truck is a powerful and stable truck designed for garbage dumping and sanitation work. It is equipped with a comfortable cockpit with two air suspension seats and a bed, providing the driver with a comfortable working environment and good handling and reliability. This Isuzu GIGA garbage dump truck has a loading capacity of 15 tons. The dump box is made of high-performance carbon material, which is strong and durable and can meet the needs of various sanitation work. The control system adopts hydraulic technology, which is easy and convenient to operate.
Applications:
ISUZU GIGA garbage tipper trucks(also called Isuzu GIGA 6 Wheel tipper, Isuzu GIGA garbage dump truck, Japan ISUZU Rear dumper trucks, Brand new Isuzu dump trucks ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.
Powerstar ISUZU dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.
Key Features:
---- ISUZU GIGA heavy duty chassis, perfect performance
---- 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Virious types of tipper body are available.
Specifications:
|
Description |
Isuzu GIGA Garbage Dump Truck |
|
|
Item |
Powerstar dump truck |
|
|
Model |
Isuzu GIGA |
|
|
Cabin |

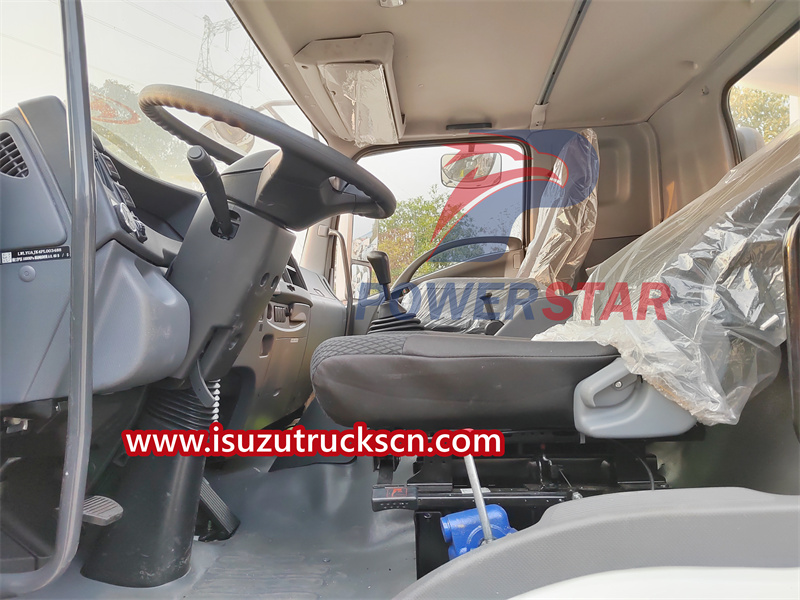

Two air suspension seats and one bed |
|
|
whole vehicle main
|
Overall dimensions (L*W*H)mm |
8600*2580*3450 mm |
|
Dimensions of dump body (L*W*H)mm |
5800*2400*1500 mm |
|
|
Driving type |
Left hand drive 4x2 |
|
|
Wheel base |
4500mm |
|
|
Weight data |
Gross weight (kg) |
34,000 |
|
Kerb weight(kg) |
15,440 |
|
|
Person in cab (persons) |
3 |
|
|
whole vehicle main |
Max.speed(km/h) |
105 |
|
Max.slope of climb(%) |
25 |
|
|
Min.turning radius (m) |
7.5 |
|
|
Engine |
Engine model |
6HK1-TCG61 |
|
Engine type |
Vertical, water-cooled, six-stroke, |
|
|
Emission standard |
Euro 5,6 |
|
|
Displacement (L) |
7.8L |
|
|
Rated power (KW) |
240hp |
|
|
Max torque (N.m/rpm) |
900N.M |
|
|
Steering gear type |
Power steering |
|
|
Brake system |
Service brake and boosting type |
Air brake |
|
Parking brake |
Central drum brake |
|
|
Auxiliary brake |
Air brake |
|
|
Tyre size |
295/80R22.5 |
|
|
Electric system |
Rated voltage |
24V |
|
Battery |
100Ah |
|
|
Dump Performance |
Loading Capacity |
15 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 6mm |
|
|
Rear/Side are 8mm |
||
|
Control System |
Hydraulic |
|
|
Discharging System |
Middle lifting device |
|
|
Lifting Time |
Tipping 45 degree |
|
|
Lowering Time |
35 s |
|
|
Tailgate |
25 s |
|
|
Drop side |
Auto release |
|
|
Painting |
Detachable |
|
|
Color & Logo |
Two primers,and one final paint coating |
|
|
Loading Capacity |
According to wish |
|
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|
As a professional Isuzu dump truck manufacturer, we can provide you with the following 5 points about the Isuzu GIGA garbage dump truck box material summary:
1. High-performance carbon material: The Isuzu GIGA garbage dump truck box is made of high-performance carbon material, which has excellent durability and strength and can withstand high-frequency use of garbage dumping and sanitation work.
2. Thickness design: The thickness of the front/side panels is 6 mm, and the thickness of the rear/side panels is 8 mm. This design can ensure the structural stability and durability of the box during work, effectively preventing wear and deformation.
3. Sturdy and durable: The dump box body is carefully designed and manufactured to have excellent sturdiness and durability. It can withstand the impact and pressure caused by heavy loads and harsh working environments, ensuring a long service life.
4. High-quality coating: The dump box body provides removable coating, which is sprayed with two layers of primer and one layer of topcoat. This sophisticated coating process increases the corrosion resistance and aesthetics of the dump box and provides additional protection.
5. Customizability: In addition to standard dump box materials, we can also customize according to customer needs and provide boxes of different materials and thicknesses to meet the requirements of different industries and working scenes.
