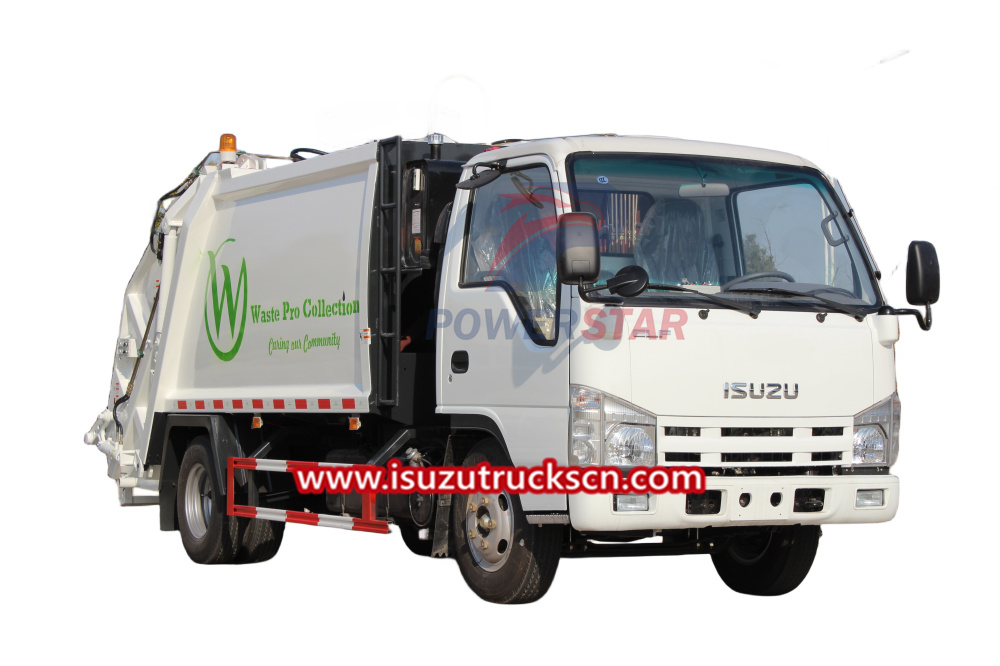

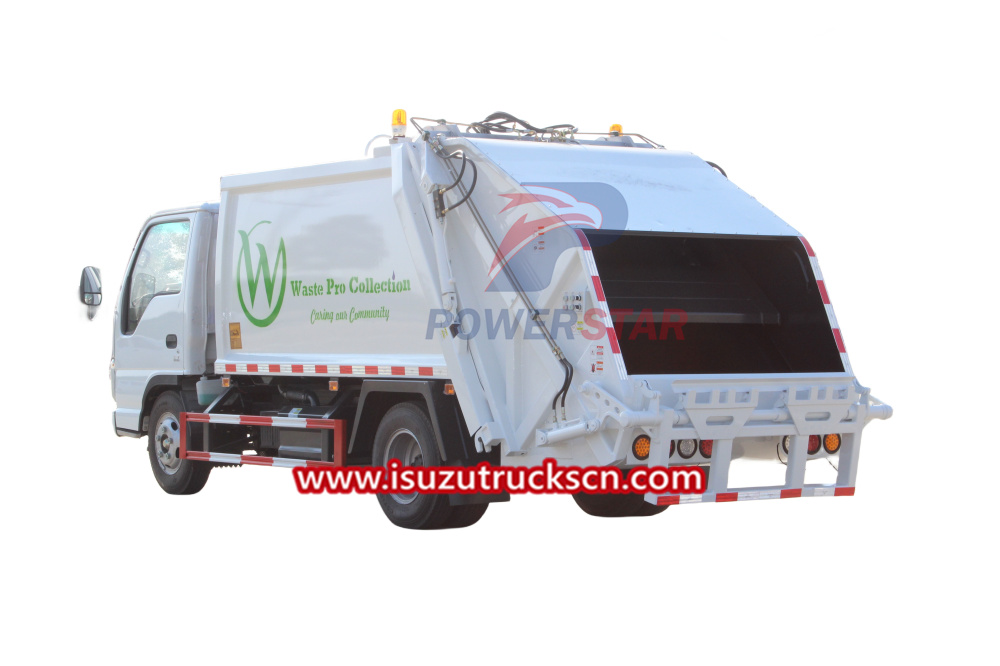

Compression Garbage Truck Isuzu 4 CBM

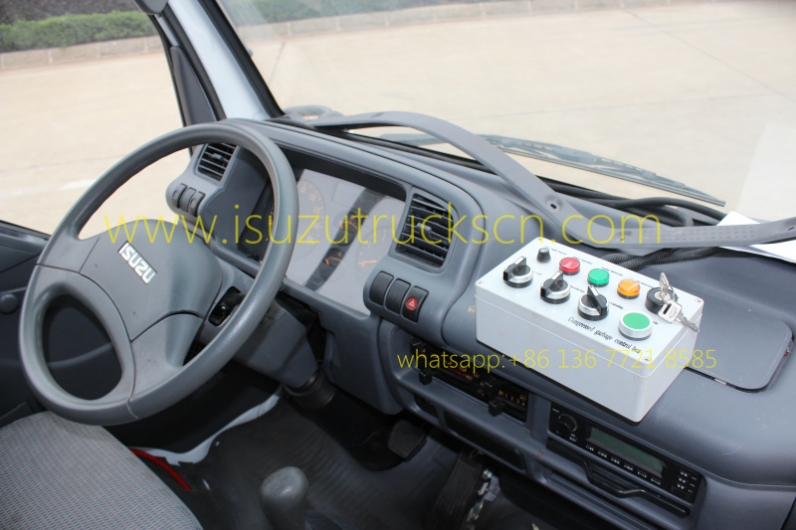

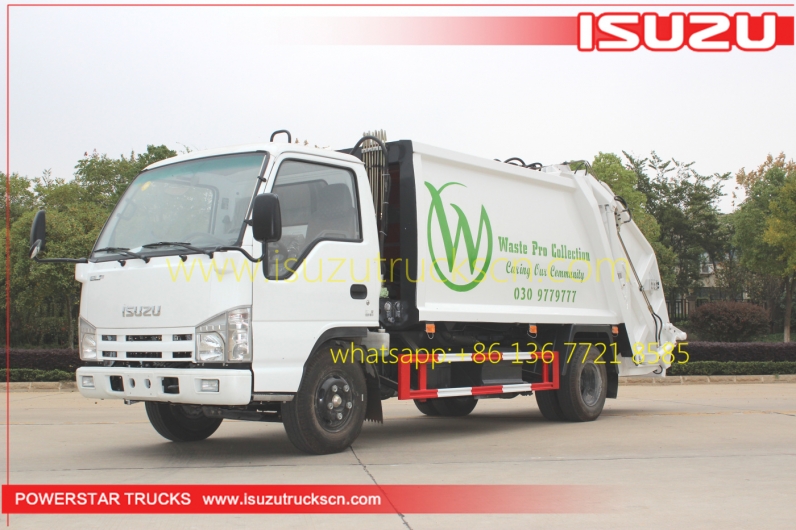

4000L hydraulic compressive garbage truck with 4CBM capacity

Details

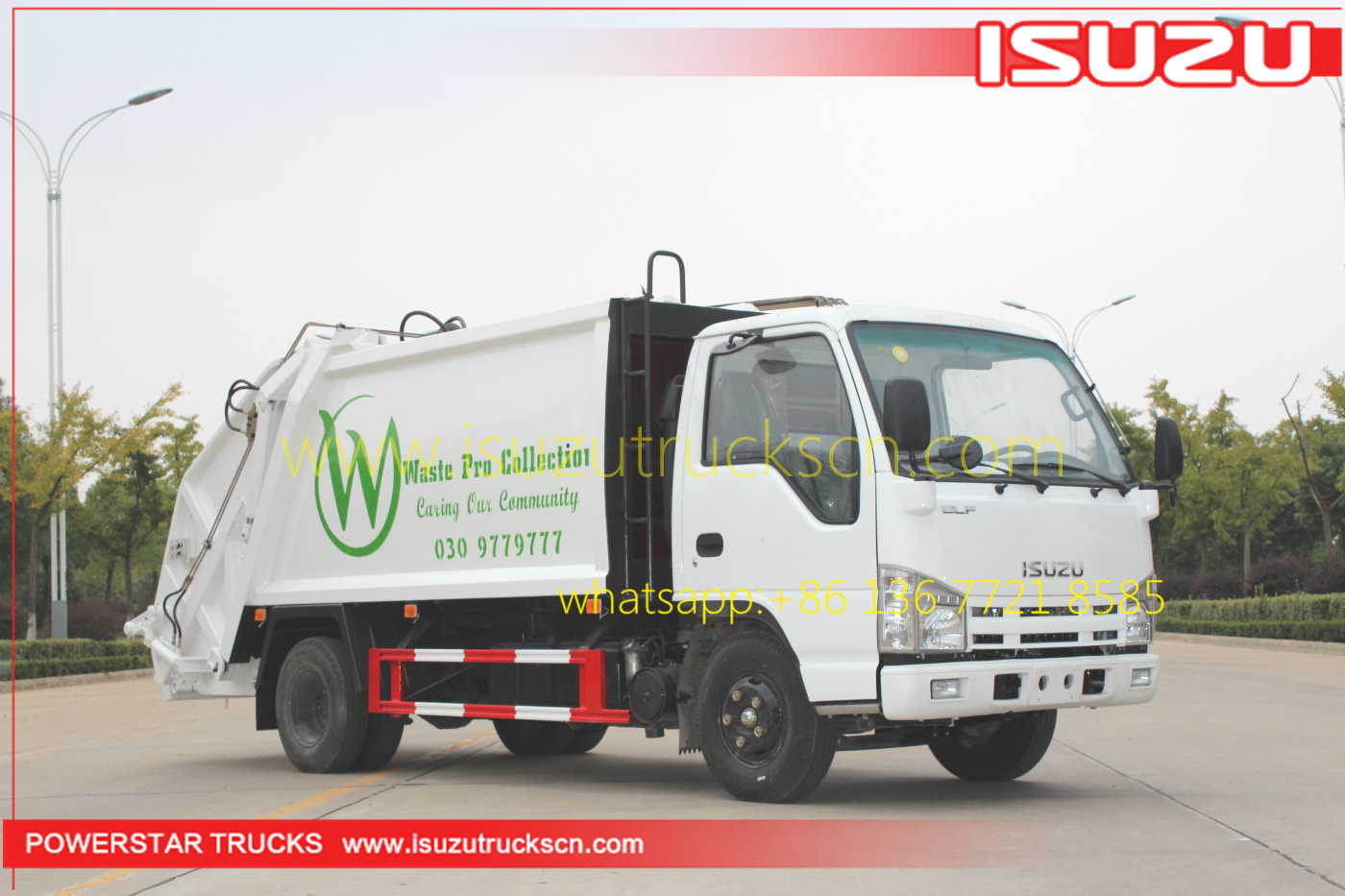

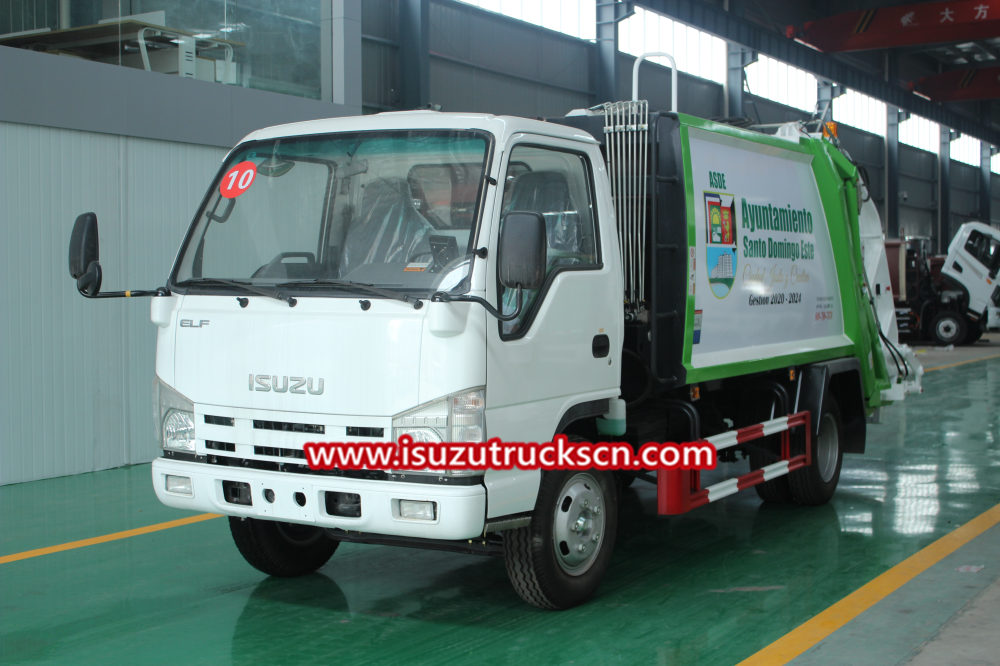

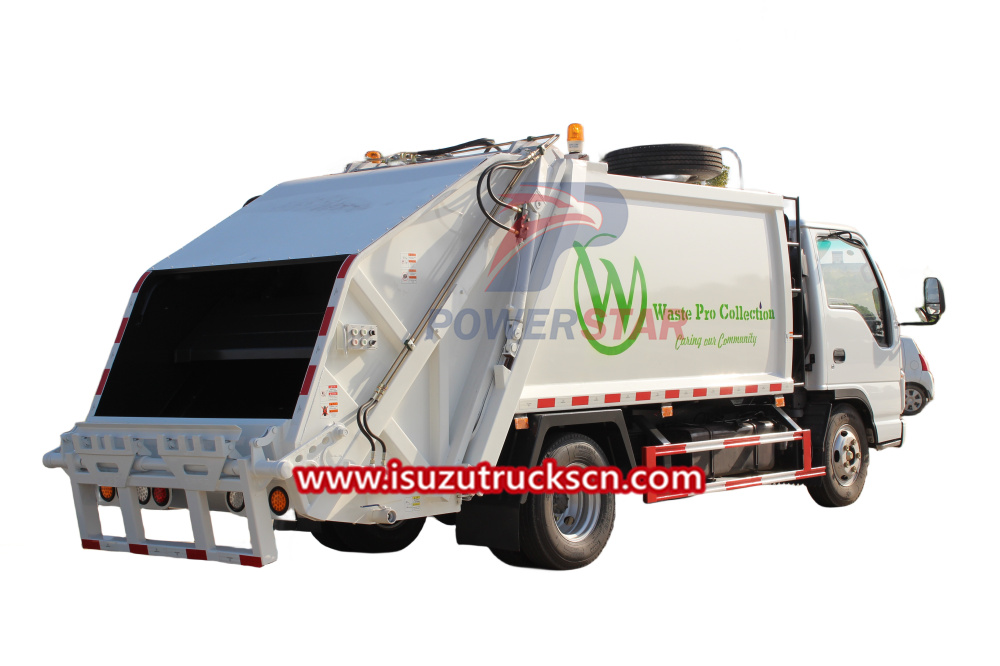

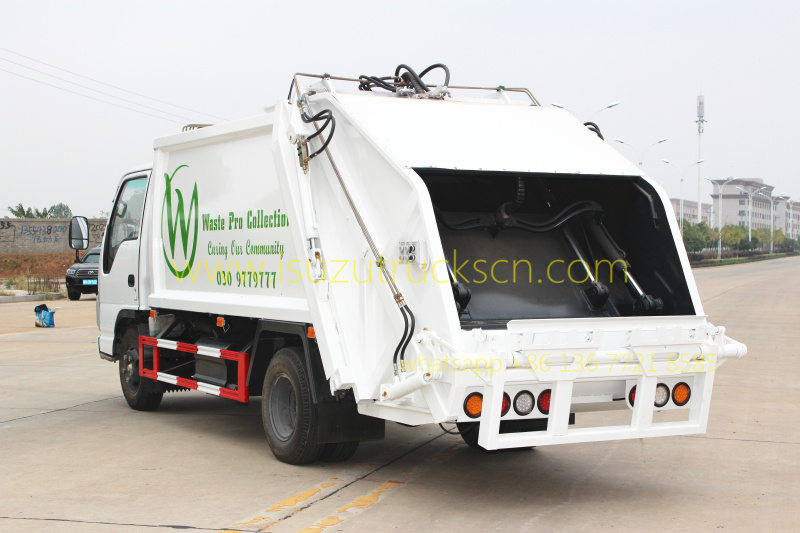

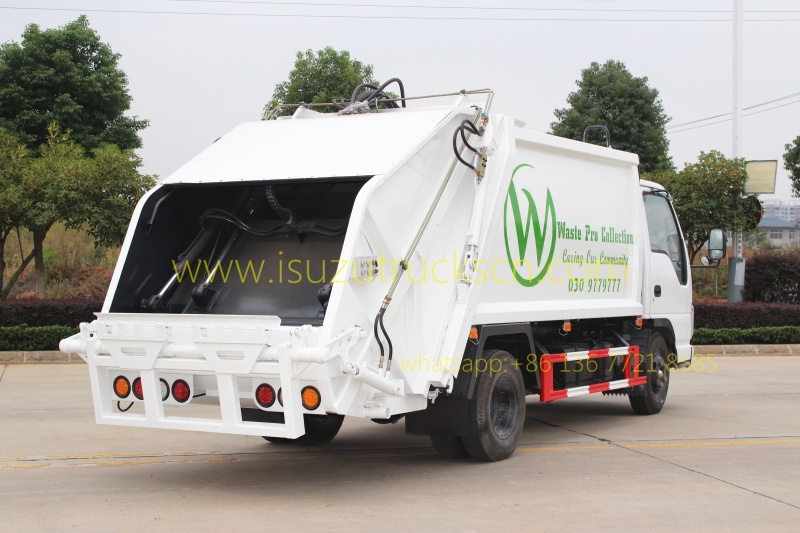

 Garbage Compacting Truck Isuzu 4 CBM


 Garbage Compacting Truck Isuzu 4 CBM   Garbage Compacting Truck Isuzu 4 CBM

 Garbage Compacting Truck Isuzu 4 CBM    Garbage Compacting Truck Isuzu 4 CBM


Function:

Compression garbage truck Isuzu 4CBM (also called as compressive garbage truck, hydraulic garbage truck, rear loader garbage truck, garbage compacting truck, compactor garbage truck, waste collector truck)  is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrical and mineral enterprises and military units.


All our compressed garbage truck optional hanging bucket or barrel tilting mechanism, automatic operating, simple and efficient garbage collection. It can be converted into various special garbage truck according to clients' special requirement.


Features:

---- ISUZU chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance

Specifications:



Refuse Compactor Vehicle Isuzu (4 CBM)

General

Vehicle Brand

POWERSTAR

Chassis Brand

ISUZU

Overall Dimension

6230 * 2000 * 2490 mm

GVW / Kerb Weight

8,000kg / 4,890kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

98 HP (72 KW)

Displacement

2777ml

Emission Standard

Euro IV or V

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MSB 5 speed levers with 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body Capacity

4 CBM

Fill Hopper Capacity

0.8 m3

Sewager Tank volume

200 L

Body Material

Weather resisting steel

Filling work cycle time

20~25 s

Filling lift time

6~9 s

Filling lift capacity

8 Tons

Discharge time

18~22 s

Max compression force

12 Tons

Discharge model

Horizontal Ejection

Control

Electrically Hydraulic control

Manual Hydraulic control

Emergency Stop Button

Hopper Both Sides

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.



  technical drawing for 3 Ton Isuzu Garbage Truck With Compactor


Working Principles of Garbage Compactor

Technical drawing for Isuzu NPR Refuse compactor (Garbage compactor truck)

Different bin optional:


 bin hopper for garbage compactor truck

  bin hopper for garbage compactor truck

 bin hopper for garbage compactor truck    bin hopper for garbage compactor truck


Detail pictures:

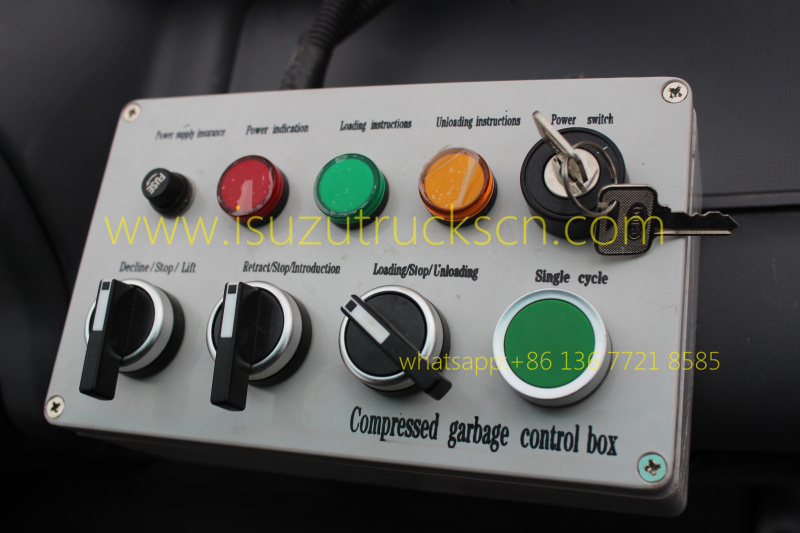

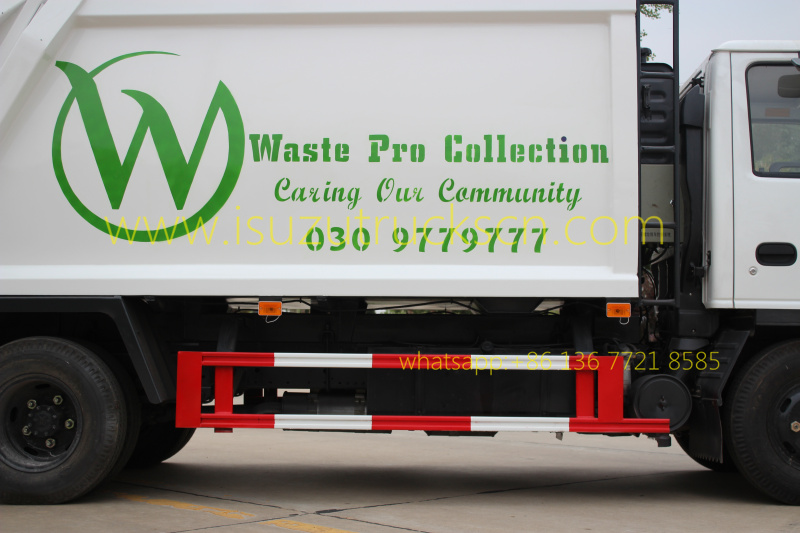

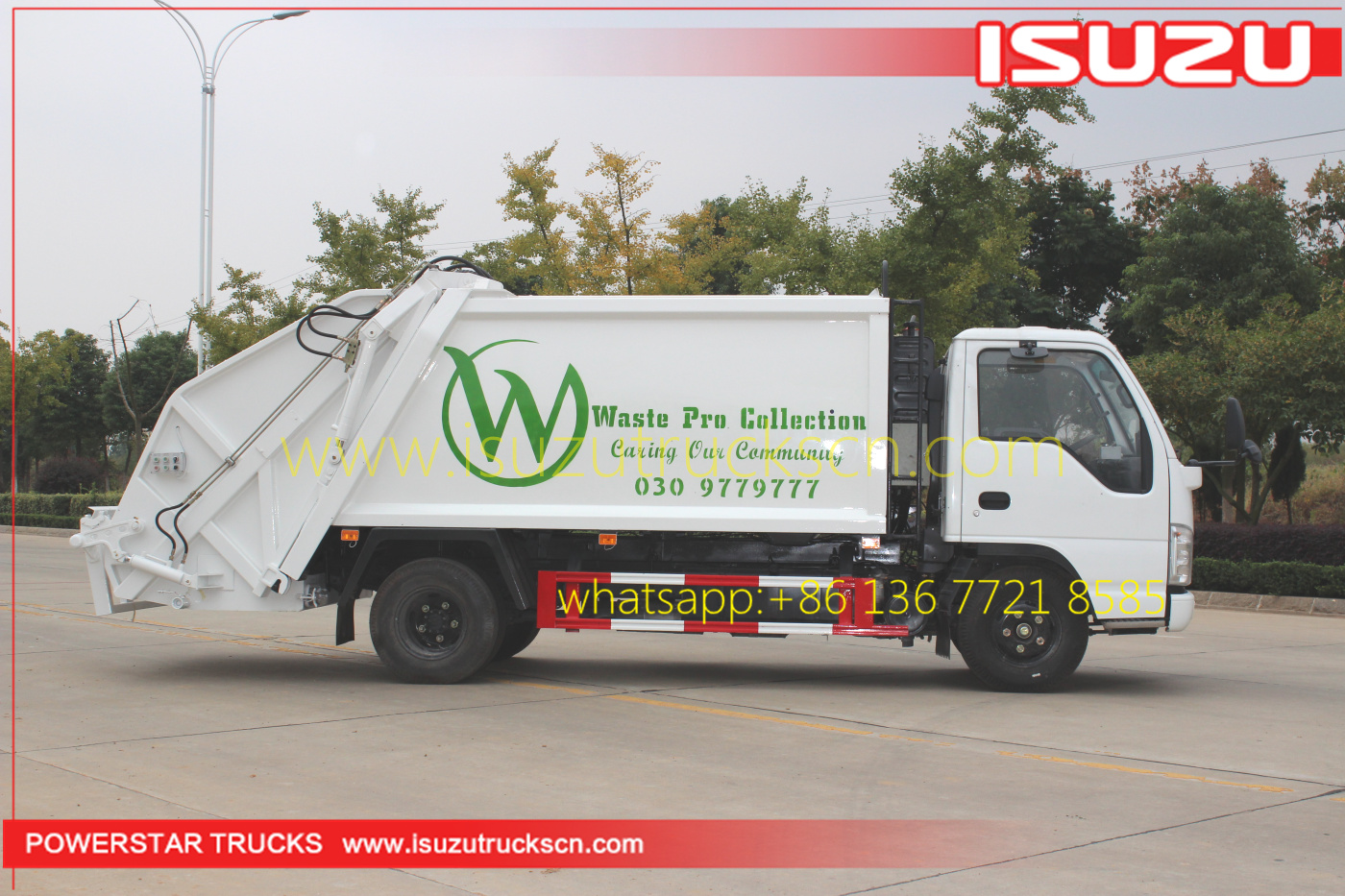

 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

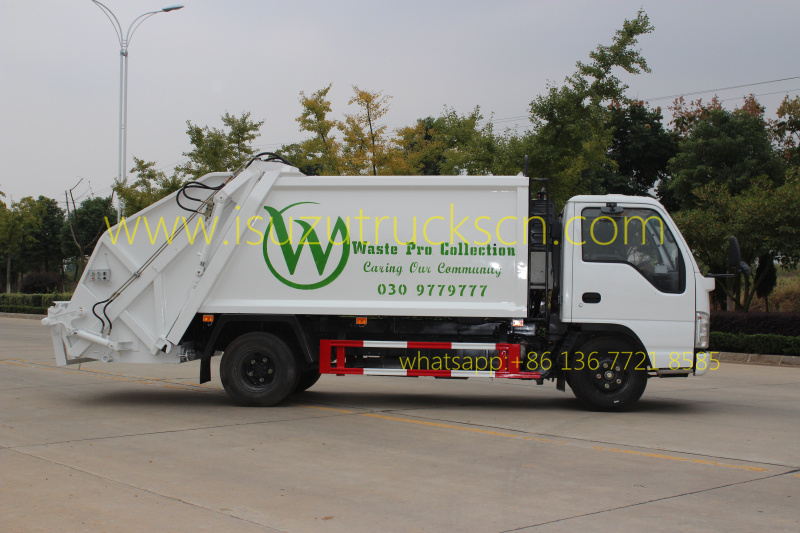

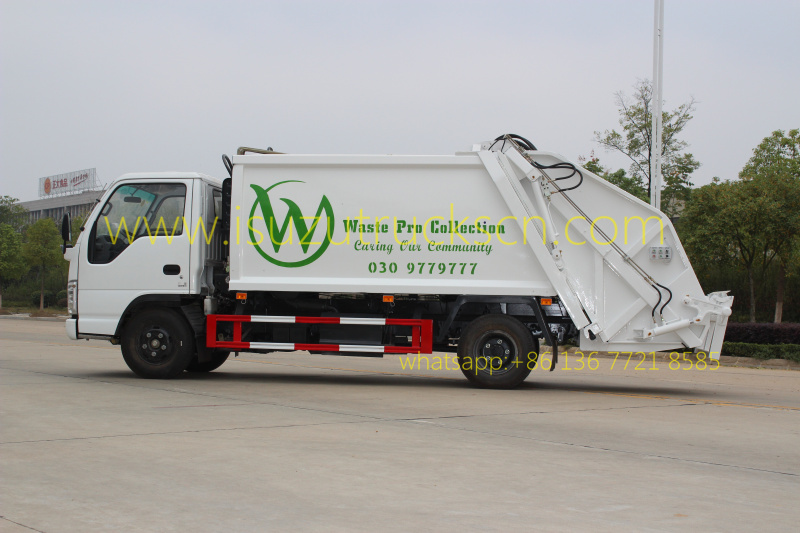

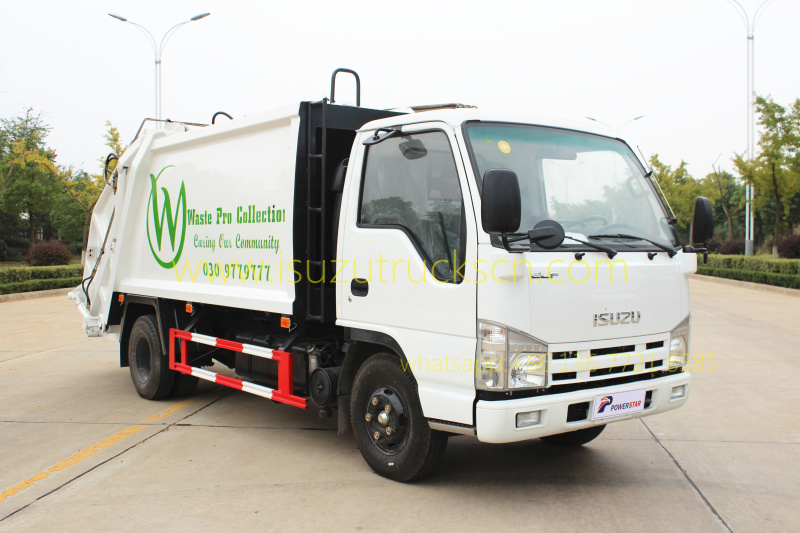

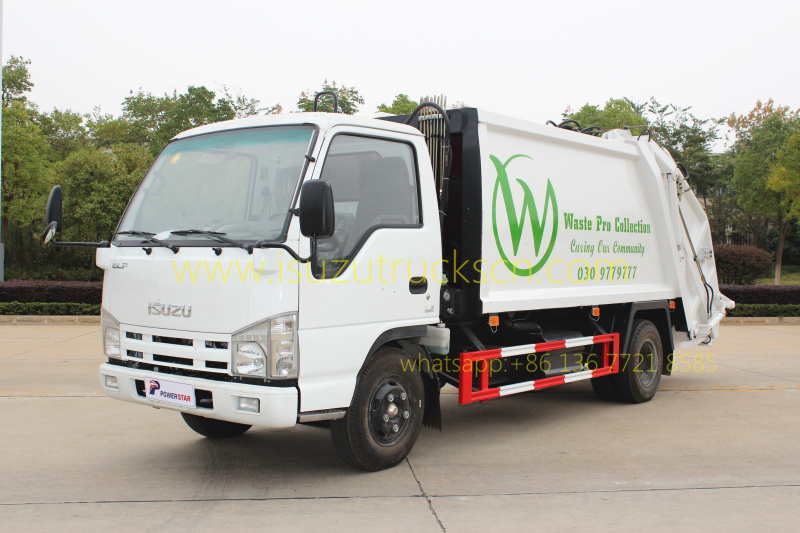

 Overview of Isuzu garbage compactor truck 4000L    Overview of Isuzu garbage compactor truck 4000L



 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

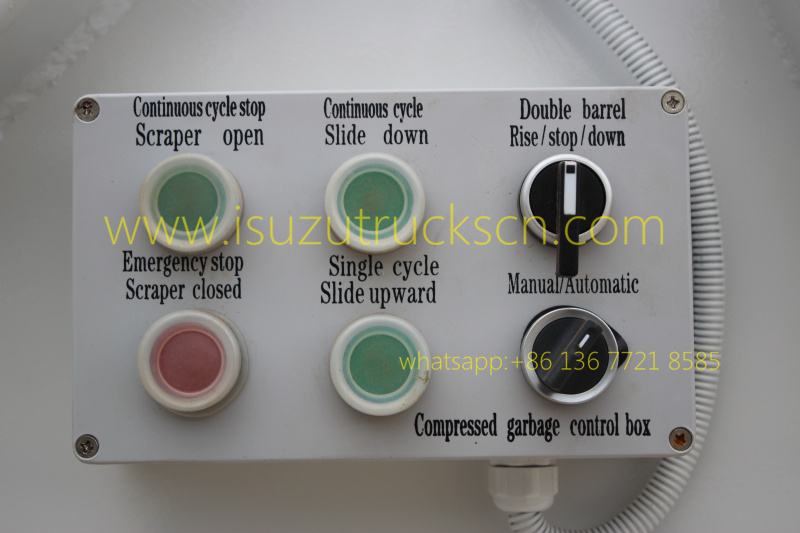

 how to operation garbage compactor truck?    how to operation garbage compactor truck?

 how to operation garbage compactor truck?    how to operation garbage compactor truck?

 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

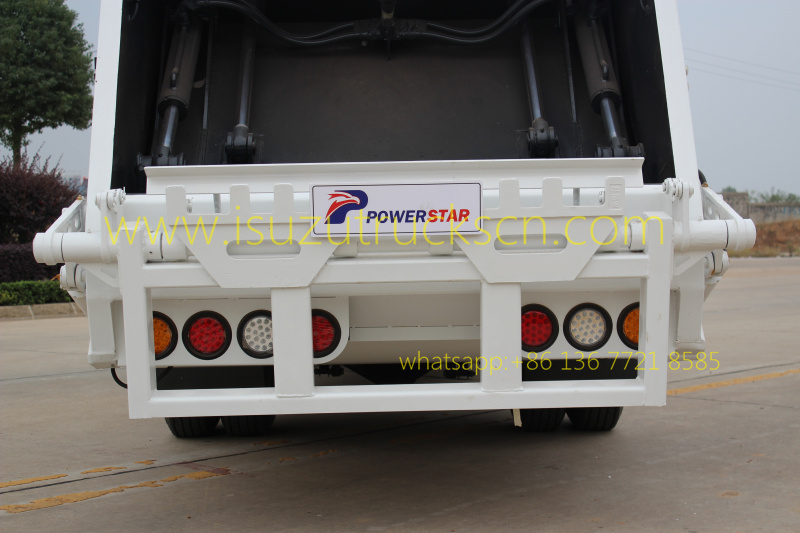

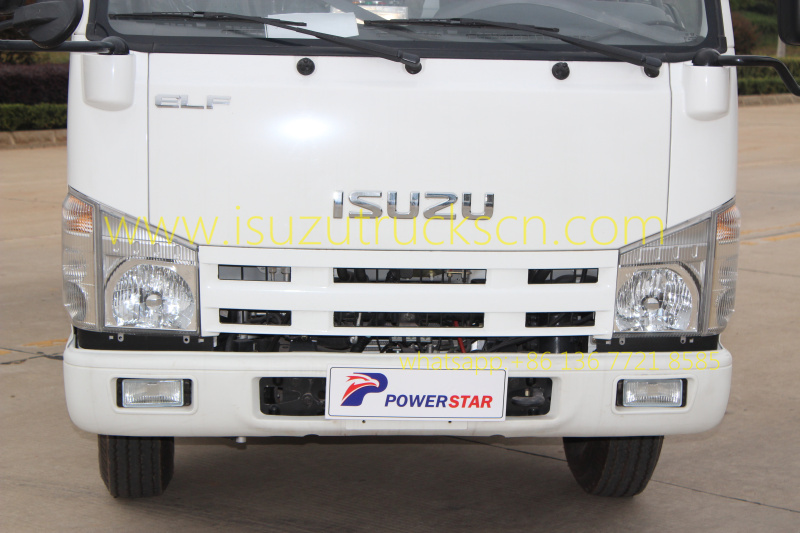

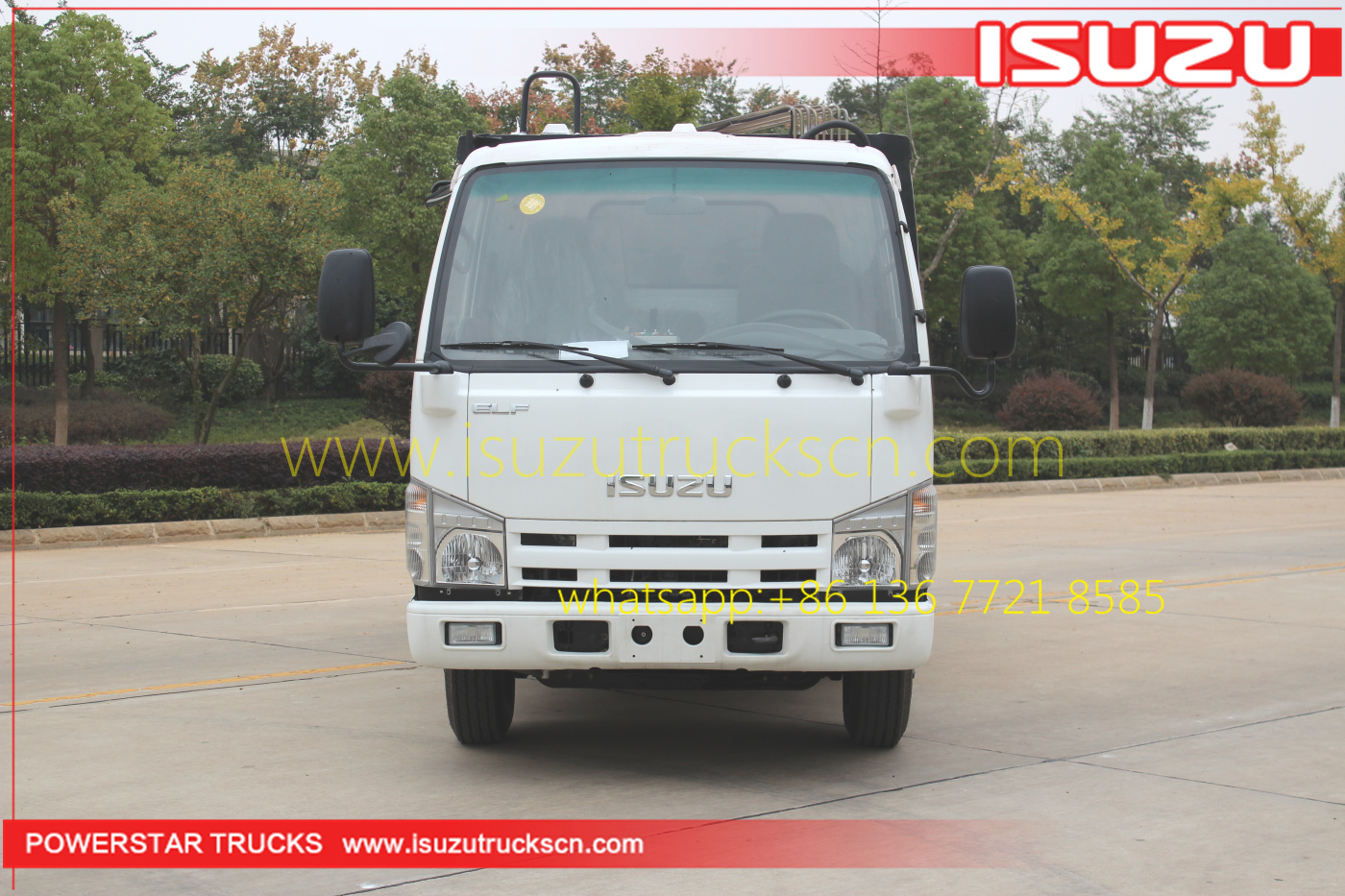

Details pictures of 4cbm Compression Garbage Truck Isuzu

 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

Details pictures of 4cbm Compression Garbage Truck Isuzu

 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

Operation manual of 4cbm Compression Garbage Truck Isuzu

Operation manual for Isuzu refuse compactor garbage trucks



Workshop of build 4CBM Garbage Compactor Truck:

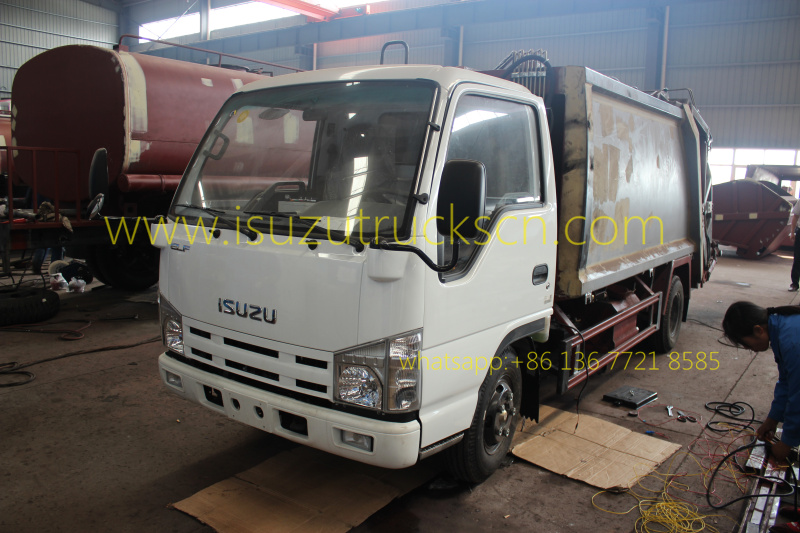

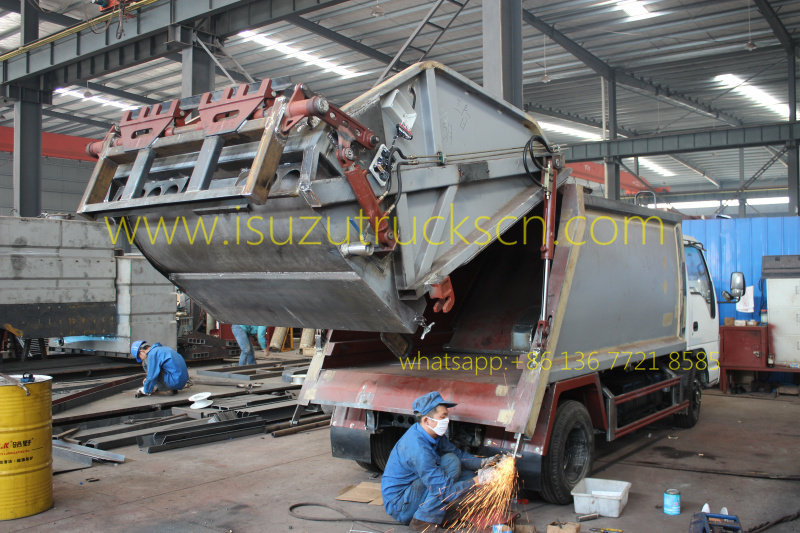

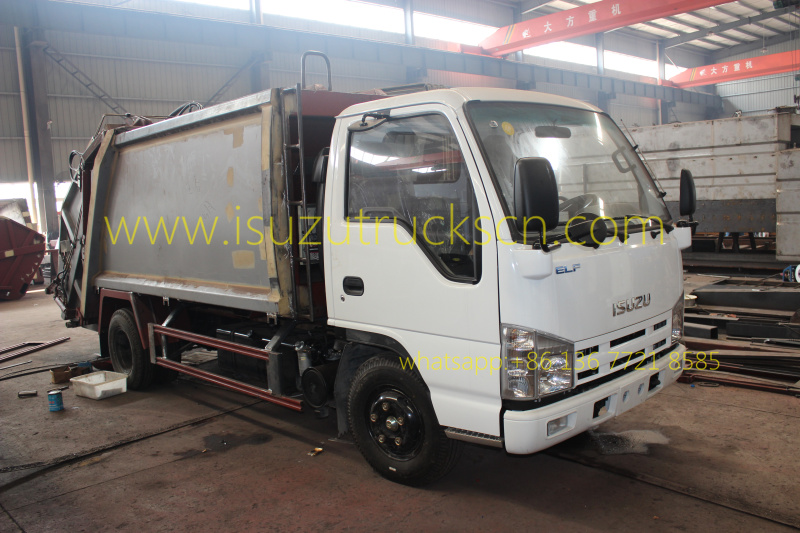

workshop for Garbage Compacting Truck Isuzu 4 CBM

Workshop of build 4CBM Garbage Compactor Truck

workshop for Garbage Compacting Truck Isuzu 4 CBM

Workshop of build 4CBM Garbage Compactor Truck

workshop for Garbage Compacting Truck Isuzu 4 CBM
