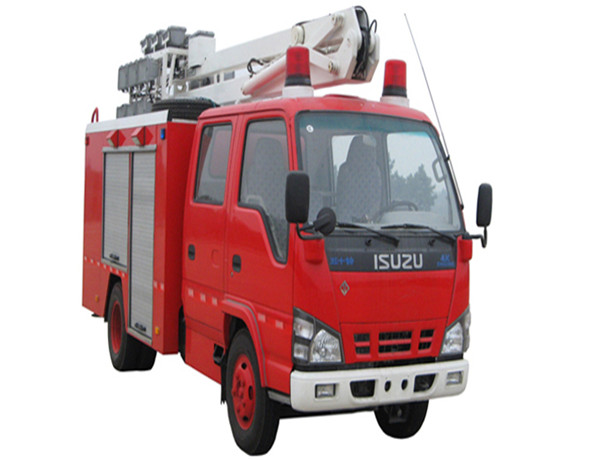

Double Cabin Isuzu Lighting Fire Truck with Light System

Bset Japanese Isuzu Lighting Fire Truck for sale

Details



Double Cabin Isuzu Lighting Fire Truck with Light System



Tags: Best quality Double Cabin Isuzu Lighting Fire Truck with Light System manufacturer, Isuzu Fire-Fighting Vehicle, Foam Fire trucks Isuzu, Isuzu chassis Water foam type fire tender, Emergency Rescue Vehicle, Dry powder fire truck



Feature:

  • Special for Urban public fire brigade
  • Mines, ports, docks, forest and other departments
  • Airport, station or Crowded areas
  • More than 22 kind of fire-fighting equipment with fire truck



Main specifications:

Chassis

NKR77/600P Light-duty chassis for Fire-fighting application

Model

PT5070GXF

Driving Type

4x2    (Left hand drive)

Wheelbase

3360 mm

Overall Dimension

5825×1890×2860 mm

Light Mast System

Ground height8mWorking Cycle time500sLevel rotation time180sLevel rotation angle:-175°to +175°,Elevation angle+15°,Depression angle-30°,elevation and depression time120s.

Lamp

Main lamp:4×1000W Mobile lighting:2×400w

Vehicle generator

power:5kW380/220VElectric control box is provided with the dustproof, waterproof, short circuit and earth leakage protection device.

Cab

Double cab with Four doors, 5 seats with safe belts.

Engine

Model:

4KH1-TCG40

Type:

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power:

88 KW (120HP)

Gearbox

MSB 5-shift, mechanical type, 5 forward and 1 reverse with

Tire

7.00-16

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h





Accessories List:

(With below equipment, you can put into fire-fighting immediately)
