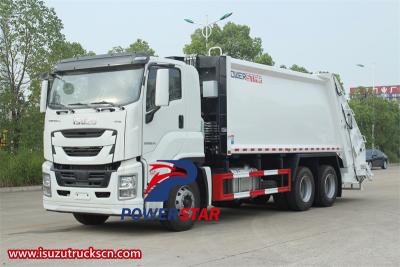

Isuzu 25cbm rubbish compactor truck

Isuzu 25 cbm rubbish compactor truck also called Isuzu waste compactor truck, Isuzu garbage compactor truck, Isuzu trash compactor, Isuzu refuse compactor truck, Isuzu compactor garbage truck, Isuzu rear loader compactor truck, Isuzu rear loader garbage truck,Isuzu waste collection vehicle.The Isuzu 25 cbm rubbish compactor truck is suitable for garbage collection and disposal in public places such as urban streets, parks, and schools. It can not only improve the efficiency of garbage treatment, but also reduce the impact on the environment, making it a very practical urban garbage treatment equipment.

.I. Description of Isuzu 25 cbm Rubbish Compactor Truck

Key Features:

---Various size body from 3cbm to30cbm.

---ISUZU GIGA engine,strong power;reliable performance. no overhaul,within 200000km.

---Europe design,Electric-pneumatic control for easy operation.

---Different rear lifting systerm are optional.

---Steady construction,Optional 400L Sweage tank avoid second pollution.

II. Specification of Isuzu GIGA 25 cbm Rubbish Compactor Truck

1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.

2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4

3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.

4. Be designed according to your requirement .

5. Small order can be accepted.

6. We accept 100% inspection, welcome to our factory at any time.

7. 12 month quality guarantee term.

III. Details of Isuzu 25 cbm Rubbish Compactor Truck

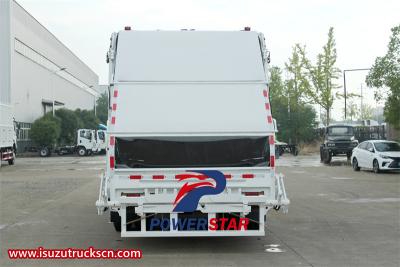

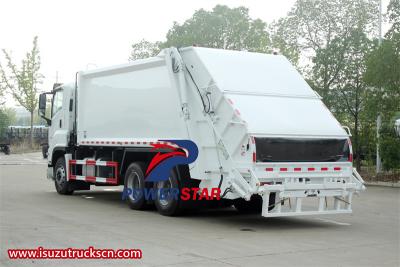

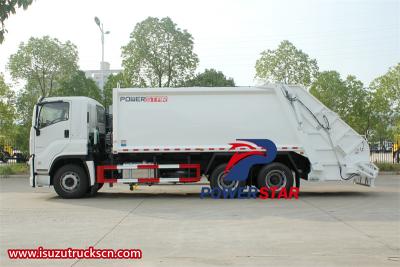

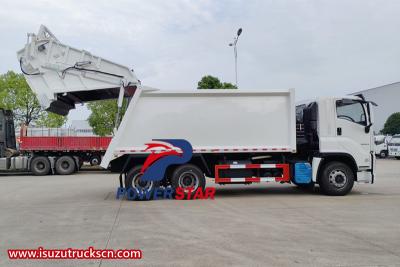

● Isuzu 25 cbm rubbish compactor truck photos for reference

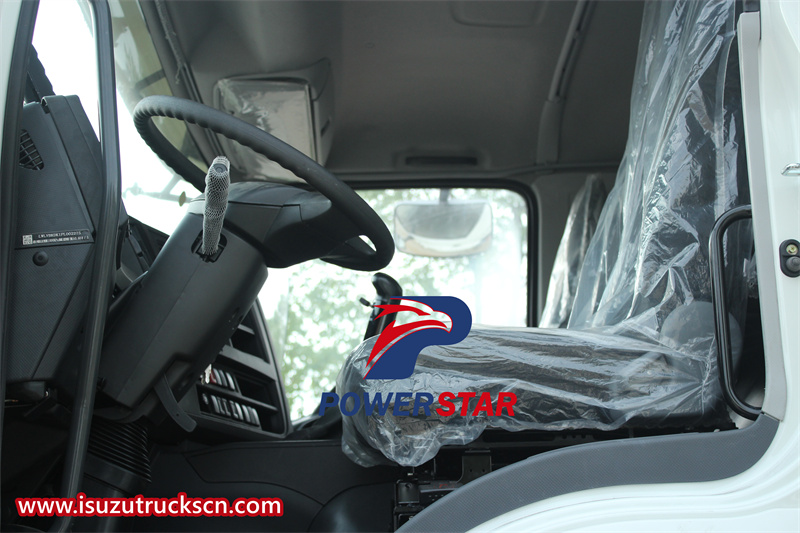

The Isuzu 25cbm rubbish compactor truck adopts the original Isuzu GIGA chassis, which has stronger load-bearing capacity and guaranteed quality. The GIGA single-row cab is fully equipped and more convenient to operate. The Isuzu 420HP National VI engine is powerful, energy-saving and environmentally friendly, low fuel consumption, and easy to operate. Maintenance, Isuzu five-speed transmission, easy shifting, to meet the driver's different driving needs. 4565+1370mm wheelbase, stronger load-bearing capacity, 315/80R22.5 steel wire tires, better wear resistance, longer service life, original air conditioning, steering assist, clutch assist, ABS anti-lock braking system, shock absorption Seats, oil brakes, vacuum booster pumps, and radios with USB interfaces are all reasonably configured and highly practical.

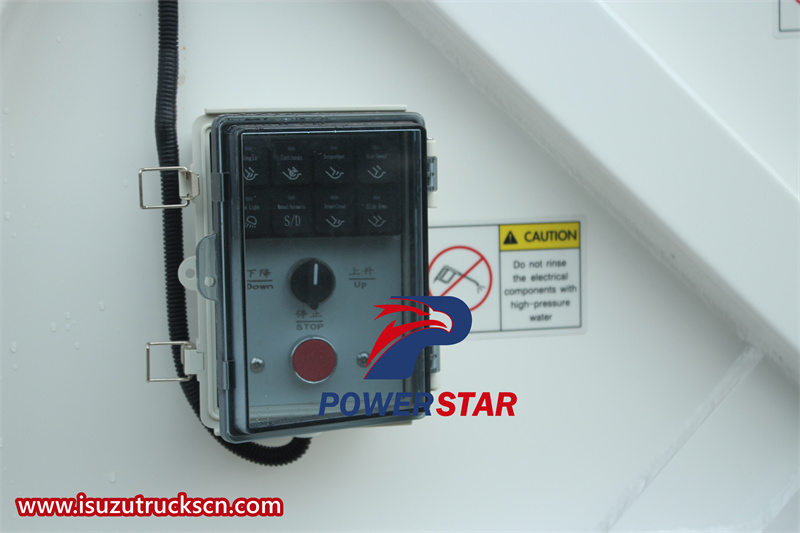

The Isuzu 25 cbm rubbish compactor truck is a flat arc-shaped body, the body material is high-quality carbon steel, the volume is 25 cubic meters, PLC one-button operation control, flashlight integrated operation mode, dual electric controls on both sides, with cab operation, floor support Strengthened, two-way compression, open and easy-to-clean sewage tank, the compressed garbage truck adopts electromechanical and hydraulic integration technology, with the help of mechanical, electrical and hydraulic combined automatic control systems, computer control, manual operating systems, and special-purpose equipment such as fillers and push shovels. The device realizes garbage pouring, crushing or flattening, strong filling, squeezing the garbage into the carriage, compacting and pushing, and all sewage enters the sewage collection box, solving the problem of secondary pollution during garbage transportation.

The vehicle has automatic repeated compression and peristaltic compression functions, high compression ratio, good sealing, large loading capacity, easy operation, good environmental protection, and high vehicle power utilization. The operation is automated and the garbage collection method is simple and efficient. It is an efficient, environmentally friendly and safe garbage disposal equipment with wide application prospects and market demand.

Overview for garbage compactor truck technical drawing:

Isuzu 25 cbm rubbish compactor truck garbage filling steps:

1. When the filling hopper is filled with garbage, the scraper opens and is ready to insert loose garbage.

2. The skateboard drives the scraper to move downward together, and is inserted into the garbage for crushing and first compression.

3. The scraper rotates forward to further compact the garbage.

4. After the scraper is in place, it moves upward with the sliding plate to compact and load the garbage into the trash bin and return to the starting position. During the continuous filling process of garbage, the push shovel overcomes the back pressure and gradually retreats under the action of the squeezing force, so that the garbage evenly fills the entire garbage bin.

5. After the garbage truck is filled with garbage, the garbage bin is completely closed and will not pollute the environment during transfer.

6. When the garbage truck unloads garbage at the treatment (or landfill) site, first lift the loader, open the rear end of the garbage bin, move the shovel originally parked at the front end of the garbage bin backward, and move the garbage bin horizontally. The garbage inside is pushed out.

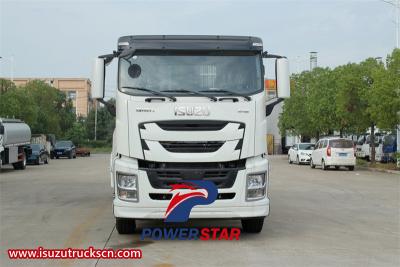

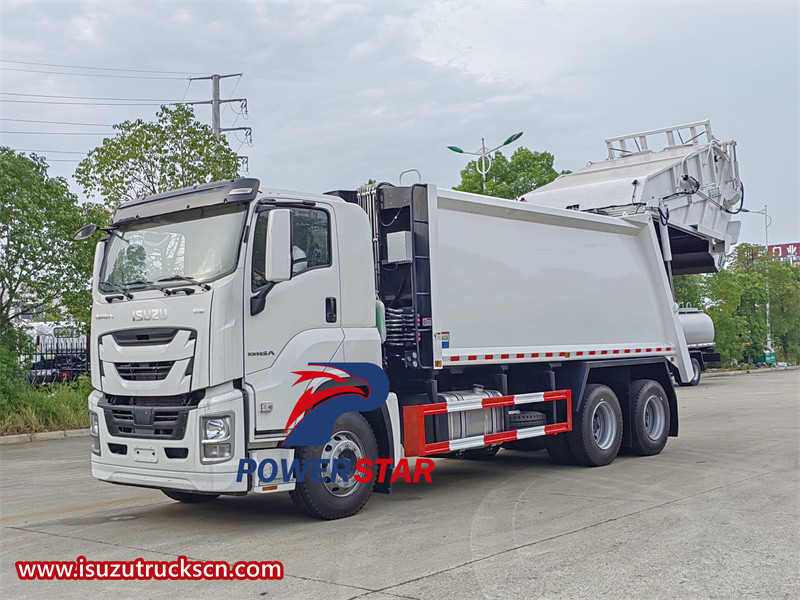

Isuzu GIGA 6x4 rubbish compactor truck for sale

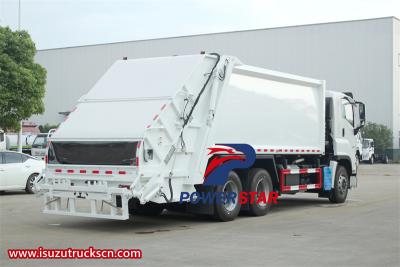

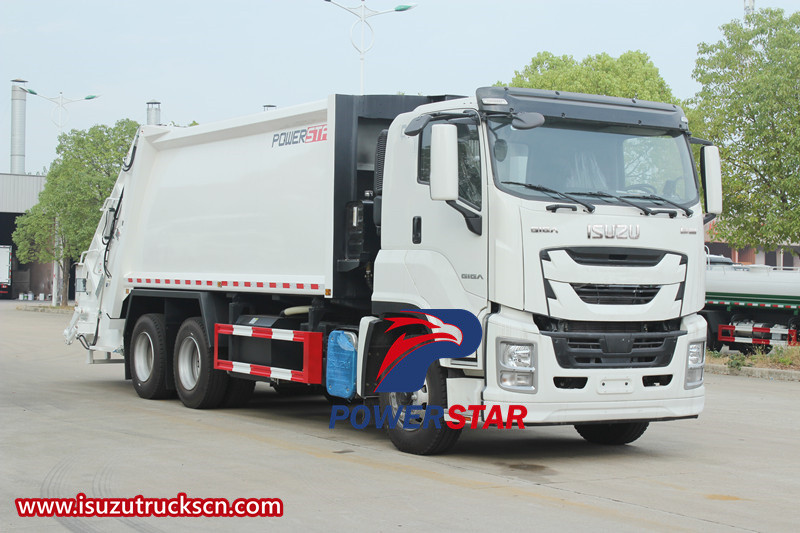

Isuzu GIGA  25cbm garbage compactor truck in our plant

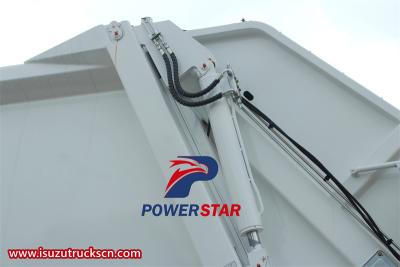

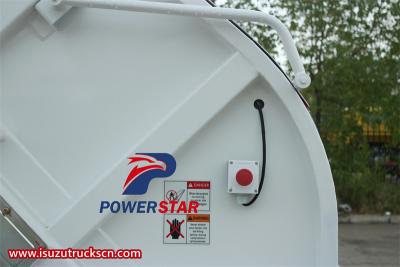

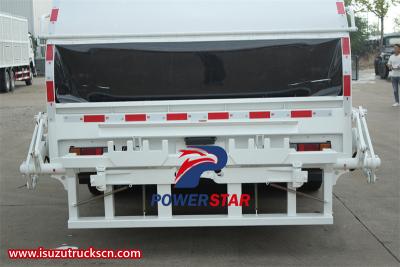

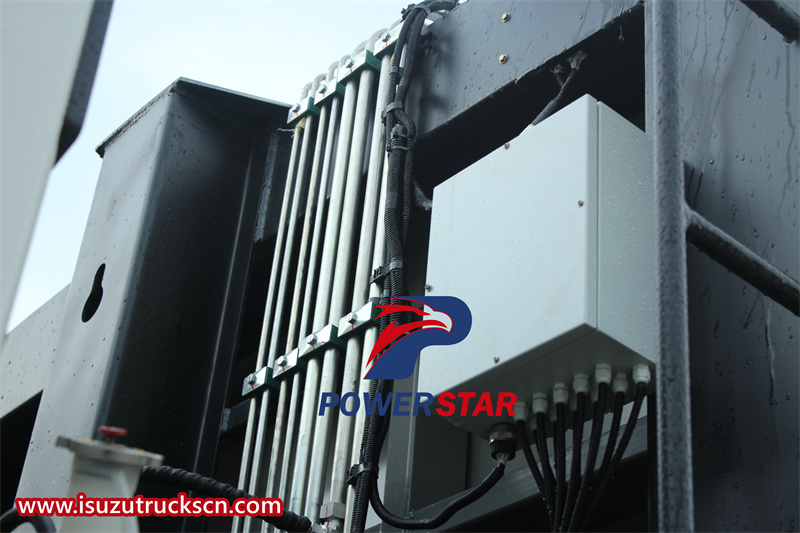

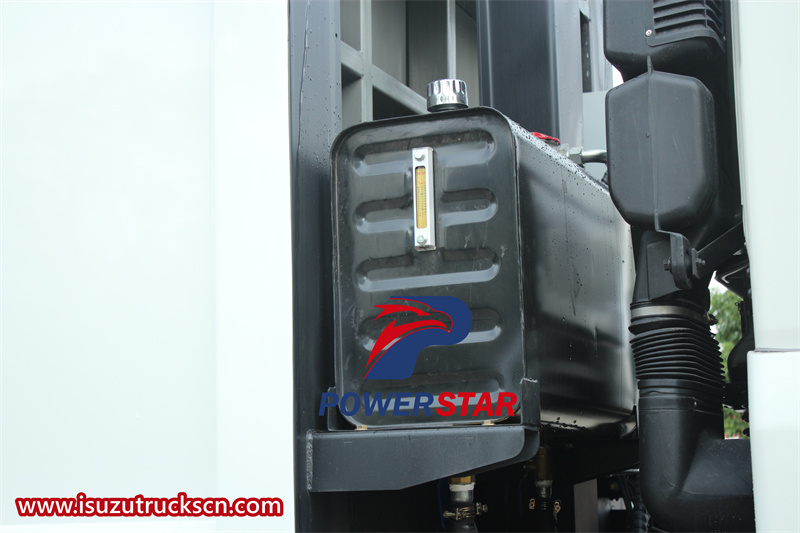

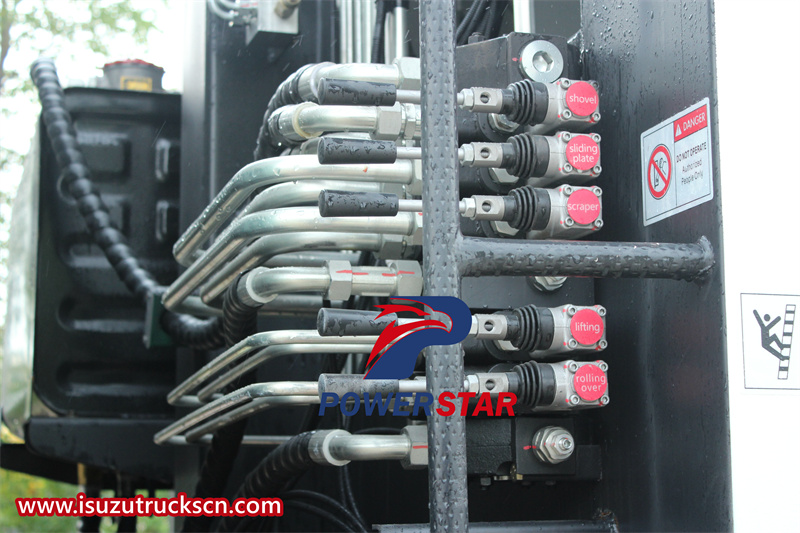

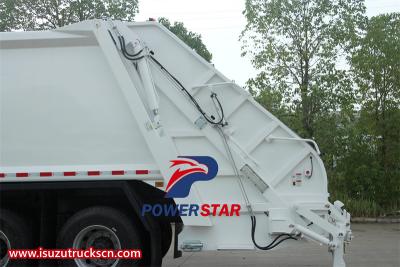

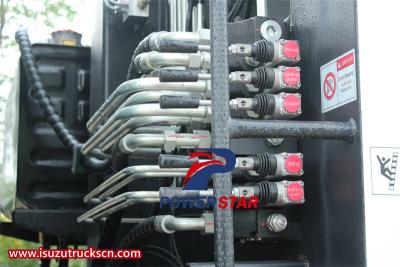

●    Isuzu 25 cbm rubbish compactor truck details

●    Isuzu 25 cbm rubbish compactor truck departure in batches
