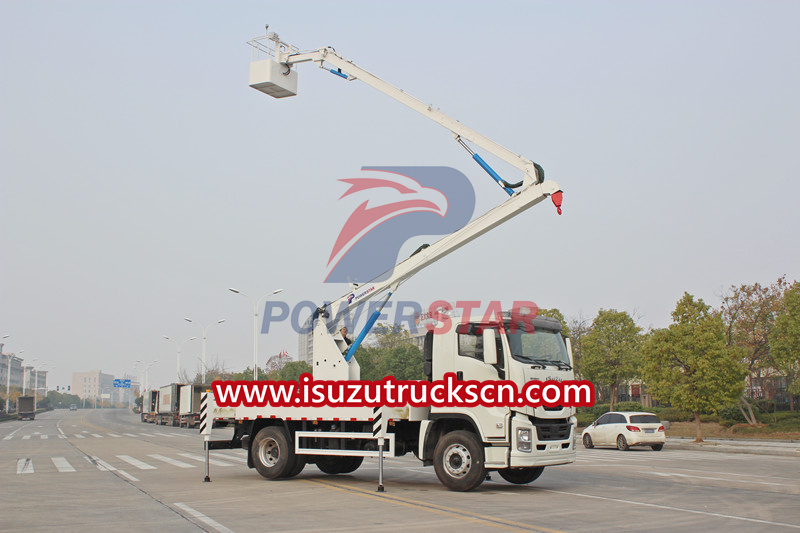

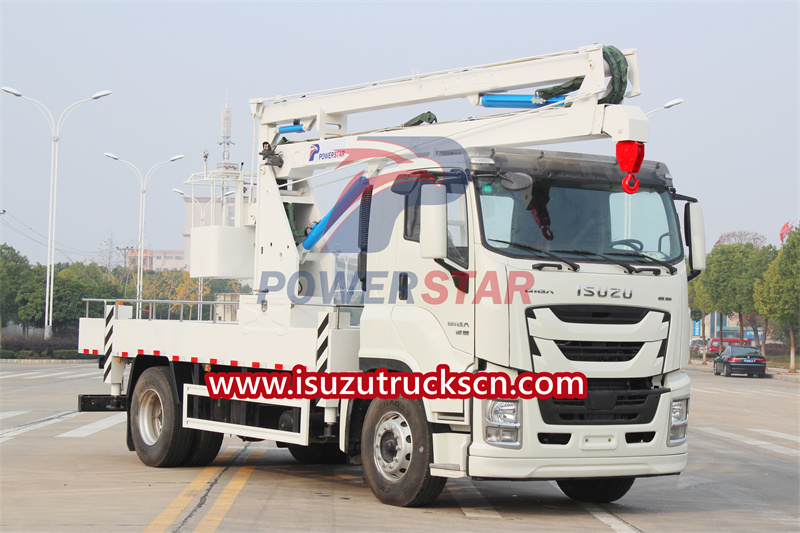

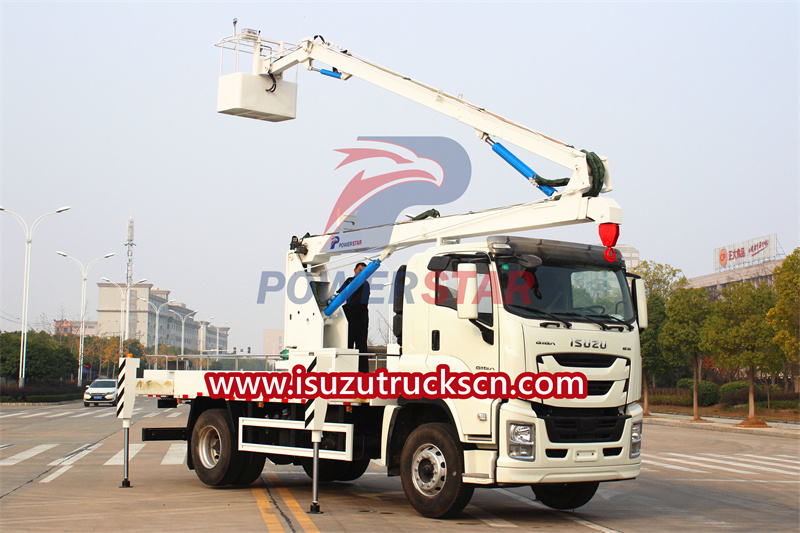

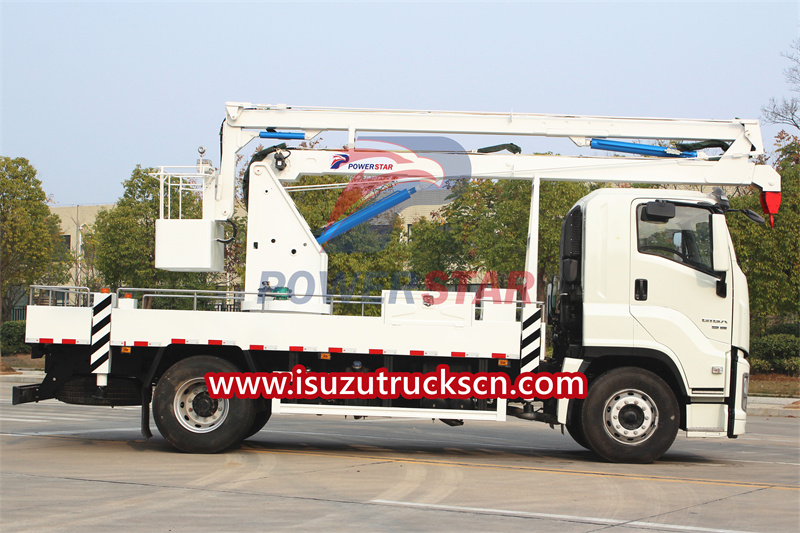

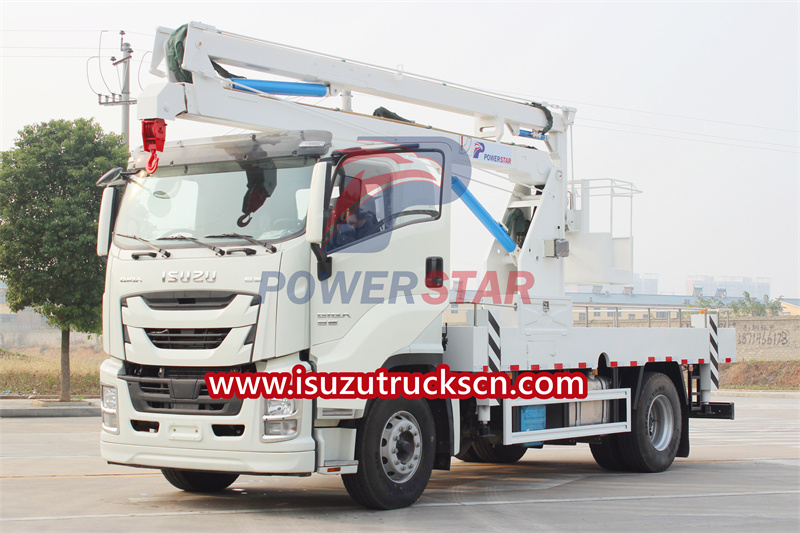

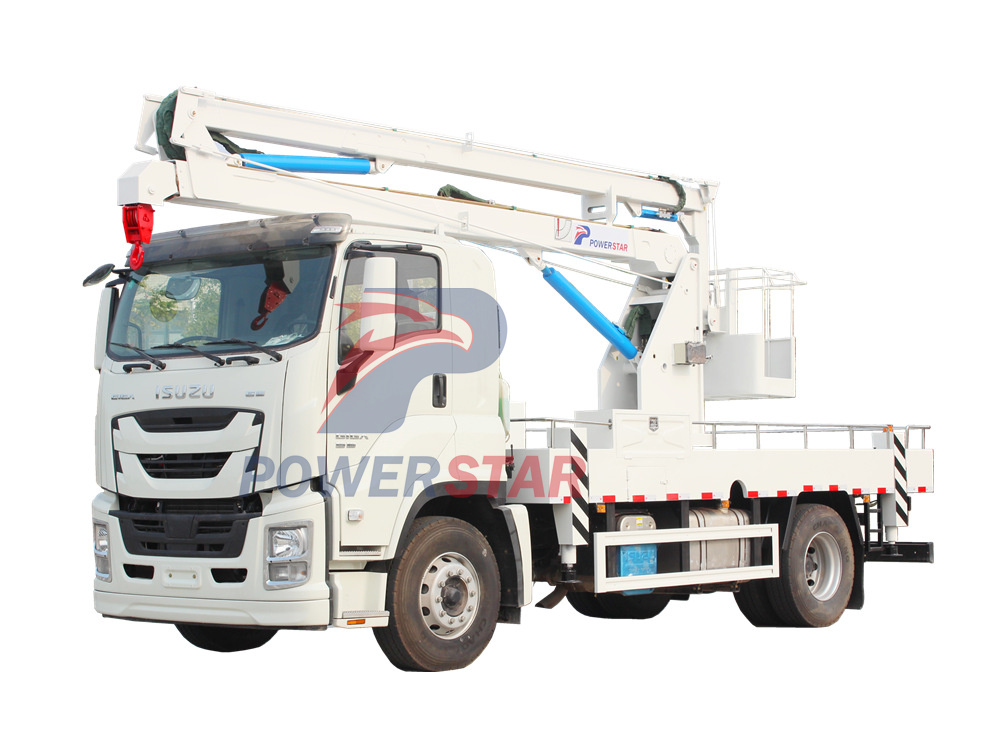

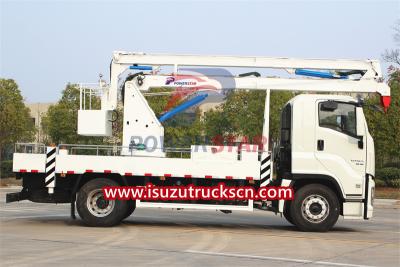

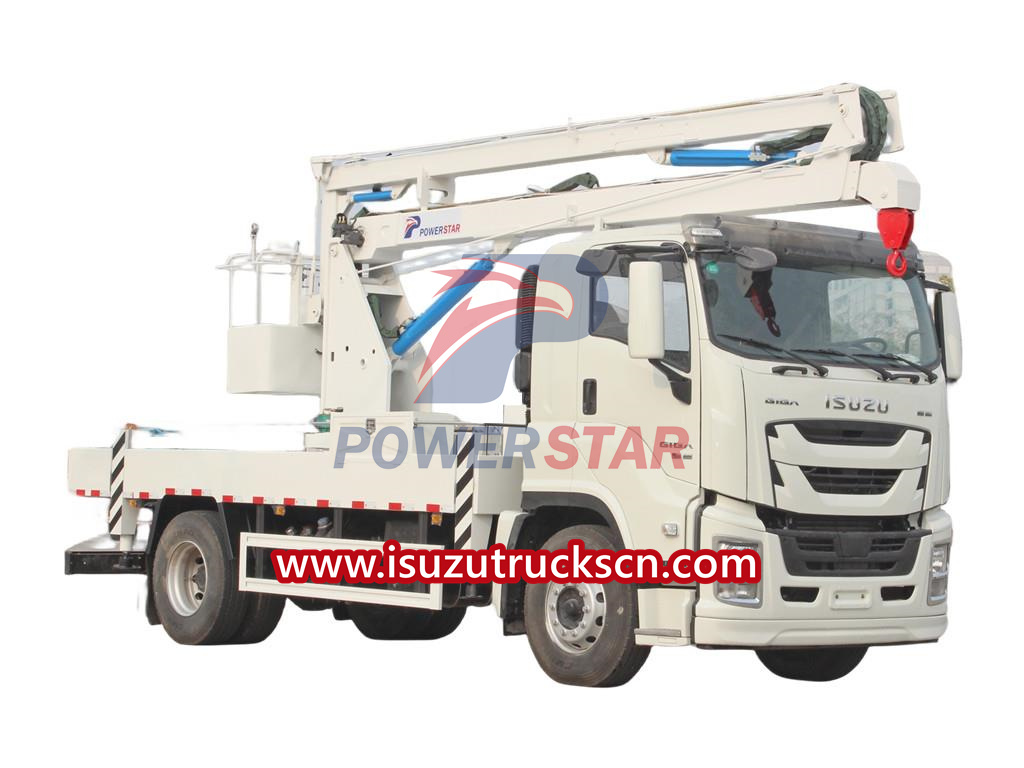

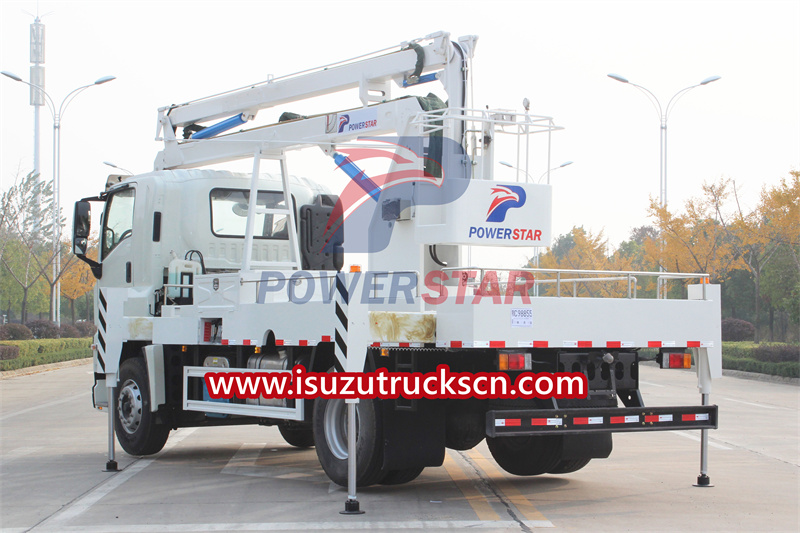

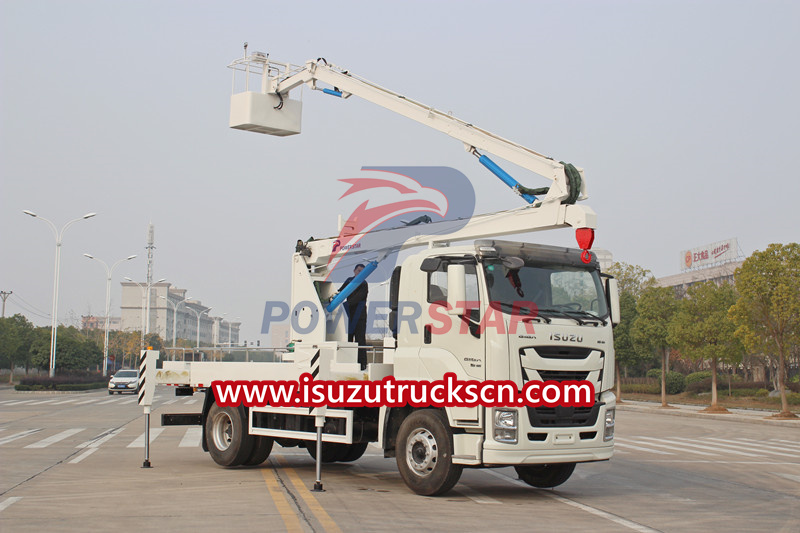

Isuzu GIGA articulating bucket truck
ISUZU GIGA 20m truck mounted boom lift, original Japanese ISUZU GIGA single cab chassis, Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.Full Computer Control System with Danger Waring System. LCD Screen in Both the Bucket and Truck to Display the Working Status. Rectangular Shape Arms to Increase the Arm Strength. V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
Work capacity:
20 mTruck model:
PT5220JGK22ZEngine power:
380 hpEngine type:
6UZ1-TCG61Axle drive:
4×2Gear box:
FAST 12-speed, manualRemarks:

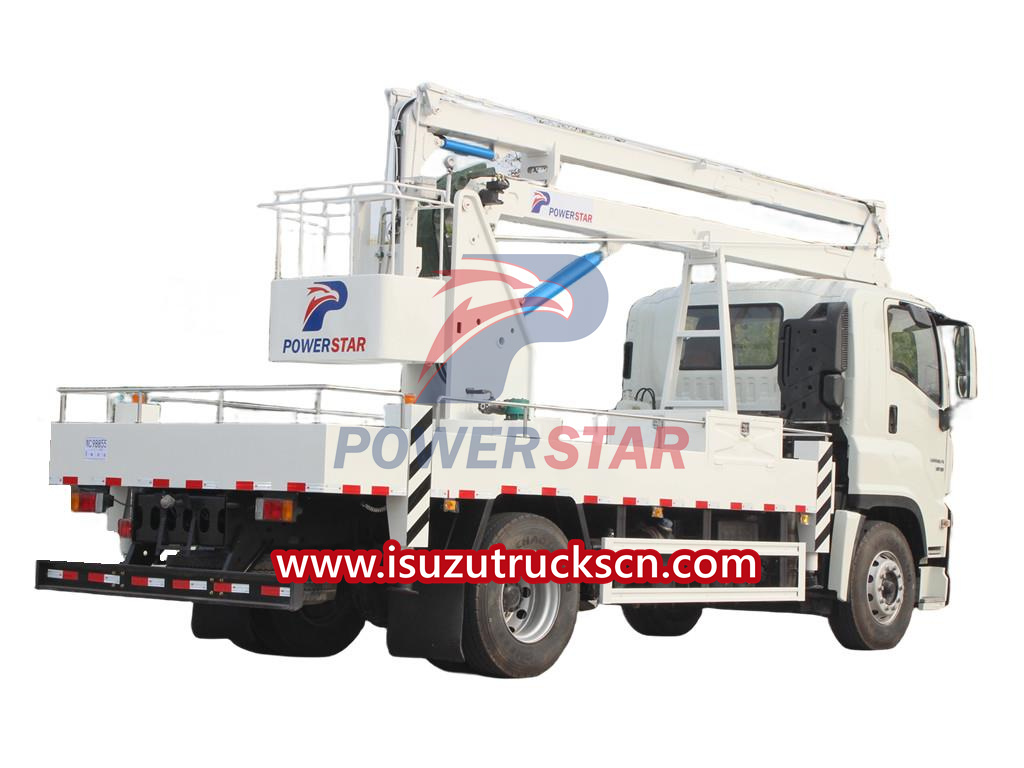

Japanese Isuzu GIGA 4x2 truck chassis, mounted manlifter 20m with 3 section boomsAerial Working Platform ISUZU, GIGA High Altitude Working Truck for Street Lamp Maintenance Function: Isuzu Telescopic beam lifter truck (also called Isuzu GIGA articulating bucket truck, Isuzu GIGA aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning / setting signboard and other high aerial works.

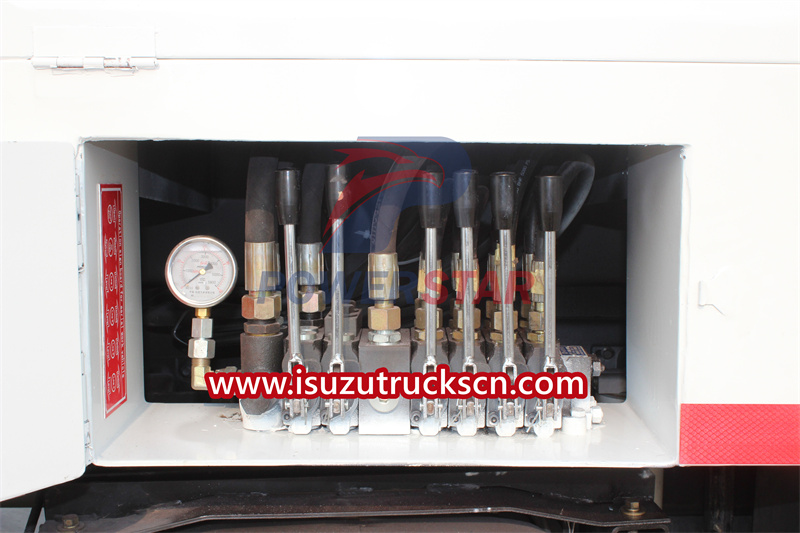

1) Domestic and imported reversing valves and hydraulic cylinders are adopted, with stable reversing and flexible and convenient operation.

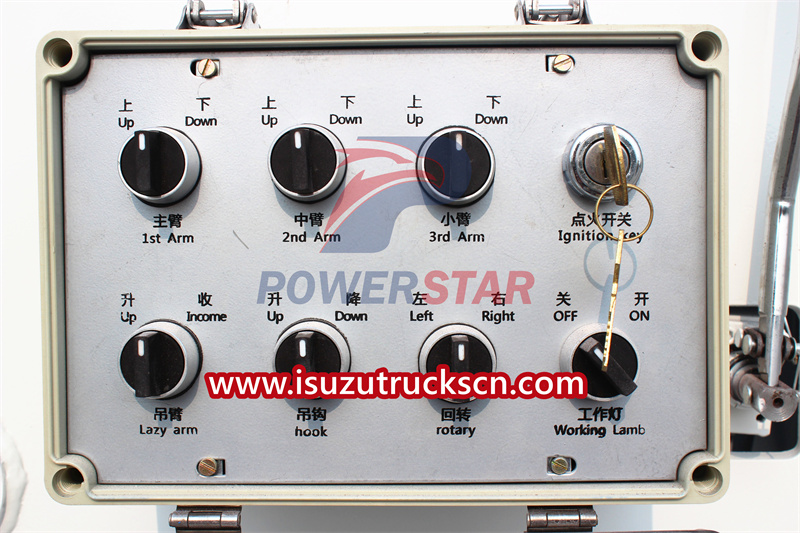

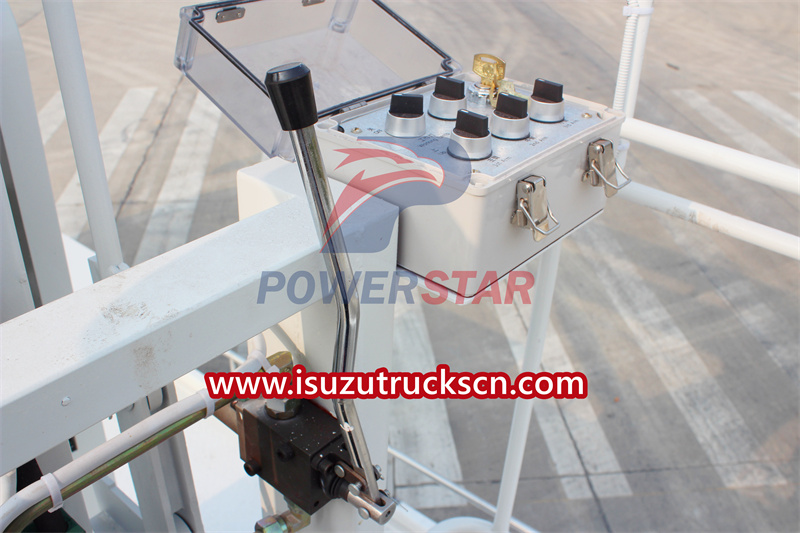

2) Double station operation of turntable and platform.
3) The outrigger is interlocked with the working arm, which is safe and reliable to prevent misoperation.

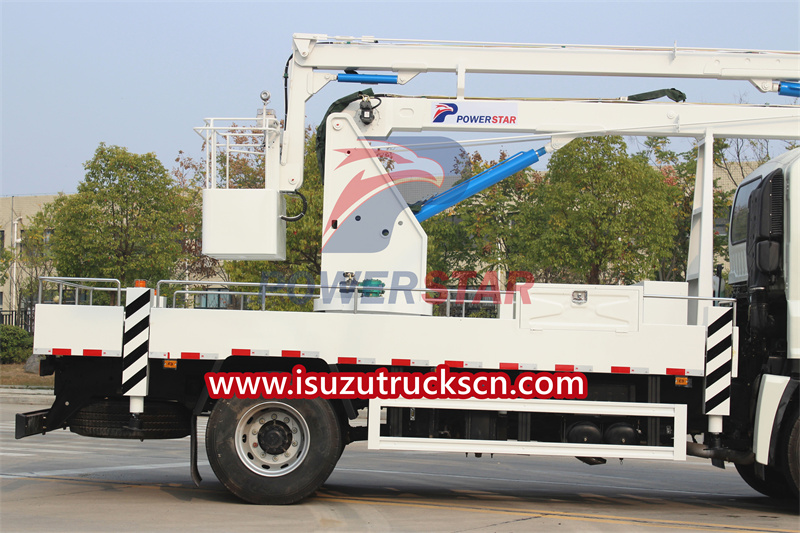

4) The boom has compact structure, good mobility and large operation range.

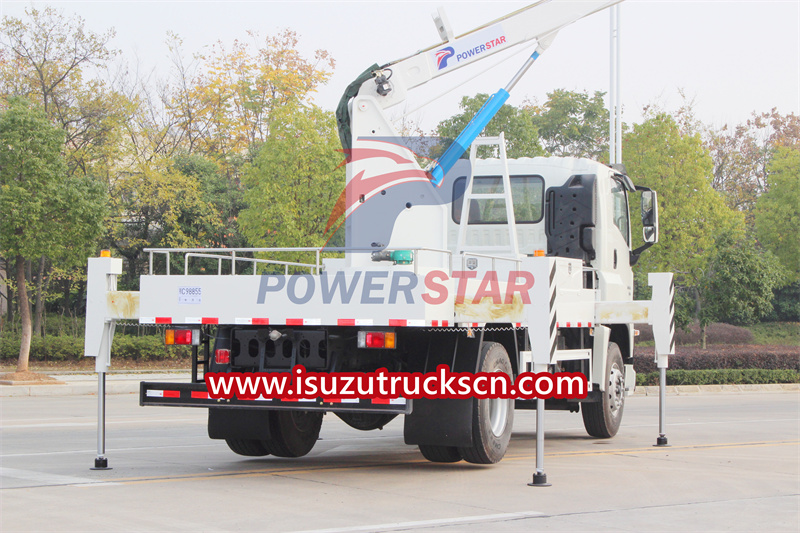

5) H-shaped outrigger has large span and good stability. The outrigger can be extended and combined independently. It is equipped with outrigger flashing light for outrigger outline indication and light alarm signal during operation.
6) The platform is automatically leveled, and the external pull rod is forcibly balance.
Technical Parameters for 20m ISUZU GIGA articulating bucket truck from POWERSTAR:

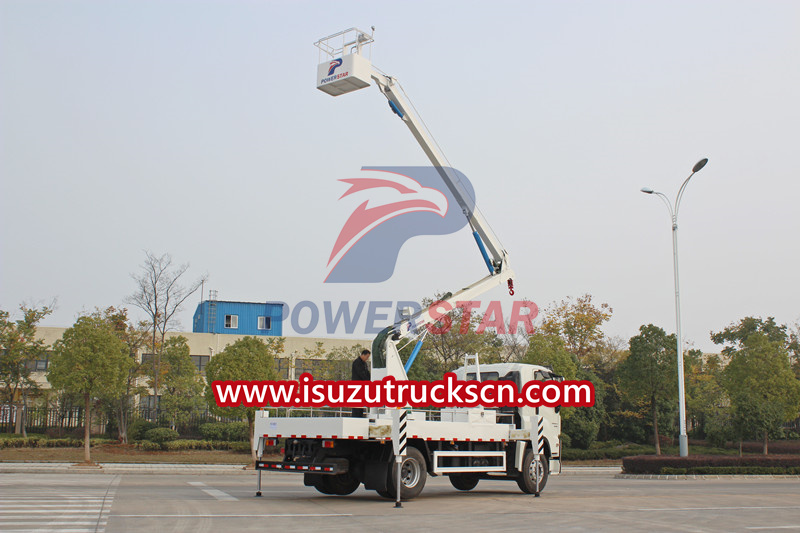

1. Max operation height:20m (including 1.7meter person height, net height is 18.3meter),

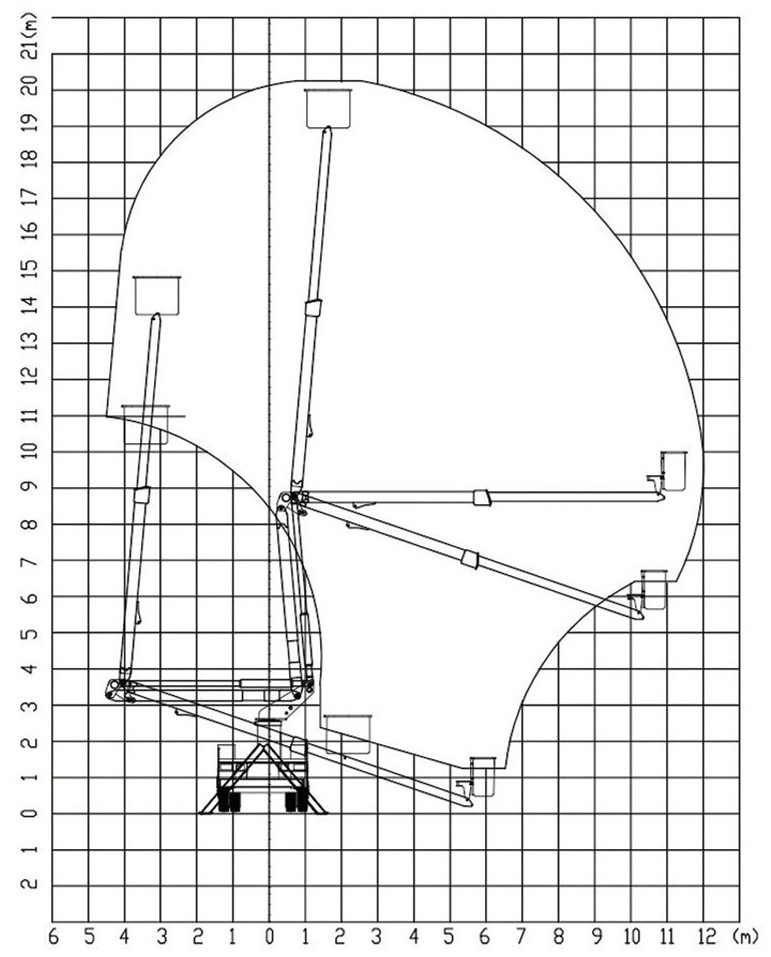

2. Max operation radius≤ 12.2m,
3. Max working platform height≤18.5m,
4. Working platform rating loading≤200kg,
5. Working platform rating allowable passengers=2,

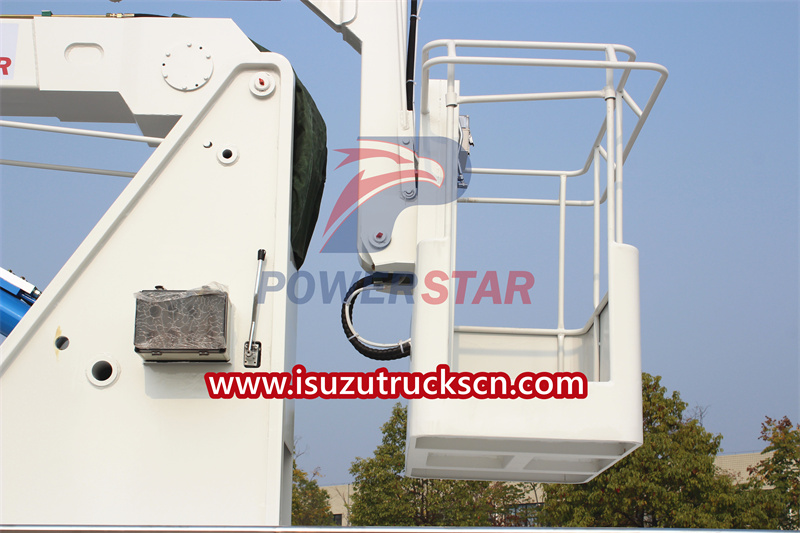

6. Working platform dimension:1100*570*1000mm,
7. 360°turning(left or right), 4 H-shape legs.
8.The cage be operated both in the air and on the earth
9. Control System: Manually
10. Hook Lifting Height: 6meters, Hook Lifting Weight: 800kg
Ltem | Unit | Parameter | |
Max. Working radius | m | 12.2 | |
Max. Working height | m | 20 | |
Working turning radius | . | 360° full turning | |
Width of the outriggers | mm | 4600*4600 | |
Max. Flow speed of hydraulic system | L/Min | 30 | |
Rater pressure of hydraulic system | MPa | 20 | |
Operation manuals | - | Rate control +Manual operation | |
Working temperature | ºC | -20~+60 | |
Rated loading capacity | Kg | 200 | |
Dimension of working | mm | 1000*650*1200 | |
Withstand voltage | kV | 3 |
Aerial platform truck(20 meters) | ||||
Description | POWERSTAR ISUZU GIGA 20 M Aerial Platform Truck | |||
Manufacturer | POWERSTAR TRUCKS INDUSTRY CO., LIMITED |
|||
Drive Model | 4x2, Left hand drive | |||
Condition | New condition | |||
Voltage standard | Withstand 3kv voltage only. | |||
Vehicle--Truck chassis | ||||
Manufacturer of chassis | ISUZU GIGA |
|||
Status | New condition | |||
Gear box | Manual type | |||
Air conditioning | include | |||
Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 8600*2500*3450 (mm) | ||
Wheel base (mm) | 4600 mm | |||
Wheel track (front/rear) (mm) | 2060/1855mm | |||
Steel Spring |
7/6+8 | |||
Weight in KGS | Curb Weight | 9850 kg | ||
GVW | 22000 kg | |||
Max. driving speed(km/h) | 90 | |||
Engine | Model | 6UZ1-TC model 380HP, Diesel type | ||
Brand | ISUZU | |||
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
Emission Standard | Euro 5/6 | |||
Transmission | FAST 12 speed | |||
Displacement | 9.839L | |||
Clutch | Reinforced diaphragm clutch φ430 |
|||
Suspension | Mechanical suspension | |||
Steering Gear | Power steering, hydraulic steering with power assistance | |||
Brake system | Dual circuit compressed air brake | |||
Cab | ISUZU Standard cabin, single cabin | |||
Tire | 12.00R20, 6pcs + 1 spare | |||
Upper Standard Equipment--- Telescopic type boom | ||||
Equipment | 1.Equipped with working bucket, hook, 4 H-type hydraulic outriggers, | |||
2.Equipped with three folded arms, 360 slewing, hydraulic control, on the truck/under the truck operating. | ||||
Upper Technical parameters |
1.Max operation: height: 20 m | |||
2.Max operation rotation angle 360°. | ||||
3.Max working platform height>=18.3 m, | ||||
4.Working platform rating loading≤ 200kg, | ||||
5.Working platform rating allowable passengers=2 | ||||
6.Working platform dimension:1000*650*1200 mm, | ||||
7.Degree of the overturn:360°turning(left or right) | ||||
8 Standing Legs: H model , 4 pcs, controlled by hydraulic system | ||||
Speed | 0-2 r/min | |||
Turntable tail-suing | 355 non-continuous | |||
Controls | 12V DC Proportional | |||
Auxiliary power unit | 12VDC | |||
Hydraulic tank capacity | Standard as the height. |
1、Max Lifting Height 16m
2、Min. Working radius 10m
3、Bucket Loading Capacity 200kg
4、First Arm/Boom Lifting Angle 0°~70°
5、Second Arm/Boom Lifting Angle 0°~67°
6、Third Arm/Boom Lifting Angle 0°~90°
7、Slewing Angle 360°
8、Slewing speed ≤180°/min
9、Max Hoist Capacity 1000kg
10、Second Arm/boom lifting speed 0.08~0.15m/s
11、First Arm/boom lifting speed 0.20~0.25m/s
12、Hoist speed 0.15~0.20m/s
13、Arms Type Three arms folded
14、 Main Measurements
Overall Dimension 8000×2500×3800mm
Wheelbase 4600 mm
15、 Weights Information
G.V.W 21000 kg
N.V.W 9800 kg
16、 Performance Characteristics
Chassis Model QL5210TZZU2ADRY
Seats Nos. 2 people Allowed
Max Speed (Limited) 100Km/h
