Isuzu Giga crane truck is a heavy-duty commercial vehicle that is specifically designed for lifting and transporting heavy loads. With a maximum lifting capacity of several tons, this truck is equipped with a high-powered crane that can handle various tasks in industries like construction, shipping, and logistics.
The Isuzu Giga crane truck is built with a sturdy chassis and a heavy-duty suspension system to ensure stability and durability, even when carrying heavy loads. Its powerful engine provides ample torque for efficient and smooth operation, while the advanced transmission system enables seamless shifting between gears.
Work capacity:
16 tonsTruck model:
PT5250JSCEngine power:
420 HPEngine type:
ISUZU 6WG1Axle drive:
6x4Gear box:

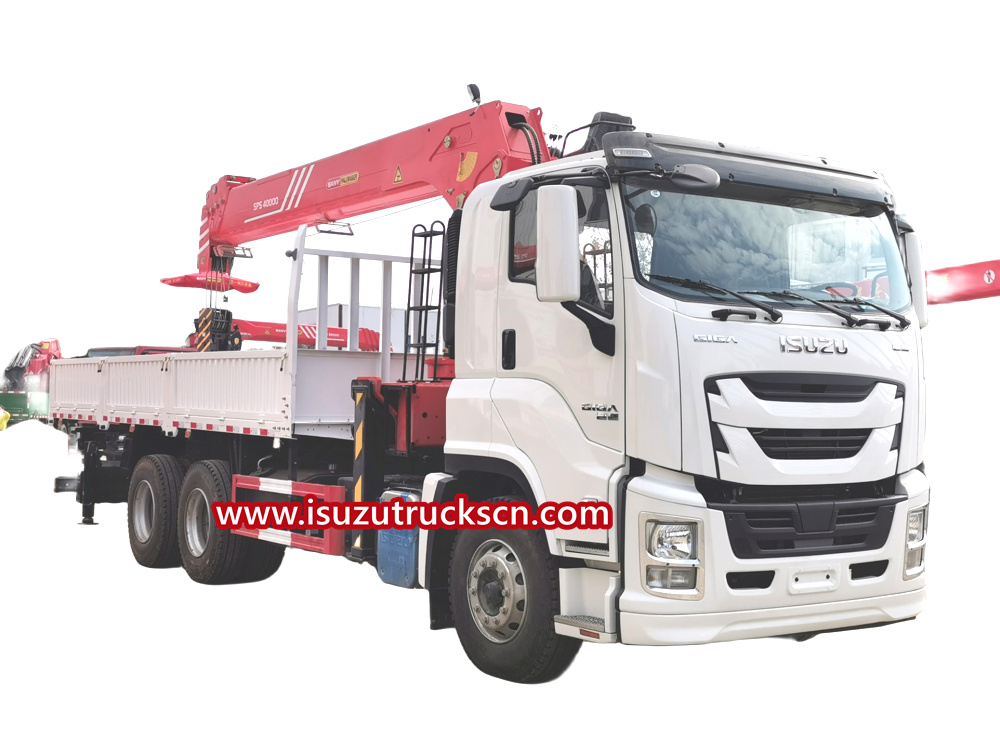

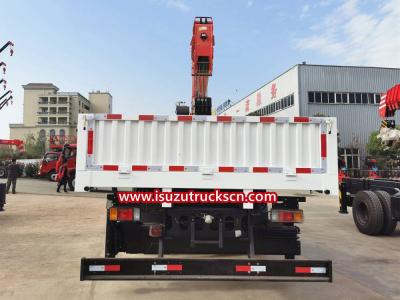

FAST 9-shiftThe Cambodia 16-ton Isuzu Giga boom crane truck with the SPS40000 is a heavy-duty and versatile vehicle designed for various lifting and transportation needs. This powerful truck combines the reliable Isuzu Giga chassis with a high-performance boom crane, making it an ideal choice for construction, logistics, and other industries requiring efficient and reliable lifting capabilities.
2. Features:
- Strong Lifting Capacity: The Isuzu Giga boom crane truck is equipped with the SPS40000 boom crane, which has a robust lifting capacity of 16 tons. This allows for the safe and efficient lifting and handling of heavy equipment, containers, materials, and more.
- Advanced Control System: The boom crane Isuzu is equipped with an advanced control system that ensures smooth and precise movements. Operators have access to user-friendly controls, allowing them to handle lifting operations safely and accurately.
- Sturdy and Reliable Chassis: The Isuzu Giga chassis is known for its durability and reliability. It provides a strong foundation for the boom crane truck, ensuring stability and performance even in challenging terrains and demanding work environments.
3. Advantages:
- Enhanced Productivity: The Cambodia 16-ton Isuzu Giga boom crane truck improves productivity by combining lifting and transportation functions into a single vehicle. This eliminates the need for separate equipment and reduces time and effort, resulting in increased efficiency and cost savings.
- Versatile Application: The Isuzu Giga boom crane truck's versatility makes it suitable for various applications, including construction sites, warehouses, shipping yards, and more. It can lift and transport heavy loads, making it an essential asset for industries requiring efficient and reliable lifting solutions.
- Superior Safety Features: The Isuzu Giga boom crane truck prioritizes safety with features such as anti-sway systems, emergency stop buttons, and overload protection mechanisms. These ensure the safety of operators and bystanders during lifting operations.
- Comprehensive After-sales Service: Customers can rely on comprehensive after-sales service for the Cambodia 16-ton Isuzu Giga boom crane truck. This includes regular maintenance, servicing, and technical support to ensure optimal performance and minimize downtime.
4. Application:
The Cambodia 16-ton Isuzu Giga boom crane truck with the SPS40000 is versatile and well-suited for various lifting and transportation needs. It is commonly used in construction projects, logistics operations, container yards, and other industries that require efficient and reliable heavy lifting capabilities.
ISUZU GIGA 10 Wheels 16Ton Hydraulic Mobile Straight Boom Arm Crane Truck With High Position Seat For Heavy Duty Equipments Delivery
Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
| General Technical Parameters | |||
| Overall Dimension | 11980×2500×3980 (mm) | ||
| Gross Vehicle Weight | 24900(Kg) | ||
| Curb Weight | 15800(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | ISUZU | ||
| Drive model | 6*4 | ||
| Cabin | Double, Left Hand Driving, with air conditional | ||
| Number of Passengers | 3 | ||
| Engine | Model | 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR | |
| Power | 308KW/420HP |
||
| Emission standard | EURO 4 | ||
| Displacement | 8300(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 9Forwards & 1Reverse | ||
| Brake System | Air break | ||
| Wheel Base | 4600+1400 mm | ||
| Front/Rear Axle Loading | 8000/11500(Kg) | ||
| Approach/Departure Angle | 23/12(°) | ||
| Overhang | 1250/3545(mm) | ||
| Tire | 11.00R20 | ||
| Max Driving Speed | 90(km/h) | ||
| Upperstructure Specification | |||
| Cargo Body | Dimension | 8600×2300×550(mm) | |
| Material | Q235 carbon steel | ||
| Cargo Thickness | Side 1.5mm, Bottom 2.5mm | ||

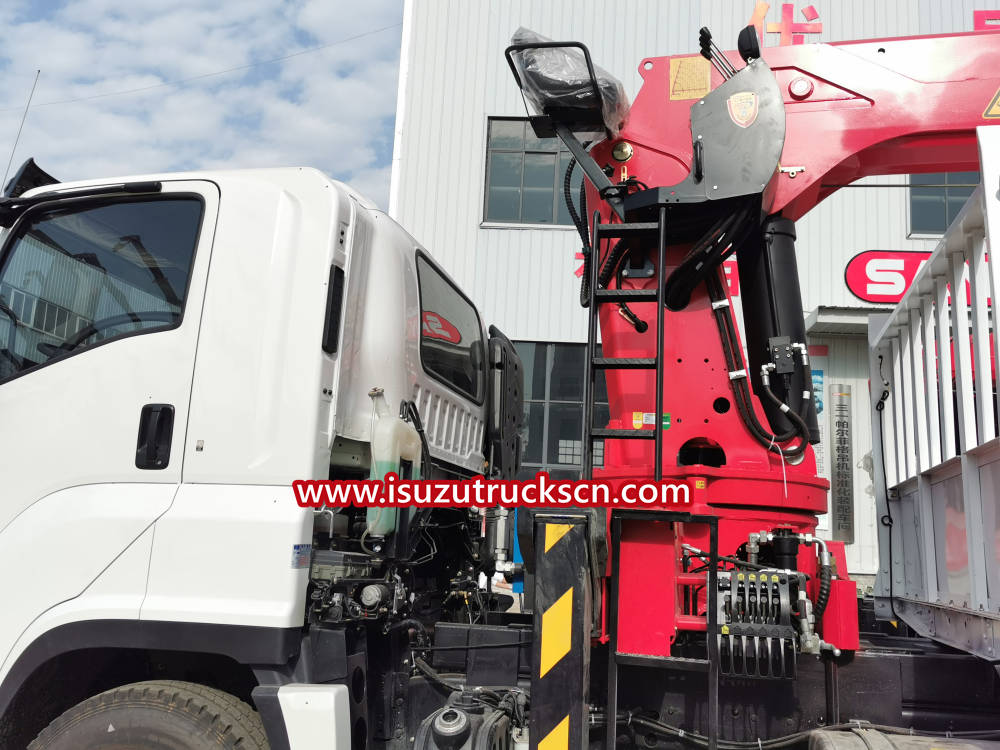

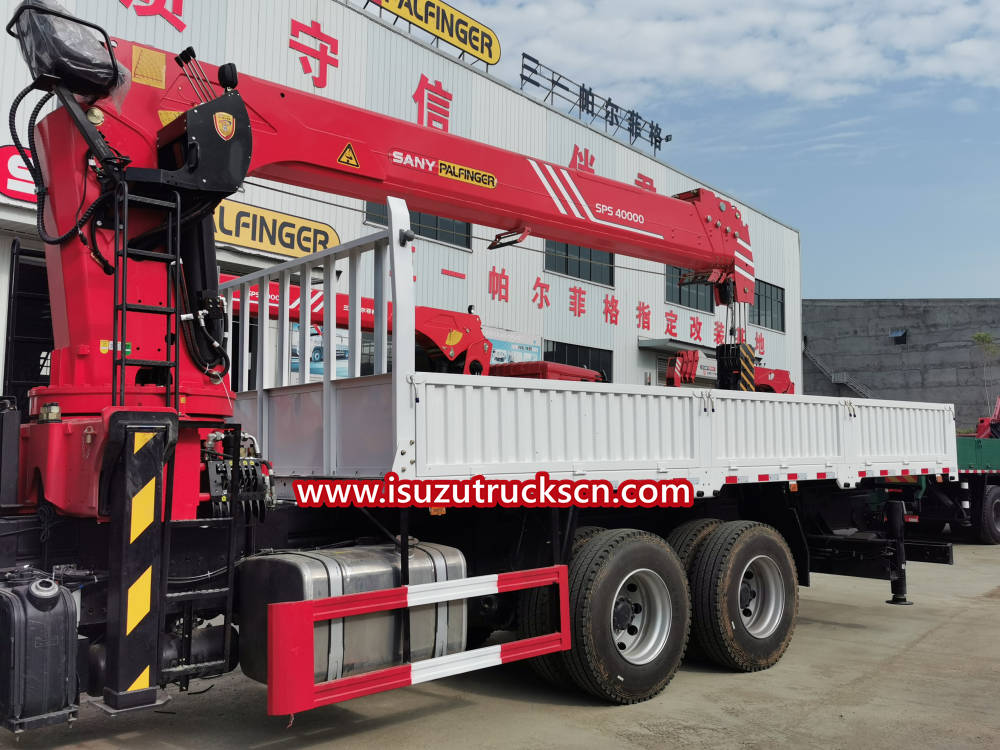

| Working System | Boom Type | Straight 4-Arm telescopic boom | |
| Crane | Crane Brand | SANY Palfinger | |
| Range of Sprayer | 30m | ||
| Max Lifting Moment | 25(T.M) | ||
| Max Lifting Capacity | 16000(kg) | ||
| Max lifting height | 12(m) | ||
| Rotation angle | 360(°) | ||
| Installation space | 1150(mm) | ||
| Recommented power | 30(kw) | ||
| Maximum working pressure | 26(Mpa) | ||
| Max Flow | 63(l/min) | ||
| Crane weight | 3800(kg) | ||
| Oil tank capacity | 160(L) | ||

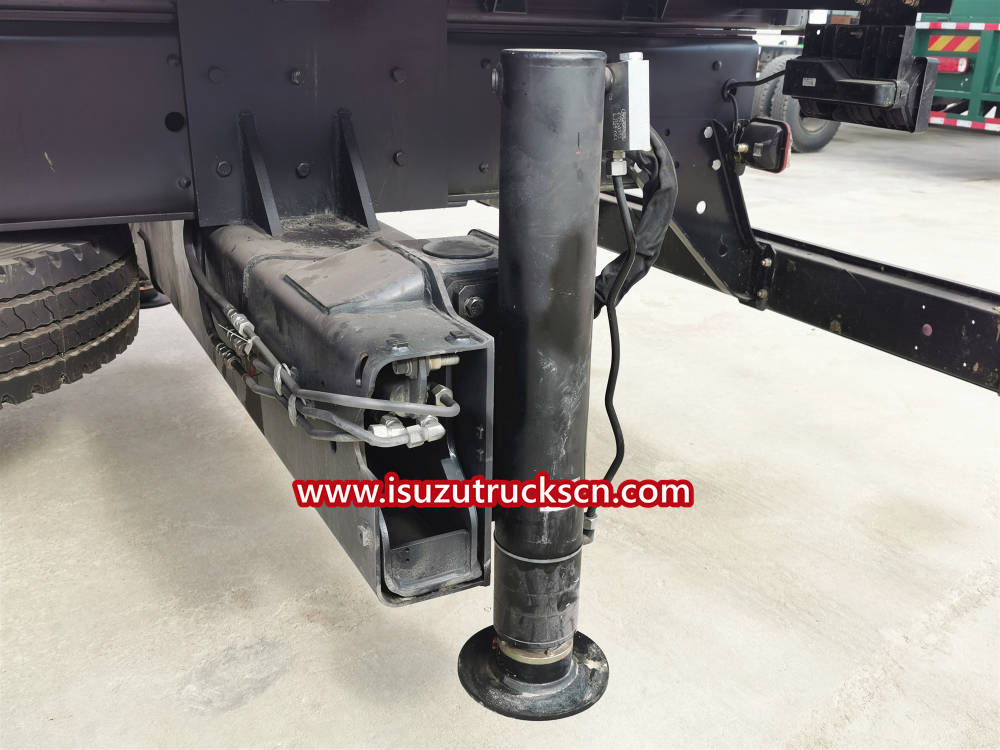

| Leg | Leg type | H type | |
| Leg Span | 2.28-5.9(m) | ||
| Hydraulic system | Pressure | 18(M pa) | |
| Capacity | 70(l) | ||
| Other Configuration | Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc. | ||
| Options | Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc. | ||
5. After-sales Service:
Comprehensive after-sales service is provided for the Cambodia 16-ton Isuzu Giga boom crane truck. This includes regular maintenance, servicing, and technical support to ensure optimal performance and minimize downtime. Customers can expect prompt assistance and spare parts availability to keep the vehicle in peak operating condition.
6. FAQ:
- Can the boom crane be operated remotely?
Yes, the Isuzu Giga boom crane truck can be operated remotely for increased safety and efficiency during lifting operations.
- What is the maximum boom reach of the SPS40000 boom crane?
The maximum boom reach of the SPS40000 boom crane typically extends to X meters, allowing for efficient lifting in different job site scenarios.
- Is operator training provided for operating the boom crane truck?
Yes, comprehensive operator training is provided to ensure safe and efficient operation of the boom crane truck. This includes proper handling, safety protocols, and maintenance guidelines.
- Can the upper body of the boom crane truck be customized?
Yes, the upper body of the Isuzu Giga boom crane truck can be customized to meet specific customer requirements. Additional features, storage compartments, or hydraulic systems can be incorporated to enhance functionality and convenience.
 |
 |
 |
 |
7. Upper Body Customization:
The upper body of the Isuzu Giga boom crane truck can be customized according to specific customer needs. Additional features, such as specialized storage compartments, hydraulic systems, or other equipment mounts, can be added to enhance functionality and versatility.
8. Truck Chassis Choice:
Customers have the option to choose the Isuzu Giga chassis that best suits their requirements. Different options in engine power, payload capacity, and additional features provide flexibility in selecting the most suitable truck chassis base for their specific lifting and transportation needs in Cambodia..
